Timken 5208K Double Row Angular Contact Bearing – 40mm ID x 80mm OD x 30.2mm Width – New

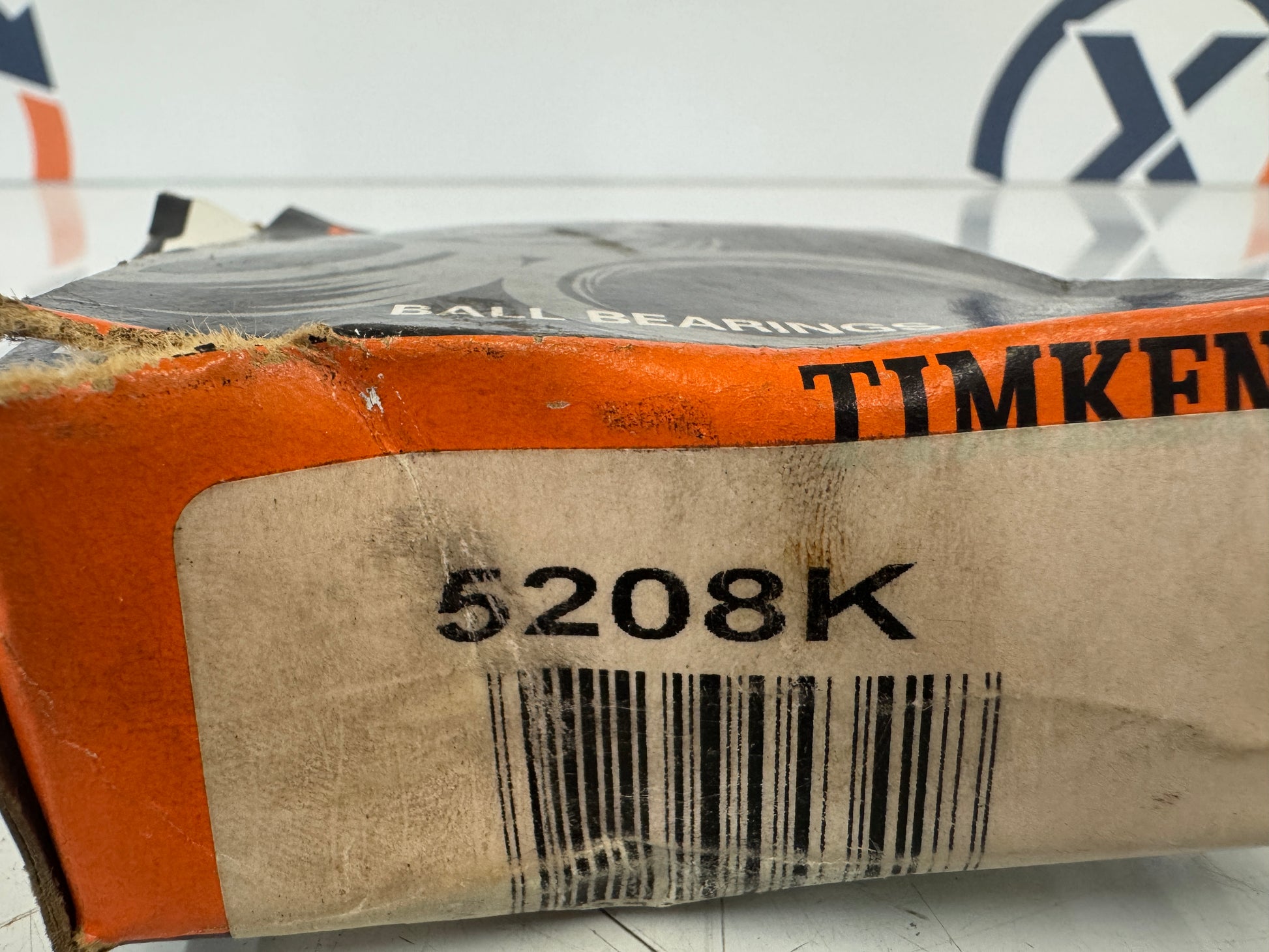

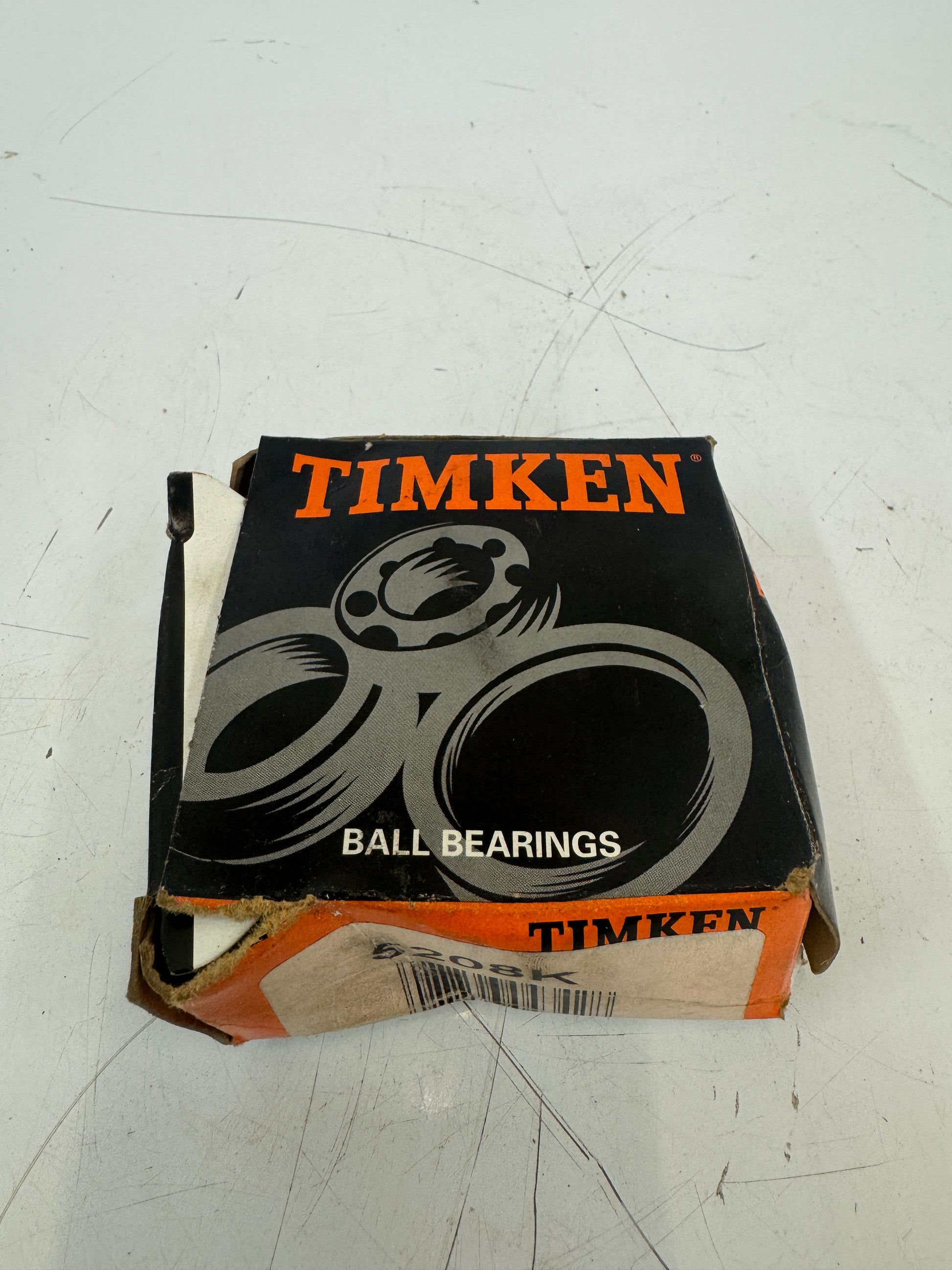

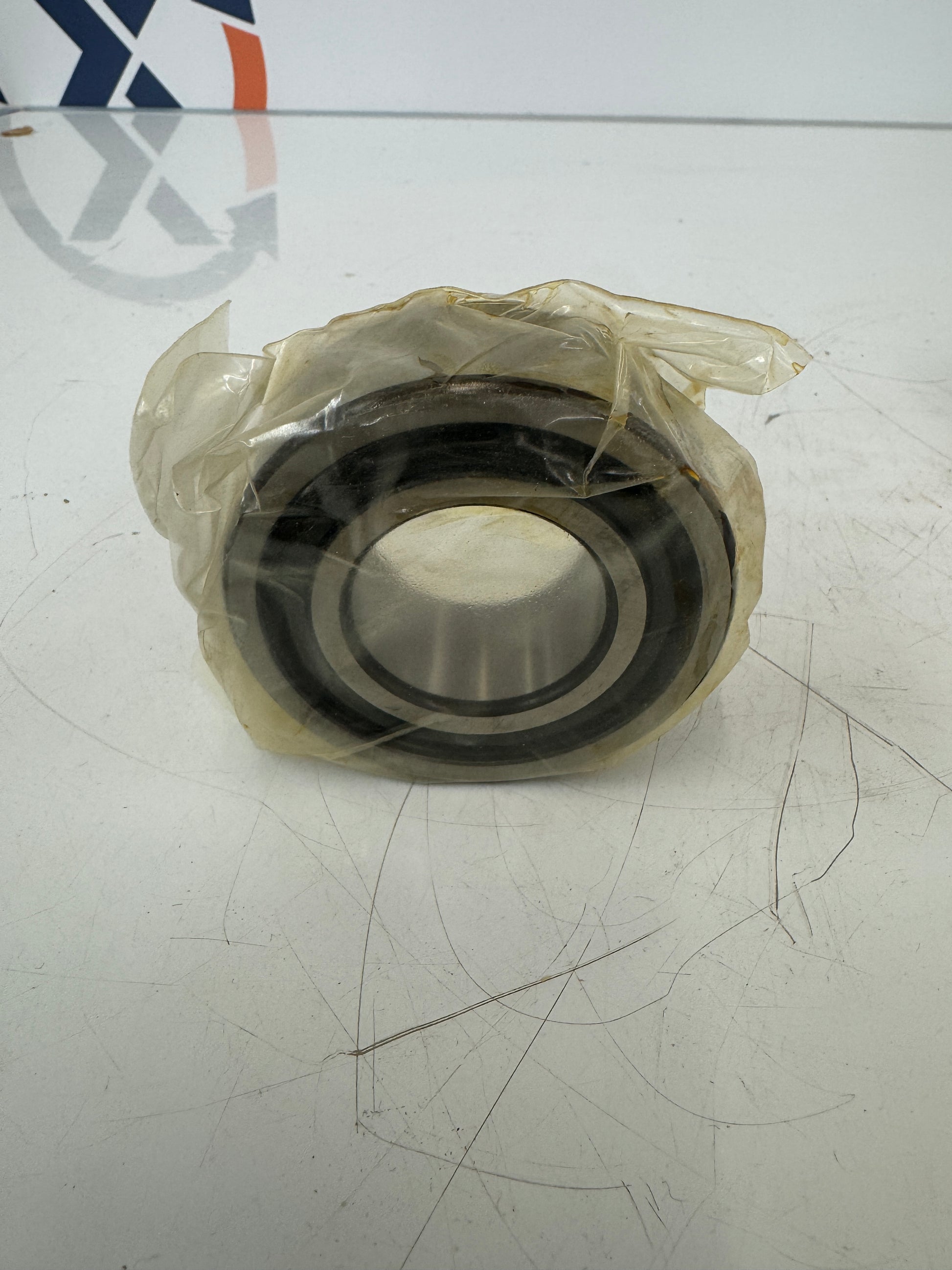

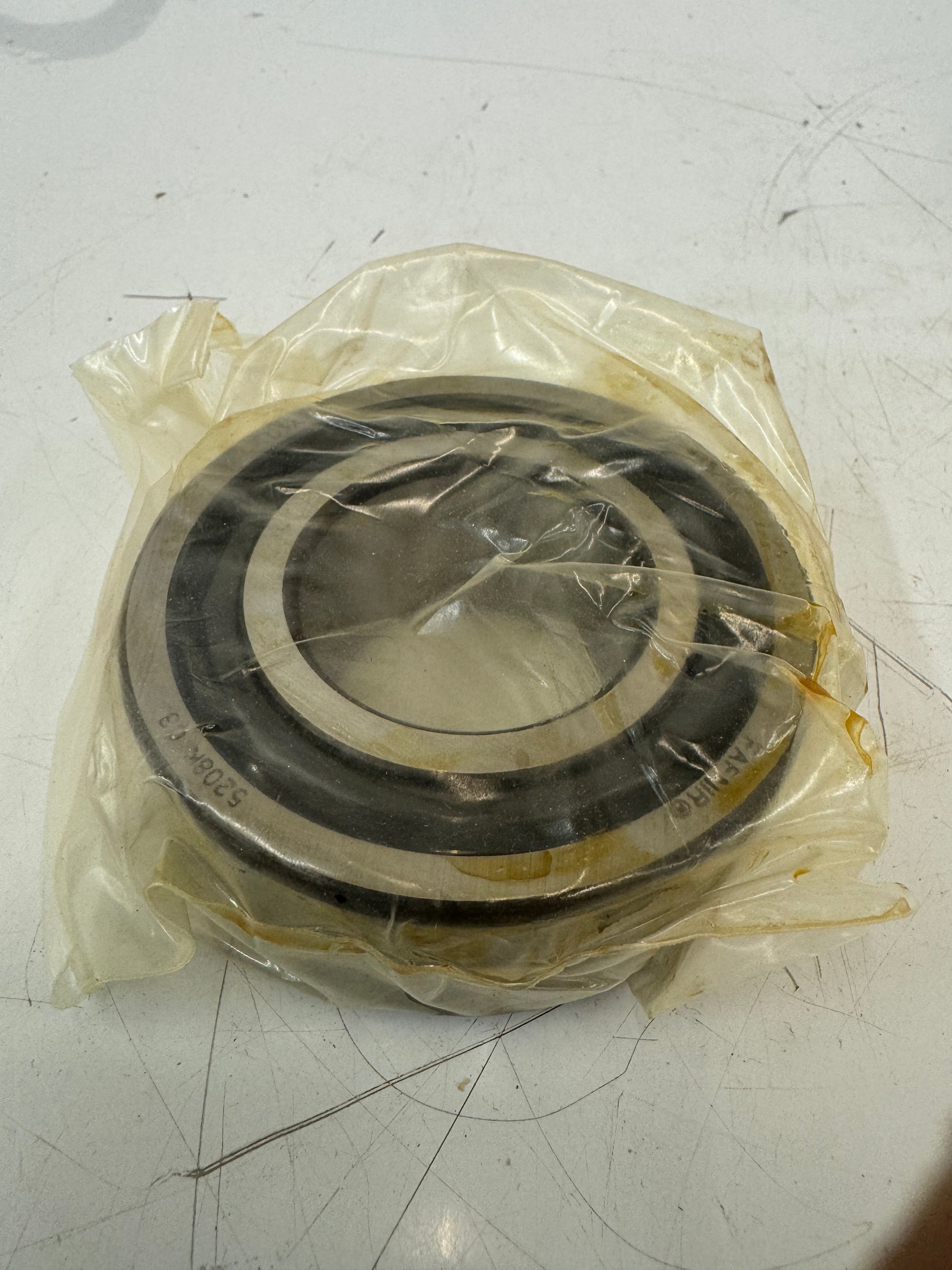

The Timken 5208K is a double row angular contact ball bearing from the Fafnir 5200 Light Series, supplied here in its original Timken Ball Bearings box. This unit carries a 40 mm bore, 80 mm outside diameter, and 30.2 mm (1-3/16 in.) ring width, with two rows of balls arranged at a 20 degree contact angle to support combined radial and bidirectional thrust loads. The conrad style construction allows the bearing to accommodate axial loads in either direction without the need for a duplex pairing, and the open closure with no snap ring enables in place lubrication and heat dissipation. Published ratings for the 5208K include a dynamic load capacity of 10,500 lb (radial) and a static load capacity of 7,650 lb, with a maximum operating speed of 5,000 RPM and a service temperature range of minus 50 to 120 degrees C. The steel cage spaces the rolling elements for reduced friction and noise across the load envelope. Typical applications for the Fafnir 5200 Light Series include electric motors, pumps, gear drives, fans, blowers, conveying equipment, and general industrial machinery where space is limited and average combined loads are present. MPN 5208K is widely cross referenced under Timken and Fafnir branding and is interchangeable with equivalent OEM callouts from other major bearing manufacturers in the 5208 size class. UPC 087796043428 corresponds to this part number.

Stock # 0226-226
