Timken Ball Bearing W305PP 25 x 62 x 25 mm
Timken Ball Bearing W305PP 25 x 62 x 25 mm
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:

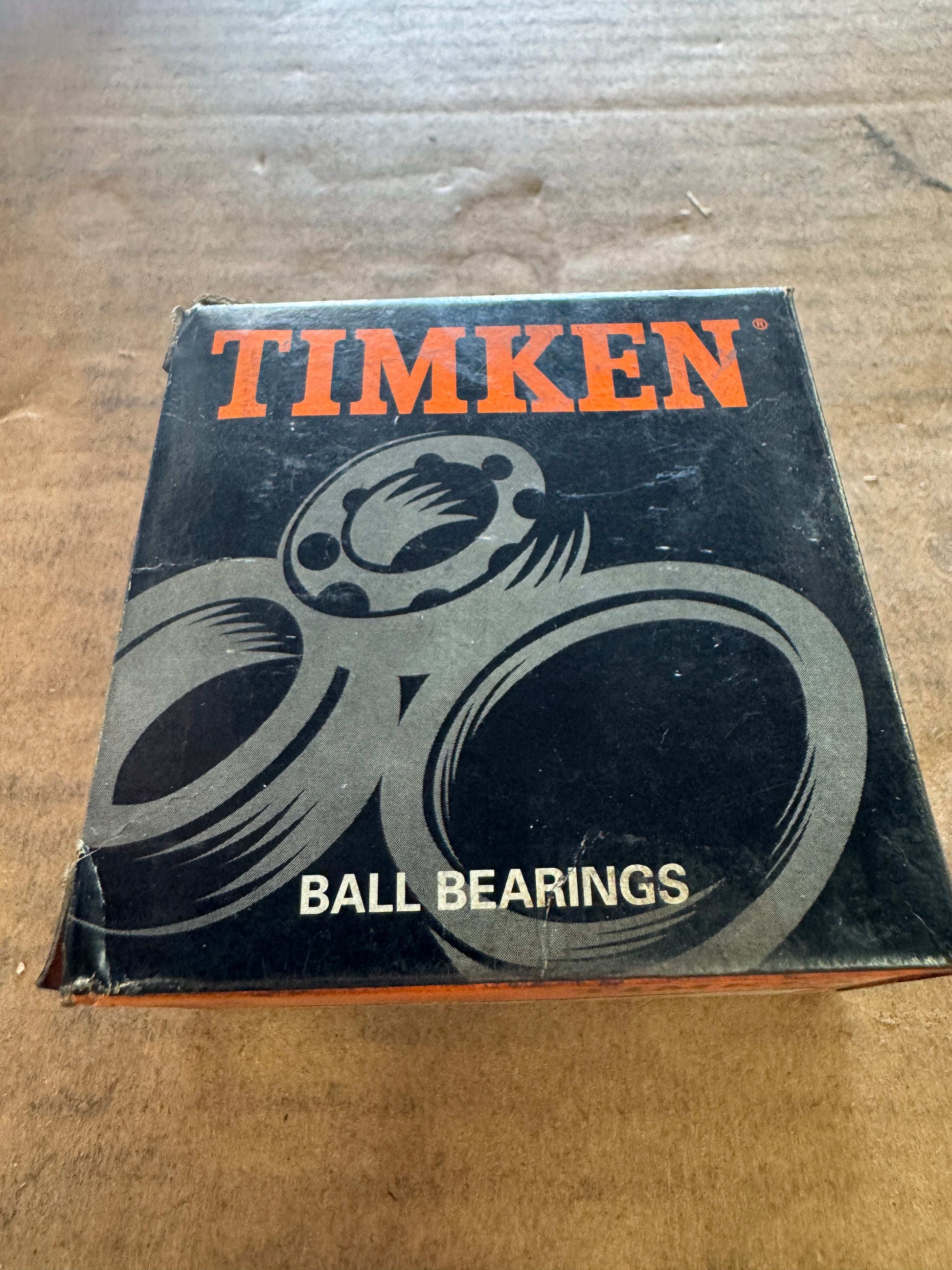

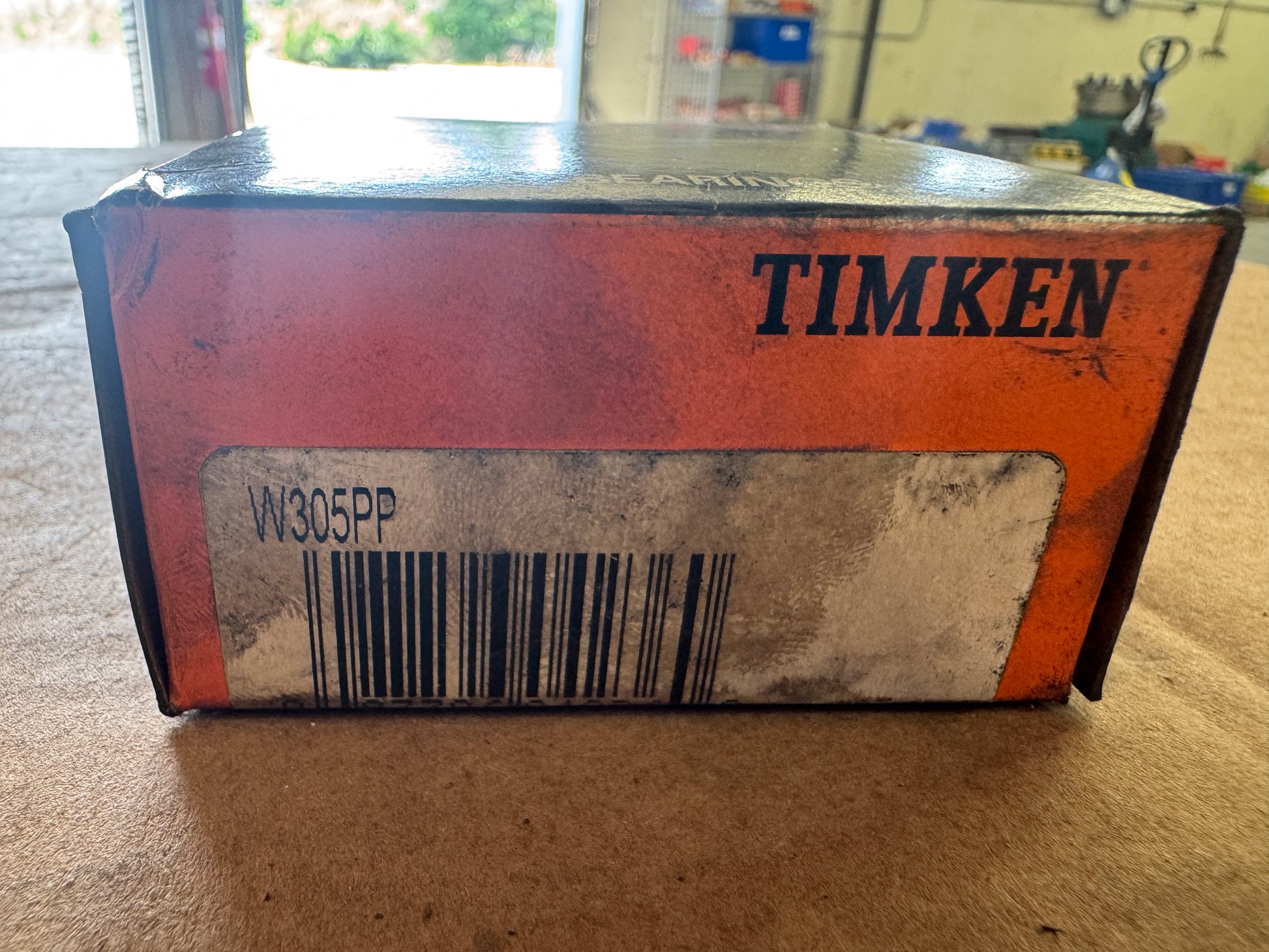

Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: W305PP
Stock #: 0626-01444
Product Specifications
- Manufacturer: Timken
- MPN / Model: W305PP
- Product Type: Deep Groove Radial Ball Bearing
- Series: Fafnir W300
- Bore Diameter: 25 mm
- Outer Diameter: 62 mm
- Width: 1 In. (25 mm)
- Configuration: Single-Row, Double-Sealed
- Seal Type: Rubber, Both Sides
- Snap Ring: None
- Internal Clearance: C3
- Dynamic Radial Load Capacity: 6,000 Lb
- Static Load Capacity: 2,750 Lb
- Cage Material: Steel
- Alternate Reference: W305PP Z22-P FS50000
- Stock Number: 0526-01444
Product Description
The Timken W305PP is a Fafnir series deep groove radial ball bearing with a 25 mm bore diameter, 62 mm outer diameter, and 1 inch (25 mm) width. It is a single-row, double-sealed design with no snap ring, featuring rubber seals on both sides to retain factory-applied grease and exclude contaminants. The bearing carries a C3 internal clearance designation, indicating a looser-than-standard fit suited for applications involving temperature fluctuations or press-fit mounting conditions. Dynamic radial load capacity is rated at 6,000 lbs and static load capacity at 2,750 lbs. The steel cage evenly spaces the ball complement within the deep-groove raceway, supporting combined radial and axial loads from either direction. The W300 series is a wide-type bearing, providing additional axial support comparable in width to double-row designs. Common applications include electric motors, agricultural machinery, conveying equipment, pumps, and general industrial machinery requiring a compact, sealed bearing in the 25 mm bore range. The W305PP is manufactured to ISO dimensional standards and is interchangeable with equivalently specified bearings from other manufacturers. MPN W305PP is also referenced in distributor catalogs as W305PP Z22-P FS50000. The item is in its original Timken box.
