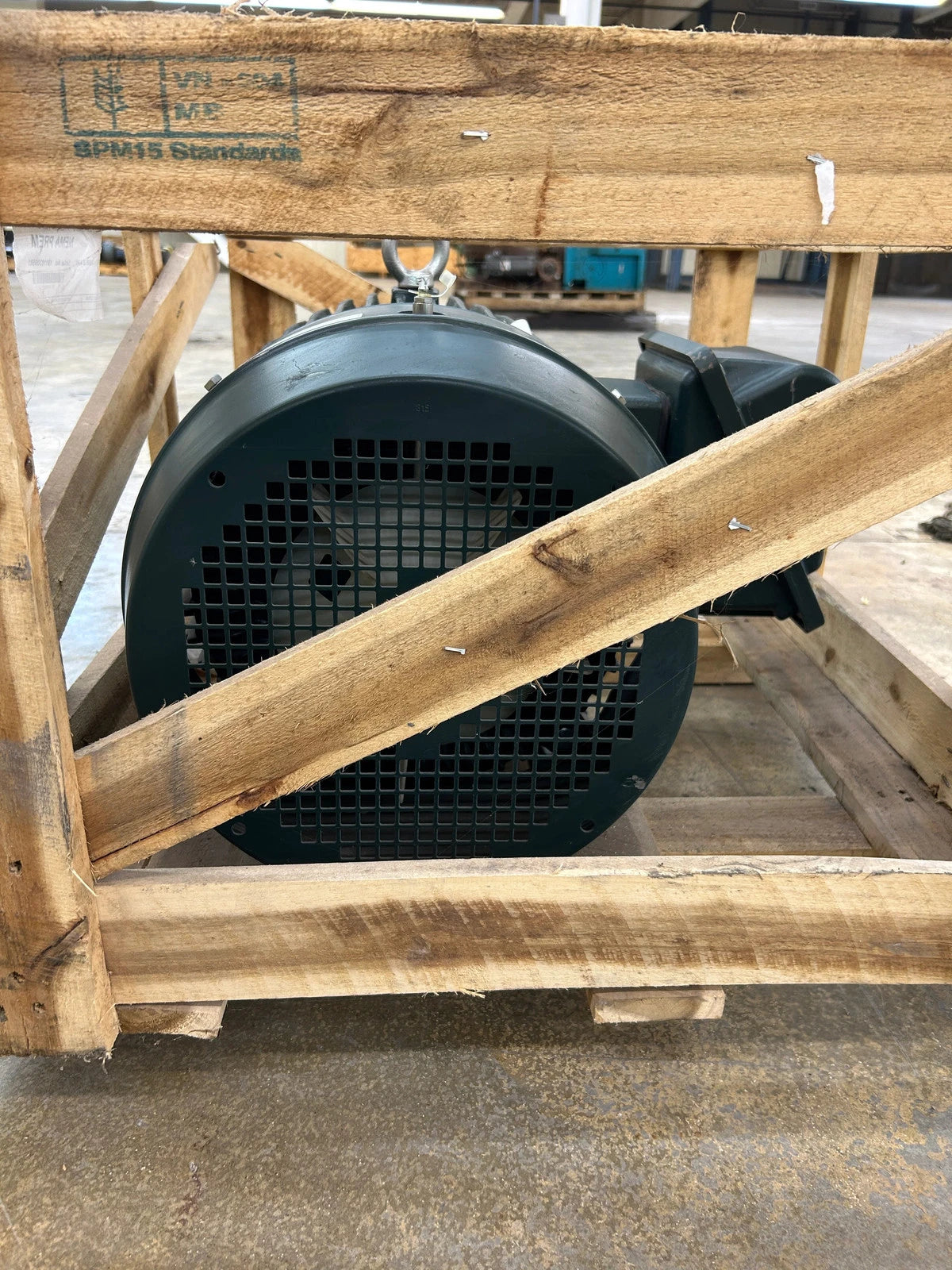

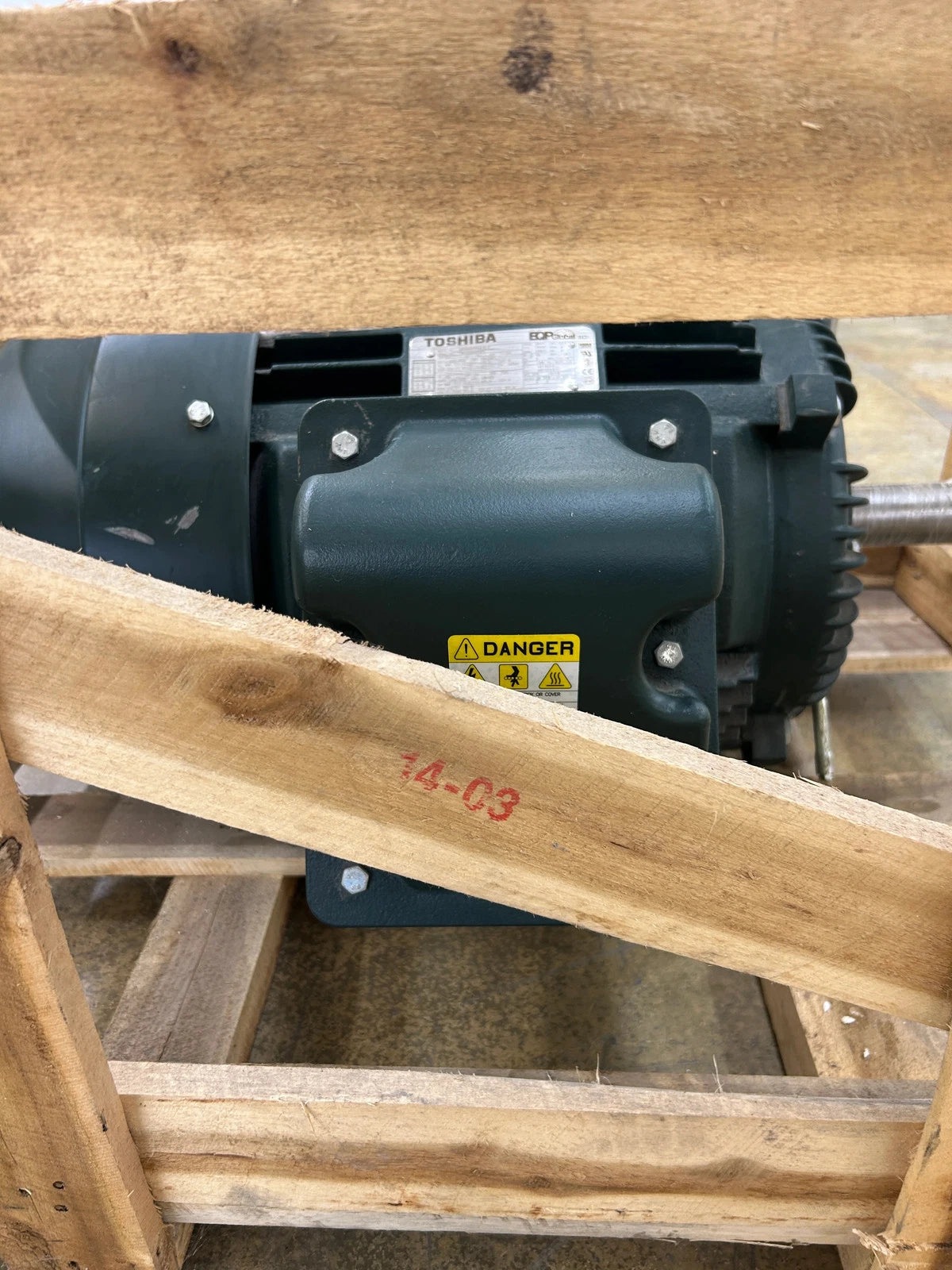

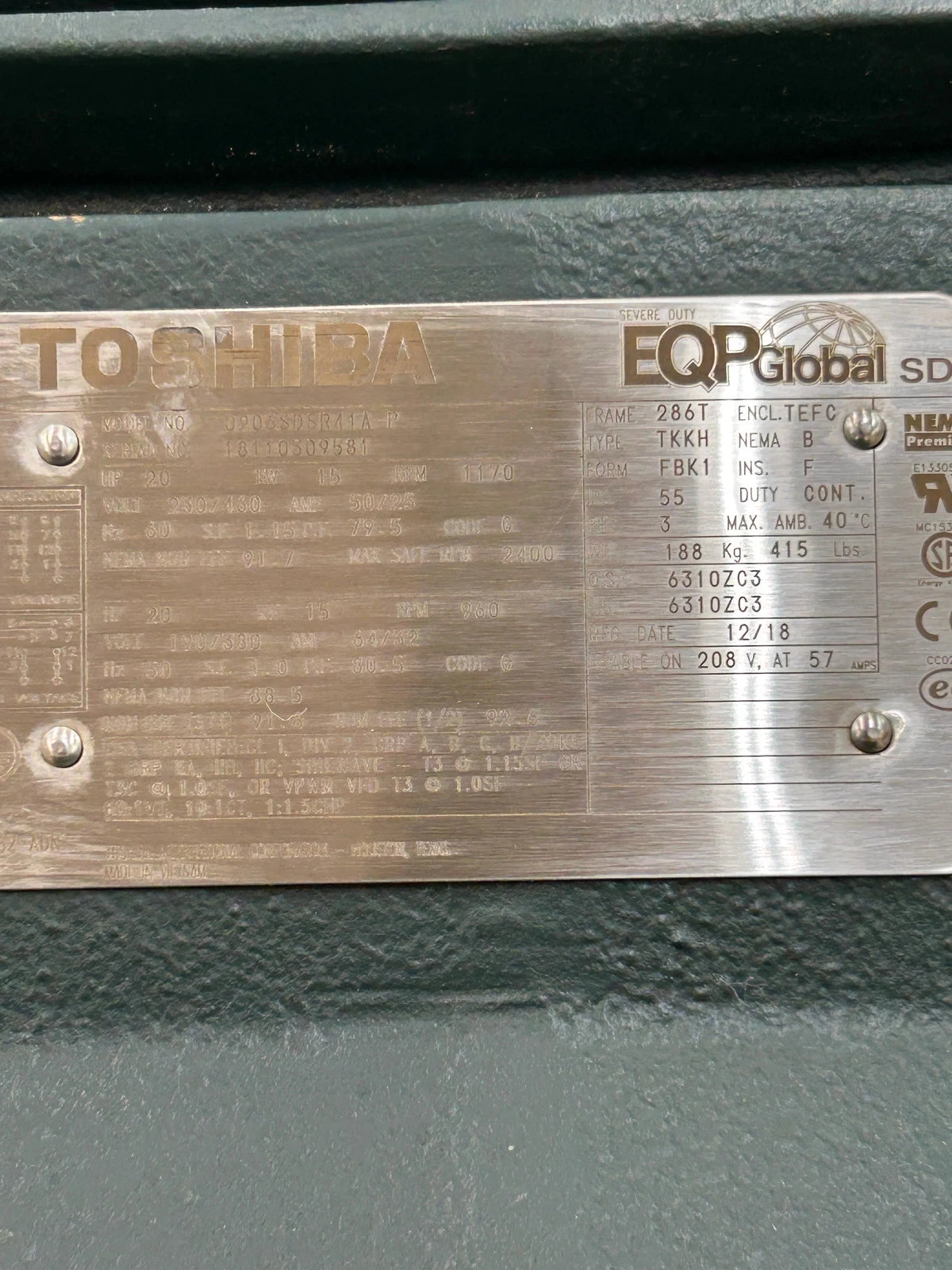

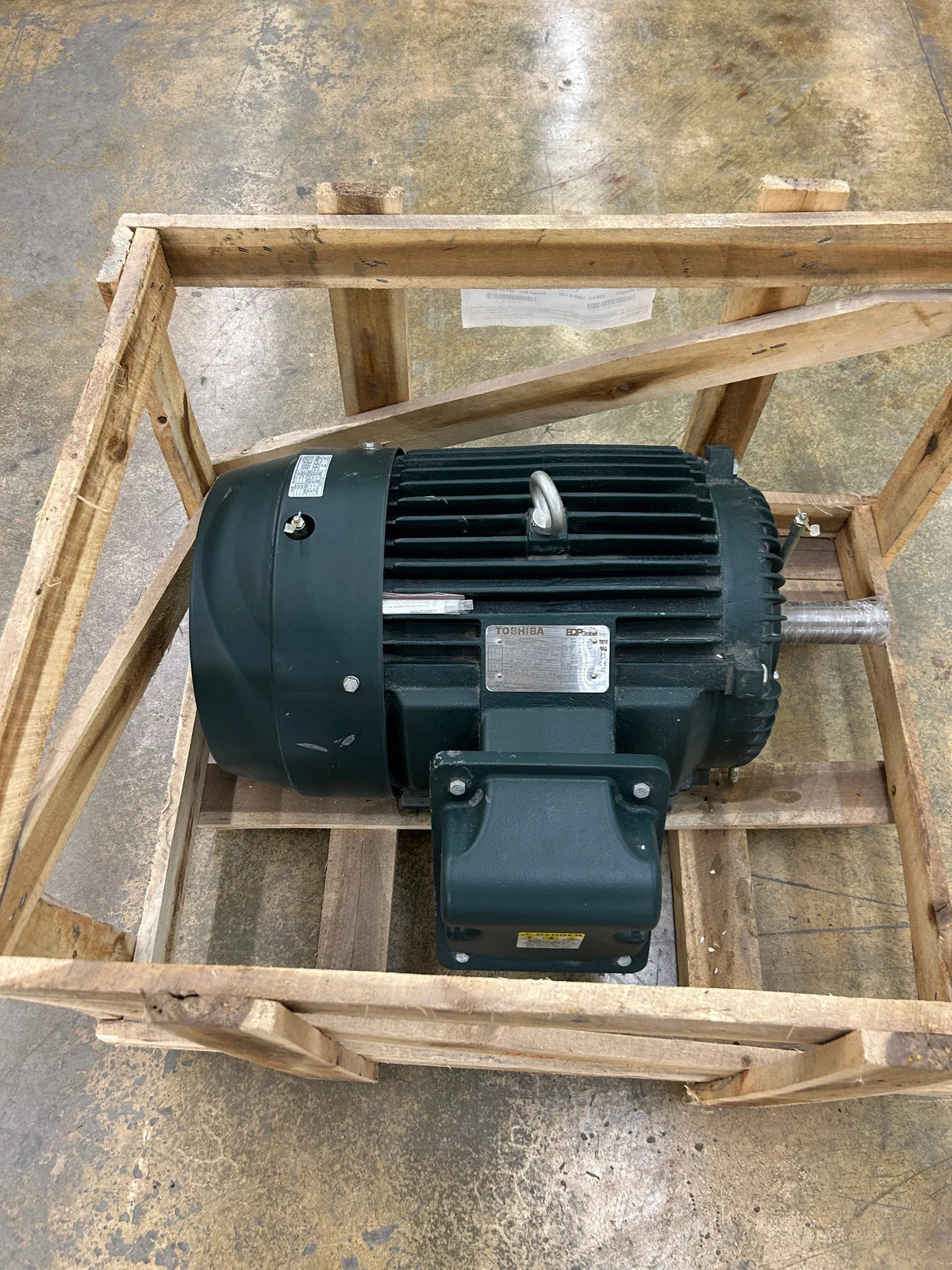

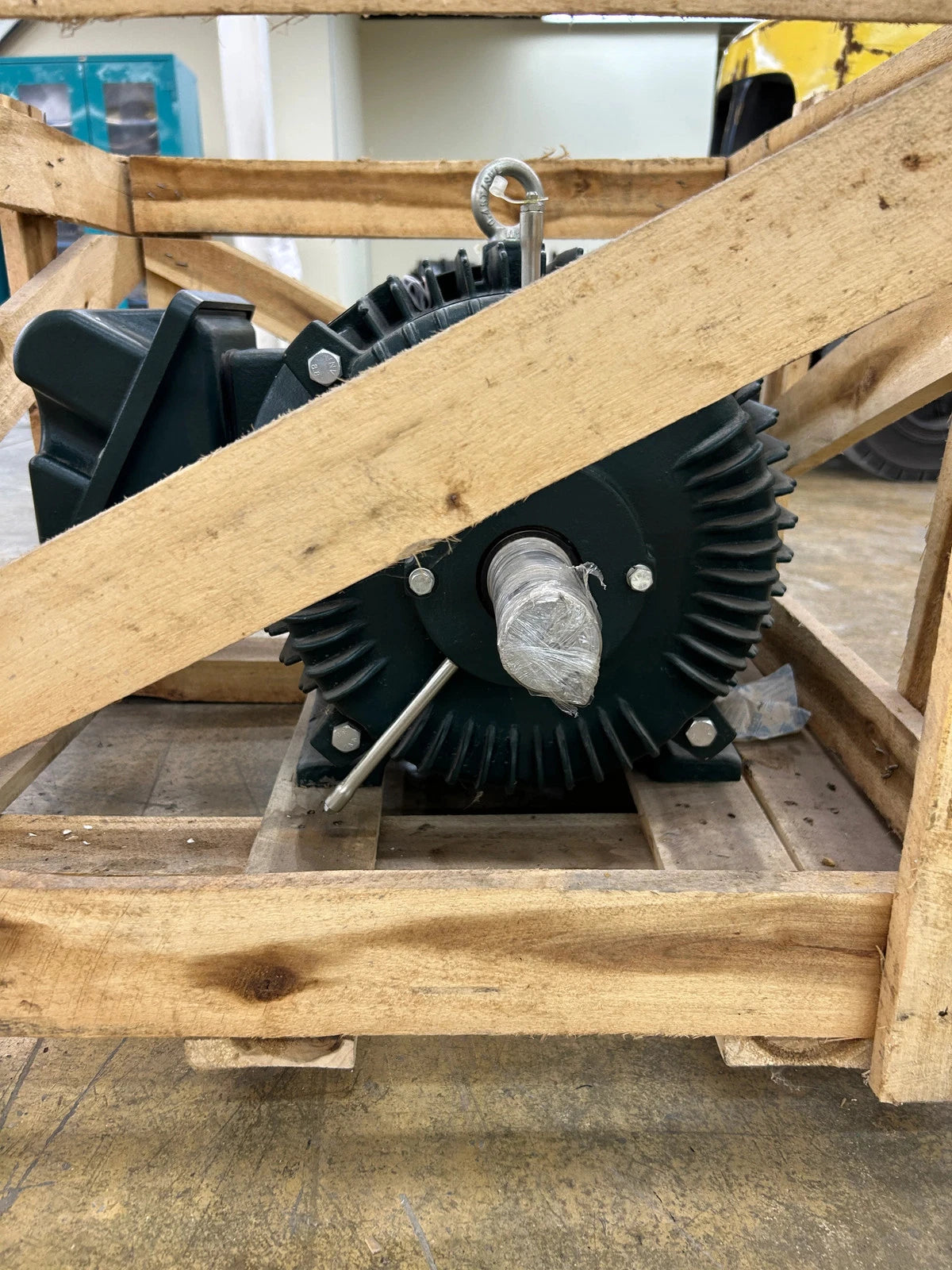

Toshiba EQP Global SD severe duty AC induction motor, model 0203SDS R17A-P, NEMA catalog number 100E0309561E. The motor is rated 20 HP at 1770 RPM on 60 Hz power and 15 HP at 1760 RPM on 50 Hz power. Voltage is 230/460V on 60 Hz and 190/380V or 220/380V on 50 Hz. Full load amps are 50/25 at 60 Hz and 64/32 or 54/27 at 50 Hz. The frame is NEMA 286T, enclosure is TEFC, insulation class is F, and the design is NEMA B. The motor carries a Severe Duty rating and is part of the Toshiba EQP Global SD premium efficiency series. Bearings are 6310ZC3 front and rear, with a manufacturing date of 12/18. The unit weighs 188 kg per the nameplate (415 lbs) and is palletized in a wooden crate. Phase count is 3, maximum ambient temperature is 40 degrees C, and duty is continuous. The motor carries UL, CE, and CSA certifications. This motor is suited for industrial pump, compressor, conveyor, and general purpose drive applications requiring severe duty TEFC construction.
Surplus inventory sold as described. Please review photos, specifications, and compatibility details carefully before purchase. Reach out with any questions prior to ordering.
