Toshiba VFD Transistor Inverter VFS9-4022PL-WN(1) - 3 HP Variable RPM

$399.00 USD

Sale Sold out

ConditionSurplus - Untested MPNVFS9-4022PL-WN(1) Stock #0626-01616

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 20.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Product Specifications

Manufacturer: Toshiba
MPN / Model: VFS9-4022PL-WN(1)
Product Type: VFD Transistor Inverter
Series: VF-S9
Input: 3PH 380/500V 50/60Hz, 8.4/7.5A, AIC 200000A
Output: 3PH 380/500V 0.5/400Hz, 5.5A, 4.2 kVA, 3 HP
Motor Protective Device: Class 10
Serial Number: 822316025018
Lot Number: 02F 220MY22
Assembled: Indonesia (major components from Japan)

Product Description

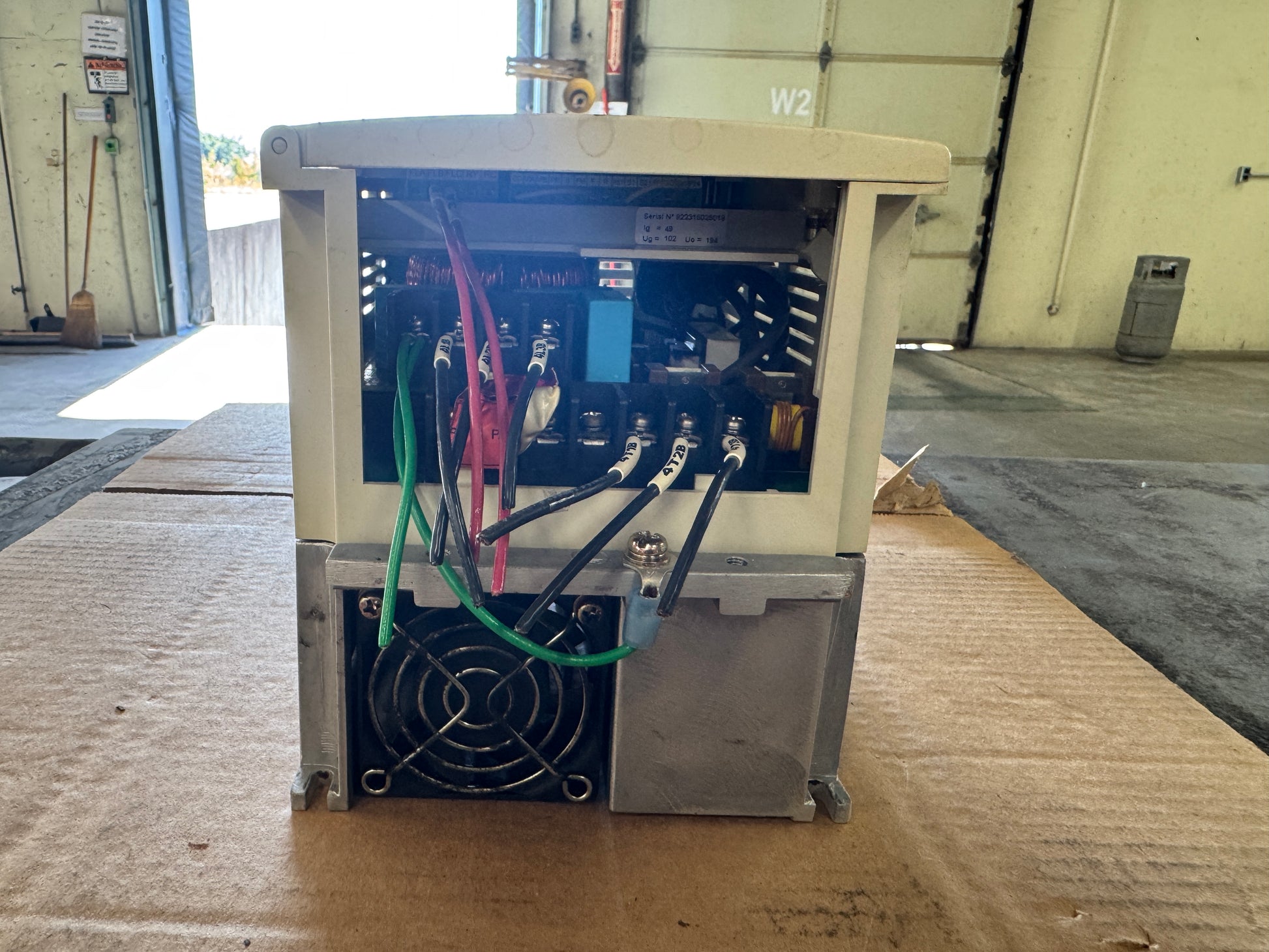

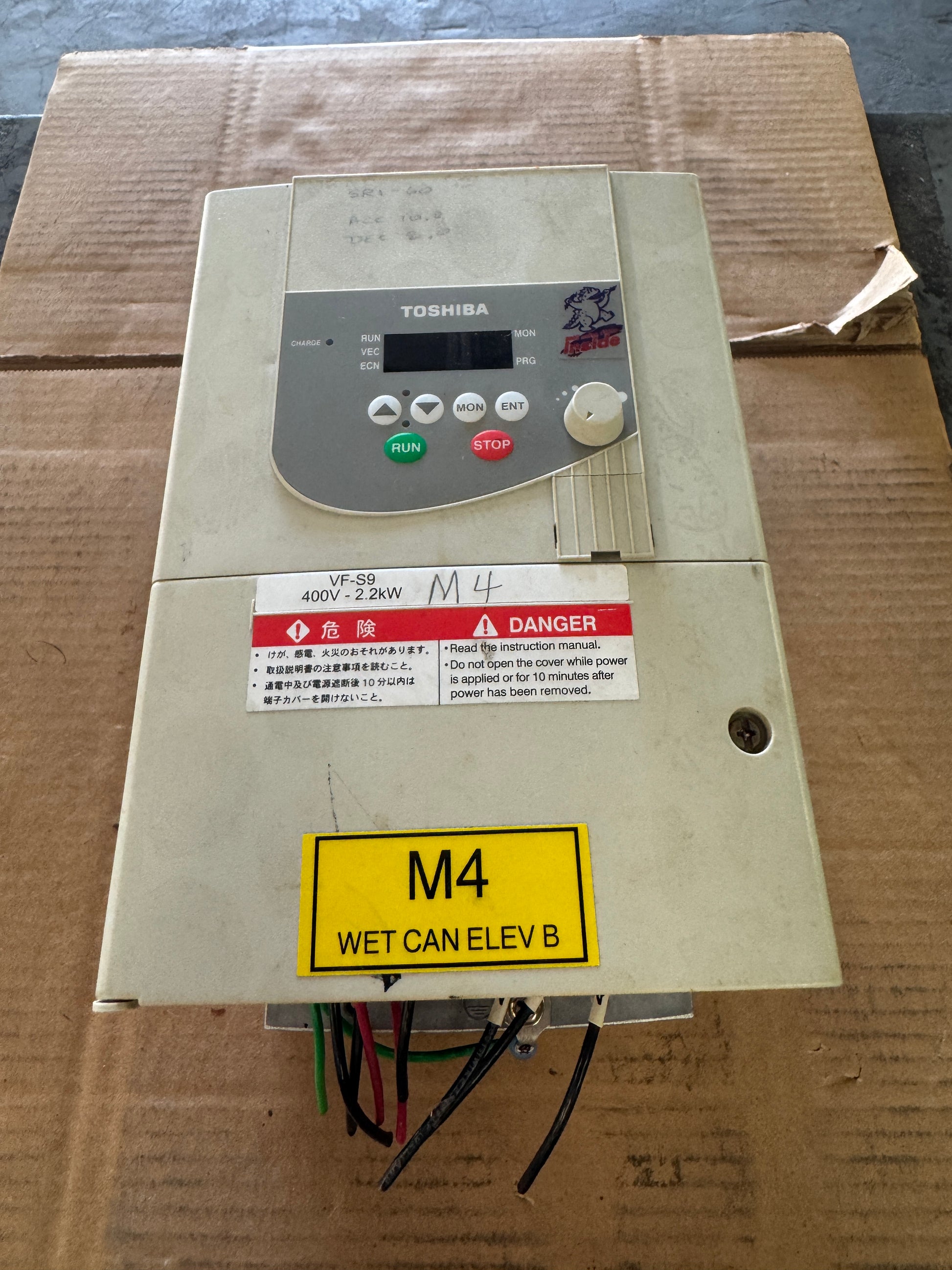

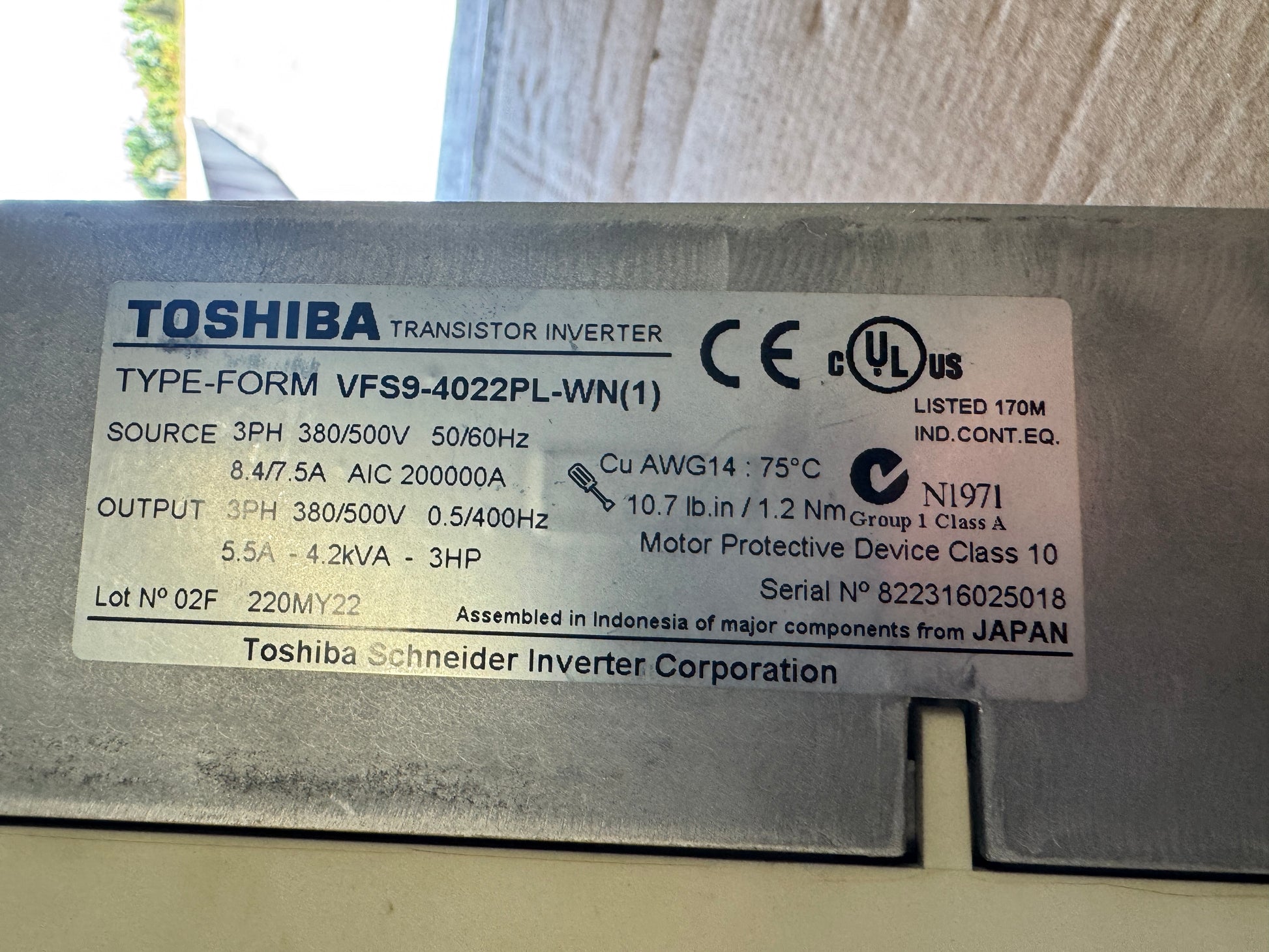

Toshiba VFS9-4022PL-WN(1) is a VF-S9 series transistor inverter rated at 3 HP (4.2 kVA) for three-phase motor control applications. The nameplate confirms input of 3PH 380/500V at 50/60Hz (8.4/7.5A) and output of 3PH 380/500V across a 0.5 to 400Hz frequency range at 5.5A. The unit is identified by MPN VFS9-4022PL-WN(1), serial number 822316025018. Photos show the front keypad panel with RUN/STOP controls and a label indicating VF-S9 400V 2.2kW. Radwell lists this MPN as discontinued by the manufacturer. The unit shows cosmetic wear consistent with prior field installation, including minor surface marks and wiring leads attached to the power terminals.

Stock # 0526-01616
