TR 4-Bolt Flange Bearing Unit UCF209-27 1-11/16 in. Bore, UCF209-27, 4-Bolt Square Flange
TR 4-Bolt Flange Bearing Unit UCF209-27 1-11/16 in. Bore, UCF209-27, 4-Bolt Square Flange
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: UCF209-27
Stock #: 0226-00701

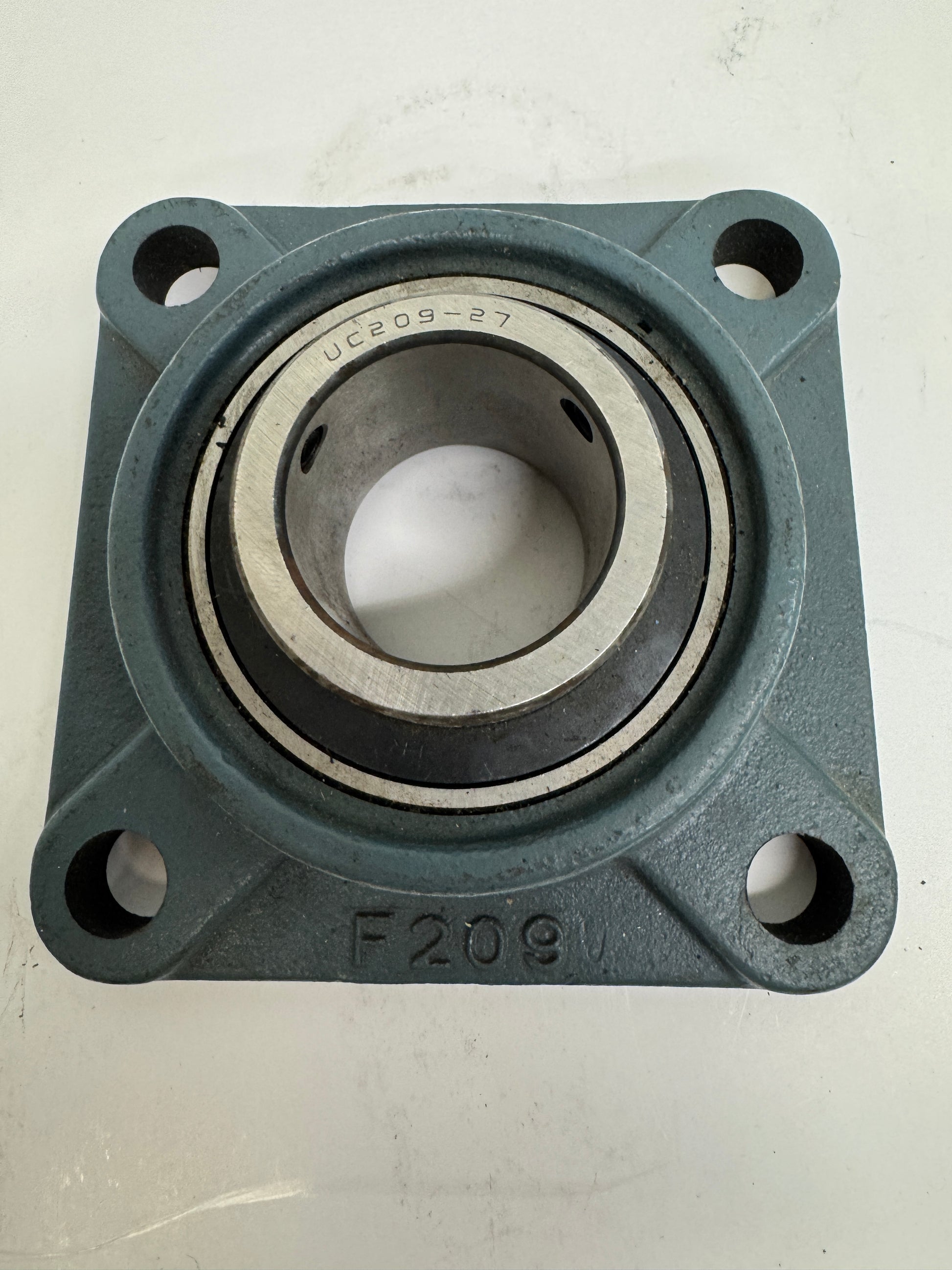

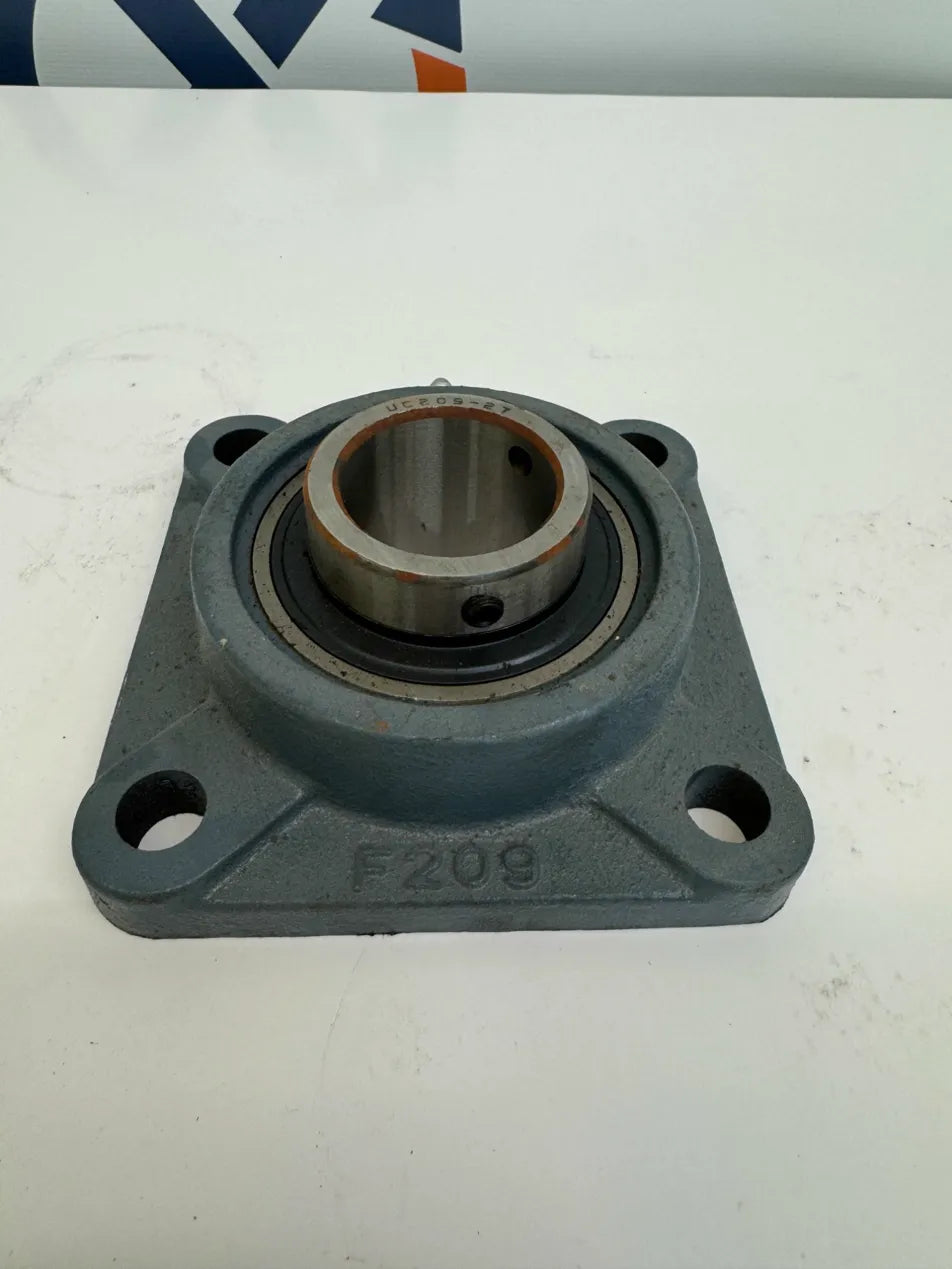

The TR UCF209-27 is a square 4-bolt flange mounted bearing unit with a 1-11/16 in. bore. The cast iron housing is marked F209 with the TR brand cast into the upper face, and the insert bearing is stamped UC209-27. The outer race of the insert is additionally marked CHINA. The unit uses a wide inner ring UC209-27 insert with two set screws on the extended inner ring for shaft attachment. A grease fitting port is present on the housing for field re-lubrication. The slinger-type contact seal is visible on the front face, and an anti-rotation pin prevents the insert outer ring from rotating within the housing. The bolt center distance is 4-1/8 in., and the housing accepts four 1/2 in. diameter mounting bolts. This unit is cross-referenced to Dodge F4B-SC-112, AMI UCF209-28, Browning VF4S-228, Link-Belt F3-U228N, NSK UCF209-28S, NTN UCF209-112T, and Sealmaster SF-1-3/4. Common applications include conveyor systems, agricultural equipment, HVAC assemblies, feed mills, and general industrial machinery.
Stock # 0226-701
