TR Bearing UCF211-32 4-Bolt Flange Bearing Unit – 2" Bore – New
TR Bearing UCF211-32 4-Bolt Flange Bearing Unit – 2" Bore – New
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: UCF211-32
Stock #: 0226-00213

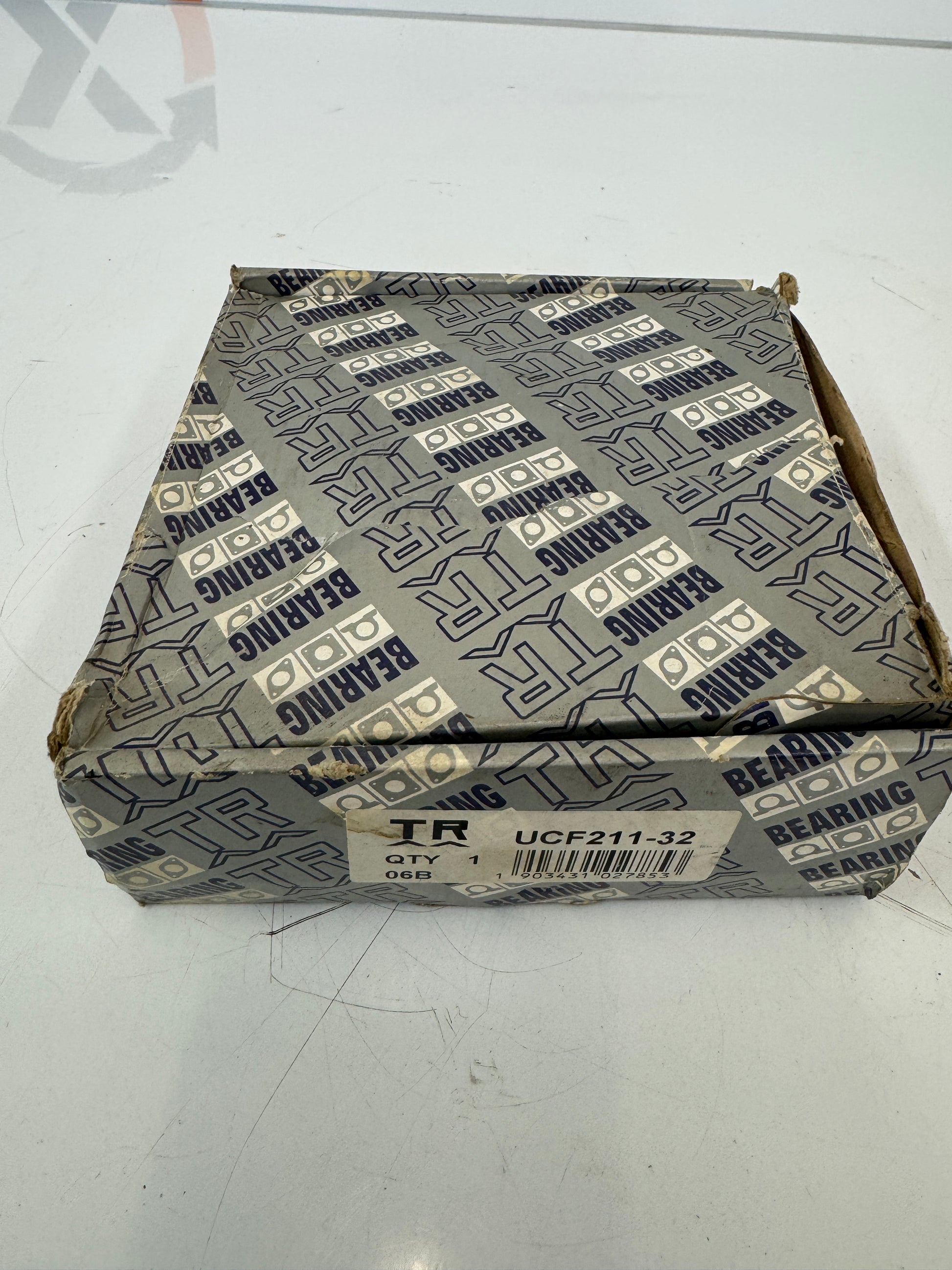

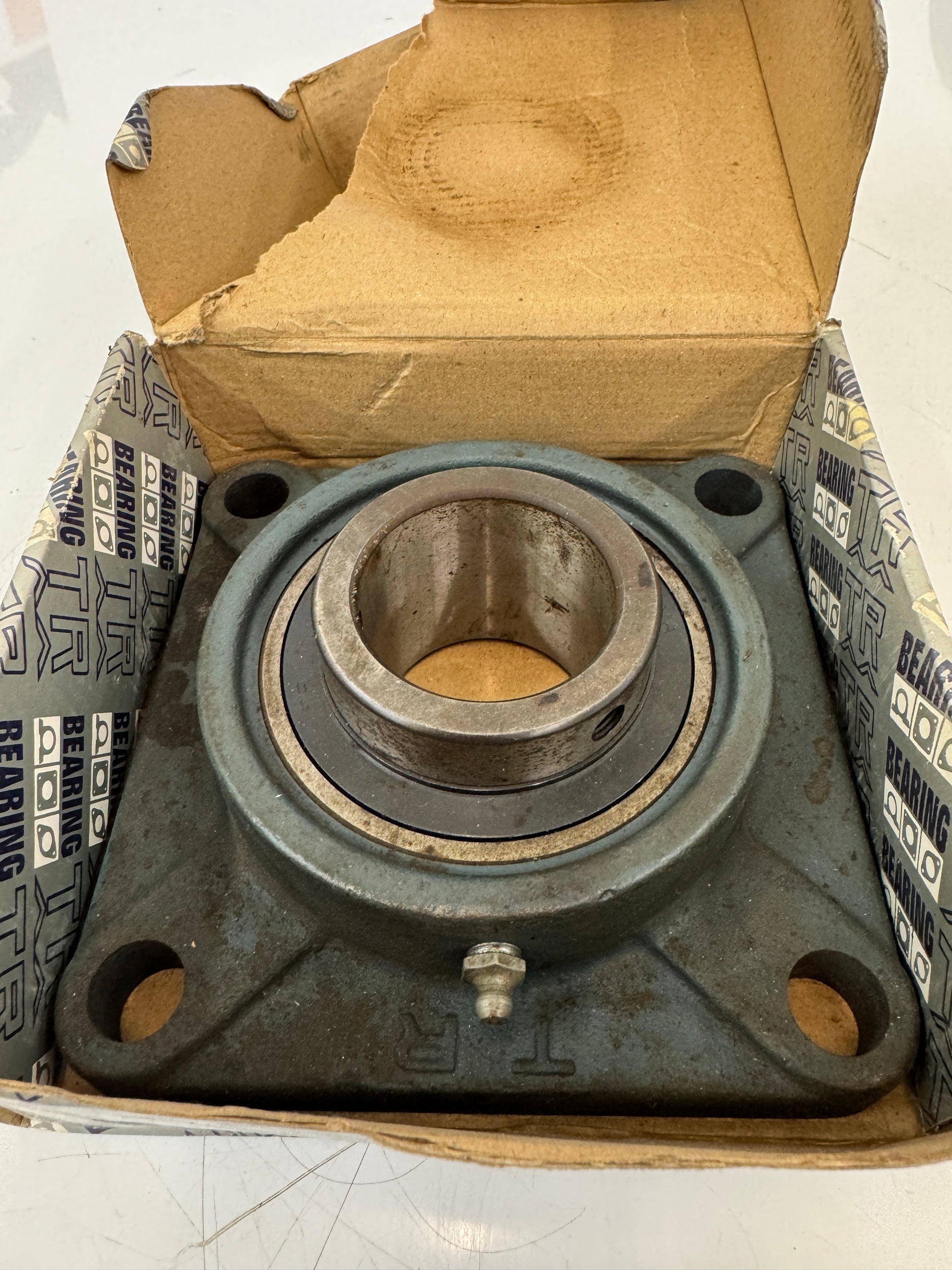

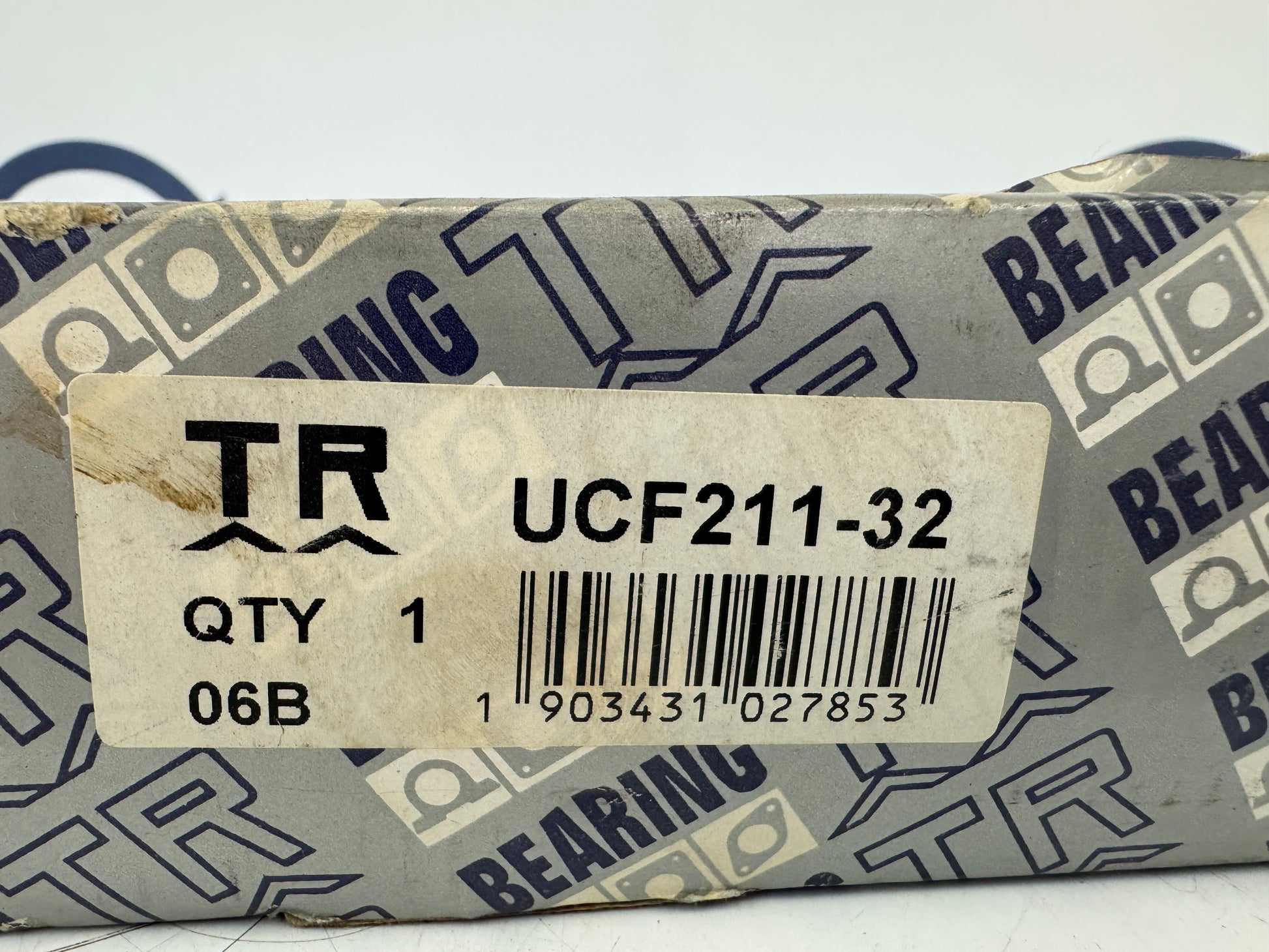

The TR UCF211-32 is a four bolt square flange mounted ball bearing unit with a 2 inch bore, supplied new in the original sealed manufacturer carton labeled QTY 1, lot code 06B, barcode 1903431027853. The UCF211-32 designation identifies a UC211-32 wide inner ring insert ball bearing pressed into an F211 cast iron four bolt square flange housing. The insert features two set screws on the extended inner ring for locking onto a 2 inch shaft, an anti-rotation pin to prevent housing rotation, and a slinger style contact seal on each side to retain lubricant and exclude contaminants. A grease fitting on the housing allows relubrication during service. Bolt hole center spacing on this UCF211 series flange measures 5.118 inches, with an overall flange length of approximately 162 mm, matching published OEM specifications for the UCF211-32 series. Cross reference interchanges include AMI UCF211-32, NSK UCF211-32S, NTN UCF211-200T, Peer FHSFJ211-32G, Browning VF4S-232, Dodge F4B-SC-200, Sealmaster SF-2, RHP SF-2, SKF FY-2-TM, Link-Belt F3-U232N, and Fafnir RCJC-2 or YCJ-2. Typical applications include conveyors, fans and blowers, agricultural equipment, construction machinery, pumps, feed mills, HVAC systems, and general industrial power transmission lineshafts where a self aligning, four bolt flange mounted ball bearing is required. Sold as one complete flange bearing unit in original manufacturer packaging.
Stock # 0226-213
