US Motors AC Motor HD5P2E - 5 HP 1800 RPM
US Motors AC Motor HD5P2E - 5 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

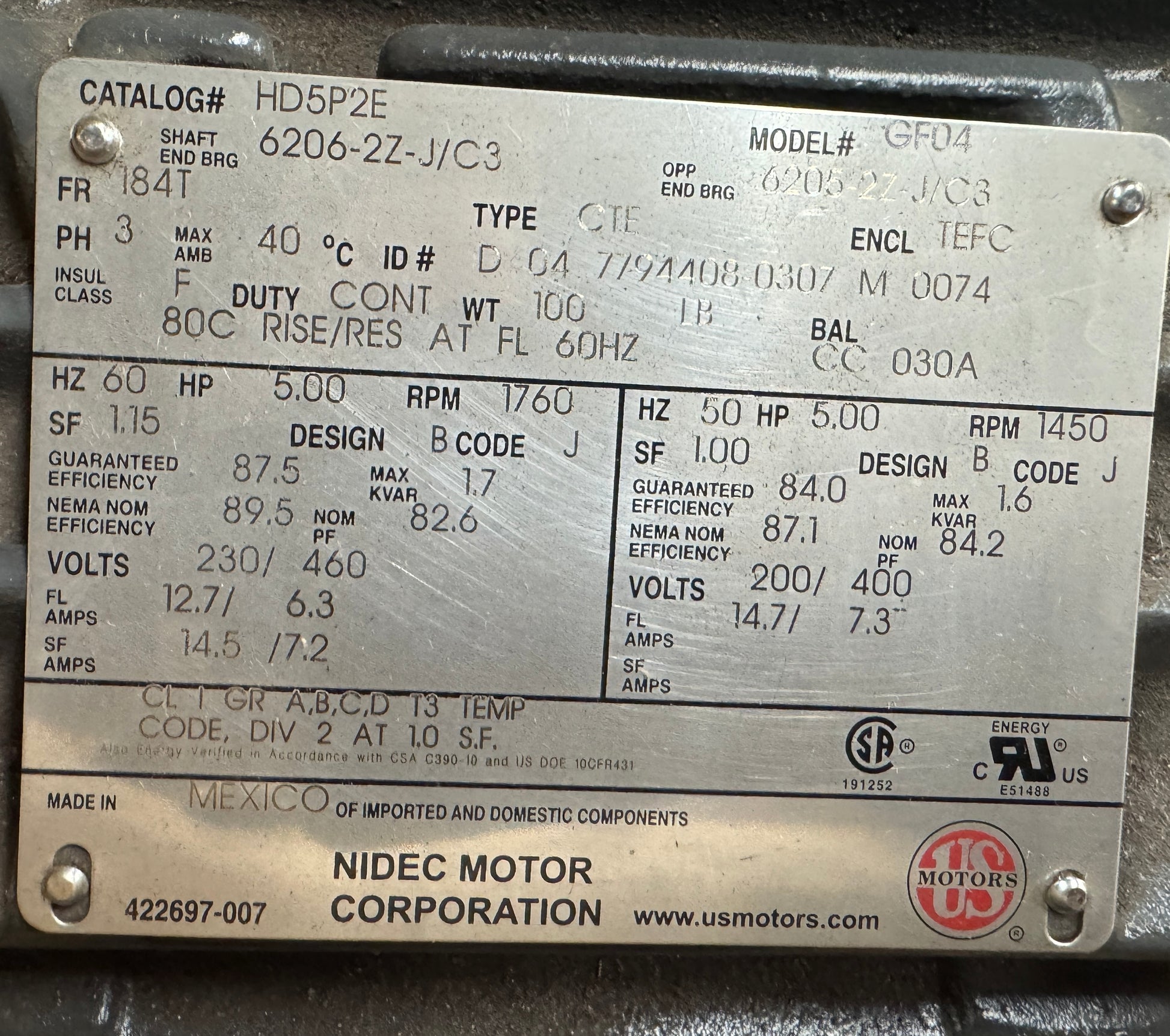

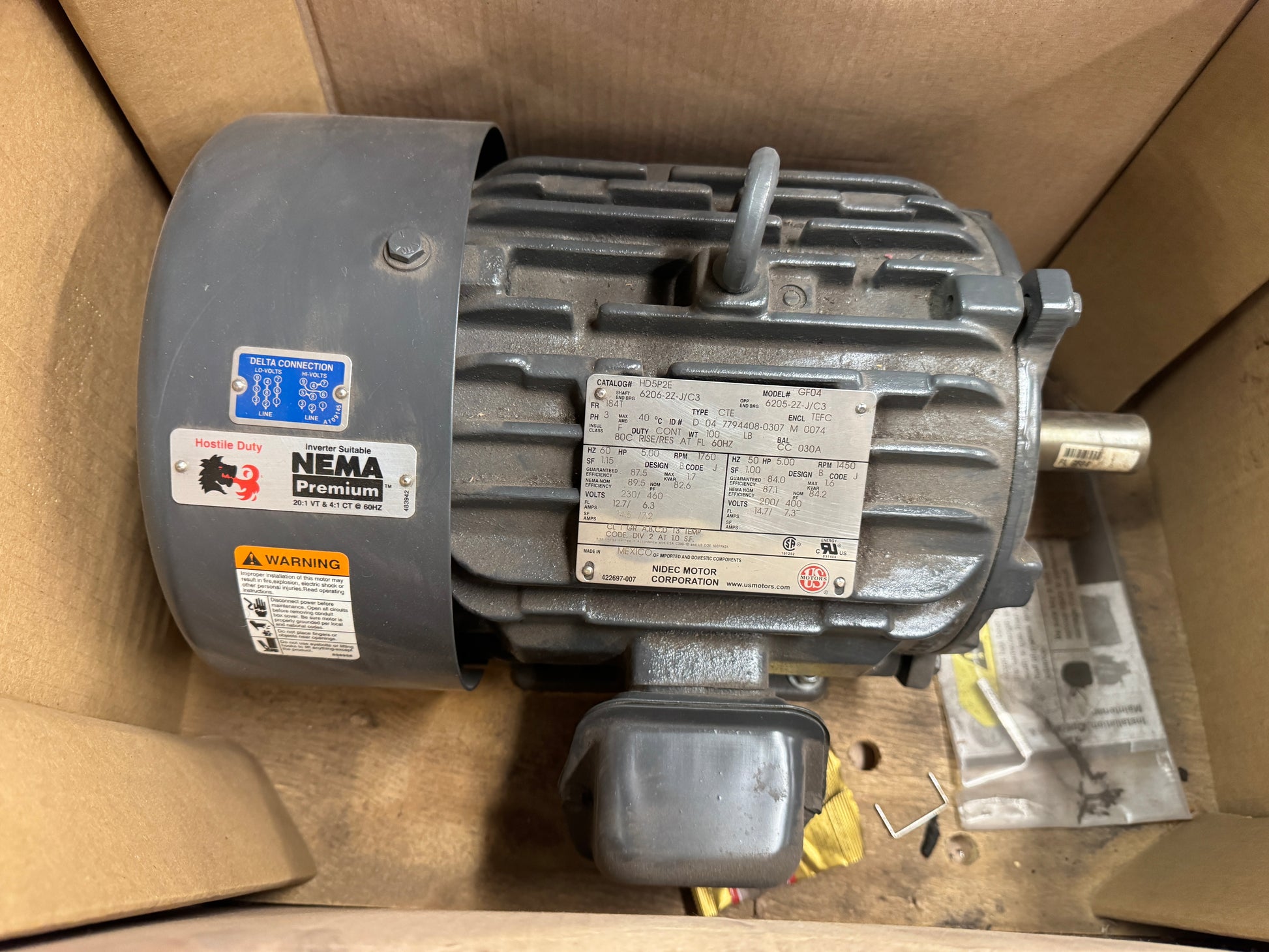

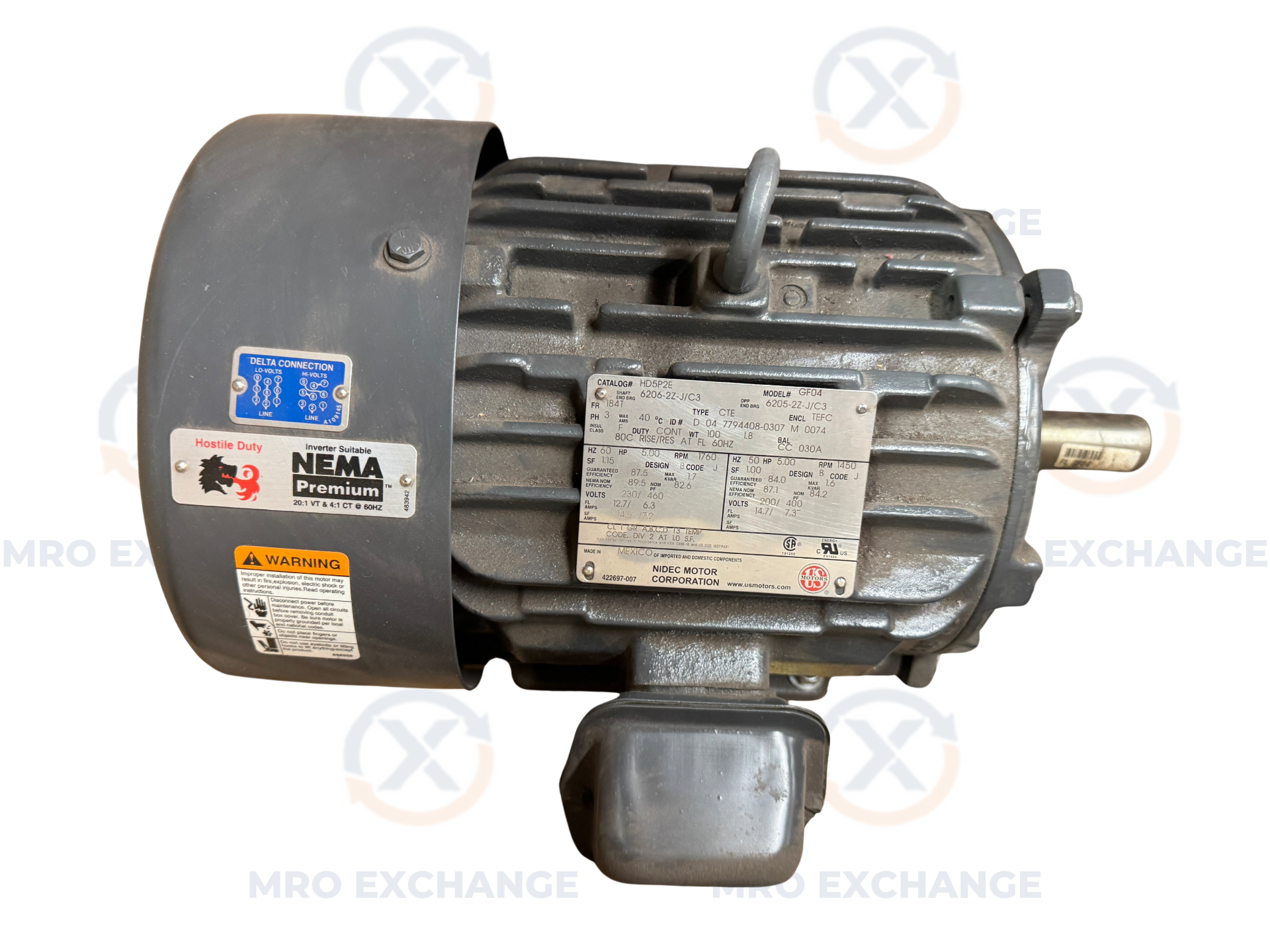

The US Motors HD5P2E is a 5 HP three-phase AC induction motor manufactured by Nidec Motor Corporation under the World Motor Hostile Duty product line. Catalog number HD5P2E, model GF04. Frame size is 184T with a TEFC (Totally Enclosed Fan Cooled) enclosure rated IP54. Rated at 5.00 HP at 1760 RPM on 60 Hz power, dual voltage 230/460V, full load amps 12.7/6.3A. Service factor is 1.15. On 50 Hz power: 5.00 HP at 1450 RPM, 200/400V, full load amps 14.7/7.3A. Phase: 3. Insulation class F, 80C rise/res at full load 60 Hz. Maximum ambient temperature 40 degrees C. Duty: continuous. Shaft end bearing 6206-2Z-J/C3, opposite end bearing 6205-2Z-J/C3. Nameplate balance code CC 030A. Design B, code J. NEMA nominal efficiency 89.5% at 60 Hz. Guaranteed efficiency 87.5%. Power factor 82.6 nominal. Cast iron frame and end brackets with corrosion resistant mill and chemical duty paint. Stainless steel nameplate with CE mark, zinc plated hardware, steel fan cover and conduit box. Suitable for 20:1 variable torque and 5:1 constant torque on inverter power per nameplate. CSA certified, UL listed (Energy). Manufactured in Mexico of imported and domestic components. Nidec part number 422697-007. Presented in original open cardboard box with hardware packet included.
Stock # 0526-02473
