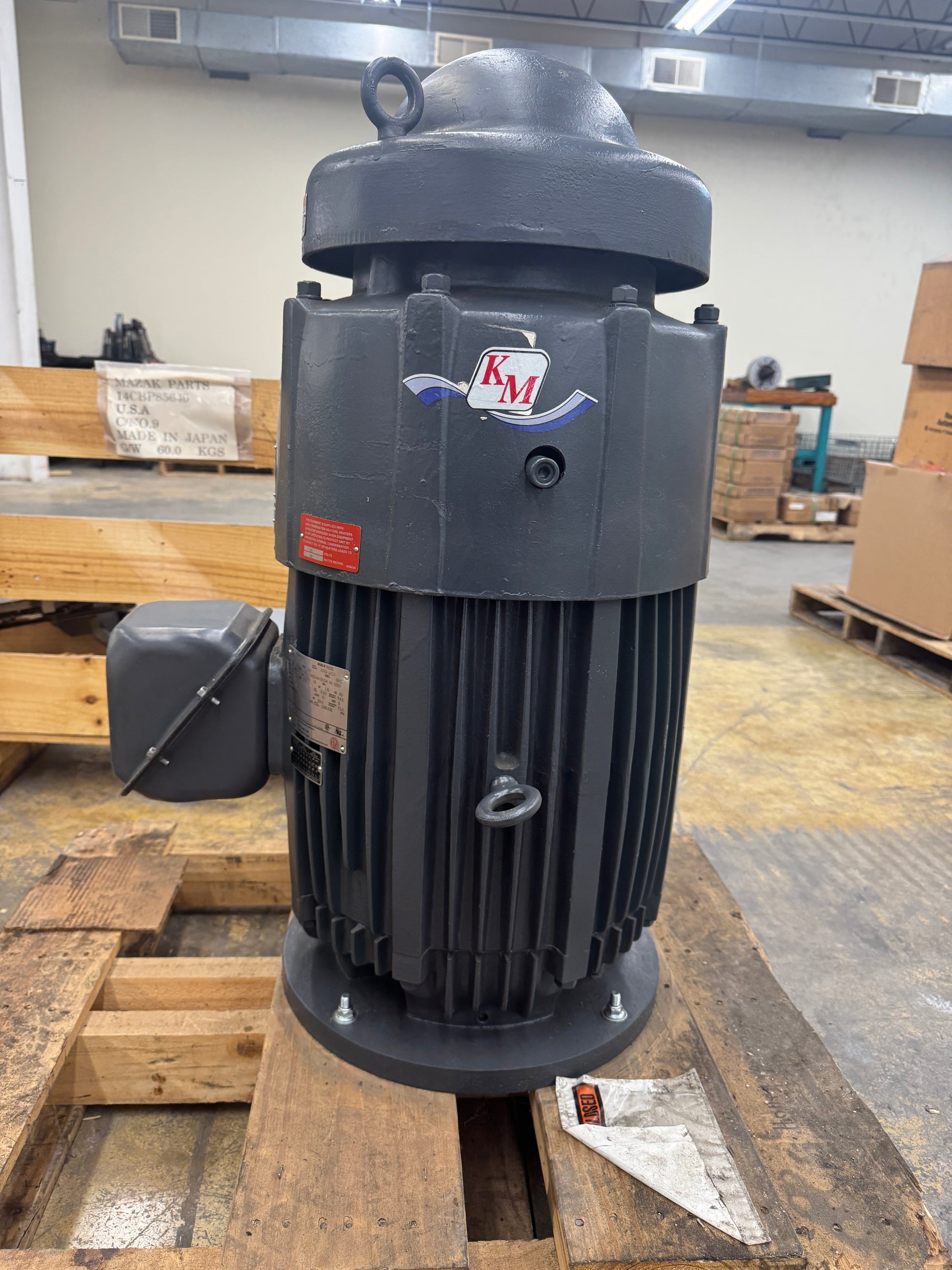

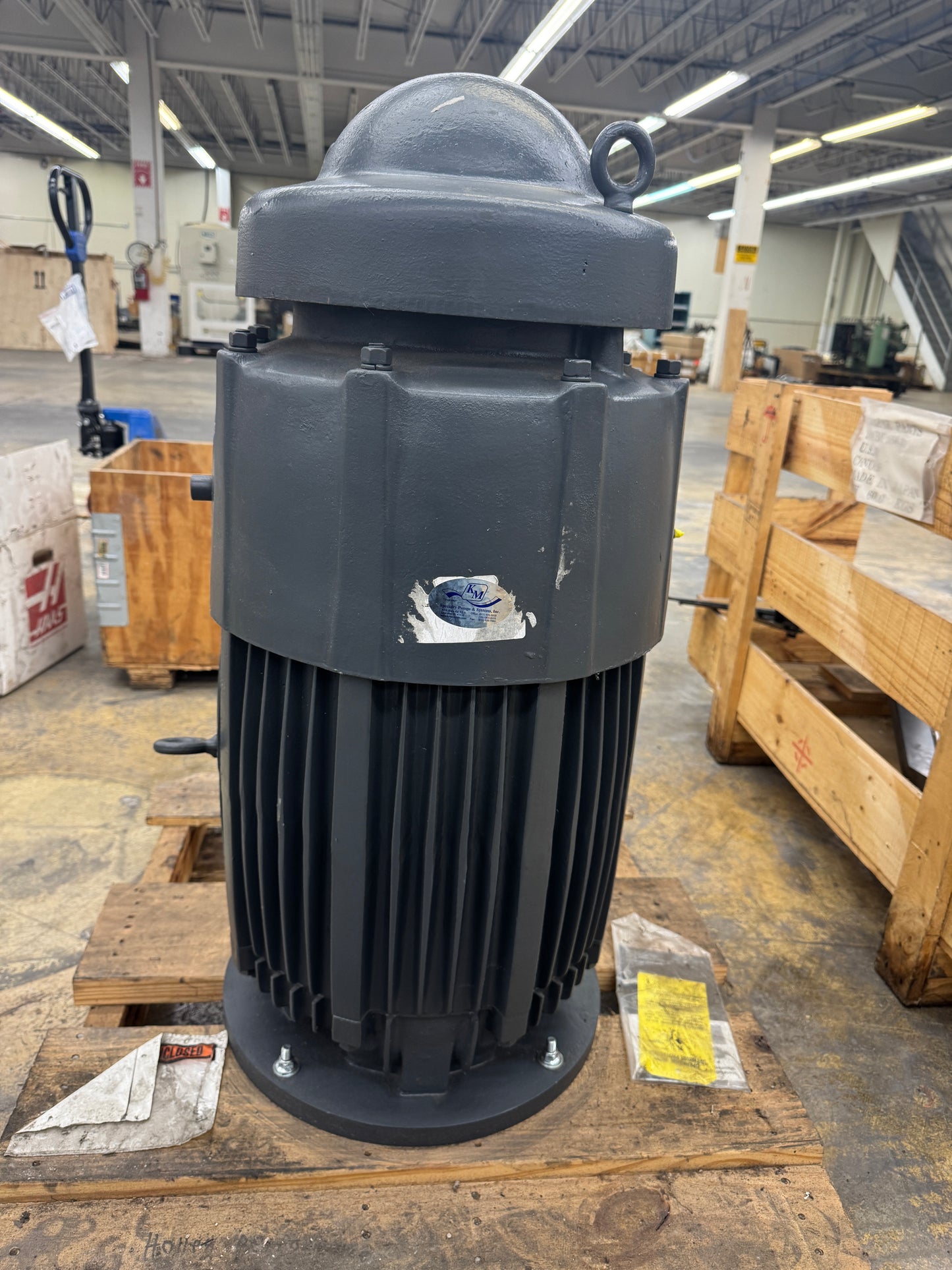

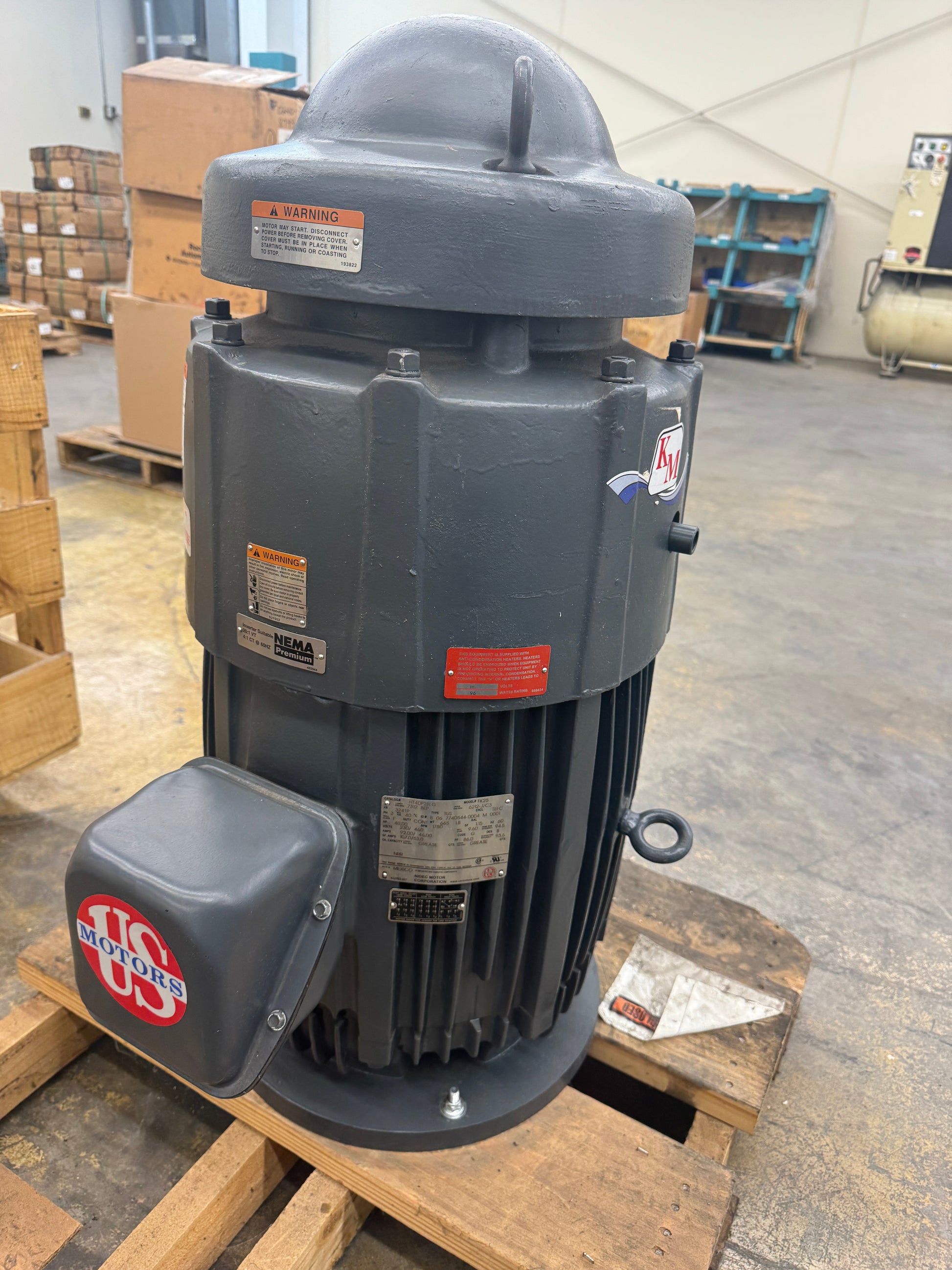

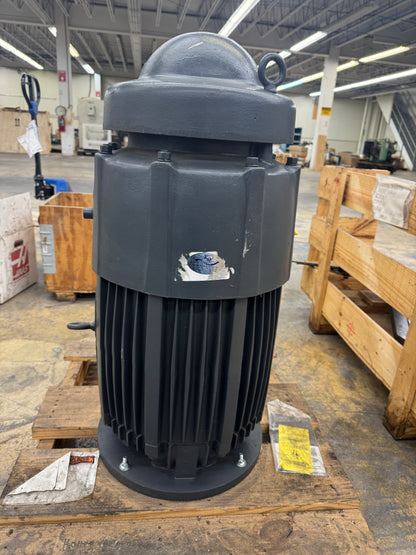

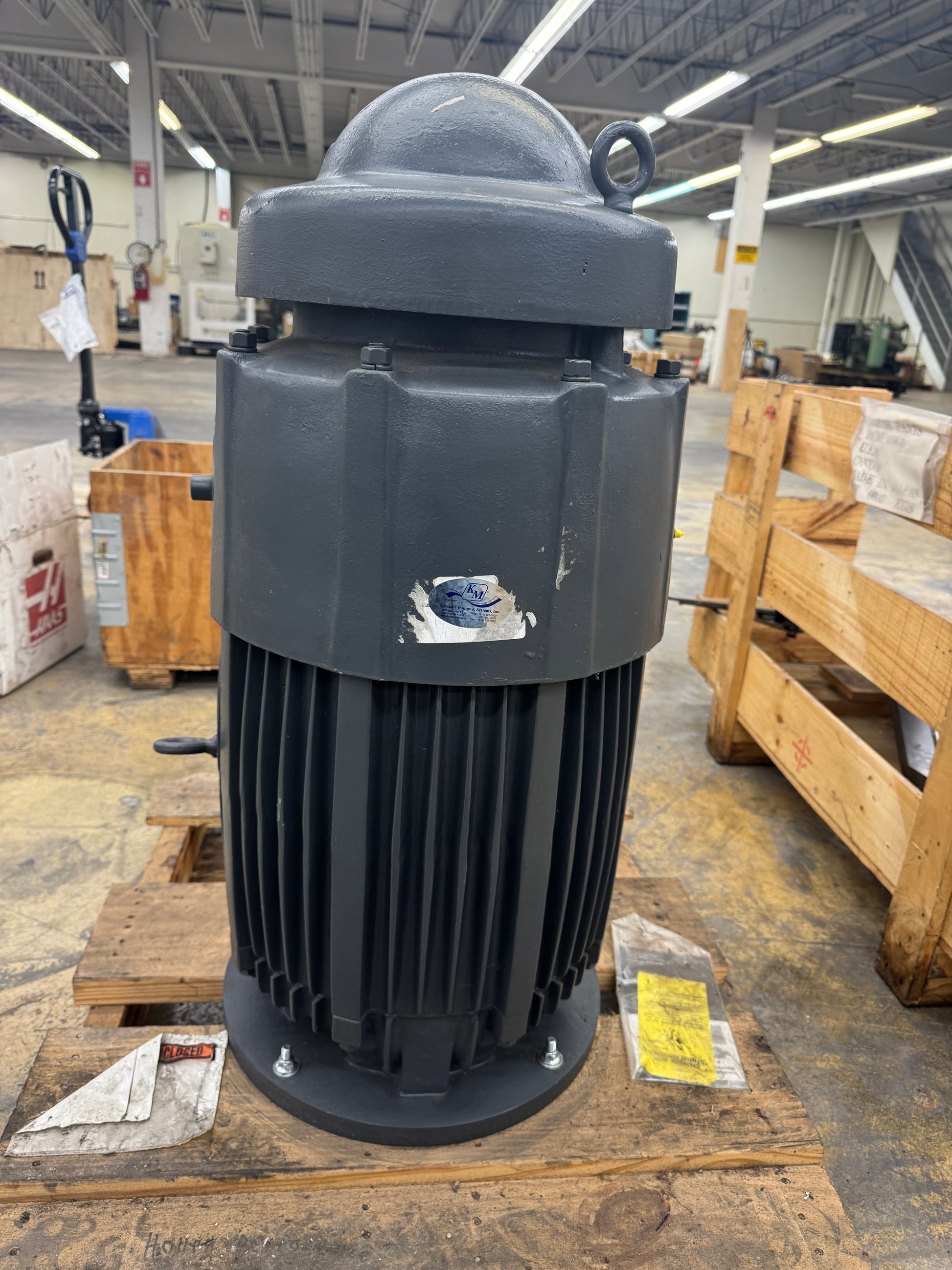

The US Motors (Nidec) HT40P2BLG is a 40 HP three-phase vertical hollow shaft pump motor rated at 1,780 RPM base speed and built to NEMA Premium efficiency standards. Manufactured by Nidec Motor Corporation under the US Motors brand, catalog number HT40P2BLG, model FK25, this unit carries a TEFC (Totally Enclosed Fan Cooled) enclosure rated Type TUS and is designed for use on vertical turbine, mixed flow, and propeller pump applications. Frame size is 324TP with a P-base flange configuration.

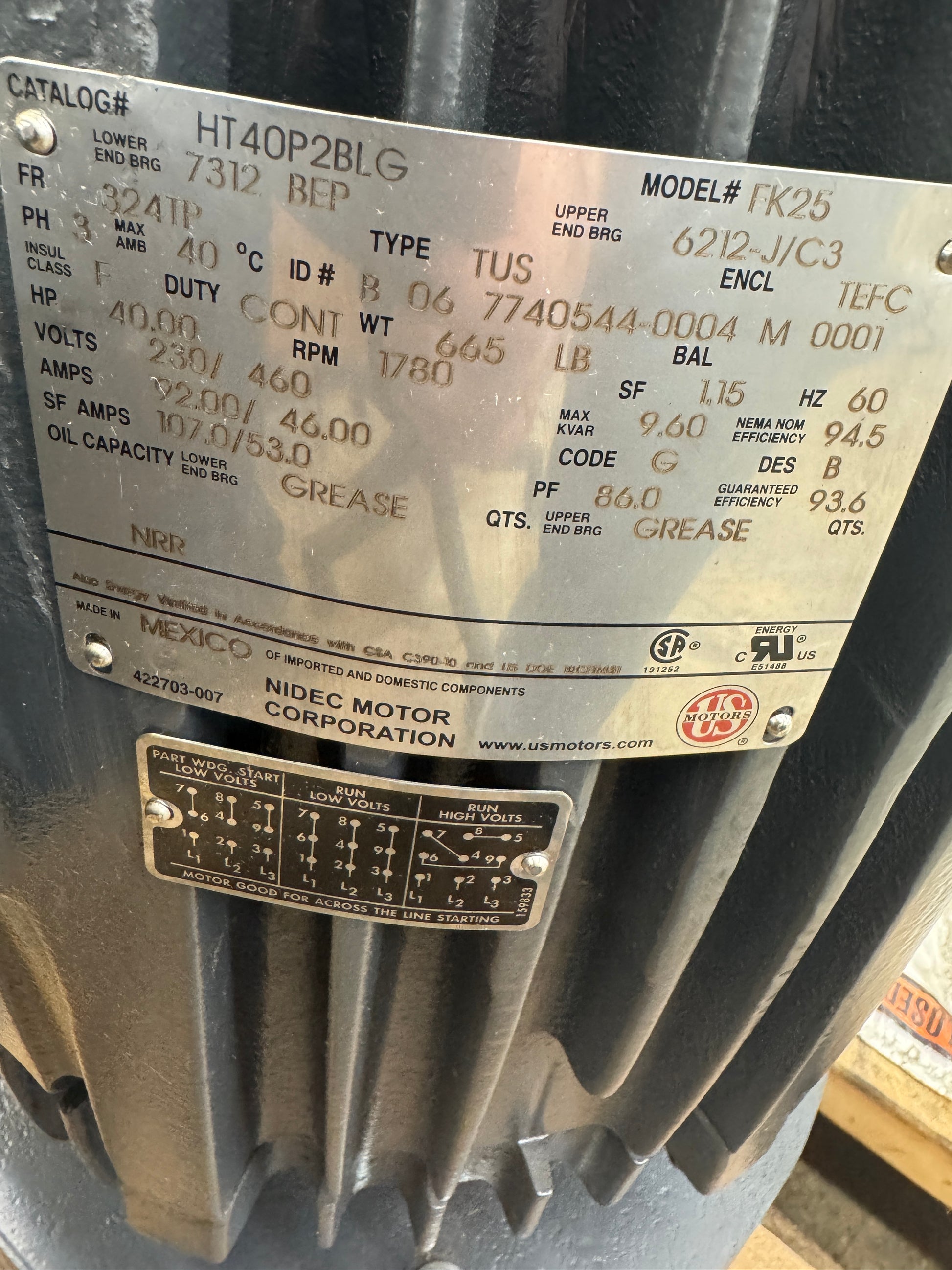

Nameplate data confirms: 40 HP, 230/460V dual voltage, 92.00/46.00 full load amps, 107.0/53.0 service factor amps, 1.15 service factor, 60 Hz, NEMA Design B. Efficiency is rated at 94.5% nominal with a guaranteed efficiency of 93.6%. Power factor is listed at 86.0, and maximum KVAR is 9.60. Code letter G. Insulation class F, maximum ambient 40 degrees C, and duty is continuous.

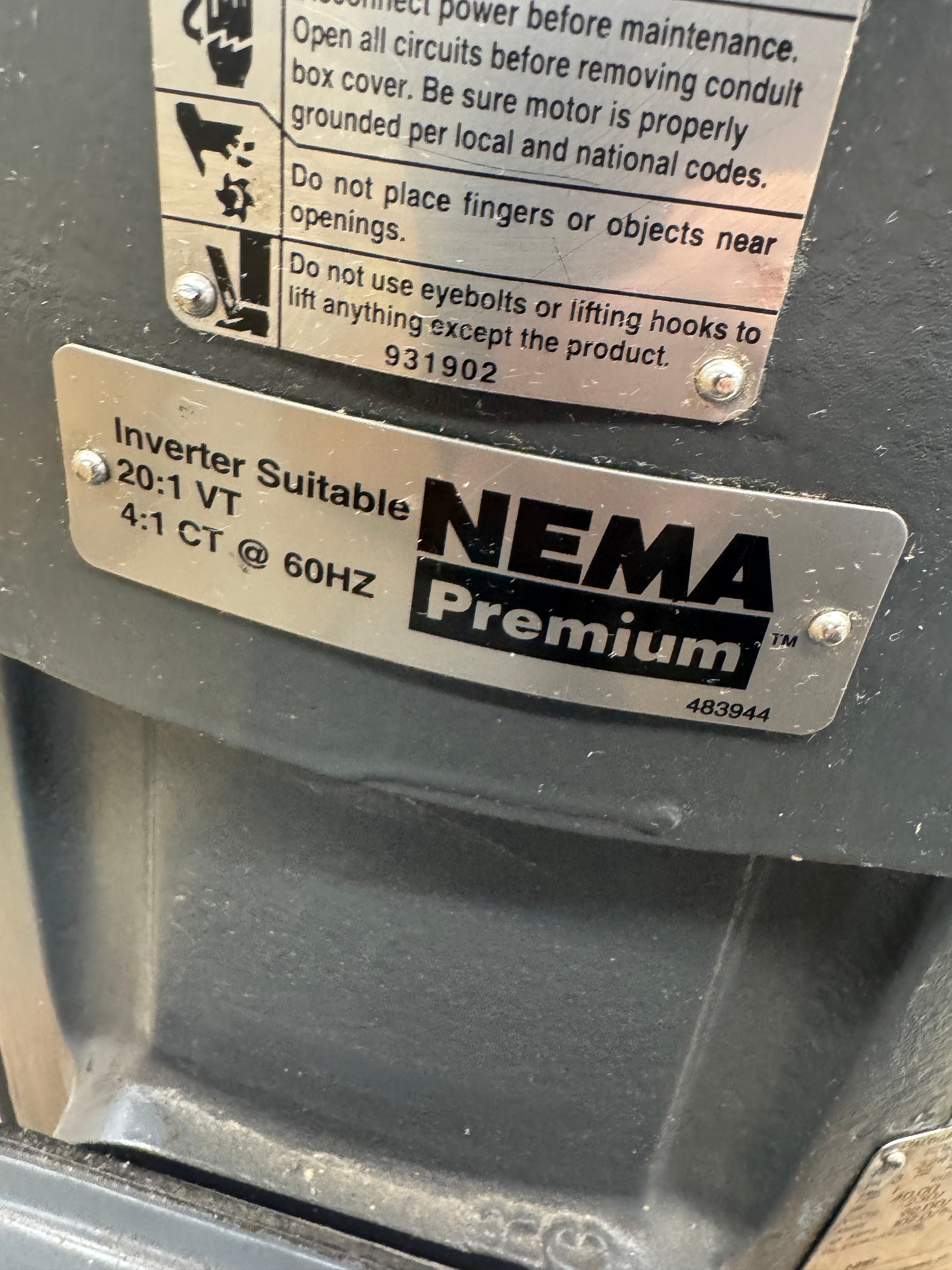

Bearing configuration: lower end bearing 7312 BEP, upper end bearing 6212-J/C3. The motor is grease lubricated at both bearing locations. Weight per nameplate is 665 LB. This unit is rated inverter suitable at 20:1 variable torque and 4:1 constant torque at 60 Hz and carries the NEMA Premium designation. Part winding start capable per the included wiring diagram. Made in Mexico of imported and domestic components. Serial number ID: B 06 7740544-0004 M 0001. Manufactured and labeled by Nidec Motor Corporation, Emerson Electric successor brand. CSA certified, UL listed.
Stock # 0426-02165
