WARN Industries 93000 (3000 ACI) 3,000 Lb 0.75 HP Electric 115/230V Industrial Winch

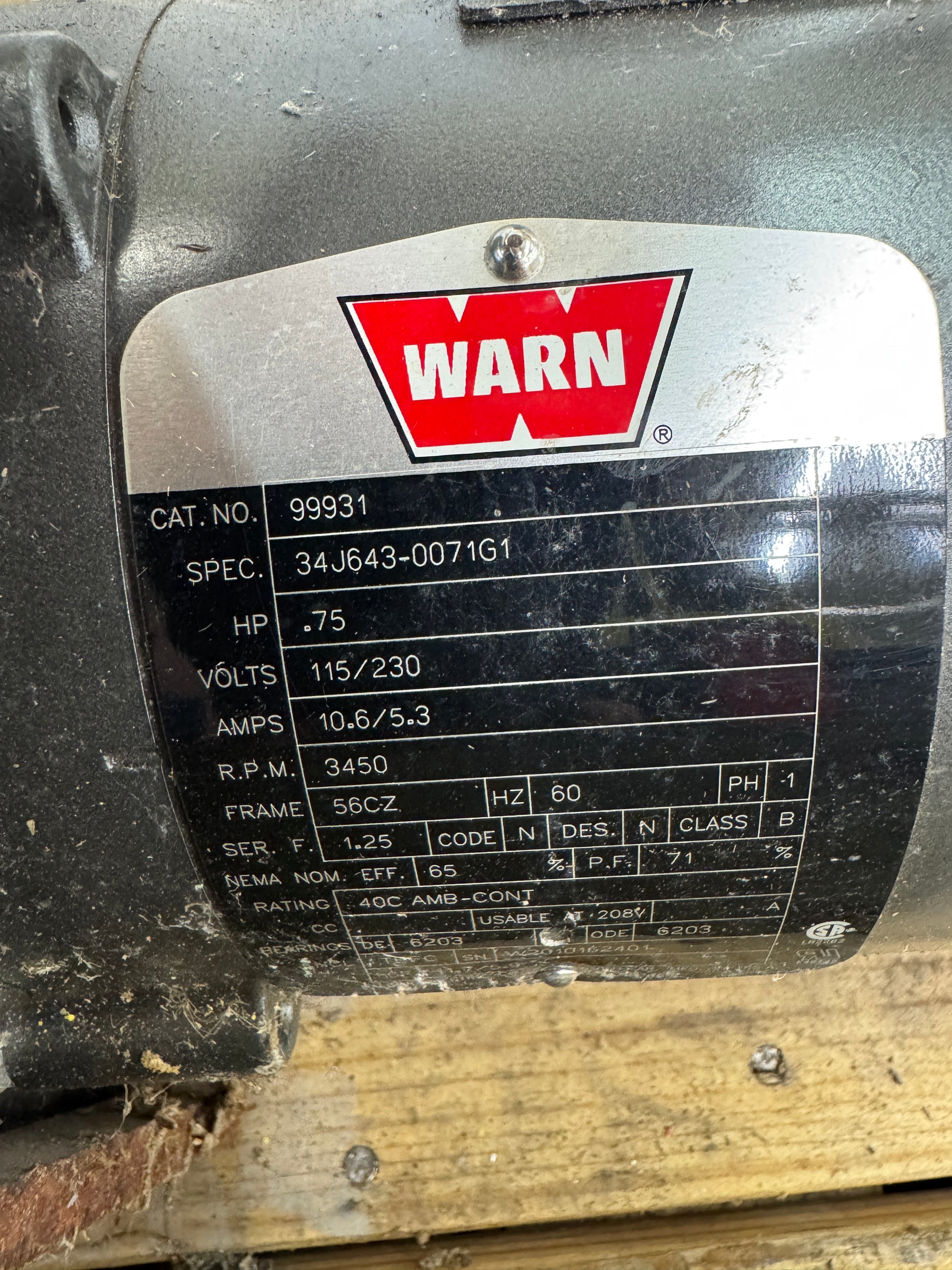

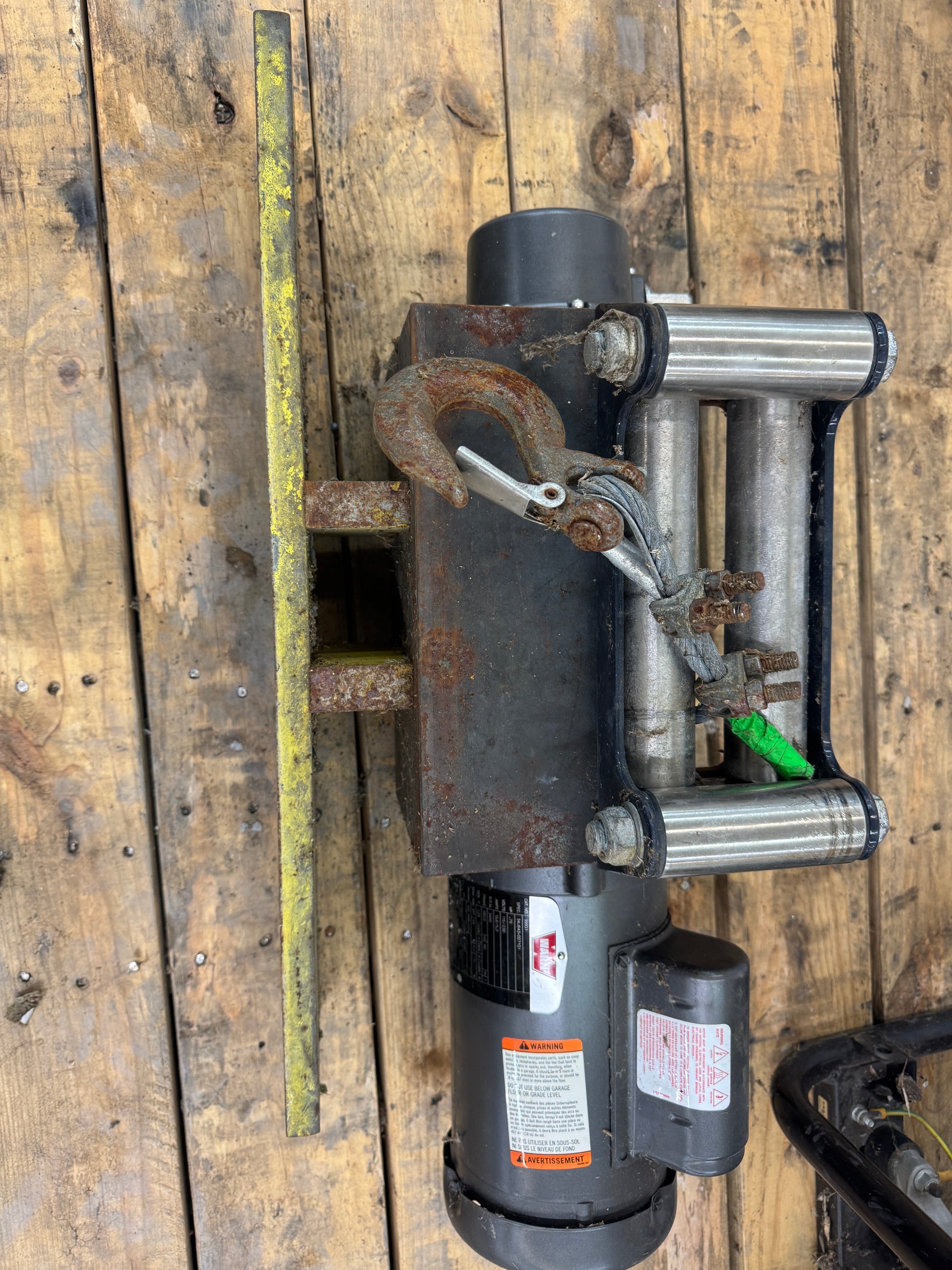

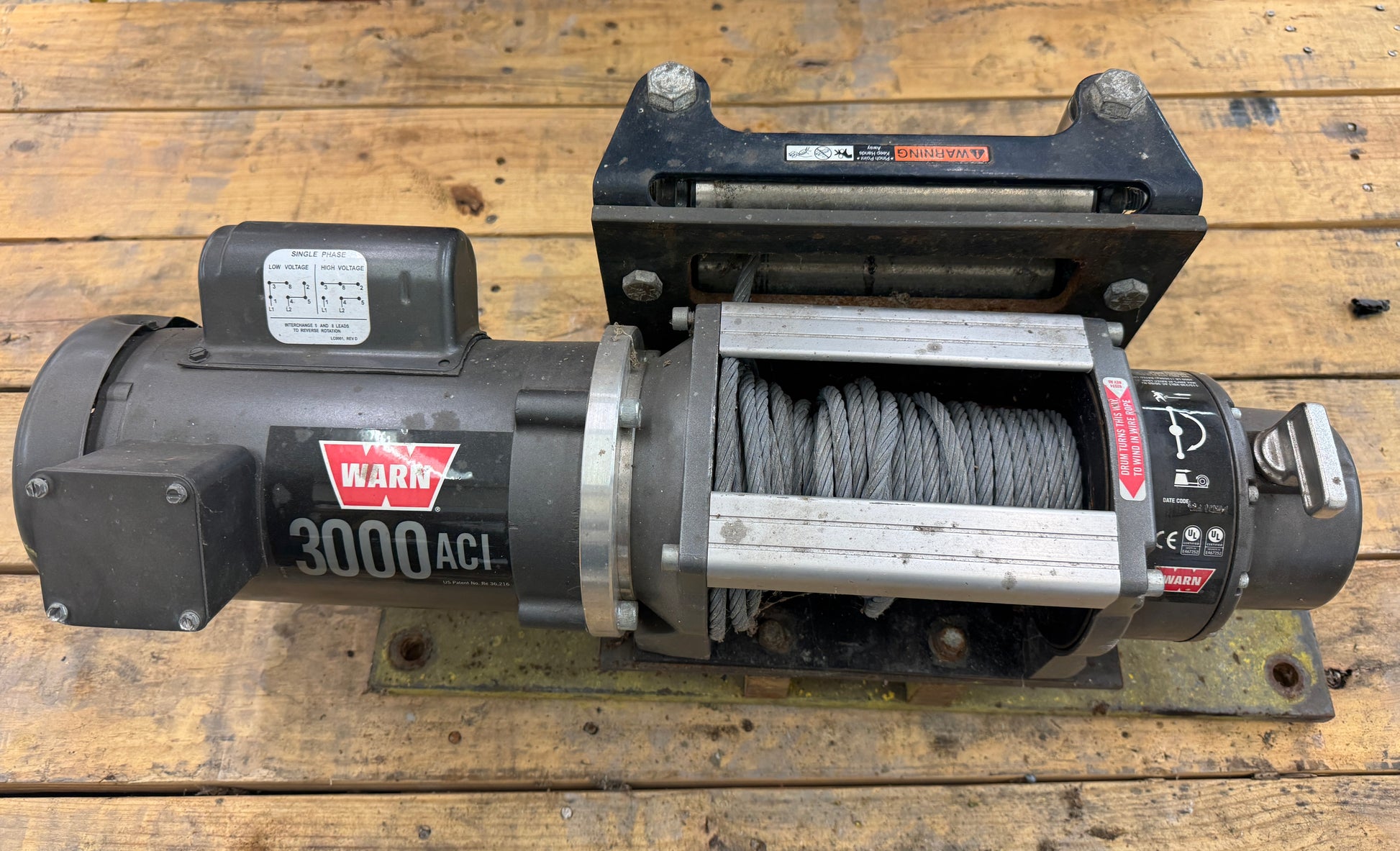

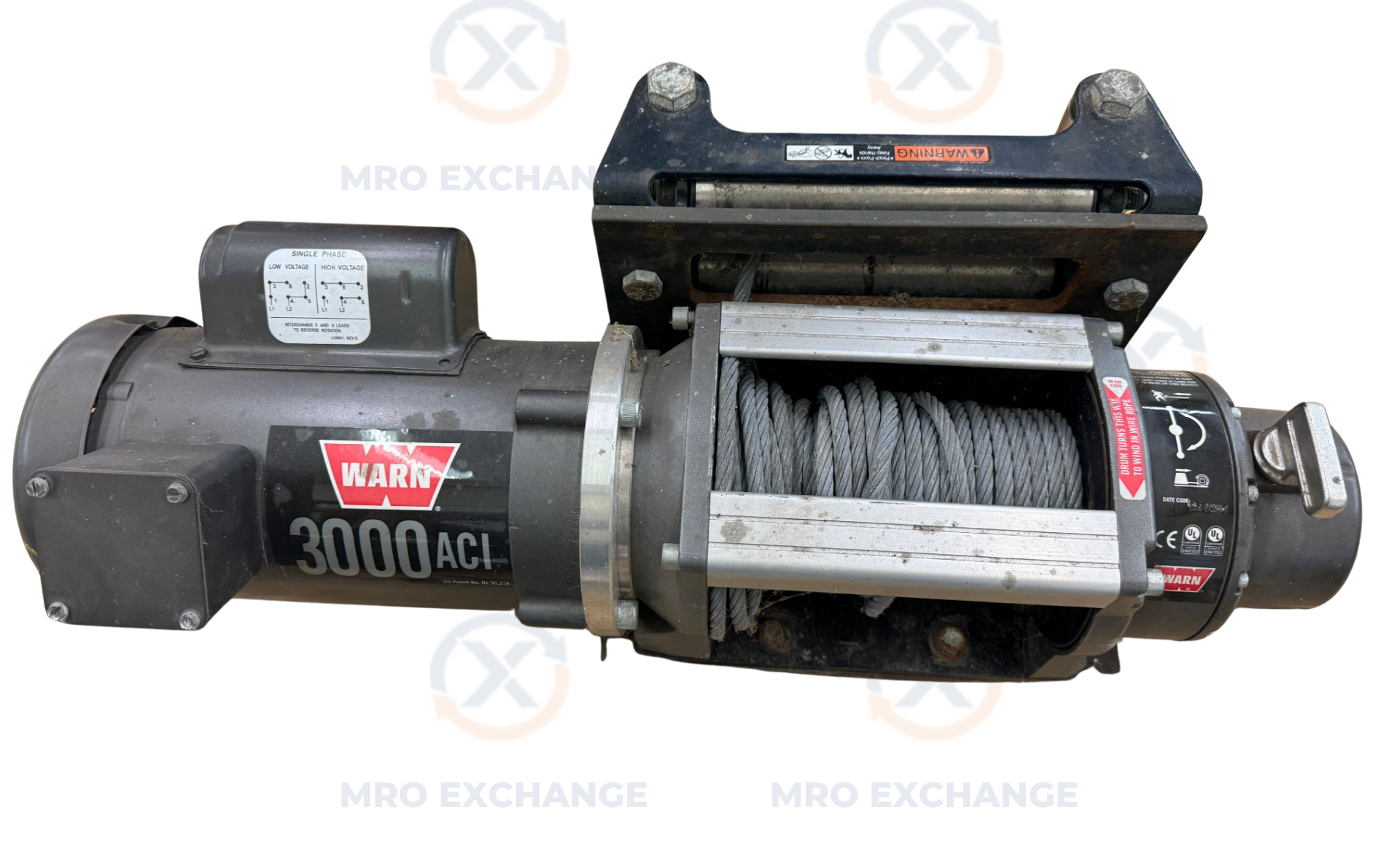

The WARN 93000 is a 3000 ACI Series industrial electric winch rated for 3,000 lb single line pulling capacity. Nameplate data identifies catalog number 99931, specification 34J643 0071G1, and serial number WC2010162401. The integrated motor is a 0.75 HP TEFC induction AC unit, single phase, 60 Hz, 3450 RPM, 56CZ frame, with dual voltage operation at 115V or 230V and corresponding current draw of 10.6 amps or 5.3 amps. Service factor is 1.25, code N, design N, class B insulation, with NEMA nominal efficiency of 65 percent and power factor of 71 percent. Drive end and opposite drive end bearings are both 6203. The winch assembly features a three stage planetary geartrain, lever actuated sliding ring gear clutch, dynamic and mechanical braking, and a drum switch station type control. The unit is equipped with 5/16 inch steel wire rope on a fixed mount drum and includes the original WARN clevis hook. The pictured assembly also includes a steel mounting plate, dual roller fairlead with side guides, and termination hardware. This is a fixed mount station winch used in industrial pulling, hoisting, and material handling applications, and is suitable for plants, shops, and utility installations where AC plug in power is preferred over DC battery operation. CSA approved. Sold as removed from service in a surplus environment. Confirm voltage configuration and motor wiring before installation.

Stock # 0226-086
