WEG AC Motor 00318OT3E182T - 3 HP 1800 RPM
WEG AC Motor 00318OT3E182T - 3 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

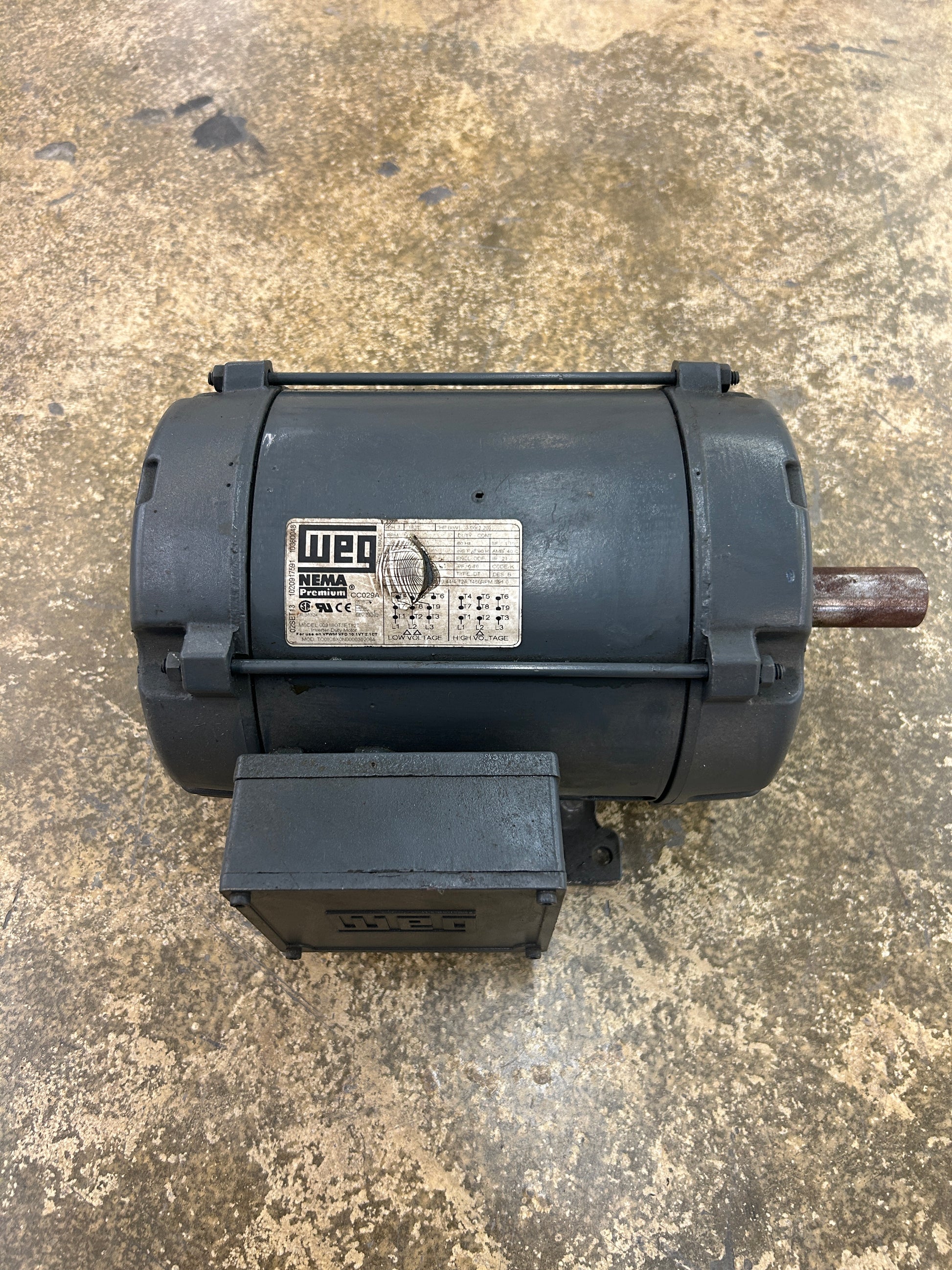

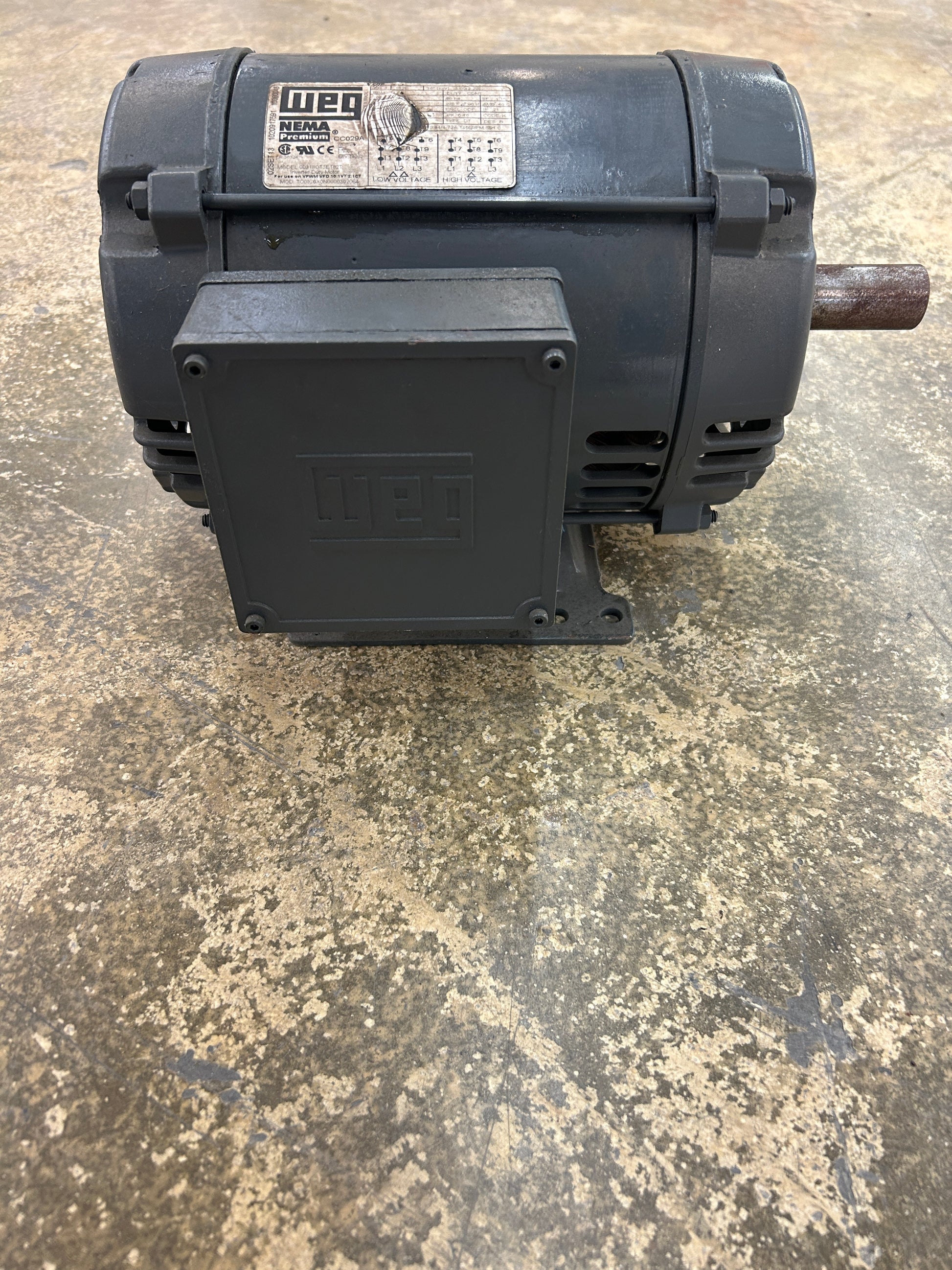

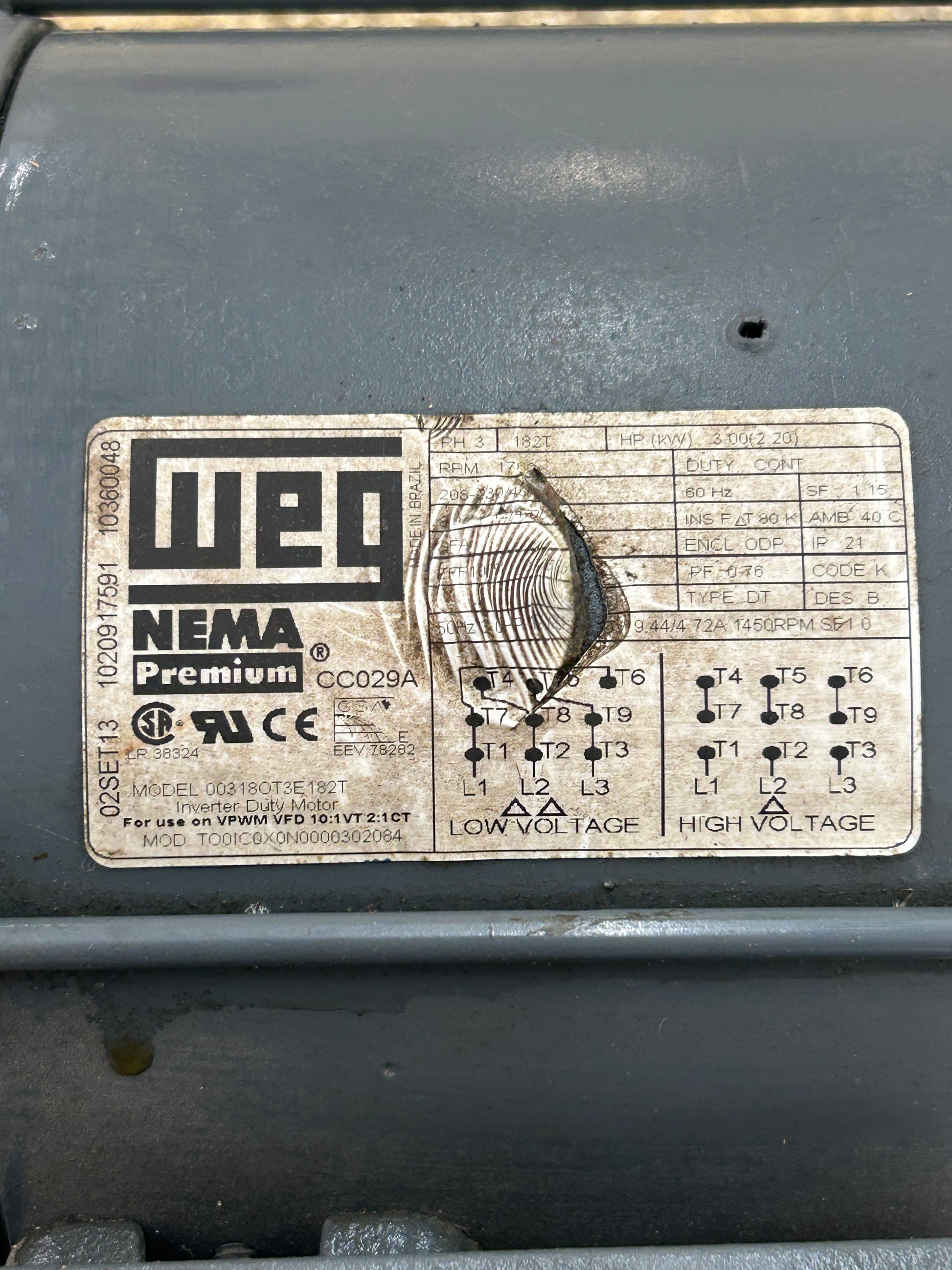

The WEG 00318OT3E182T is a 3 HP, three phase, 60 Hz inverter duty AC motor in a 182T NEMA frame. Voltage is rated at 208/230/460 V, with a nameplate speed of 1765 RPM and a service factor of 1.15. The motor uses an open drip proof (ODP) enclosure rated IP21, with Class F insulation at an 80 K temperature rise and a 40 C ambient rating. Power factor is listed at 0.76, NEMA Design B, Code K, Type DT. The nameplate identifies the unit as suitable for use on VPWM variable frequency drives with a 10:1 variable torque and 2:1 constant torque turndown ratio. A 50 Hz rating of 9.44/4.72 A at 1450 RPM is also indicated on the plate. The motor is NEMA Premium efficiency and carries CSA, UL (cUL), and CE markings. It is built in Brazil under WEG part identifier 10360048 and traceability codes 10209 17591 and 02SET13. Internal MOD code TO01C0X0N0000302084 appears below the model line. Typical applications for a 182T frame ODP three phase motor in this efficiency class include pumps, fans, blowers, conveyors, compressors, machine tool auxiliaries, and general purpose industrial drive trains where variable frequency drive operation is required.
Stock # 0226-120
