WorldWide Electric Corporation 3 Phase Induction Motor PEWWE1.5-12-182T - 2 HP 1200 RPM
WorldWide Electric Corporation 3 Phase Induction Motor PEWWE1.5-12-182T - 2 HP 1200 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

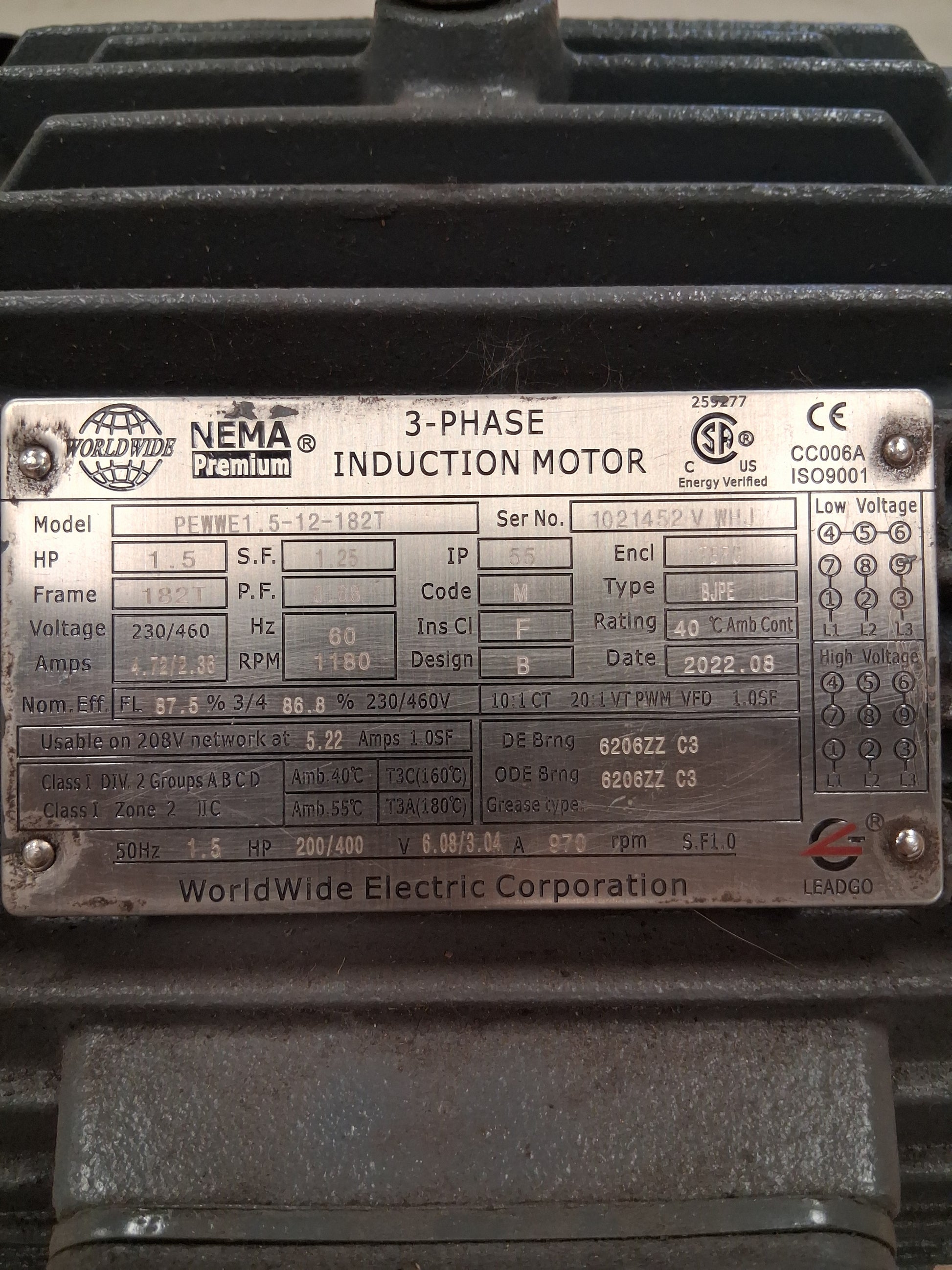

The WorldWide Electric PEWWE1.5 12 182T is a 3 phase induction motor rated at 1.5 HP and 1180 RPM at 60 Hz. This NEMA Premium efficiency severe duty motor uses a 182T frame with a TEFC enclosure rated to IP55 for protection against dust and water ingress. Dual voltage operation supports 230/460V at 4.72/2.36 amps with a service factor of 1.25 and a power factor of 0.68. Class F insulation and a 40 degree C ambient continuous rating support operation in demanding industrial environments. The motor includes Class I Division 2 Groups A B C D and Class I Zone 2 IIC hazardous location certifications, with T3C (160 degree C) and T3A (180 degree C) temperature codes at 40 and 55 degree C ambient respectively. Inverter duty rating supports 10:1 CT and 20:1 VT PWM VFD operation at 1.0 service factor. Bearings are 6206ZZ C3 on both drive end and opposite drive end. Code letter M and Design B characteristics suit fans, pumps, blowers, compressors, hydraulic power units, and general industrial loads. The motor also operates on 50 Hz at 1.5 HP, 200/400V, 6.08/3.04 amps, and 970 RPM. Build date 2022.08, serial number 1021452 V WHJ. CE marked and CSA certified for US and Canadian compliance, with ISO9001 manufacturing. Nominal efficiency at full load is 87.5% and at 3/4 load is 86.8%.
Stock # 0526-02296
