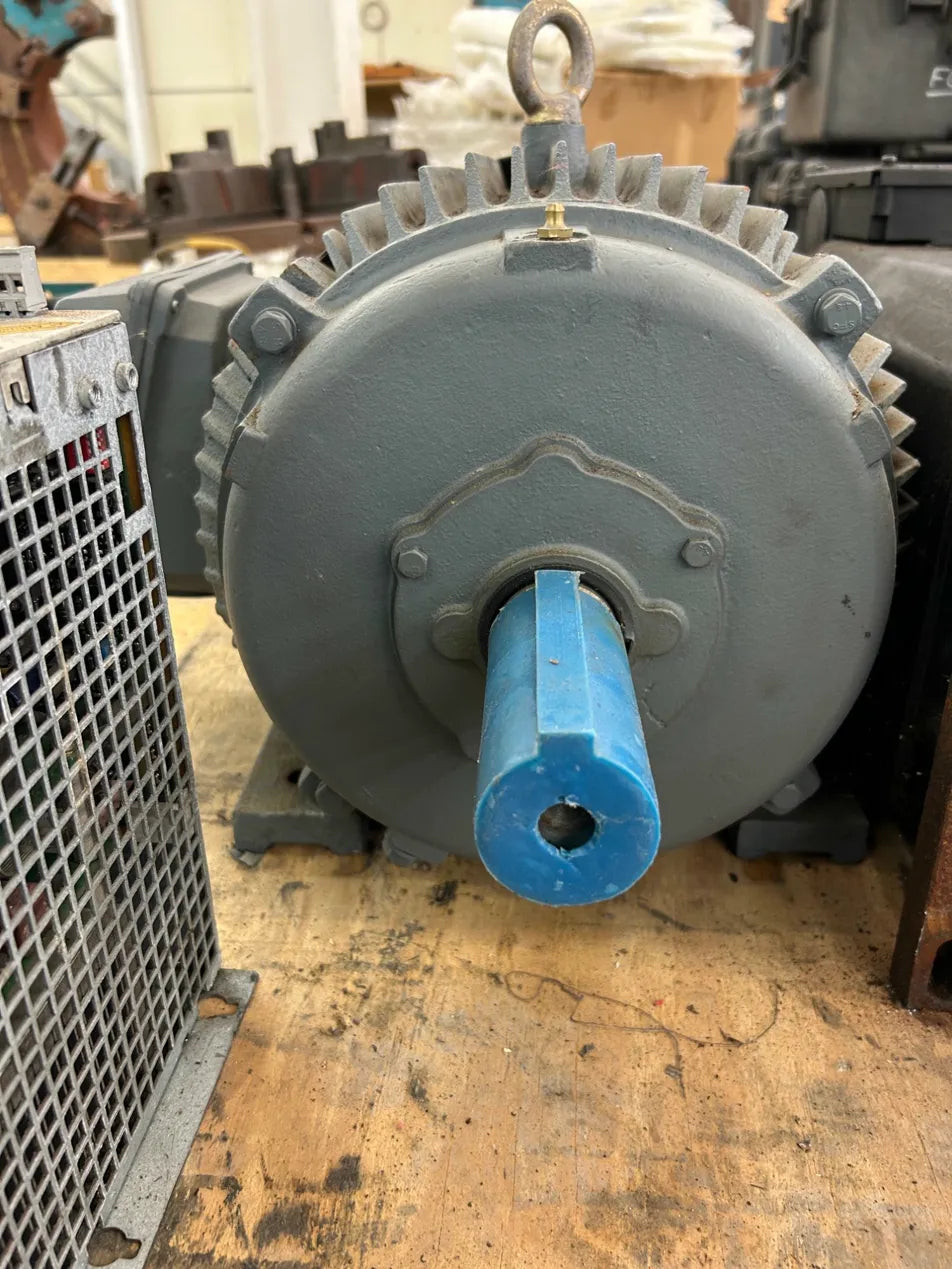

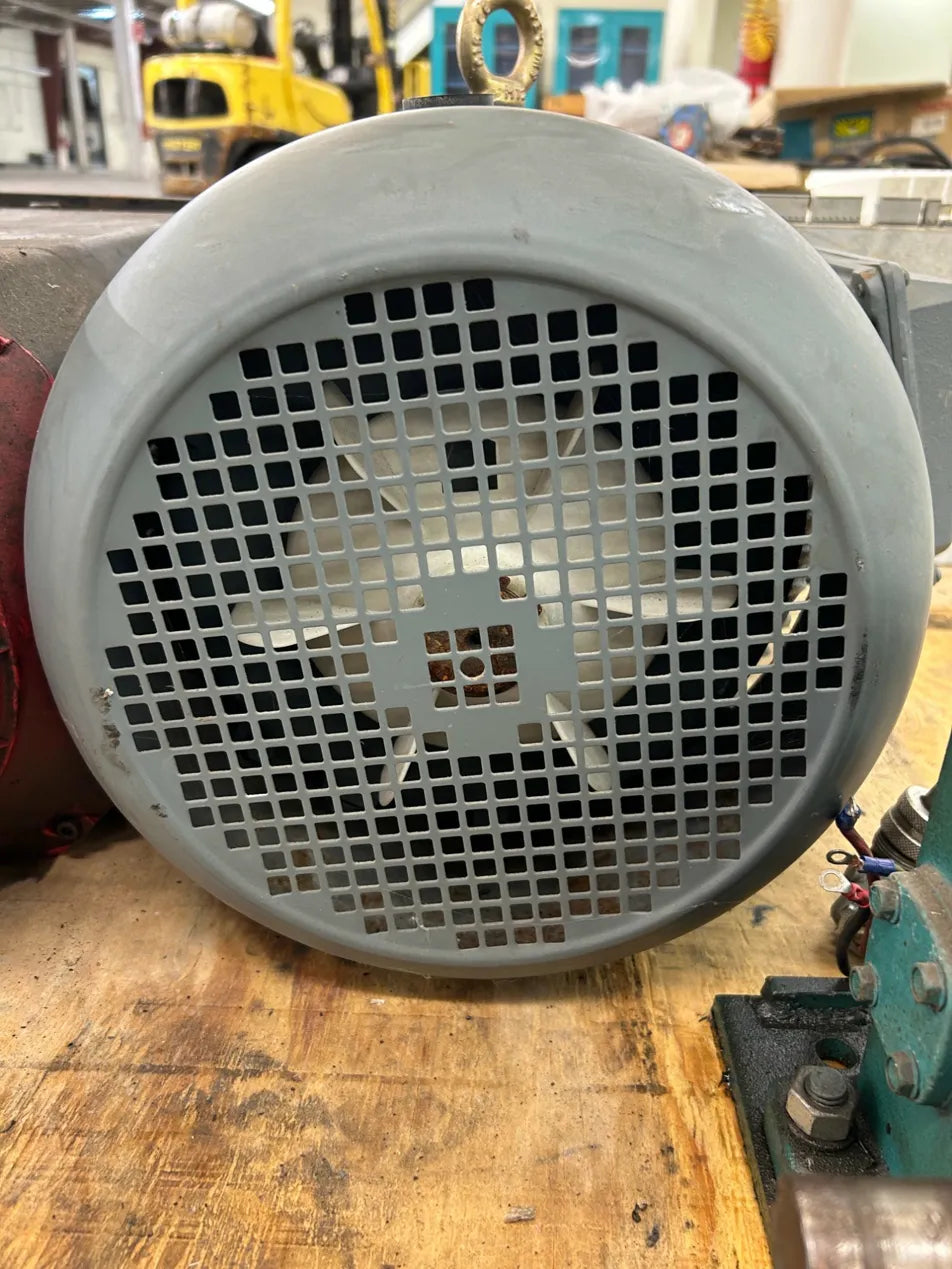

WorldWide Electric Corporation AC Motor WWEM20-18-256T - 20 HP 1800 RPM
WorldWide Electric Corporation AC Motor WWEM20-18-256T - 20 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: WWEM20-18-256T
Stock #: 0226-00603

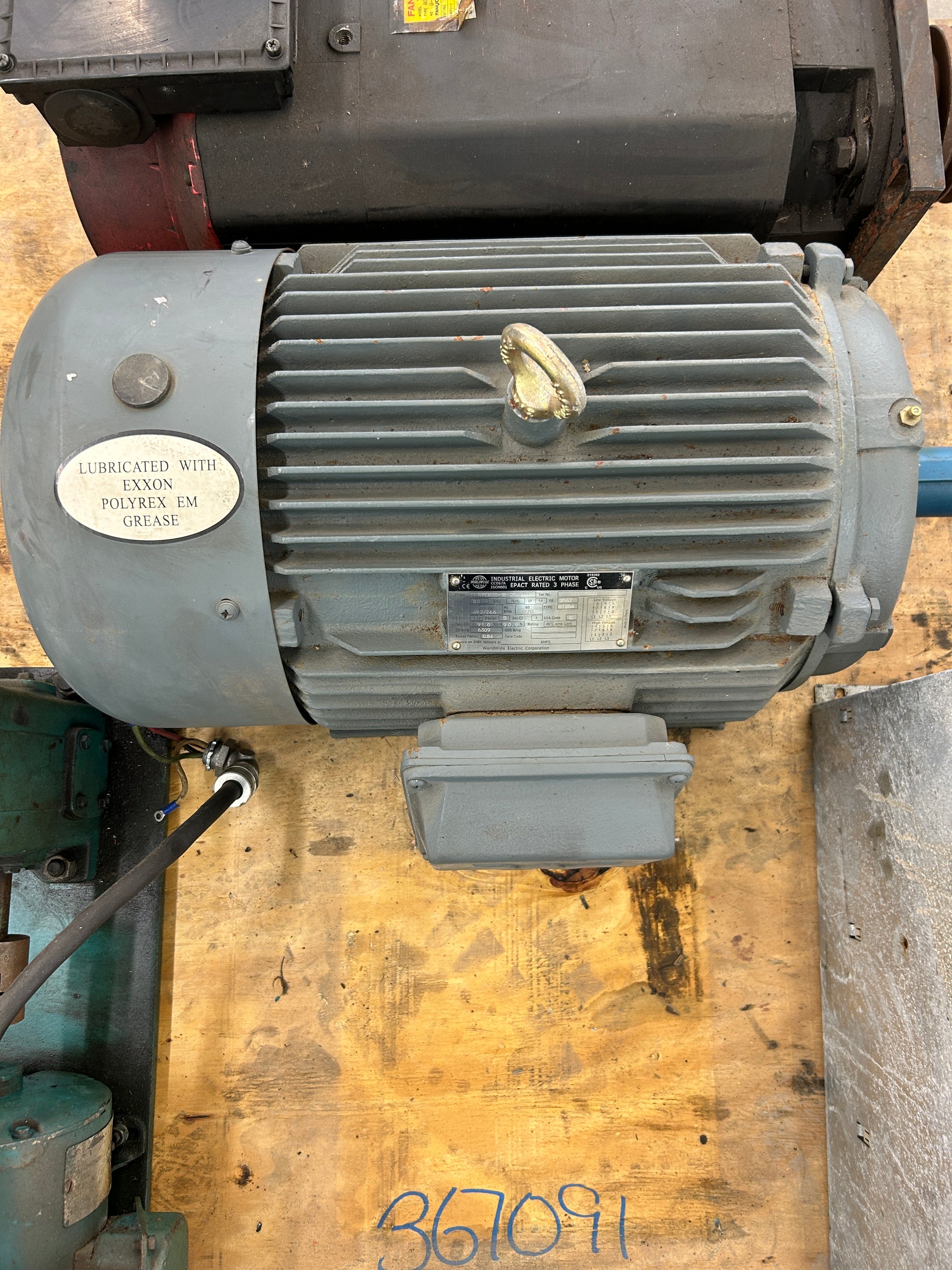

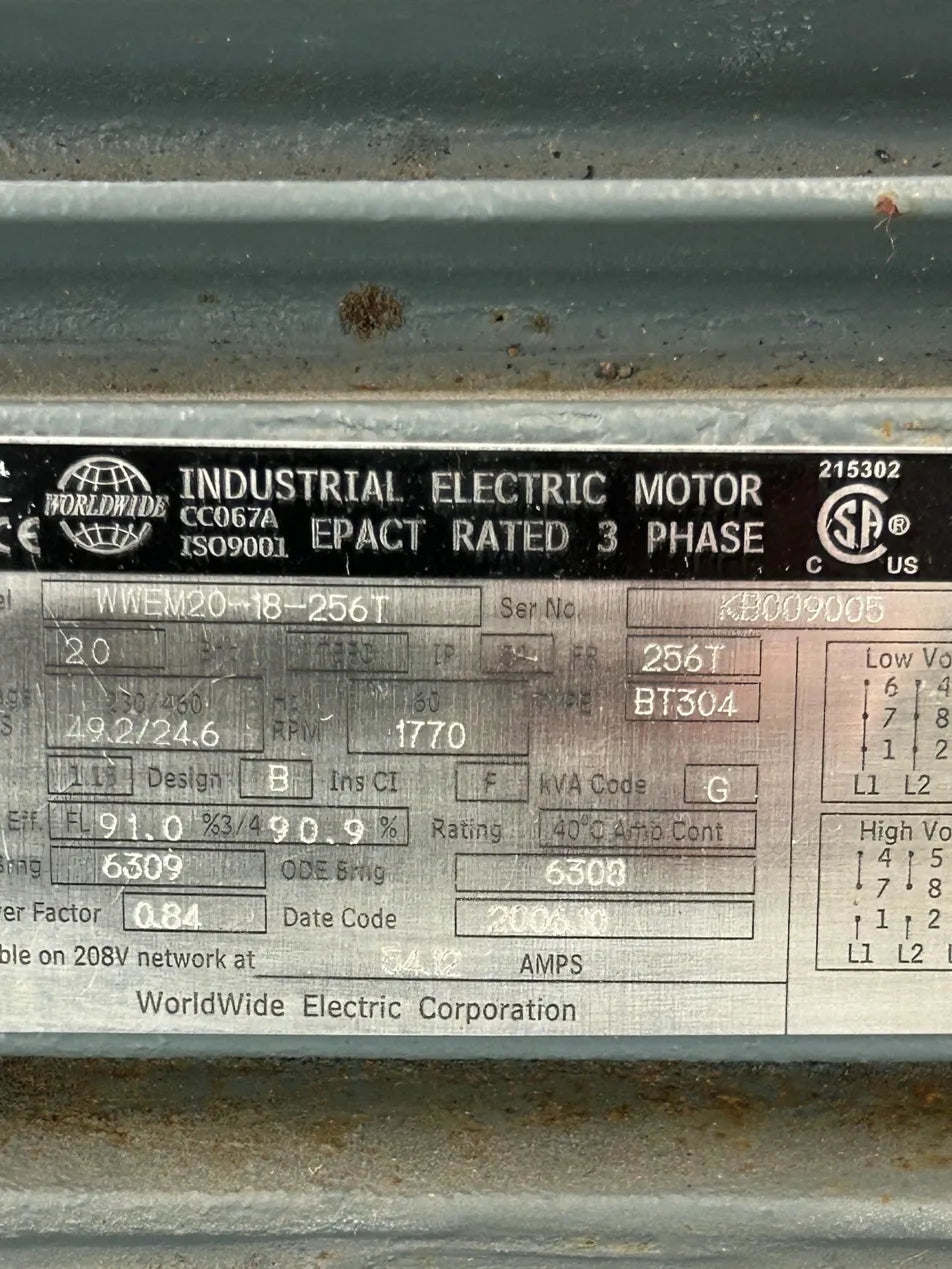

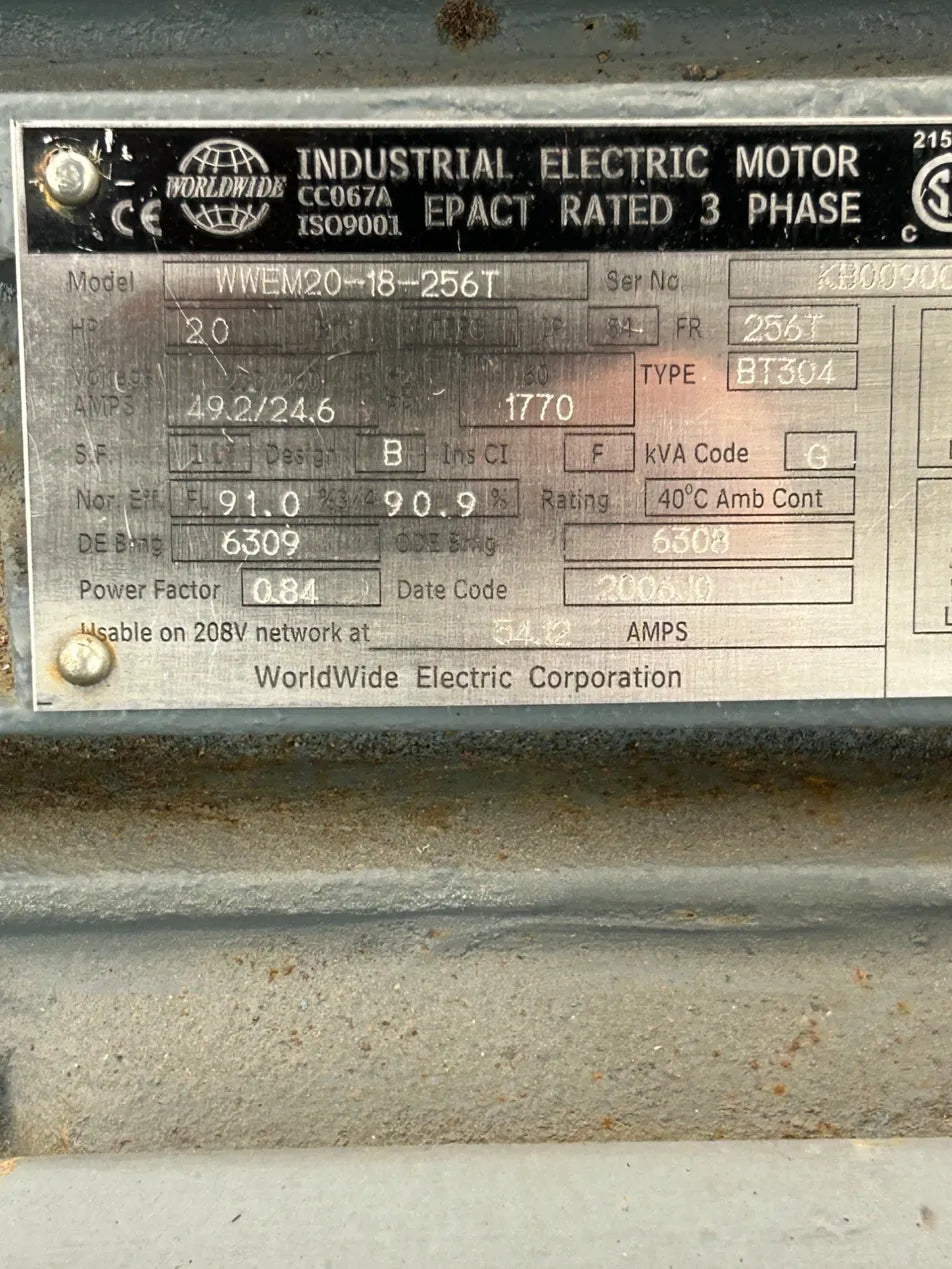

WorldWide Electric Corporation model WWEM20-18-256T is a 20 HP EPACT-rated three-phase induction motor configured for industrial applications. The nameplate specifies a voltage rating of 230/460V at 60 Hz, with a full-load current draw of 49.2/24.6 amps and a rated speed of 1770 RPM. The motor carries a 256T frame designation and is classified as NEMA Design B with Class F insulation. Full-load efficiency is rated at 91.0 percent, with 3/4-load efficiency at 90.9 percent and a power factor of 0.84. The kVA code is G and the service factor is 1.15. Drive-end bearing is listed as 6309 and the opposite drive-end bearing is 6308. The ambient temperature rating is 40 degrees C continuous. The motor is also listed as usable on a 208V network at 54.12 amps. A lubrication label visible on the frame indicates the bearings were serviced with Exxon Polyrex EM grease. The date code shown is 2006.10 and the serial number is KB009005. The unit features a TEFC enclosure configuration consistent with the 256T frame class and is CSA and CE marked per the nameplate.
Stock # 0226-603
