XP Power DIN Rail Power Supply DNR18US12
XP Power DIN Rail Power Supply DNR18US12
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

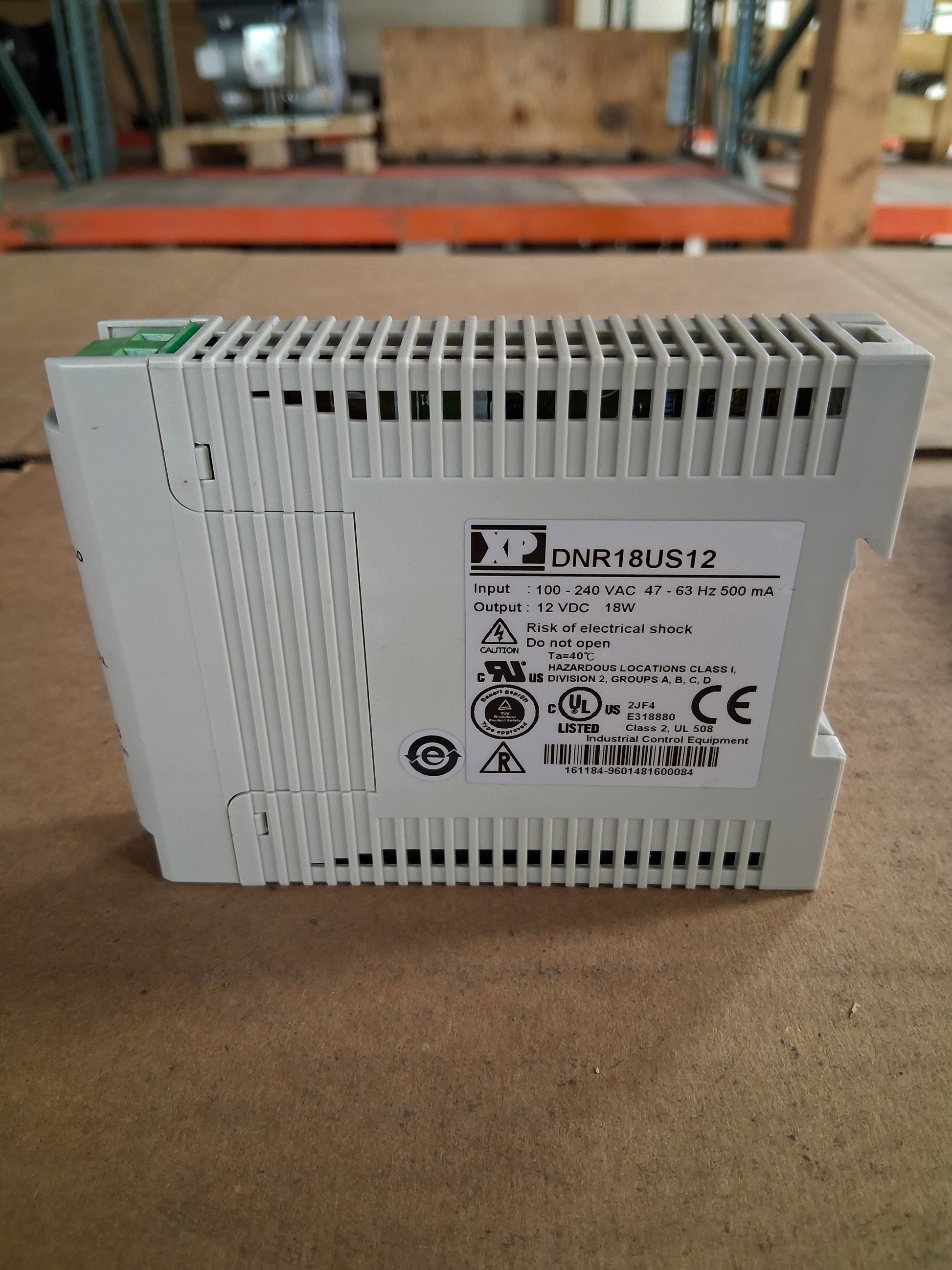

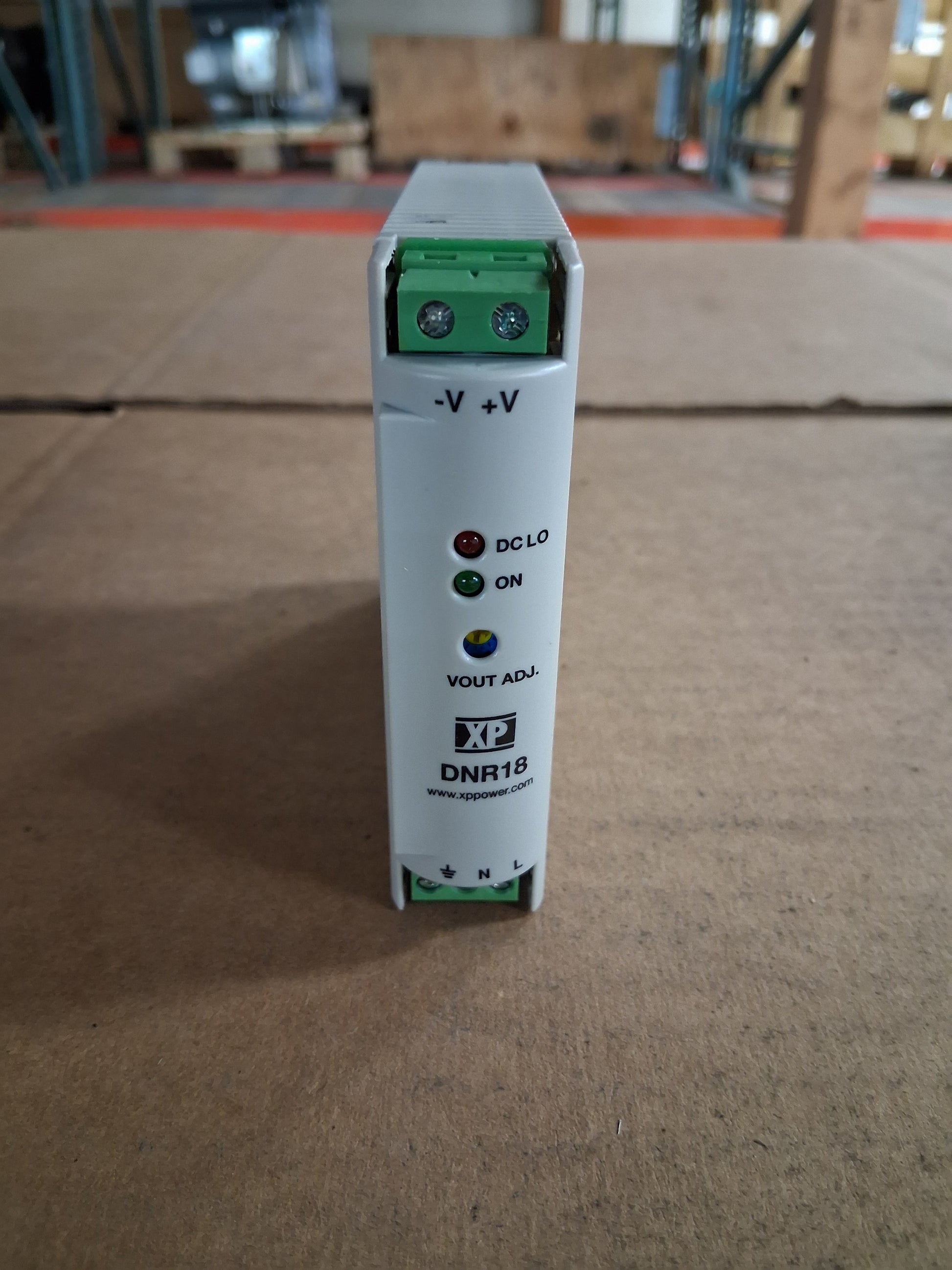

The XP Power DNR18US12 is a compact DIN rail mount AC to DC power supply from the DNR18 series, designed for industrial control and automation applications. Rated for an input of 100 to 240 VAC at 47 to 63 Hz with a 500 mA input current draw, the unit delivers a regulated 12 VDC output at 18 W total output power. The output voltage is adjustable via the front mounted VOUT ADJ. potentiometer, allowing trim within the manufacturer specified range. Front panel indicators include a green ON LED, a red DC LO status LED, and the output adjustment access point. Field wiring is made through pluggable green screw terminal blocks, with input terminals labeled L, N, and earth ground on the bottom, and output terminals labeled +V and V on the top. The molded plastic housing features ventilation slots on both sides for convection cooling, with an integrated 35 mm DIN rail mounting clip on the rear. Approvals visible on the rating label include cULus listed under file E318880 to UL 508 for Industrial Control Equipment, Class 2, Hazardous Locations Class I, Division 2, Groups A, B, C, D, CE marking, and TUV type approval. Maximum ambient operating temperature is rated at Ta equals 40 degrees C. The unit ships in its original XP Power packaging with the DNR Installation Sheet included. The label serial reference is 161184 9601481600084. Suitable as a replacement or spare for PLC panels, sensor power, instrumentation, and other 12 VDC control loads on a DIN rail.
Stock # 0526-02363
