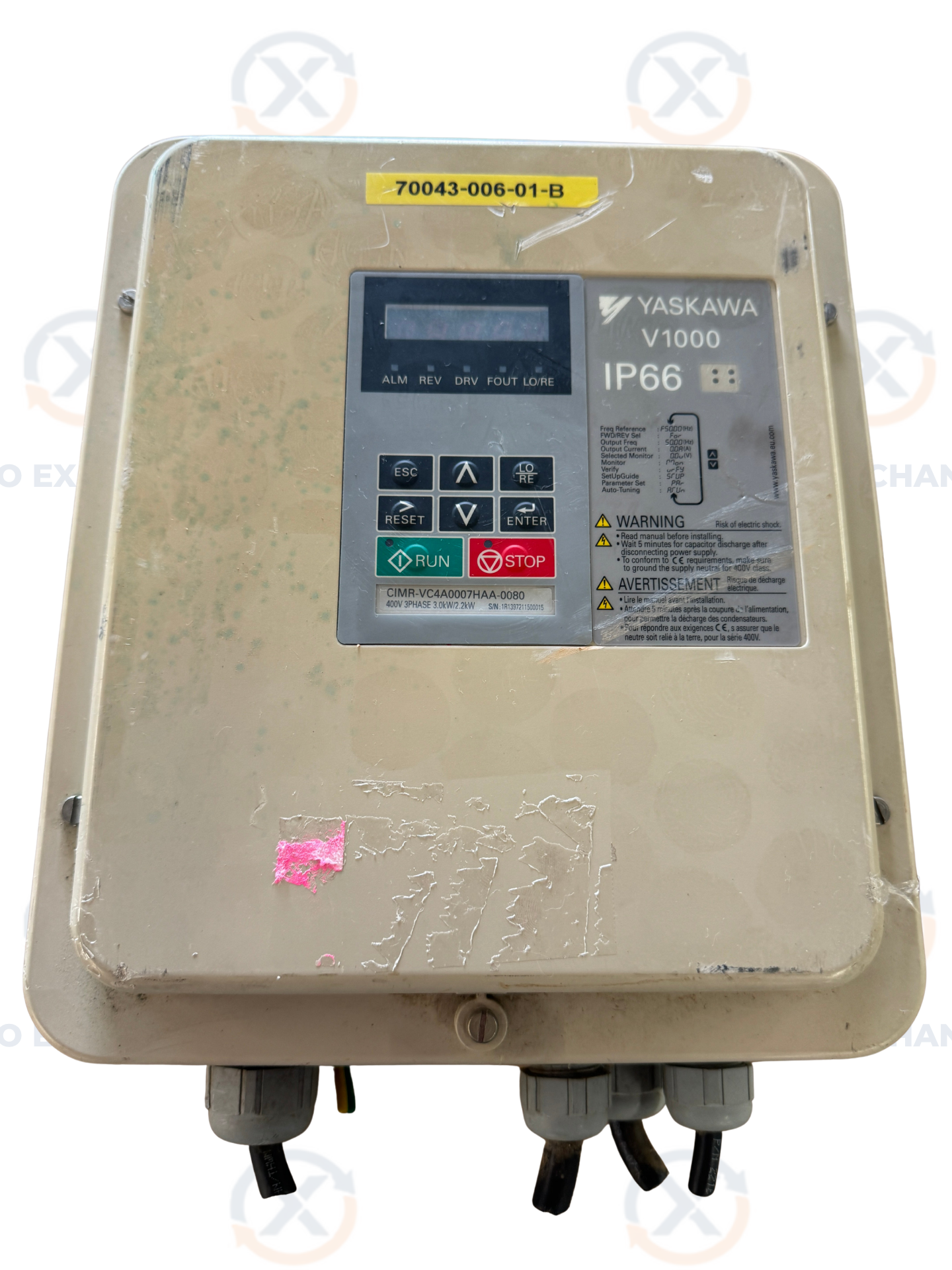

Yaskawa CIMR-VC4A0007HAA-0080 Variable Frequency Drive 400V 3-Phase Untested Surplus 01467
Yaskawa CIMR-VC4A0007HAA-0080 Variable Frequency Drive 400V 3-Phase Untested Surplus 01467
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: CIMR-VC4A0007HAA-0080
Stock #: 0626-01467
Product Specifications
- Manufacturer: Yaskawa
- MPN / Model: CIMR-VC4A0007HAA-0080
- Product Type: Variable Frequency Drive
- Series: V1000
- Input Voltage: 400V, 3-Phase
- Output Frequency: 0 to 400 Hz
- Output Current: 5.5A at 2.2 kW
- Normal Duty Output: 3.0 kW
- Heavy Duty Output: 2.2 kW
- Enclosure Rating: IP66
- Thermal Management: Finned Aluminum Heatsink
- Serial Number: 1R13972I1500015
- Asset Tag: 70043-006-01-B
Product Description

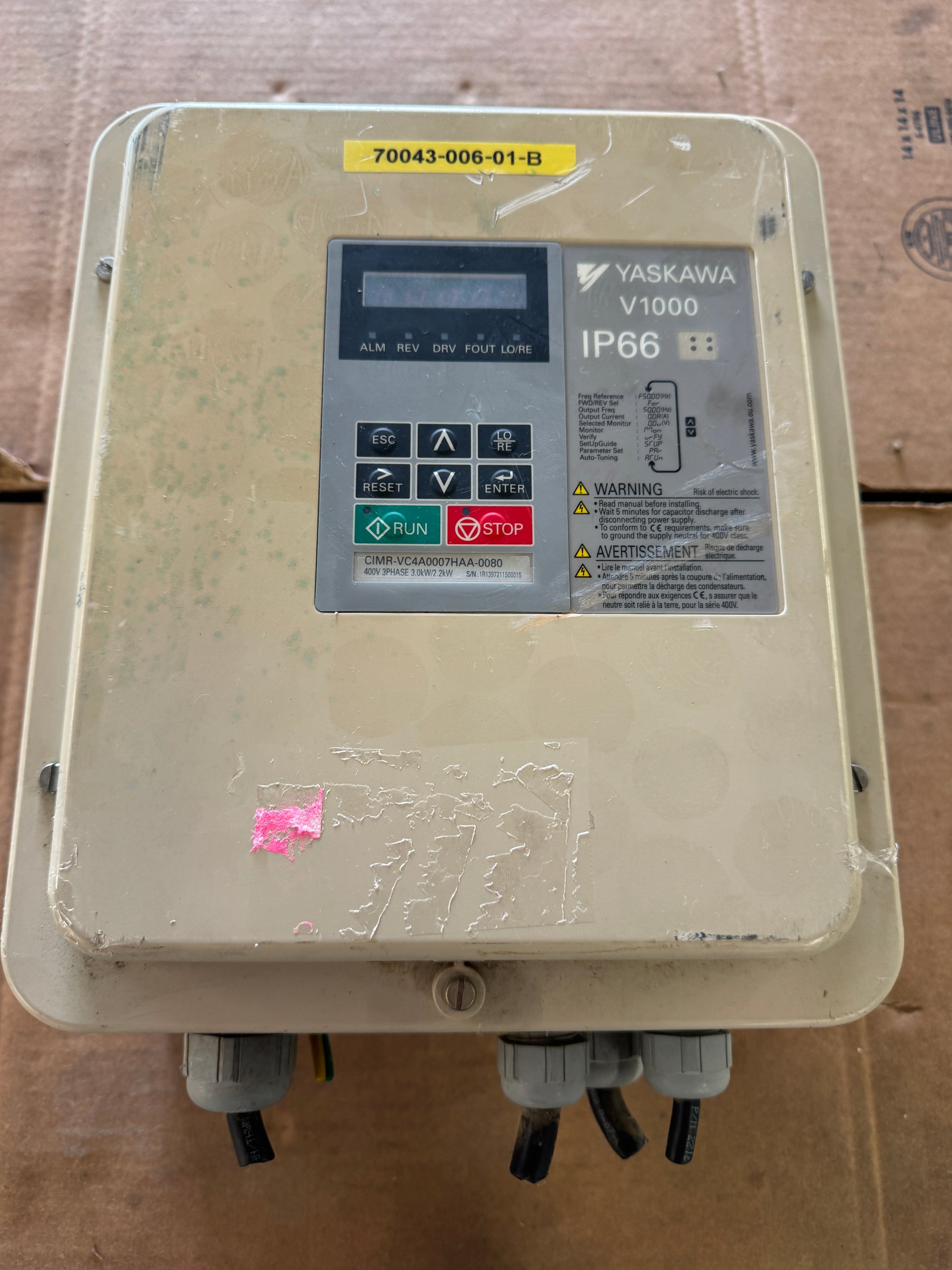

The Yaskawa V1000 series CIMR-VC4A0007HAA-0080 is a compact variable frequency drive rated for 400V three-phase input with a 3.0 kW normal duty and 2.2 kW heavy duty output capacity. The HAA-0080 suffix designates the IP66 enclosure configuration, providing dust-tight and water-jet resistant protection suitable for harsh or wash-down industrial environments. Serial number 1R13972I1500015 is confirmed on the nameplate label.

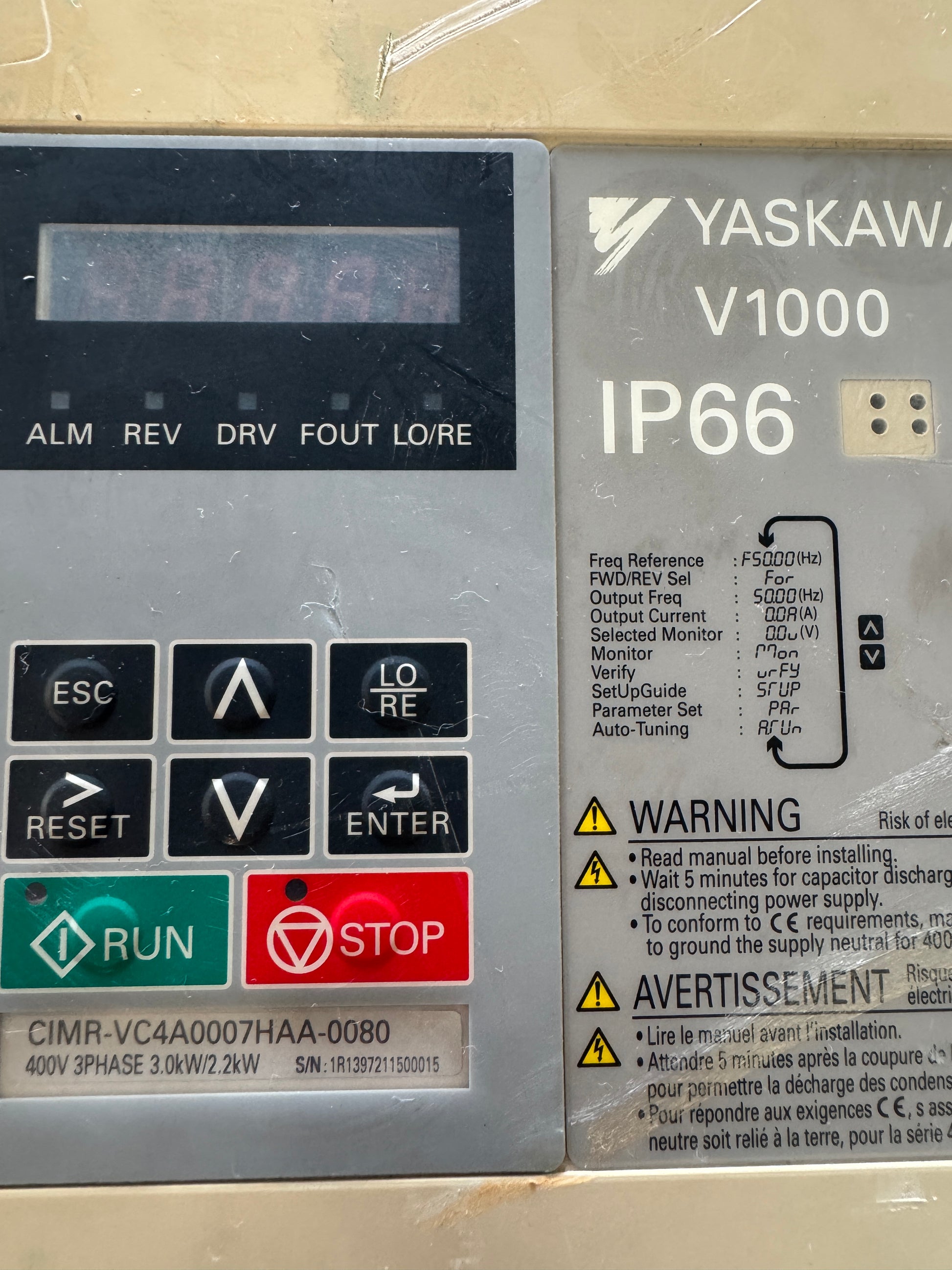

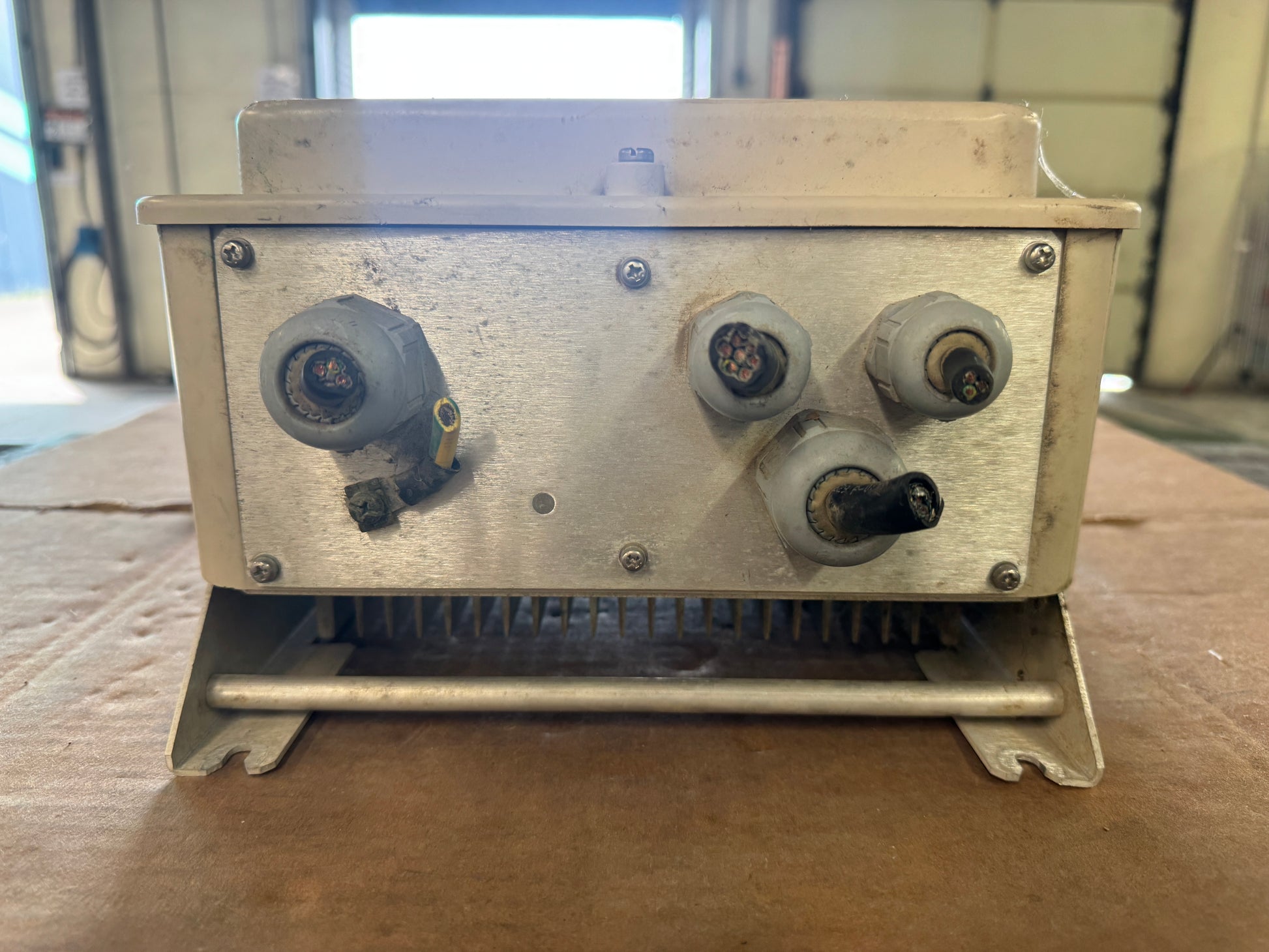

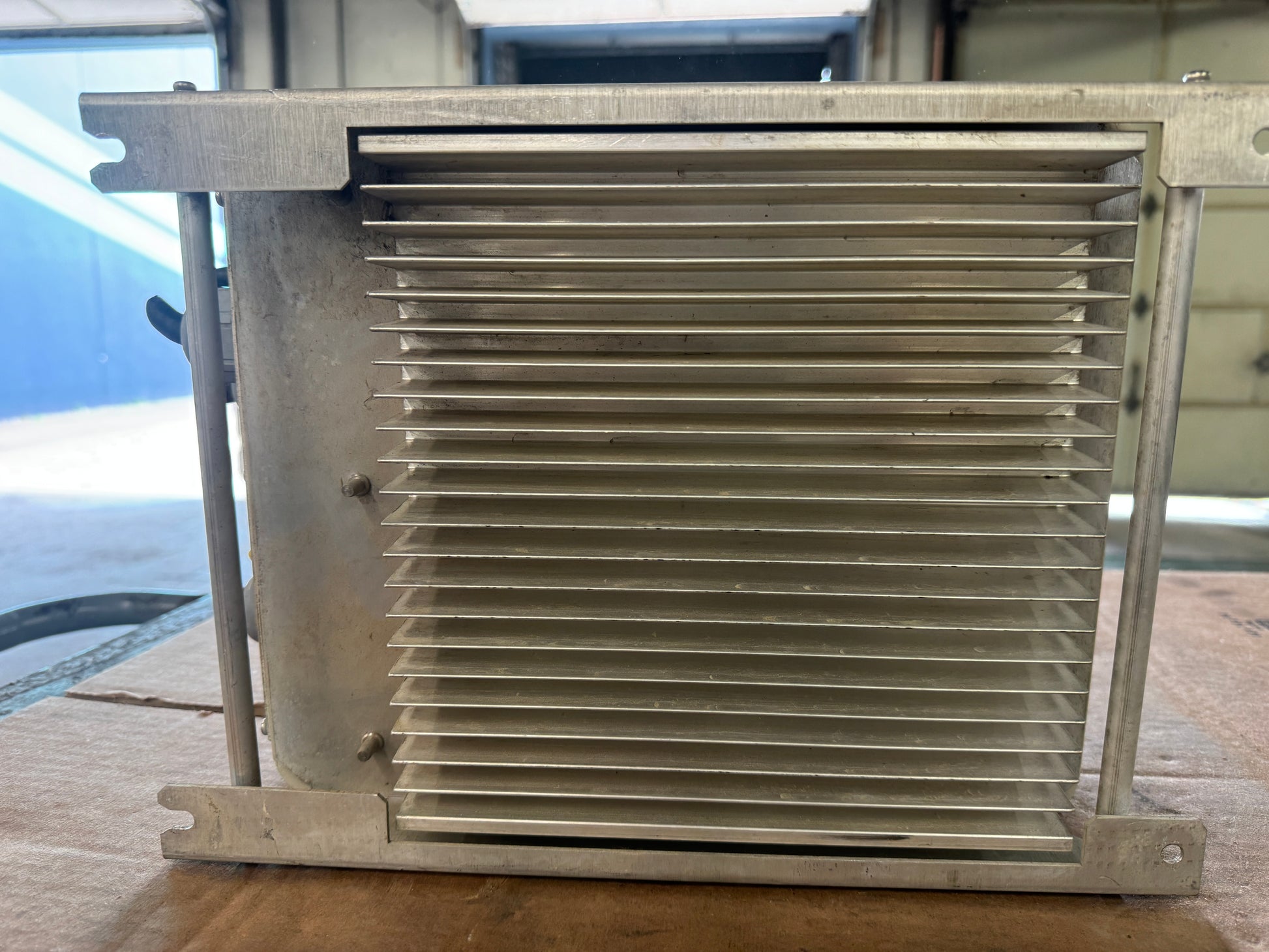

Nameplate data confirms input voltage of 400V three-phase, output frequency up to 400 Hz, and a current rating of 5.5 amps at 2.2 kW. The integrated operator panel includes a digital display, ALM, REV, DRV, FOUT, and LO/RE status indicators, ESC, RESET, Up, Down, Enter, and LO/RE keys, plus dedicated RUN and STOP buttons. Multiple sealed cable entry glands are present on the bottom panel consistent with a field-wired installation. The finned aluminum heatsink is visible on the rear and side of the enclosure for passive thermal management.
The V1000 series supports open-loop vector, V/f, and closed-loop vector control modes and is compatible with standard three-phase AC induction motors. An operator-applied asset tag reading 70043-006-01-B is present on the front cover.
