Yaskawa Variable Frequency Drive CIMR-VC4A0007HAA-0080 - 3 kW Variable RPM
Yaskawa Variable Frequency Drive CIMR-VC4A0007HAA-0080 - 3 kW Variable RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: CIMR-VC4A0007HAA-0080
Stock #: 0626-01462
Product Specifications
- Manufacturer: Yaskawa
- MPN / Model: CIMR-VC4A0007HAA-0080
- Product Type: Variable Frequency Drive
- Series: V1000
- Input Voltage: 400V, 3-Phase
- Normal Duty Output: 3.0 kW
- Heavy Duty Output: 2.5 kW
- Enclosure Rating: IP66
- Enclosure Material: Cast, Integrated
- Thermal Management: Finned Aluminum Heatsink
- Serial Number: SN 181207...
- Asset Tag: 70043-006-01-B
- Stock Number: 0526-01462
Product Description

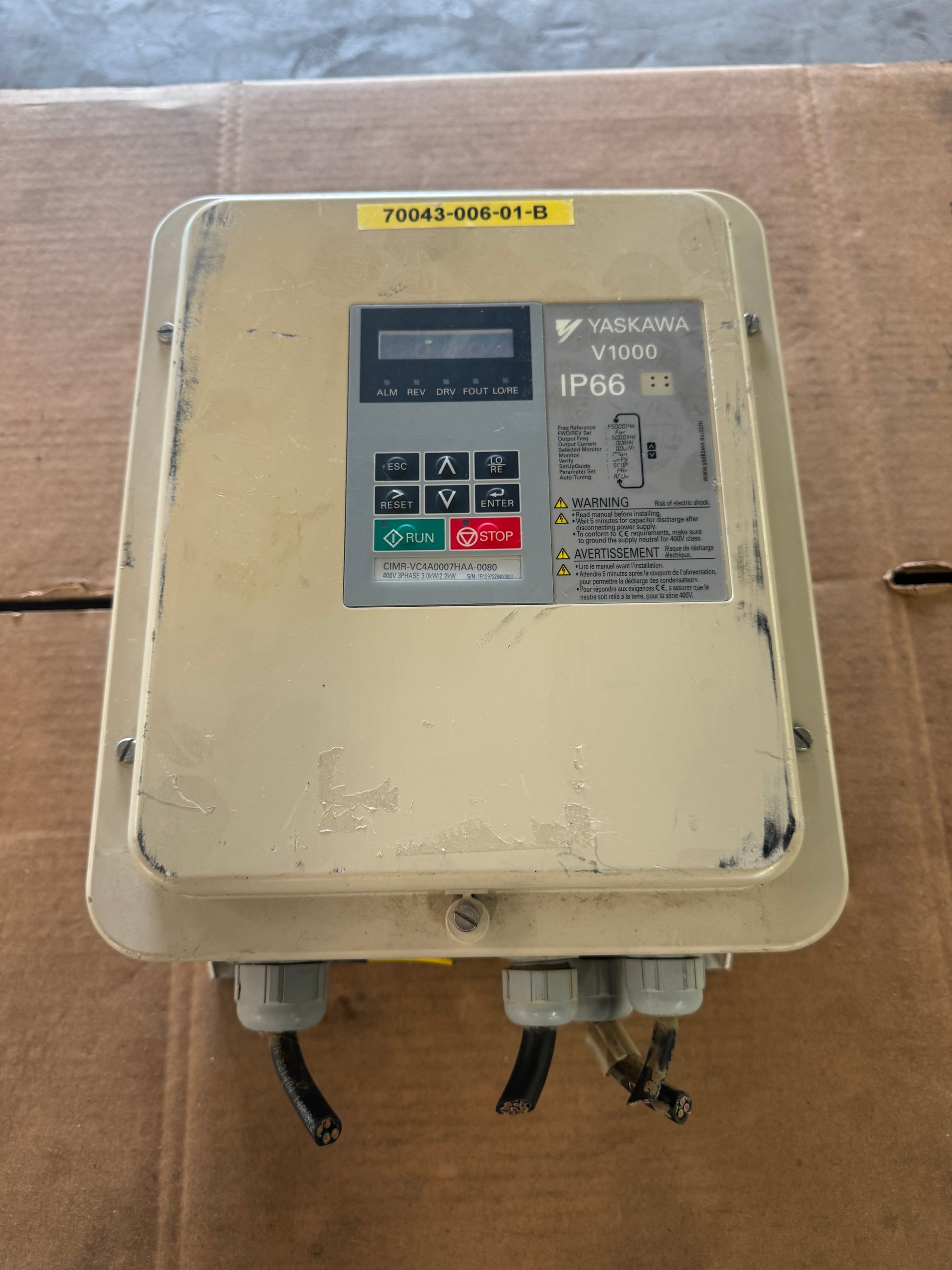

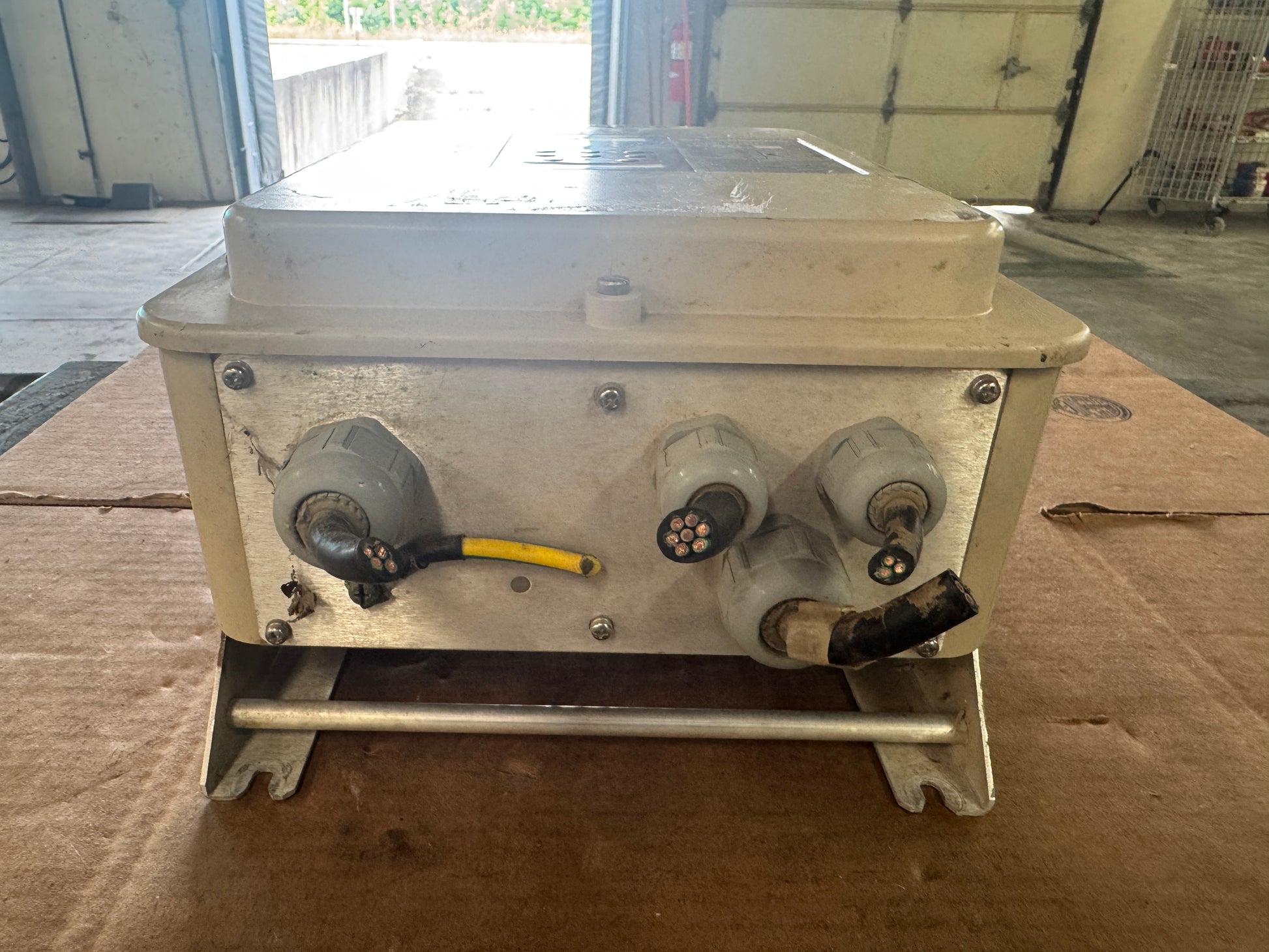

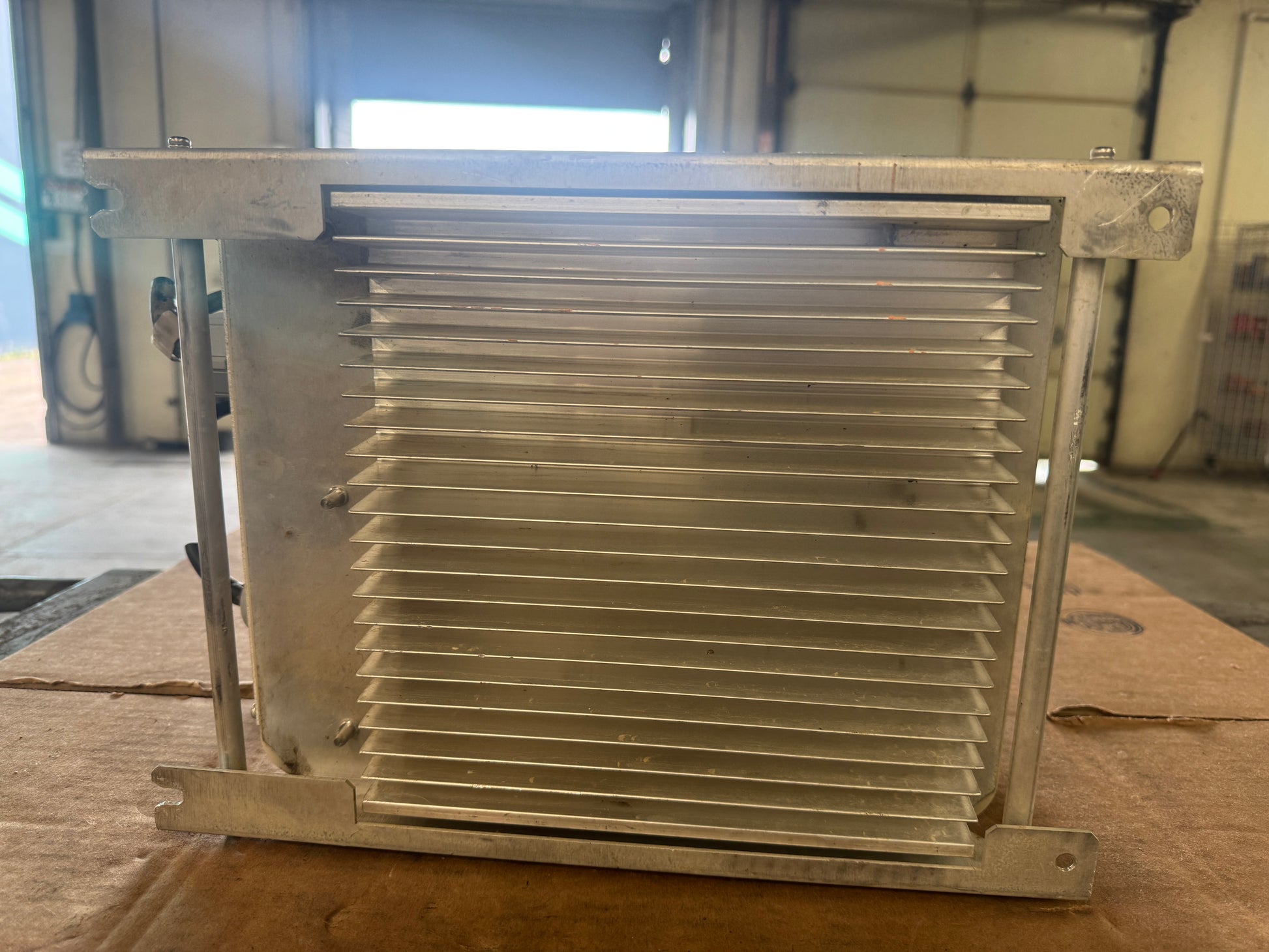

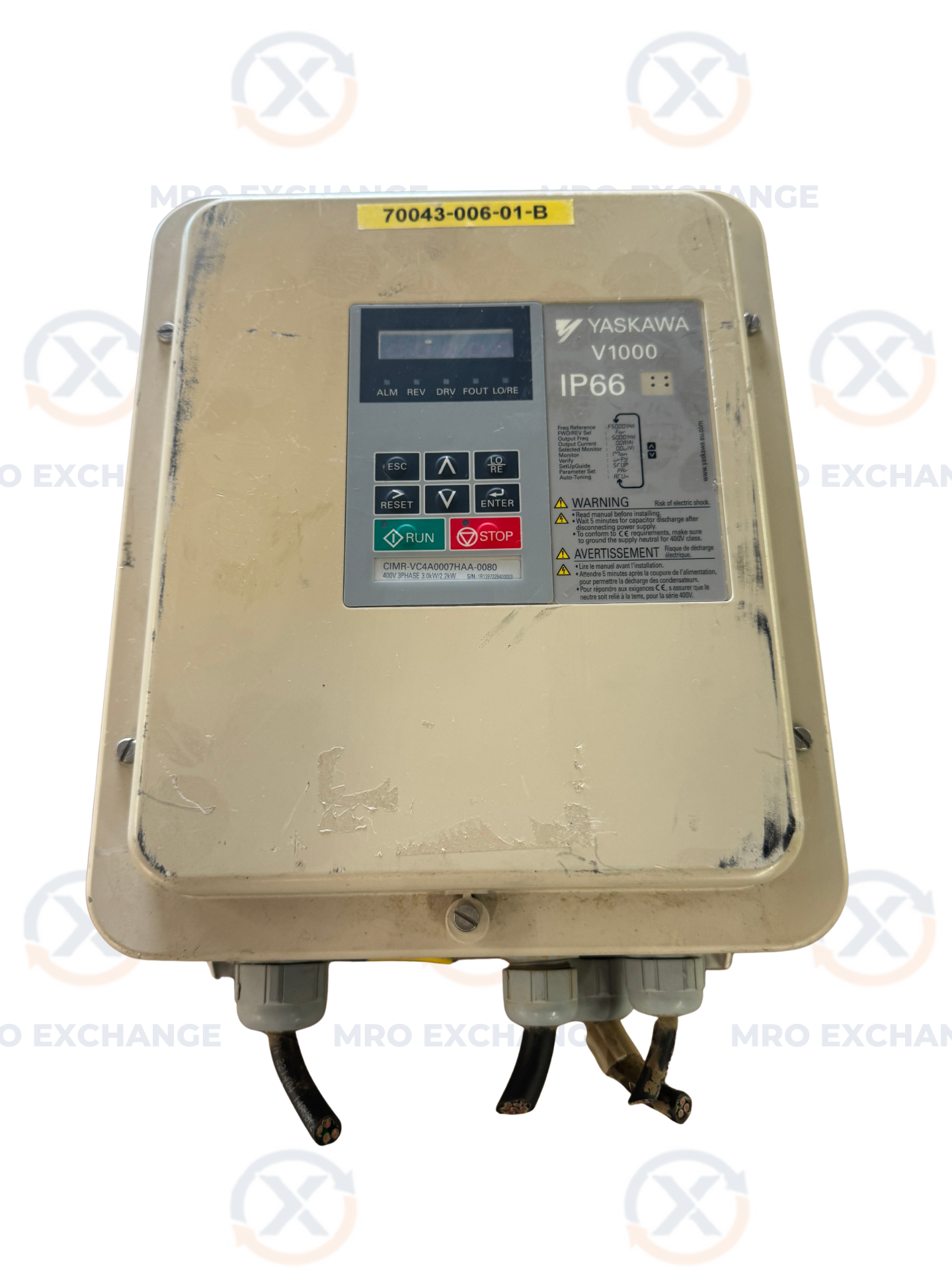

The Yaskawa V1000 IP66 variable frequency drive carries part number CIMR-VC4A0007HAA-0080 and is rated for 400V three-phase input, built around the V1000 compact current vector drive platform. The IP66 enclosure rating provides protection against dust ingress and powerful water jets, making it suited for washdown, food and beverage, packaging, and outdoor industrial environments where standard NEMA 1 or NEMA 12 enclosures would be inadequate. The nameplate indicates 3.0 kW normal duty and 2.5 kW heavy duty output ratings. The internal operator keypad includes ALM, REV, DRV, FOUT, and LO/RE status indicators along with ESC, RESET, RUN, STOP, and ENTER controls on the front panel. The unit features an integrated cast enclosure with cable glands and conduit entry points on the bottom and a finned aluminum heatsink assembly on the rear face for passive thermal management. The V1000 series supports open-loop vector control, V/f control, and closed-loop vector control modes and is compatible with standard three-phase induction motors and permanent magnet motors. The nameplate serial number begins with SN 181207, indicating a manufacture date consistent with late 2018 production.
