Yaskawa Variable Frequency Drive CIMR-VC4A0007HAA-0080 - 3 kW Variable RPM 01465
Yaskawa Variable Frequency Drive CIMR-VC4A0007HAA-0080 - 3 kW Variable RPM 01465
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: CIMR-VC4A0007HAA-0080
Stock #: 0626-01465
Product Specifications
- Manufacturer: Yaskawa
- MPN / Model: CIMR-VC4A0007HAA-0080
- Product Type: Variable Frequency Drive
- Series: V1000
- Input Voltage: 400V, 3-Phase
- Normal Duty Output: 3.0 kW
- Heavy Duty Output: 2.2 kW
- Enclosure Rating: NEMA Type 4X/12, IP66 per IEC 529
- Thermal Management: External Aluminum Heatsink
- Serial Number: 1R13X7229900013
- Stock Number: 0526-01465
Product Description
The Yaskawa V1000 IP66 is a compact vector control VFD rated for 400V 3-phase input at 3.0 kW Normal Duty and 2.2 kW Heavy Duty operation. Part number CIMR-VC4A0007HAA-0080 identifies this as an IP66-rated enclosure variant of the V1000 series, providing NEMA Type 4X/12 protection against dust and water ingress per IEC 529 standards. This enclosure type is common in food and beverage processing, packaging, metal machining, woodworking, pumping, refrigeration, and printing environments where standard open-chassis drives are unsuitable.

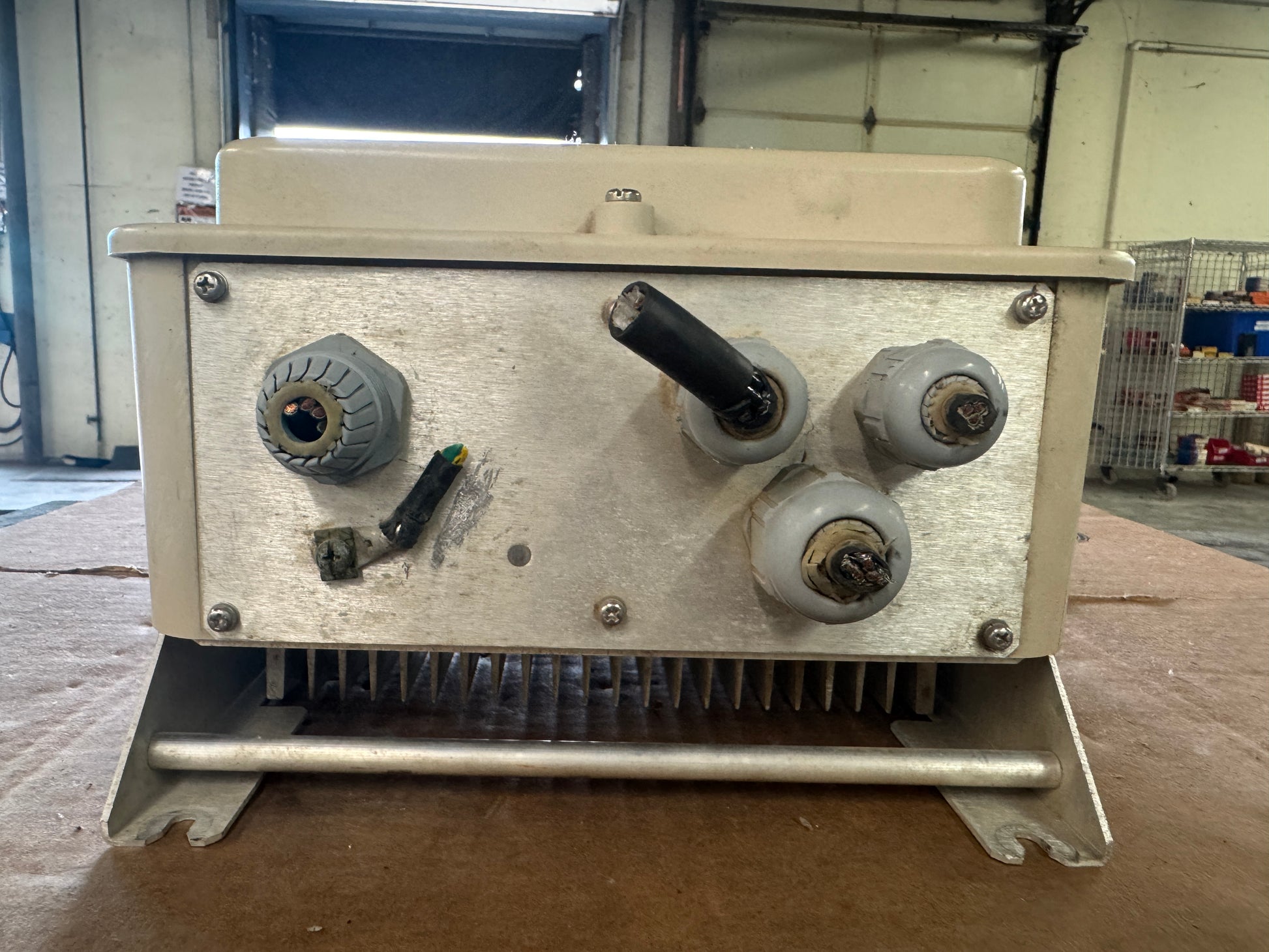

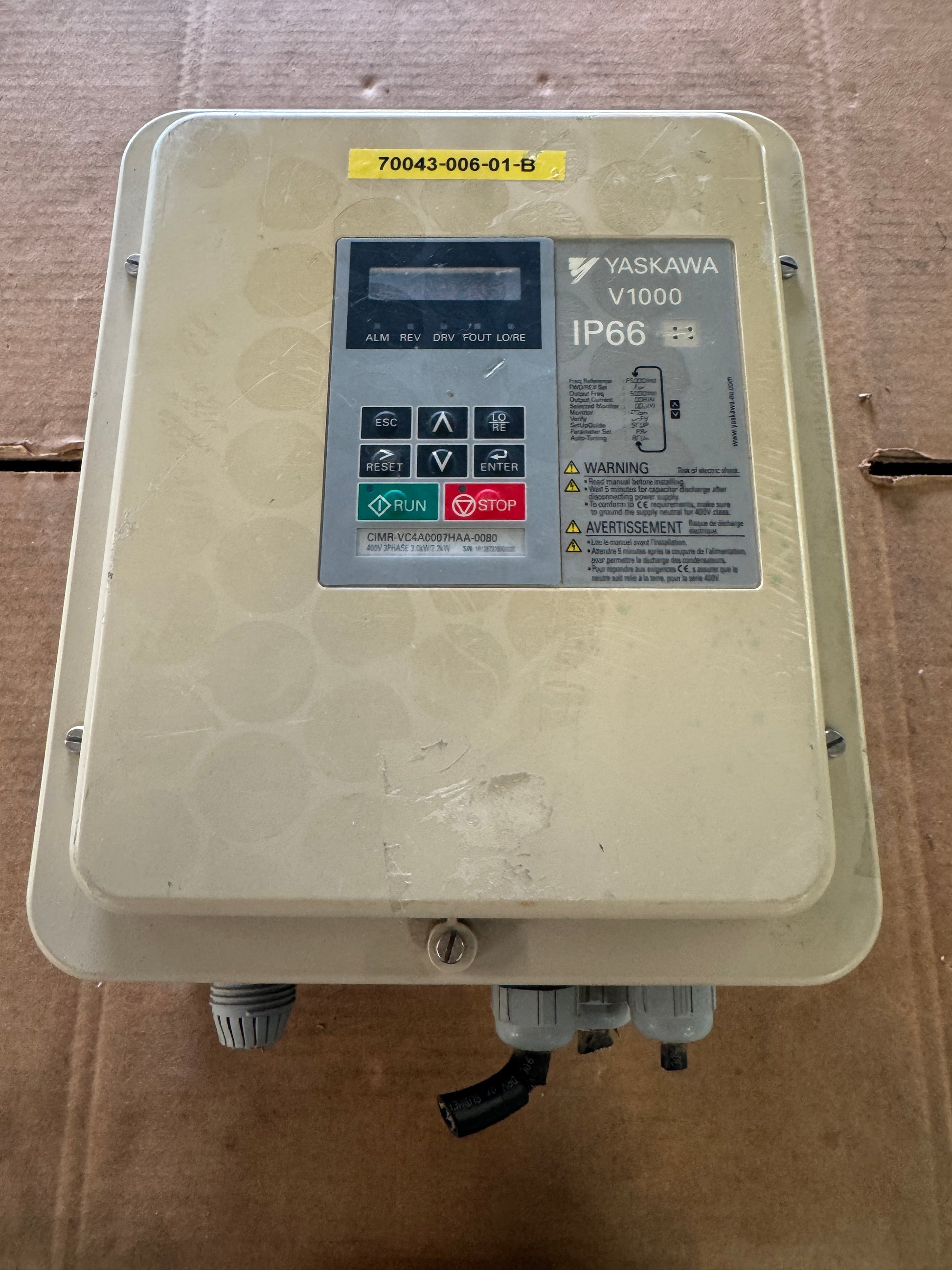

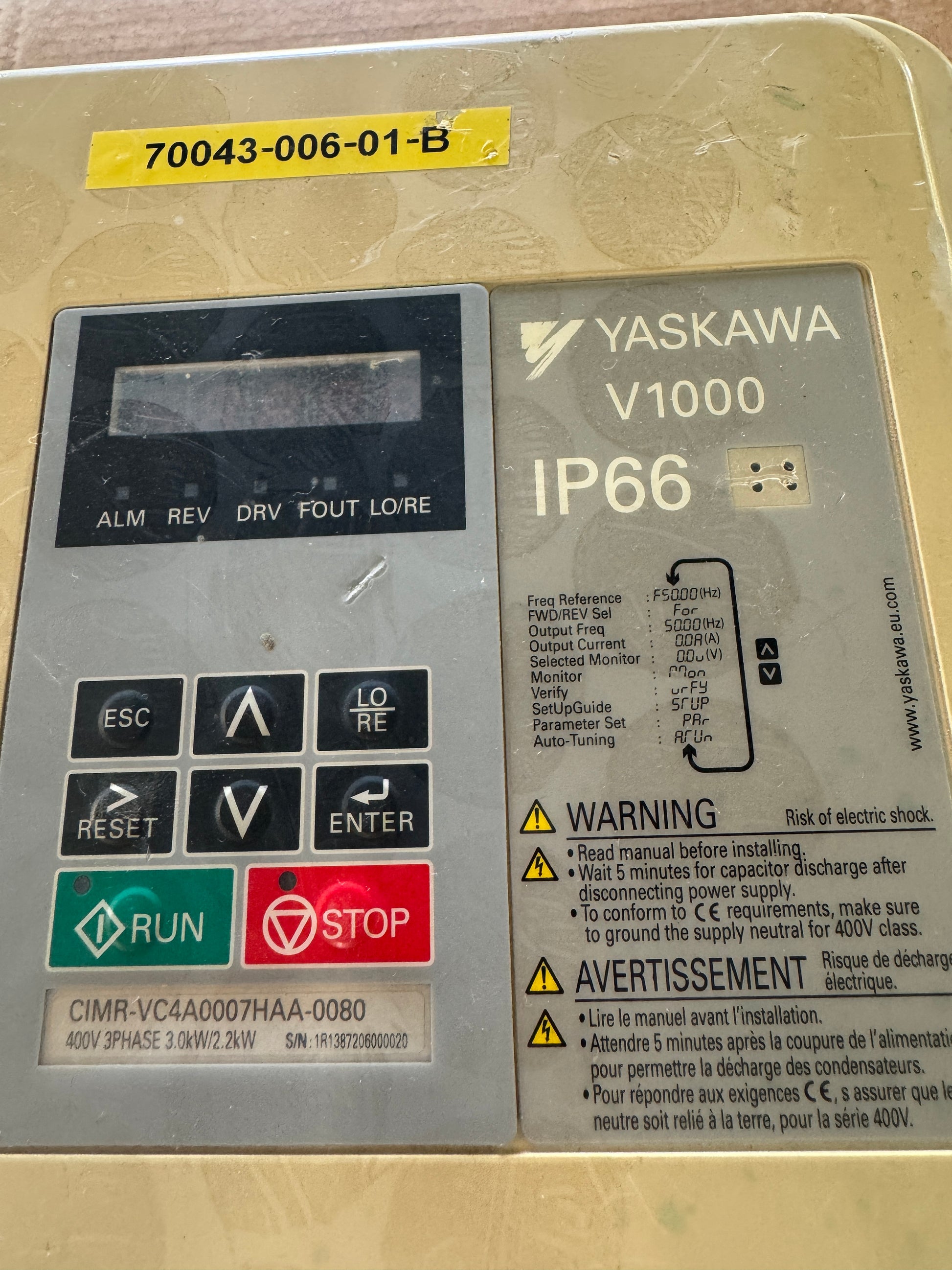

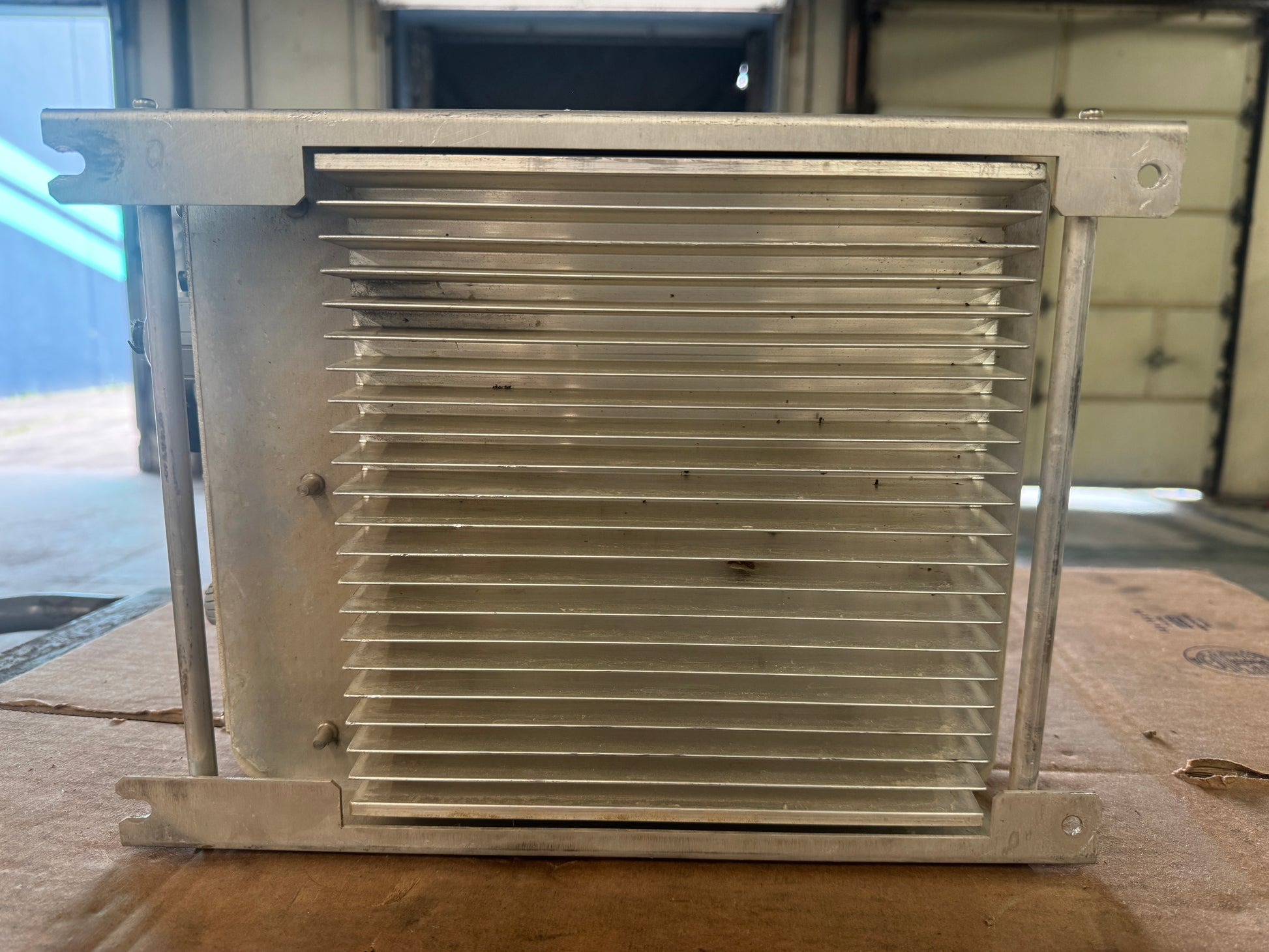

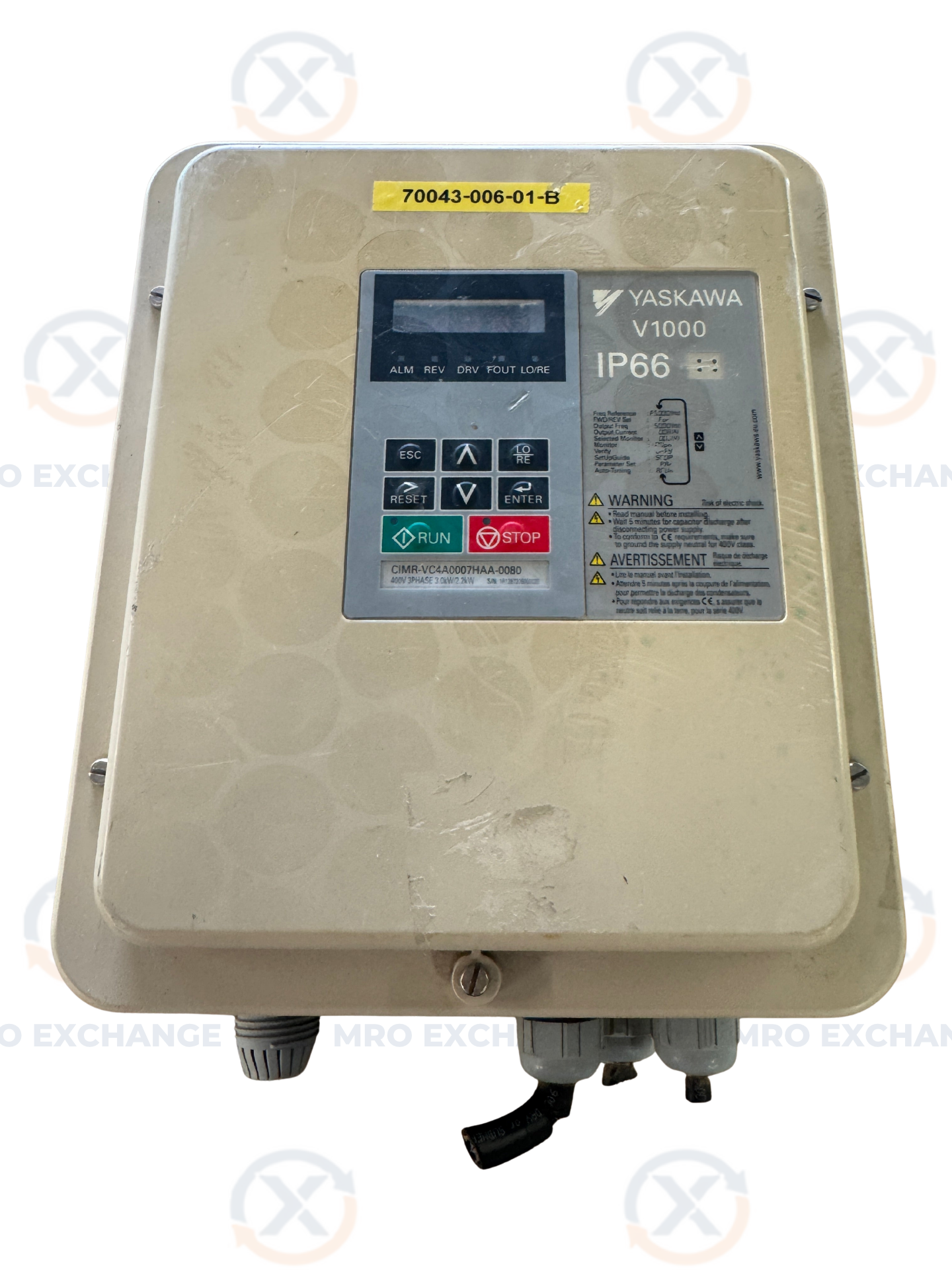

The front panel features an integrated LCD display with ALM, REV, DRV, FOUT, and LO/RE status indicators, along with ESC, RESET, directional navigation, ENTER, RUN, and STOP controls. Serial number 1R13X7229900013 is confirmed on the nameplate. Multiple cable glands are present on the connection panels, and a large external aluminum heatsink runs along the base for passive thermal management. The drive supports V/f control and closed-loop vector modes standard to the V1000 platform, with Auto-Tuning and parameter set features accessible via the keypad.
