Adamant Pneumatic Butterfly Valve AV-1PC-2VNC-304-S 2 In. Tri-Clamp 145 PSI
Adamant Pneumatic Butterfly Valve AV-1PC-2VNC-304-S 2 In. Tri-Clamp 145 PSI
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: AV-1PC-2VNC-304-S
Stock #: 0326-00936

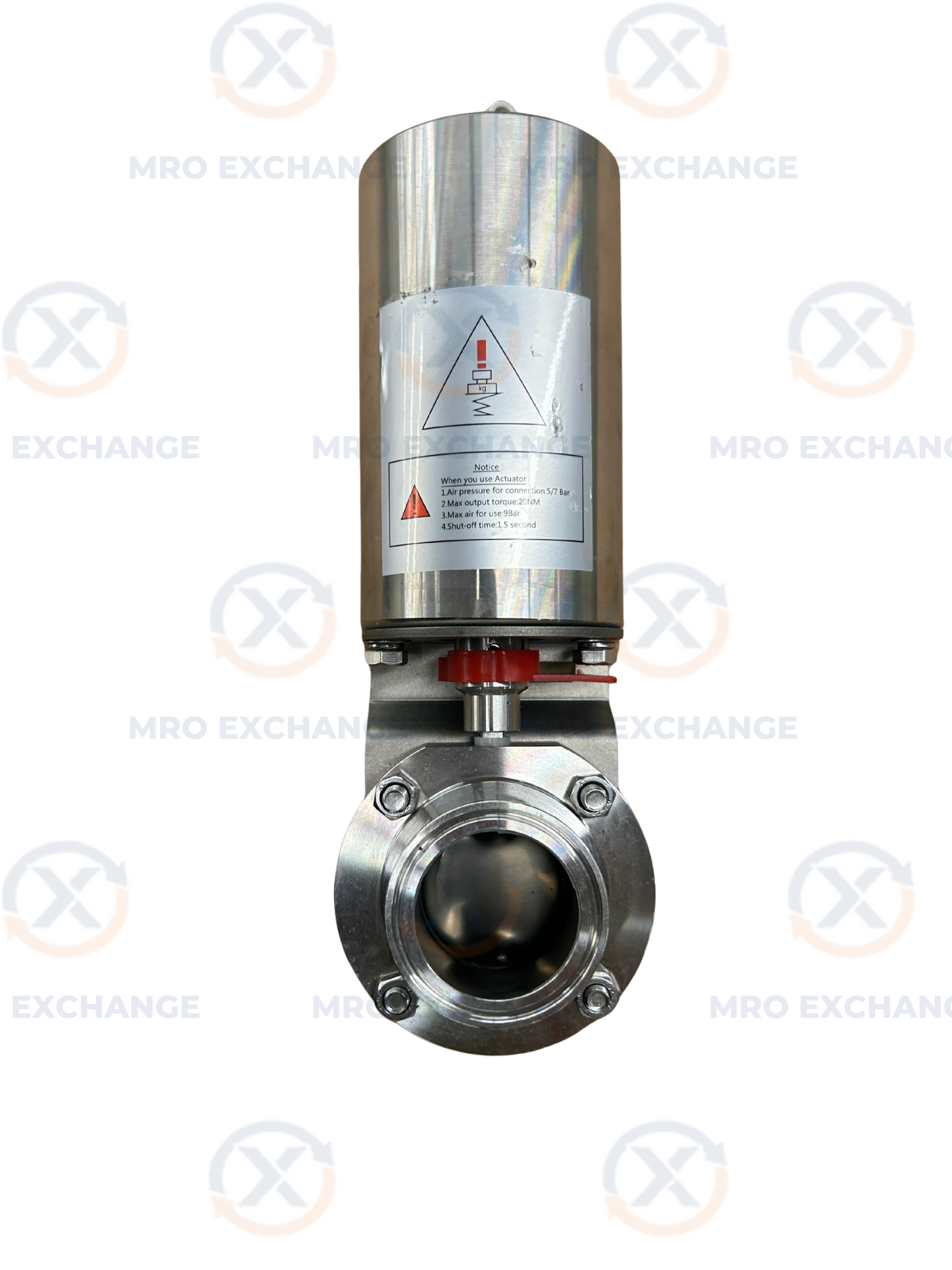

Used in food and beverage processing, dairy, pharmaceutical, and chemical piping systems, this Adamant Valves AV-1PC-2VNC-304-S is a 2 In. sanitary pneumatic butterfly valve with tri-clamp ends. The valve body and disc are constructed from AISI 304 stainless steel, and the assembly includes a stainless steel 304 vertical-style pneumatic actuator. Operation is normally closed (NC), meaning it is air-to-open and spring-to-close, providing fail-safe closed functionality in the event of air supply loss.

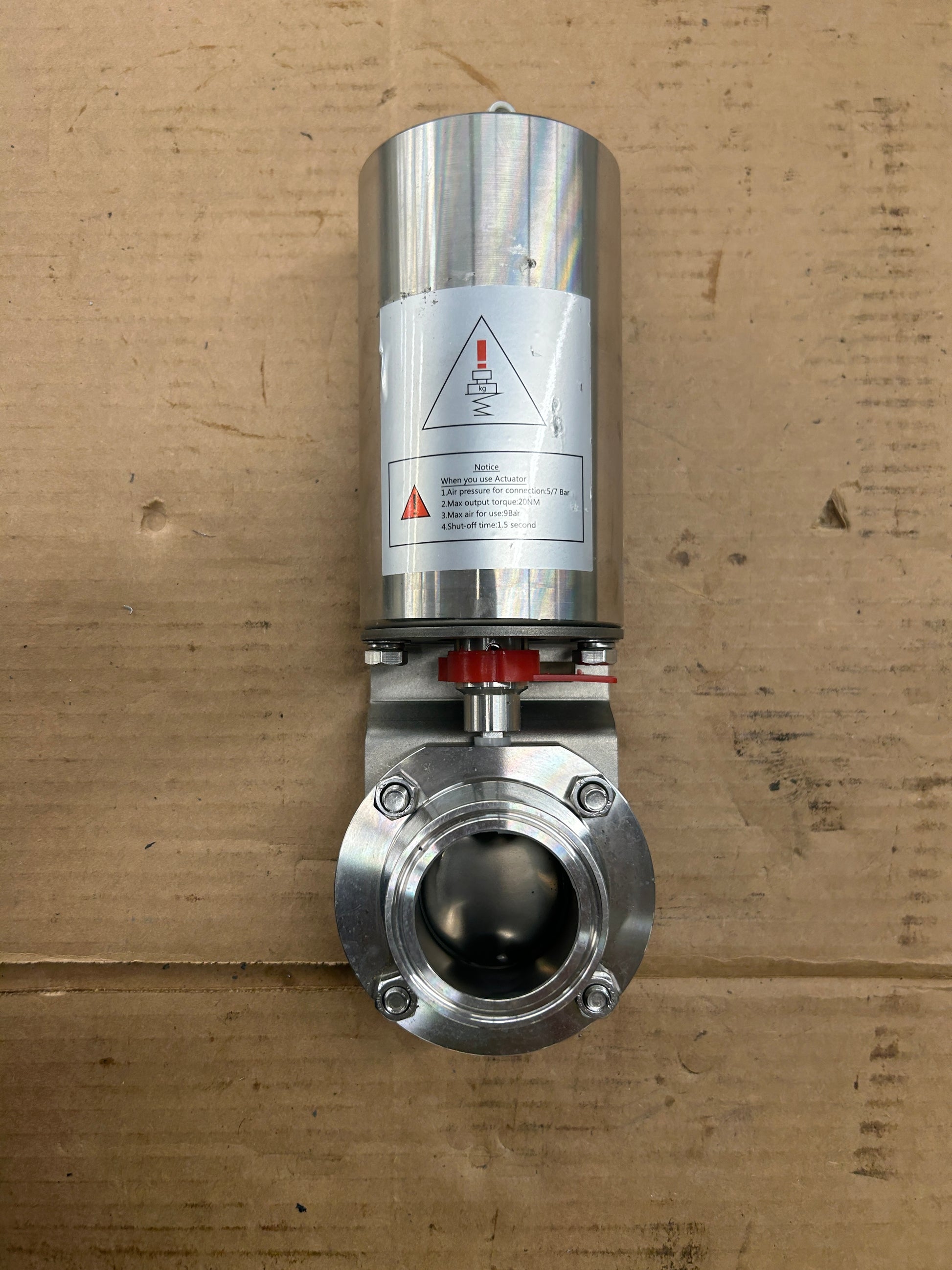

Per the actuator notice label, the recommended air supply pressure for connection is 5 to 7 bar, maximum output torque is 20NM, maximum air pressure for use is 9 bar, and shut-off time is 1.5 seconds. A visual position indicator is integrated into the actuator body. Published specifications for the AV-1PC series at this size indicate a maximum working pressure of 145 PSI (10 bar) and a temperature range of 14 to 248 degrees Fahrenheit with EPDM seat material. End connections are sanitary tri-clamp style, suitable for quick disassembly and clean-in-place processes. Seat and gasket materials are available in EPDM, VMQ (Silicone), and Viton, complying with FDA 21CFR177.2600. A 100% tested sticker is visible on the valve body.

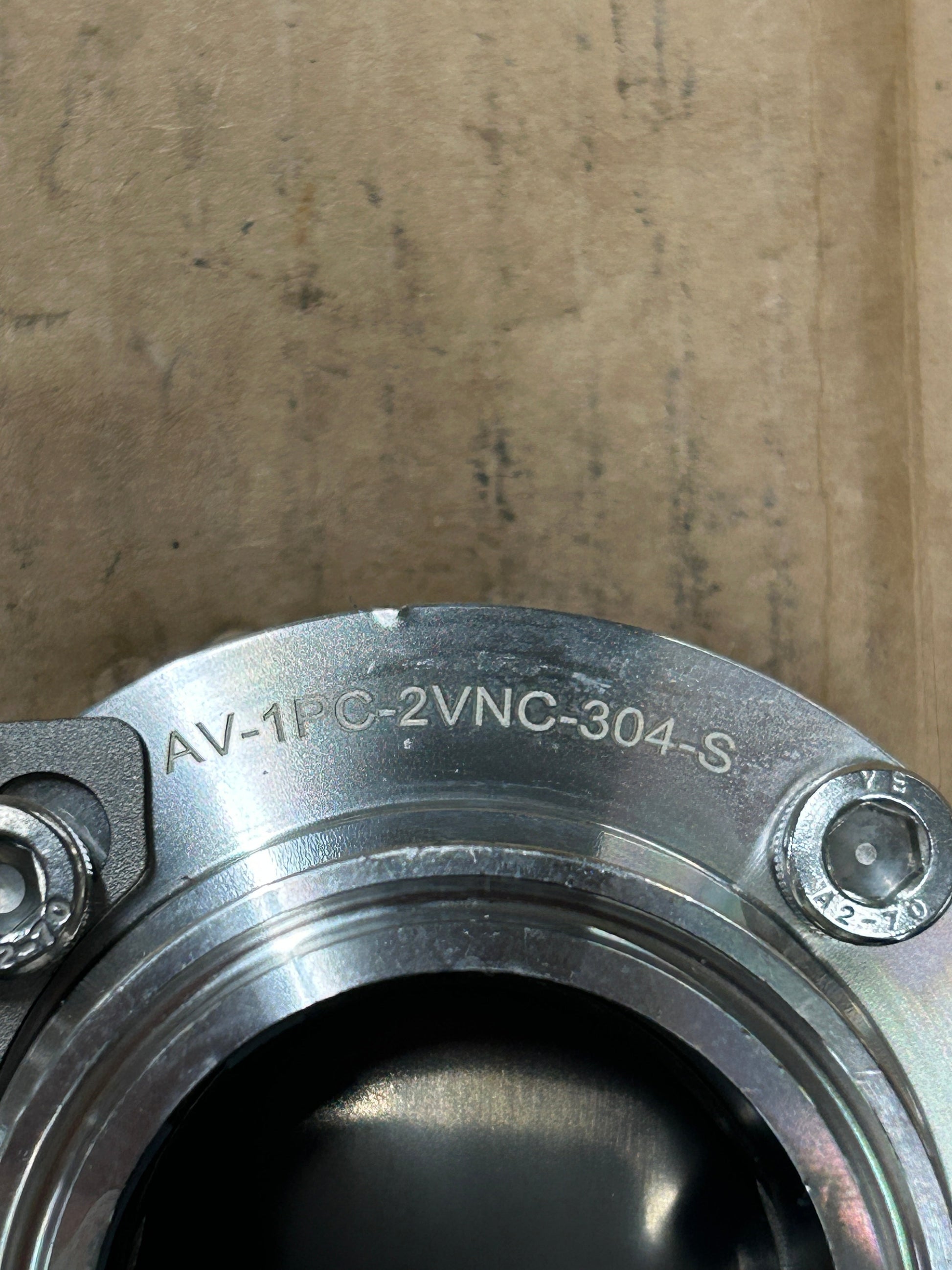

Adamant Valves is a Lake Forest, California-based manufacturer supplying stainless steel sanitary valves and fittings to the food, beverage, dairy, brewing, and pharmaceutical industries. The model number AV-1PC-2VNC-304-S is engraved directly into the valve body.
Stock # 0326-936
