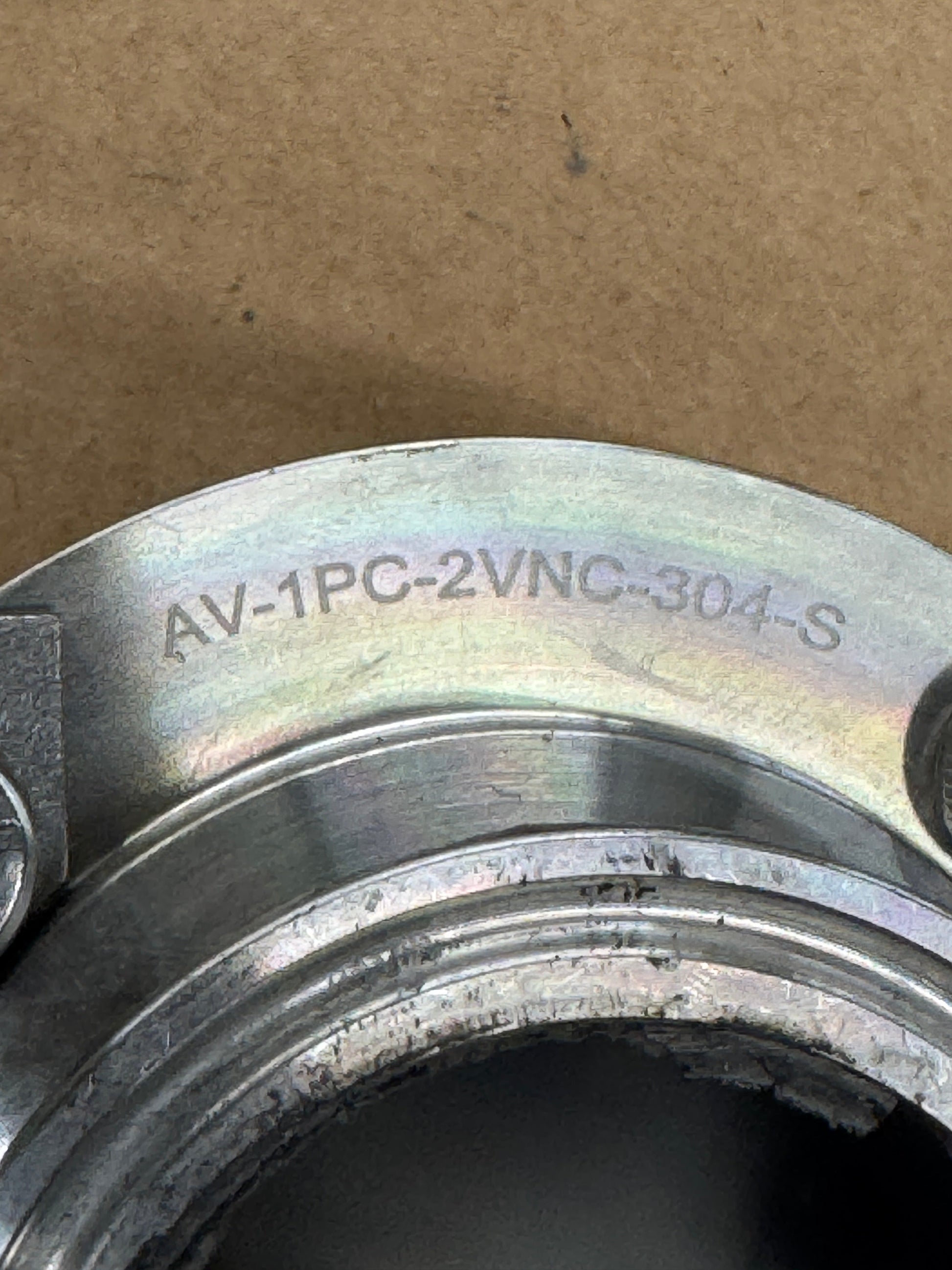

Adamant Sanitary Pneumatic Butterfly Valve AV-1PC-2VNC-304-S 2 In. Tri-Clamp 145 PSI

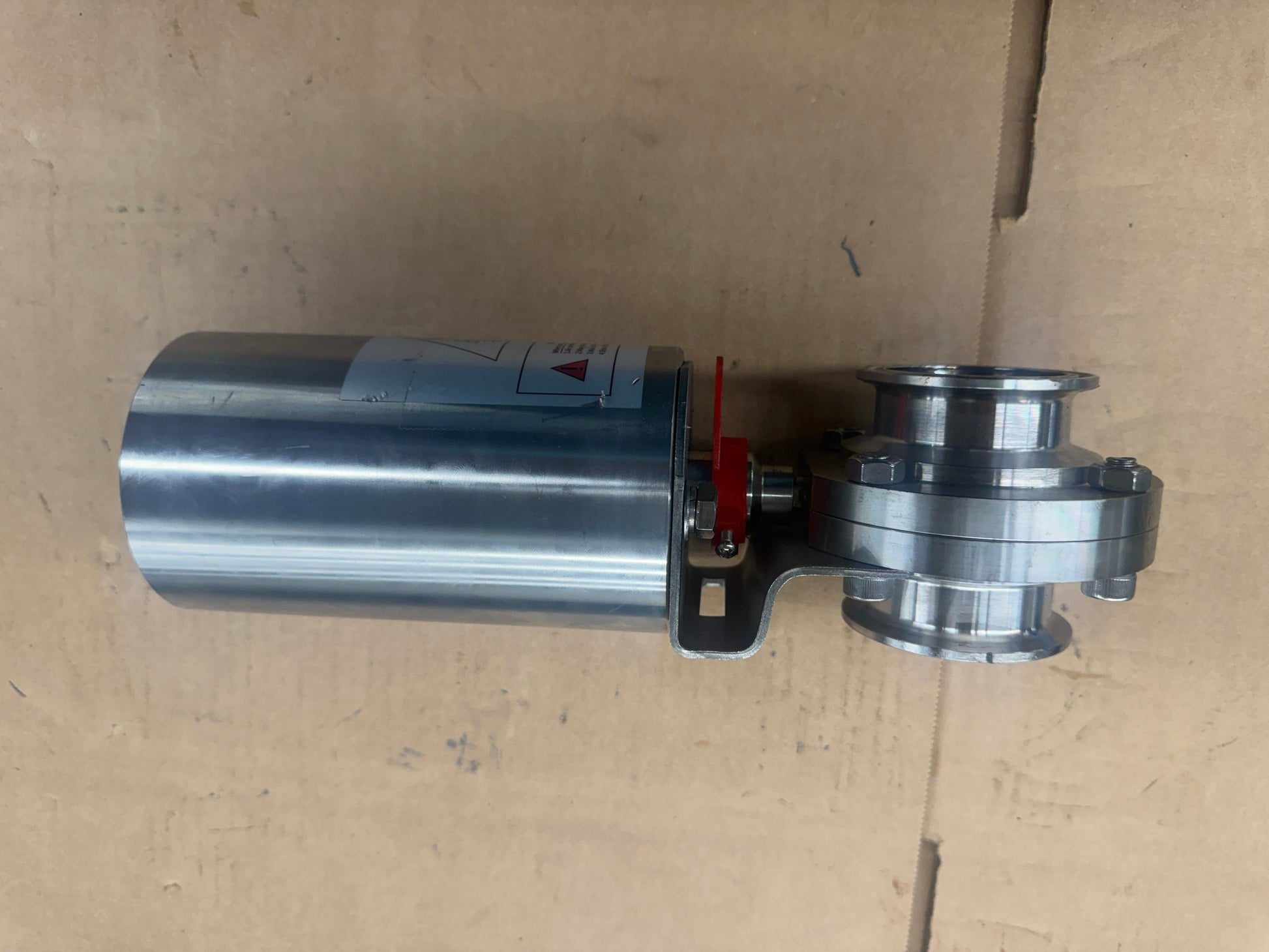

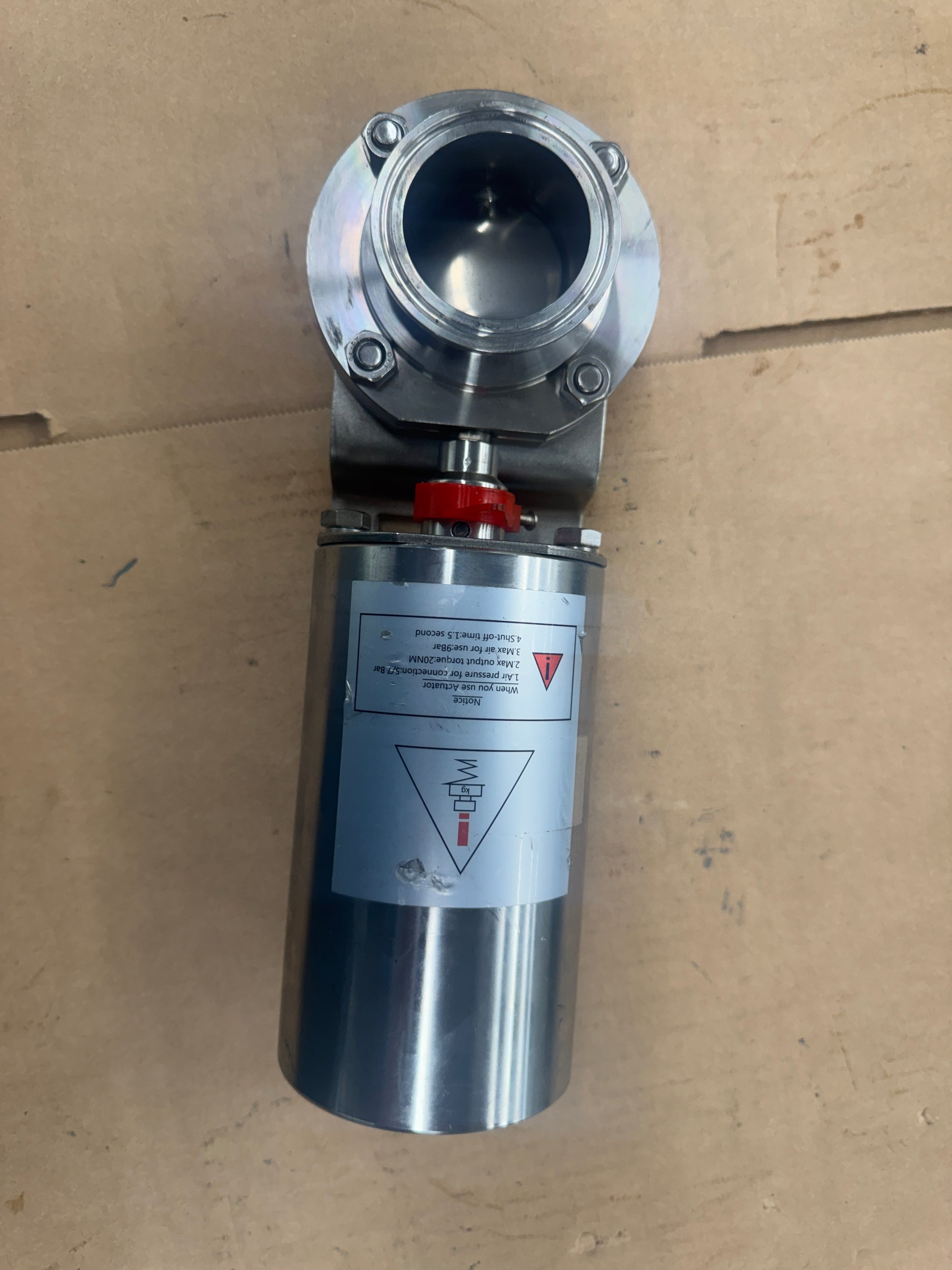

The Adamant Valves AV-1PC-2VNC-304-S is a 2 inch sanitary pneumatic butterfly valve with tri-clamp end connections and an integral stainless steel vertical actuator in normally closed configuration. The valve body and disc are constructed from AISI 304 stainless steel and the assembly operates as a spring return unit, air to open and spring to close. The actuator specification label indicates a connection air pressure range of 5 to 7 bar, a maximum air supply of 9 bar, a maximum output torque of 20 Nm, and a shut-off time of 1.5 seconds. Maximum working pressure for this size is 145 PSI (10 bar) per published AV-1PC series data for DN25 to DN100. The 2 inch tri-clamp connection uses a 64 mm ferrule OD, compatible with standard tri-clamp fittings widely used in sanitary piping systems. The full-port butterfly disc design provides low-restriction flow and zero dead-leg geometry suited for hygienic process applications. This valve is applicable in food and beverage processing, brewing, dairy, pharmaceutical, and chemical industries. The AV-1PC series meets DIN, SMS, ISO/IDF, BS/RJT, and ASME/BPE standards. Seat and gasket material options in this series include EPDM, VMQ (silicone), and Viton (FPM), all compliant with FDA 21CFR177.2600. The part number AV-1PC-2VNC-304-S is stamped directly into the stainless tri-clamp ferrule flange, and a red manual override knob is present on the actuator.

Stock # 0326-941
