Air System Products SD11-Y Electronic Timer Condensate Drain Valve – 120V, 275 PSI, 1/4 In. NPT Inlet, 1/2 In. NPT Outlet
Air System Products SD11-Y Electronic Timer Condensate Drain Valve – 120V, 275 PSI, 1/4 In. NPT Inlet, 1/2 In. NPT Outlet
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
The Air System Products SD11-Y is an electronic timer controlled condensate drain valve from the Sure-Drain product family, manufactured by Air System Products of Lancaster, NY. The unit is configured for 120V, 60Hz, single phase operation and is rated for 275 PSI service. Inlet connection is 1/4 inch NPT and outlet connection is 1/2 inch NPT. The "Y" suffix in the model designation indicates the integrated Y strainer configuration, which filters particulate matter ahead of the brass solenoid valve to extend service life in compressed air system applications.

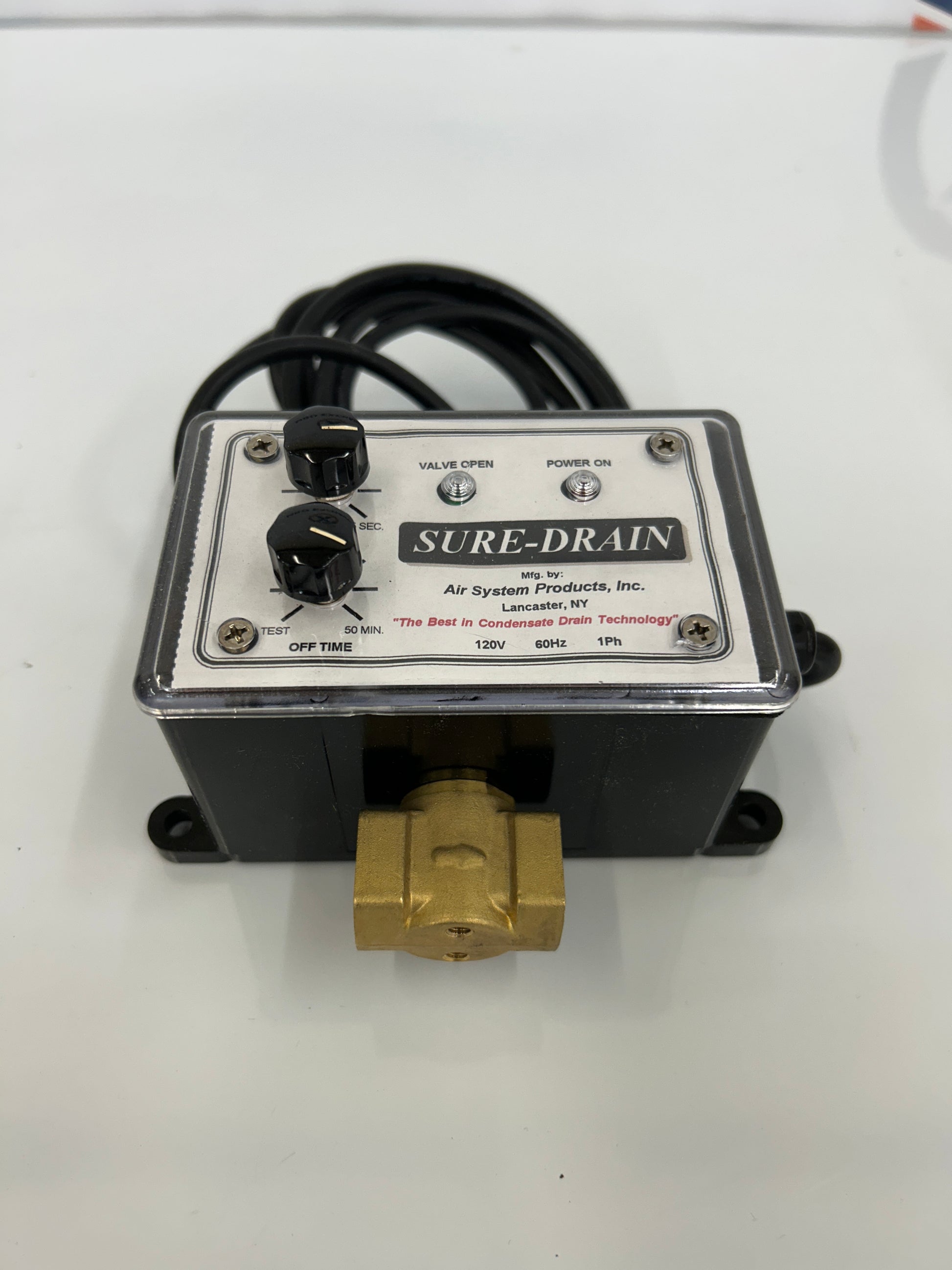

Front panel controls include a dual adjustable solid state timer with separate knobs for OFF TIME (cycle frequency, 5 seconds to 50 minutes) and ON TIME (cycle duration, 1 to 15 seconds). A test position allows the unit to be cycled manually for setup and troubleshooting. Two pilot lights provide visual status: a red POWER ON indicator and a green VALVE OPEN indicator. The control electronics are housed in a NEMA 4X enclosure with mounting tabs for wall or panel installation, and the unit ships with an 8 foot grounded power cord.

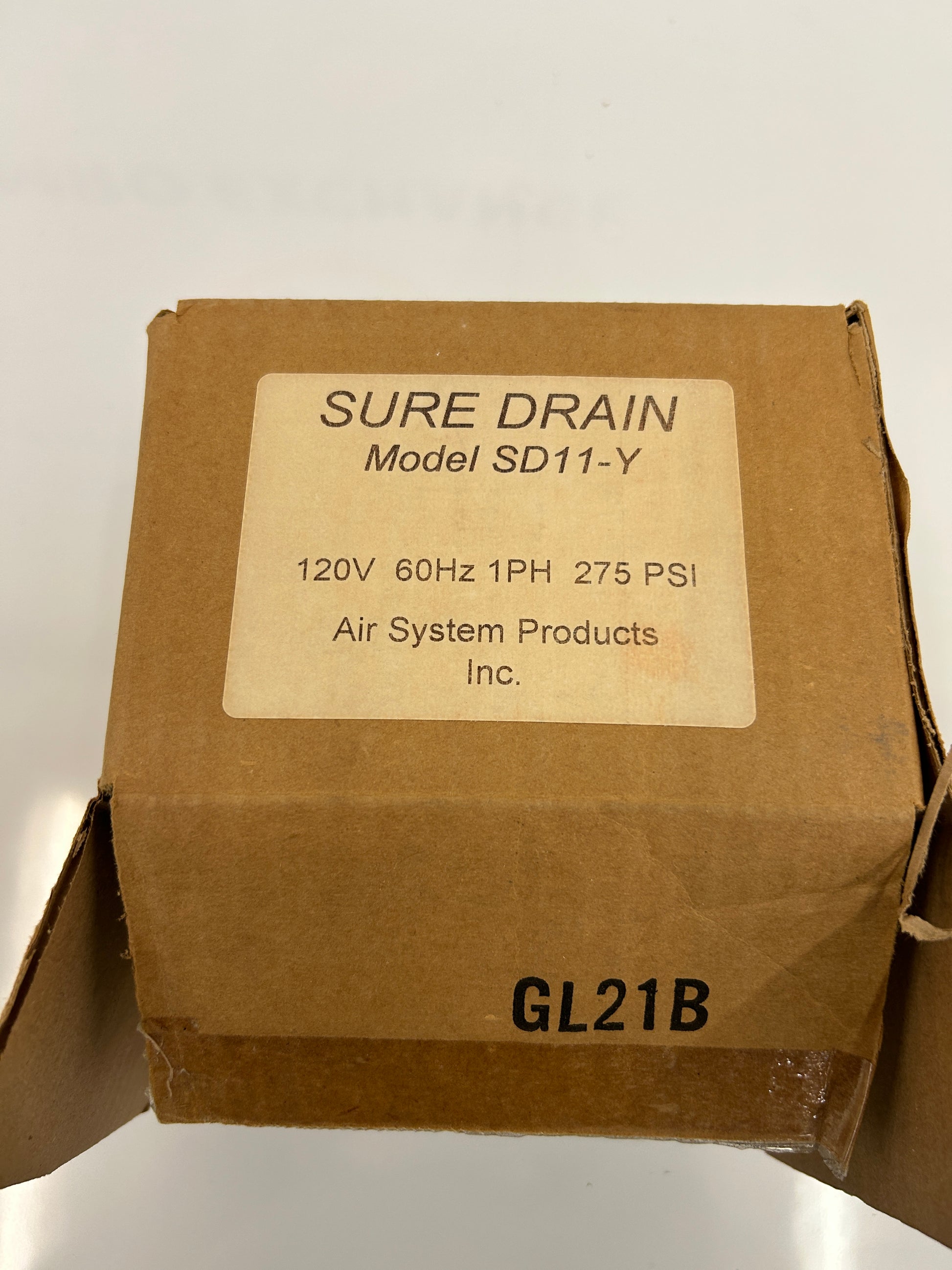

The Sure-Drain SD11 series is engineered for trouble free removal of accumulated condensate, oil, and water from compressed air filters, air receivers, refrigerated air dryers, separators, and aftercoolers. The solid state timer energizes the valve coil to initiate each drain cycle, and the spring return valve closes when the coil is de-energized at the end of the programmed ON TIME. The brass valve body and Y strainer assembly are visible at the bottom of the enclosure. Nameplate confirms manufacture by Air System Products, Inc., Lancaster, NY. Box label confirms model SD11-Y and 275 PSI rating.
Stock # 0226-067
