Motorized Rotary Table 1326AB-B2E-11 | Orientation: Axial | Diameter 19 1/2”
Motorized Rotary Table 1326AB-B2E-11 | Orientation: Axial | Diameter 19 1/2”
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 1326AB-B2E-11
Stock #: 0226-00309

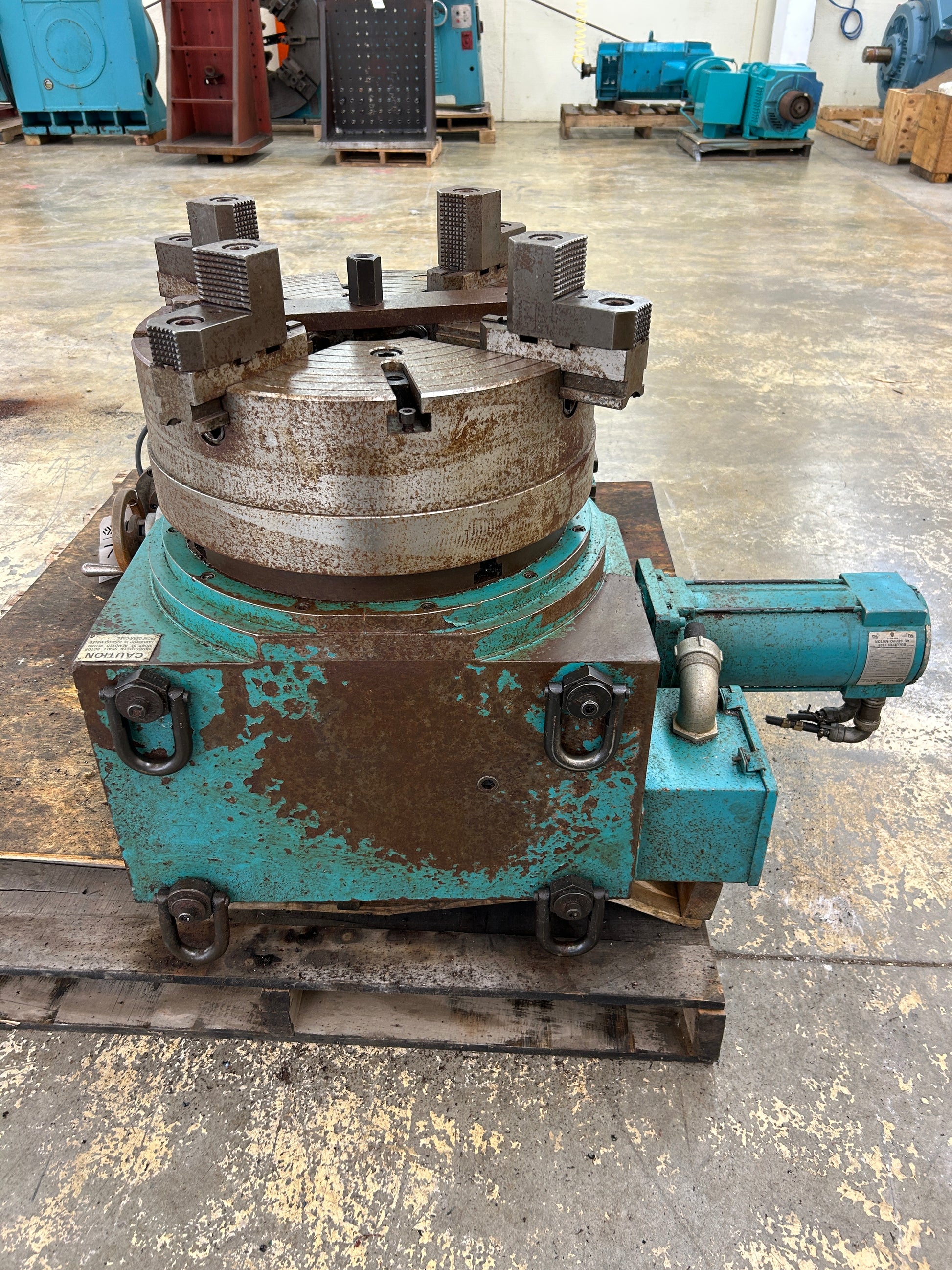

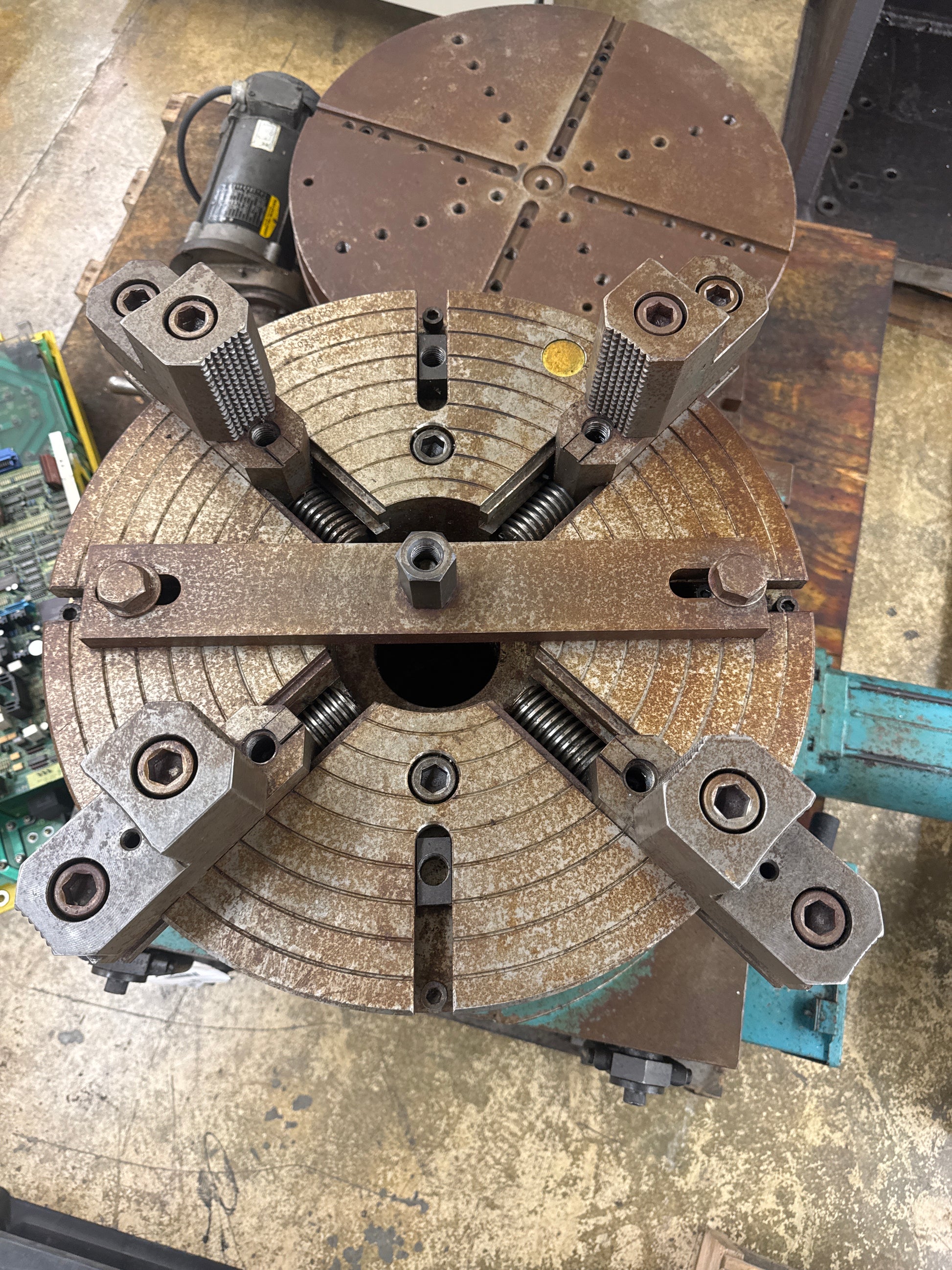

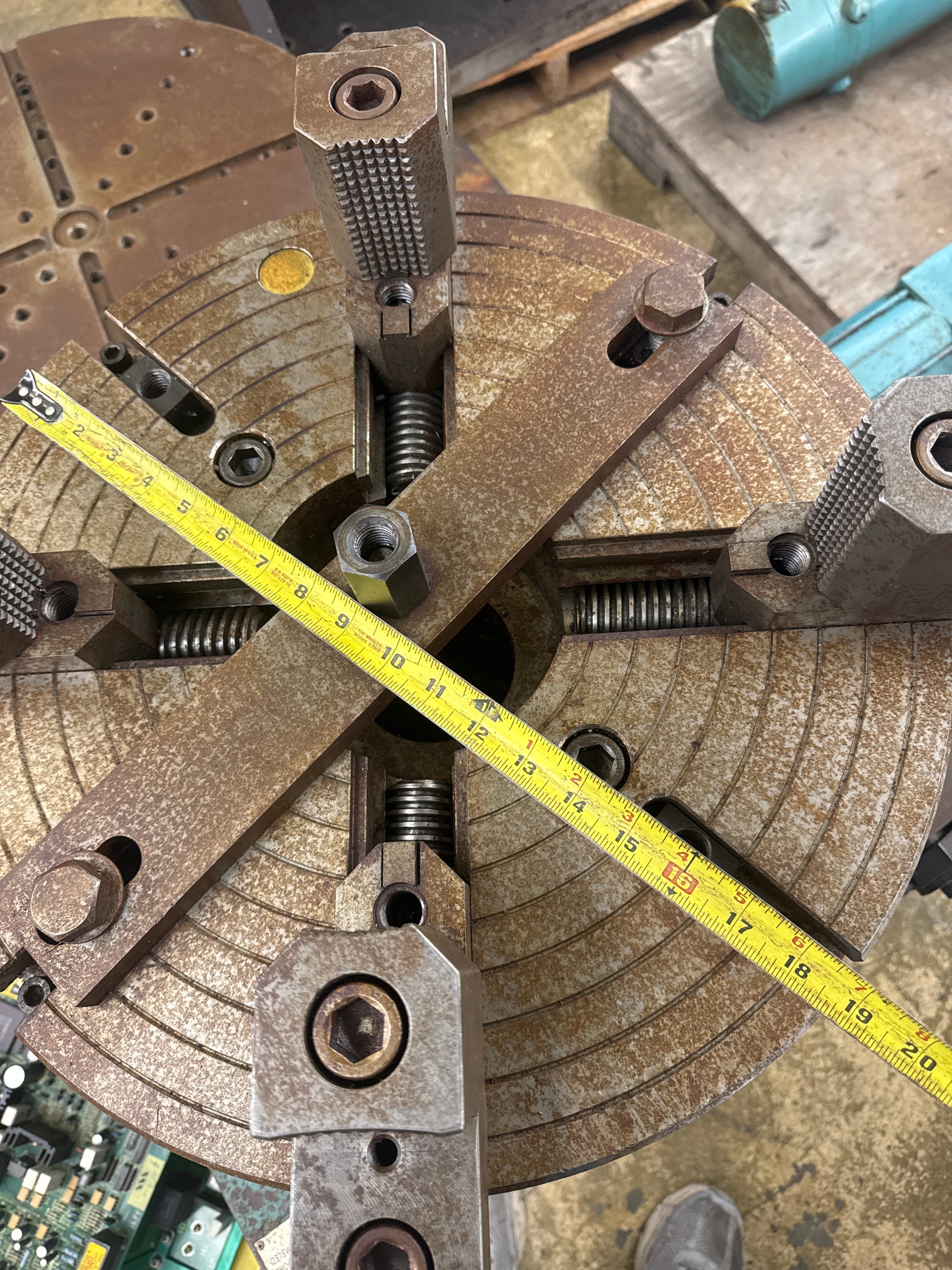

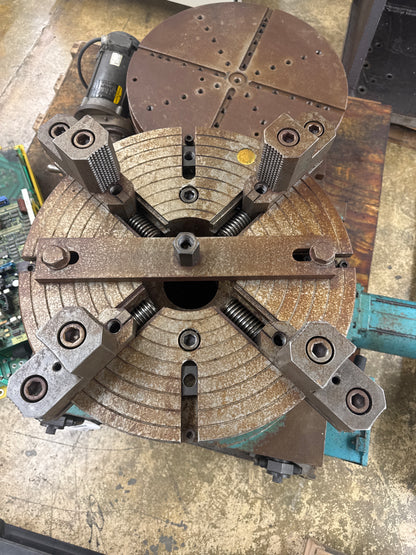

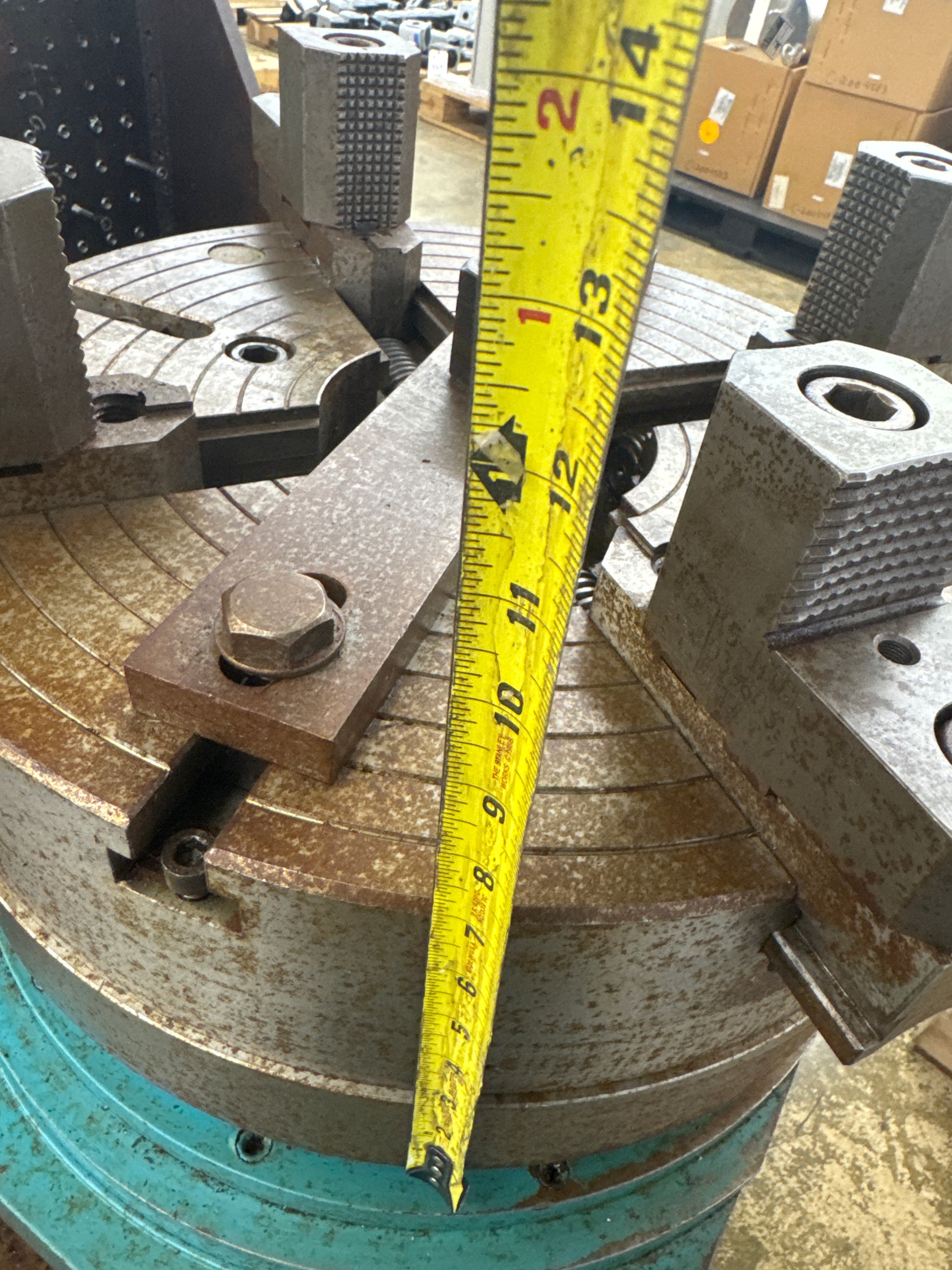

This listing is for a motorized rotary table assembly with a large 4-jaw chuck, powered by an Allen-Bradley Bulletin 1326 AC servo motor, catalog number 1326AB-B2E-11, part number 122249, serial number 27016, date code 8849, 19.5" Diameter. The servo motor is rated 2.5 kW continuous output power at 40 degrees C, with a maximum speed of 3000 RPM, maximum continuous stall torque of 102.0 Nm, and maximum continuous RMS current of 16.4 amps. Input is 230V 3-phase at 0 to 250 Hz variable frequency. The motor has no brake and carries UL and CSA certifications. It is manufactured in the USA by Allen-Bradley, a Rockwell International company. The rotary table body is a heavy-duty cast iron construction finished in blue, mounted on a square base with floor-level mounting provisions. The chuck mounted to the table is a large-diameter 4-jaw independent chuck with serrated hard jaws installed. A separate circular faceplate with hole pattern is also visible in the photos and appears to be associated with the assembly. This unit is suited for CNC rotary axis, indexing, and large-diameter workholding applications. Buyers should verify chuck diameter, servo drive compatibility, mounting dimensions, and table specifications prior to purchase.
Stock # 0226-309
