A.O. Smith AC Motor S56C25A97 - 1 HP 1800 RPM
A.O. Smith AC Motor S56C25A97 - 1 HP 1800 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

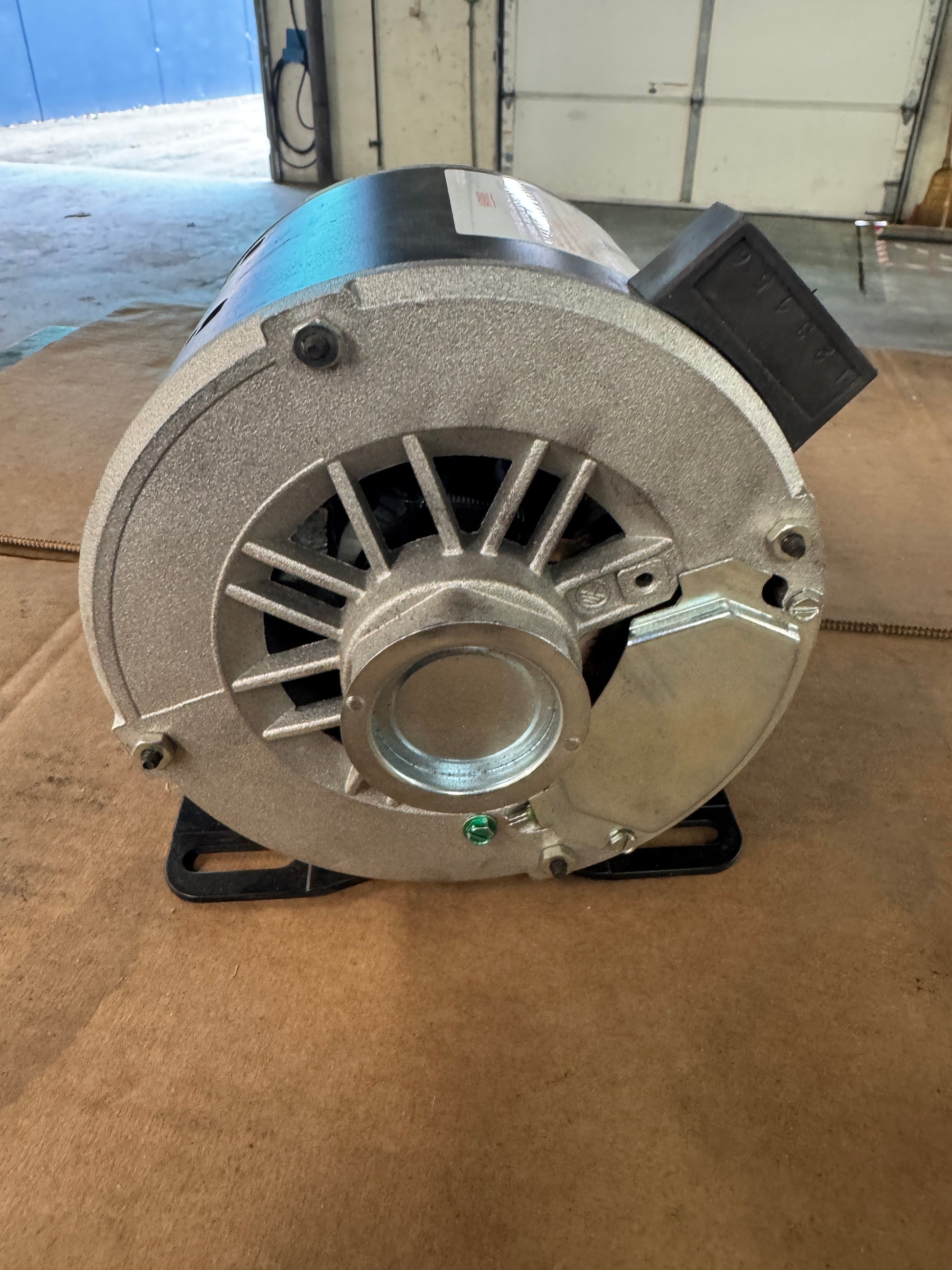

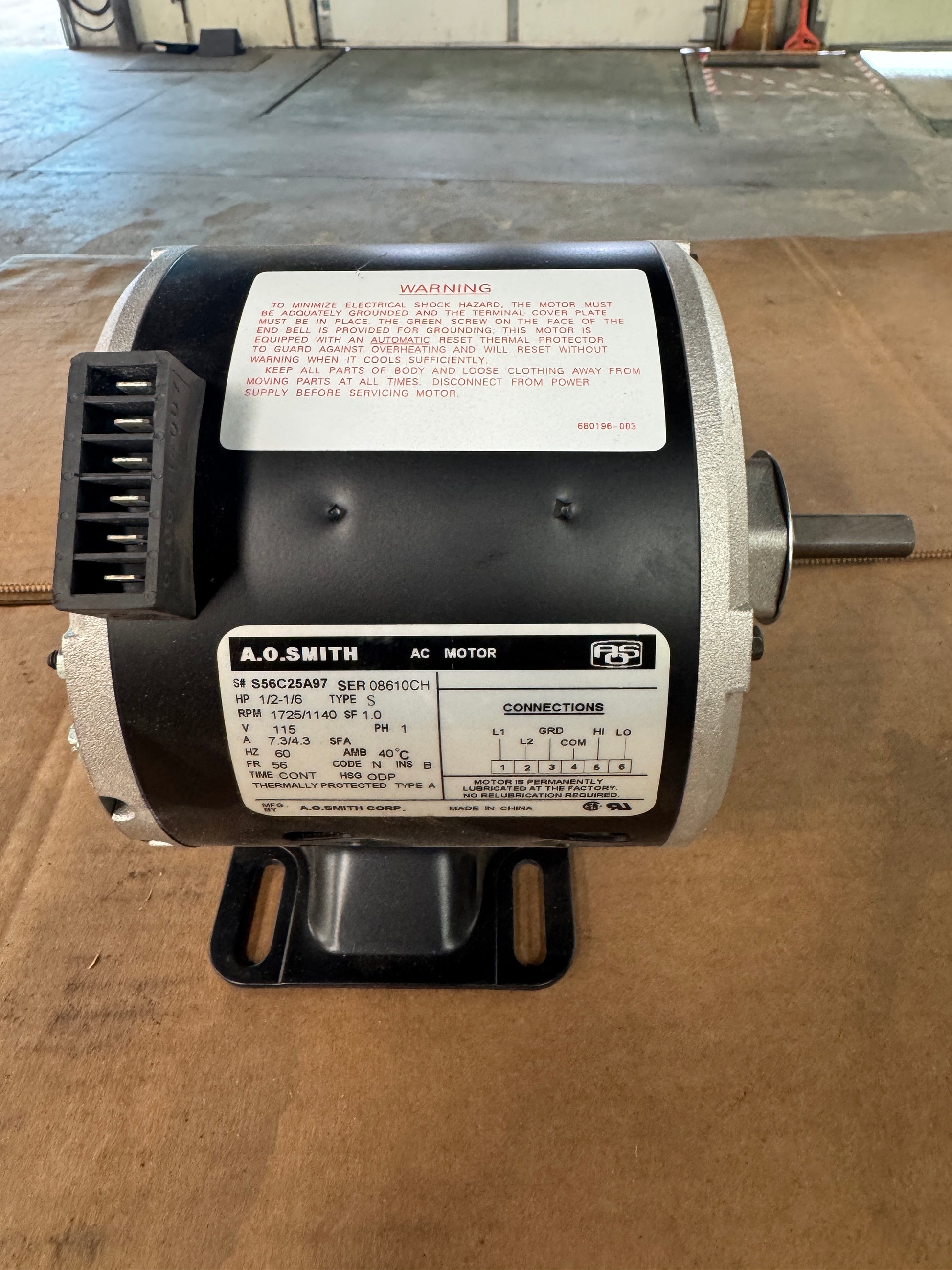

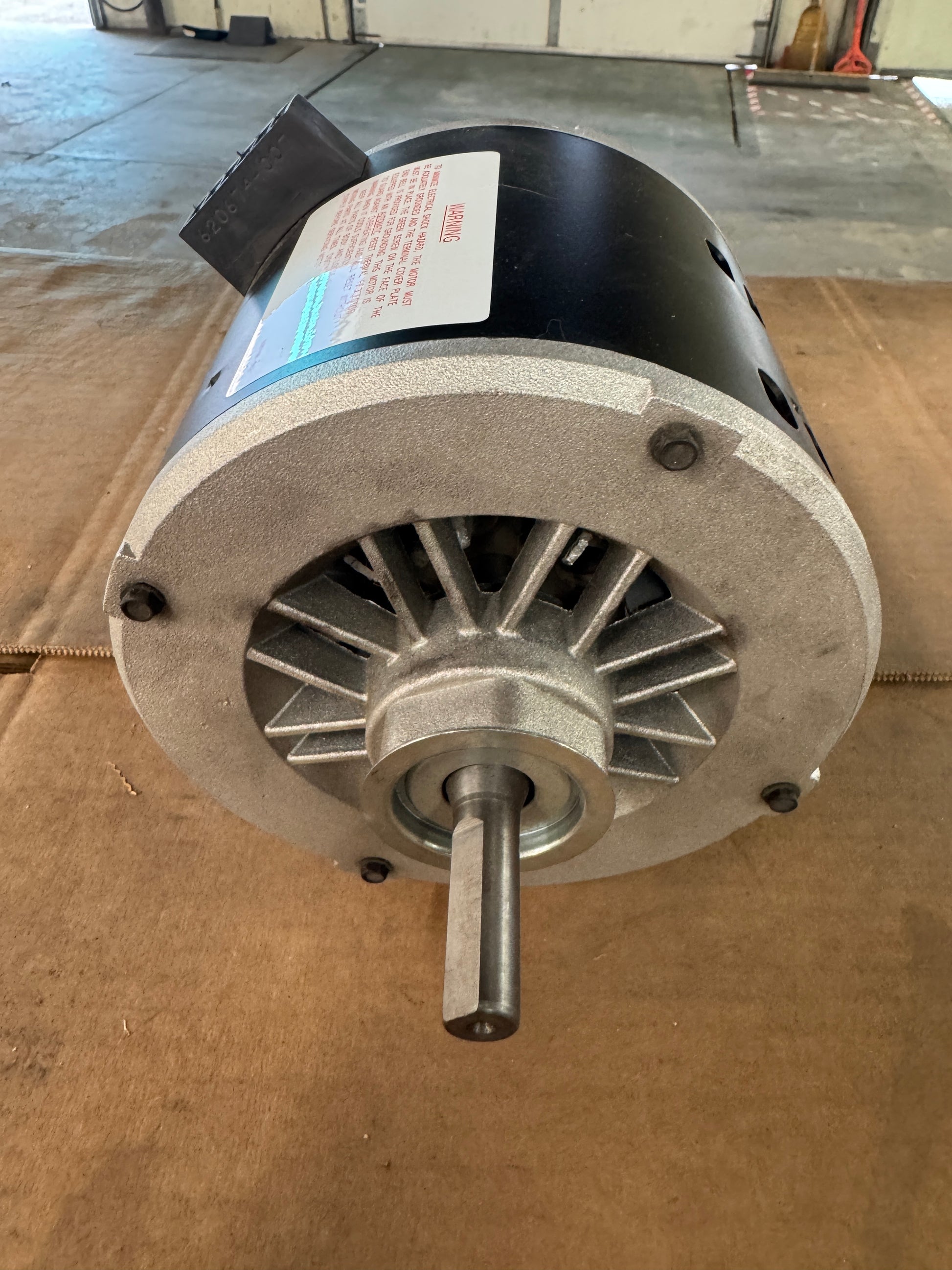

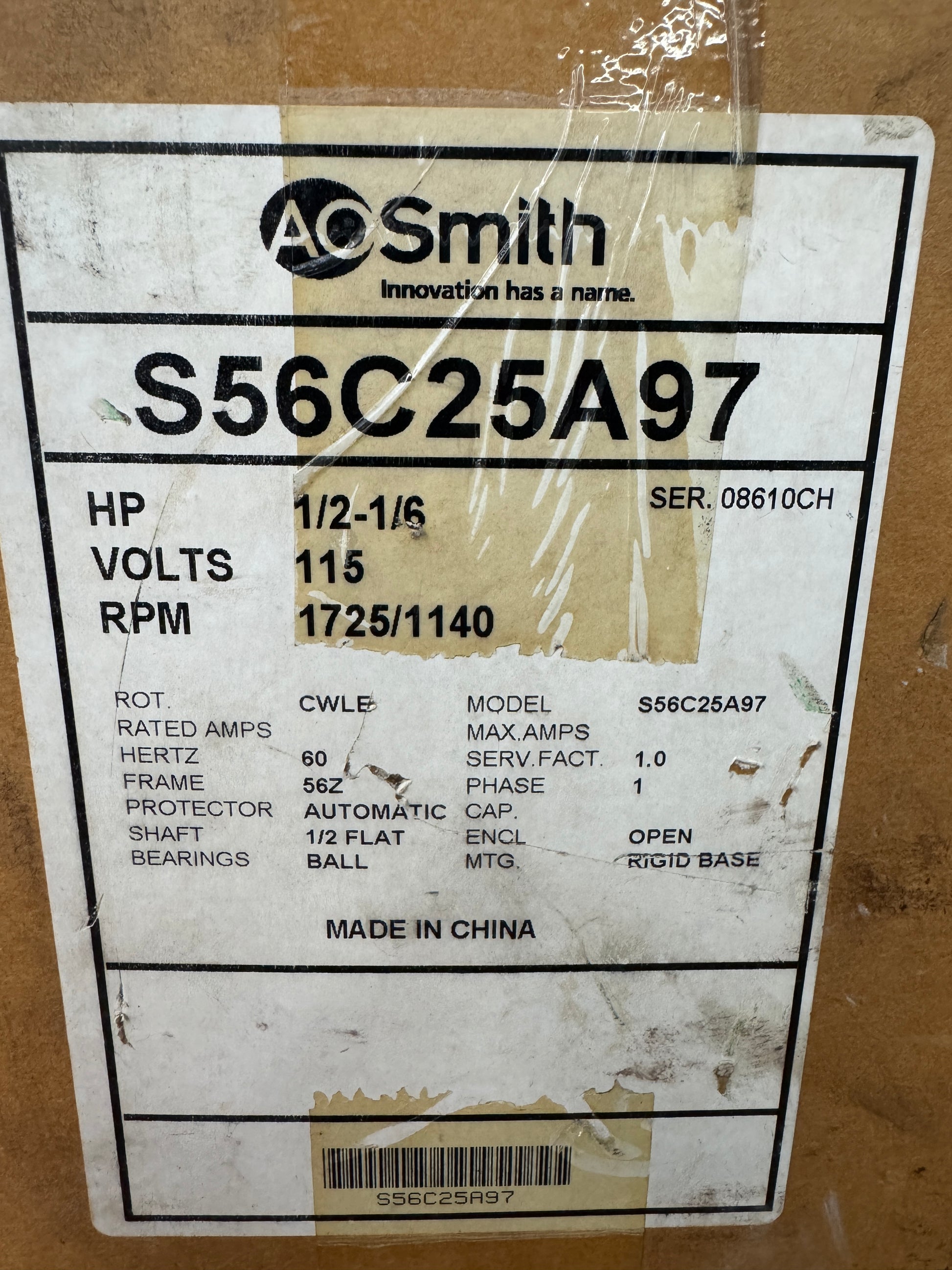

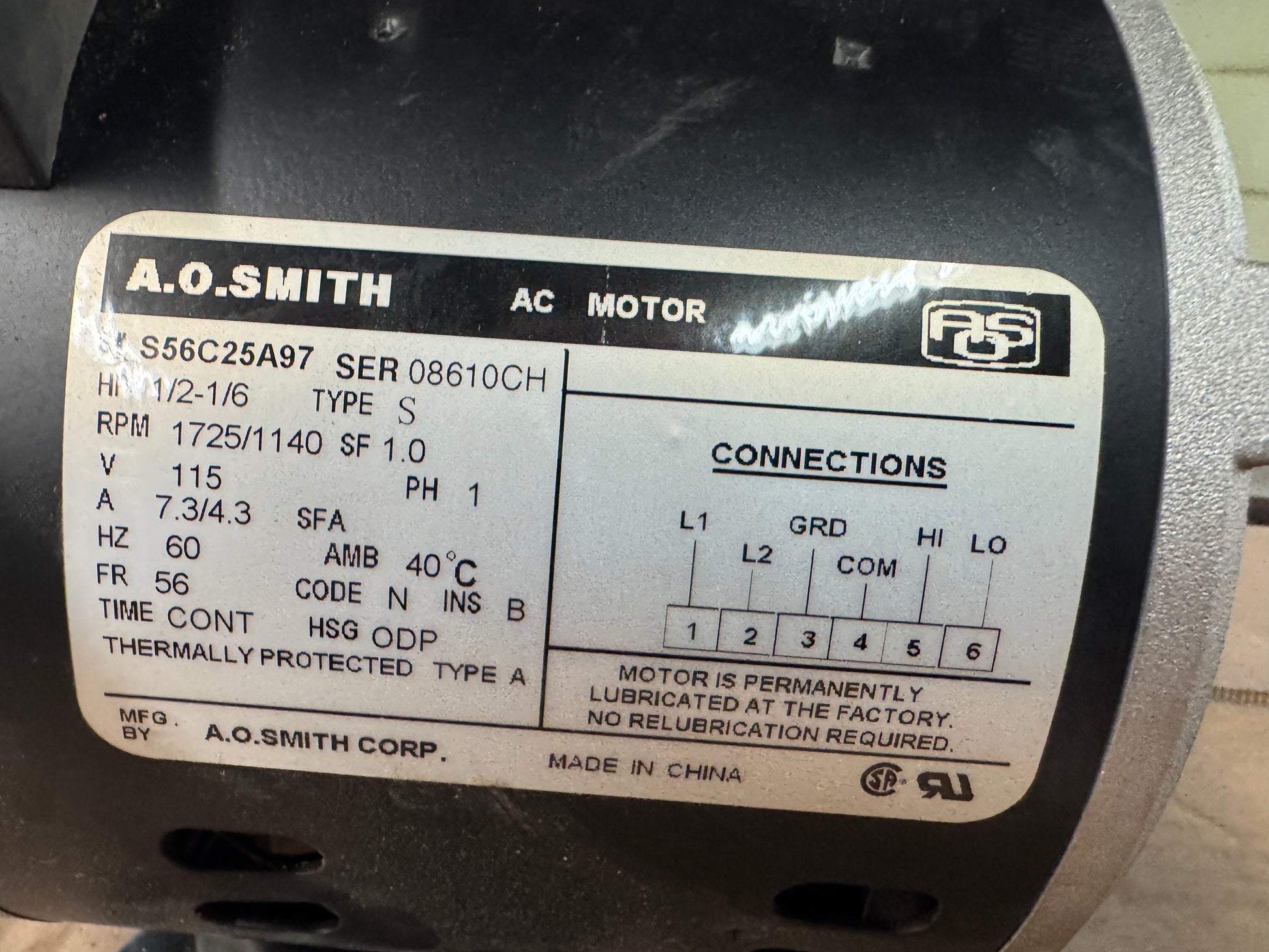

The A.O. Smith S56C25A97 is a two-speed single-phase AC motor rated at 1/2 and 1/6 horsepower, designed for evaporative cooler and ventilation fan applications. It operates on 115 volts, 60 Hz, with dual speeds of 1725 and 1140 RPM. Frame size is 56Z with an open drip-proof enclosure and rigid base mounting. Rotation is CWLE (clockwise looking at lead end). Rated current is 7.3 amps at high speed and 4.3 amps at low speed, with a service factor of 1.0 and Class B insulation. The motor incorporates an automatic reset thermal protector, Type A. Bearings are ball type. The shaft is 1/2 inch with a flat. Phase is single (1 PH), ambient temperature rating 40 degrees C. Serial number 08610CH. Manufactured by A.O. Smith Corp., made in China, UL and CSA listed. The S56C25A97 has been superseded in the A.O. Smith / Century lineup by the SVB2054 series, which shares the same core specifications. Suitable for use in residential and commercial belt-drive evaporative coolers, portable fans, and similar load applications requiring two-speed operation. Housing shows no surface wear or paint damage consistent with unused or minimally handled condition.
Stock # 0526-02498
