A.O. Smith Condenser Fan Motor CA2H021N - 1 HP 1500 RPM
A.O. Smith Condenser Fan Motor CA2H021N - 1 HP 1500 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

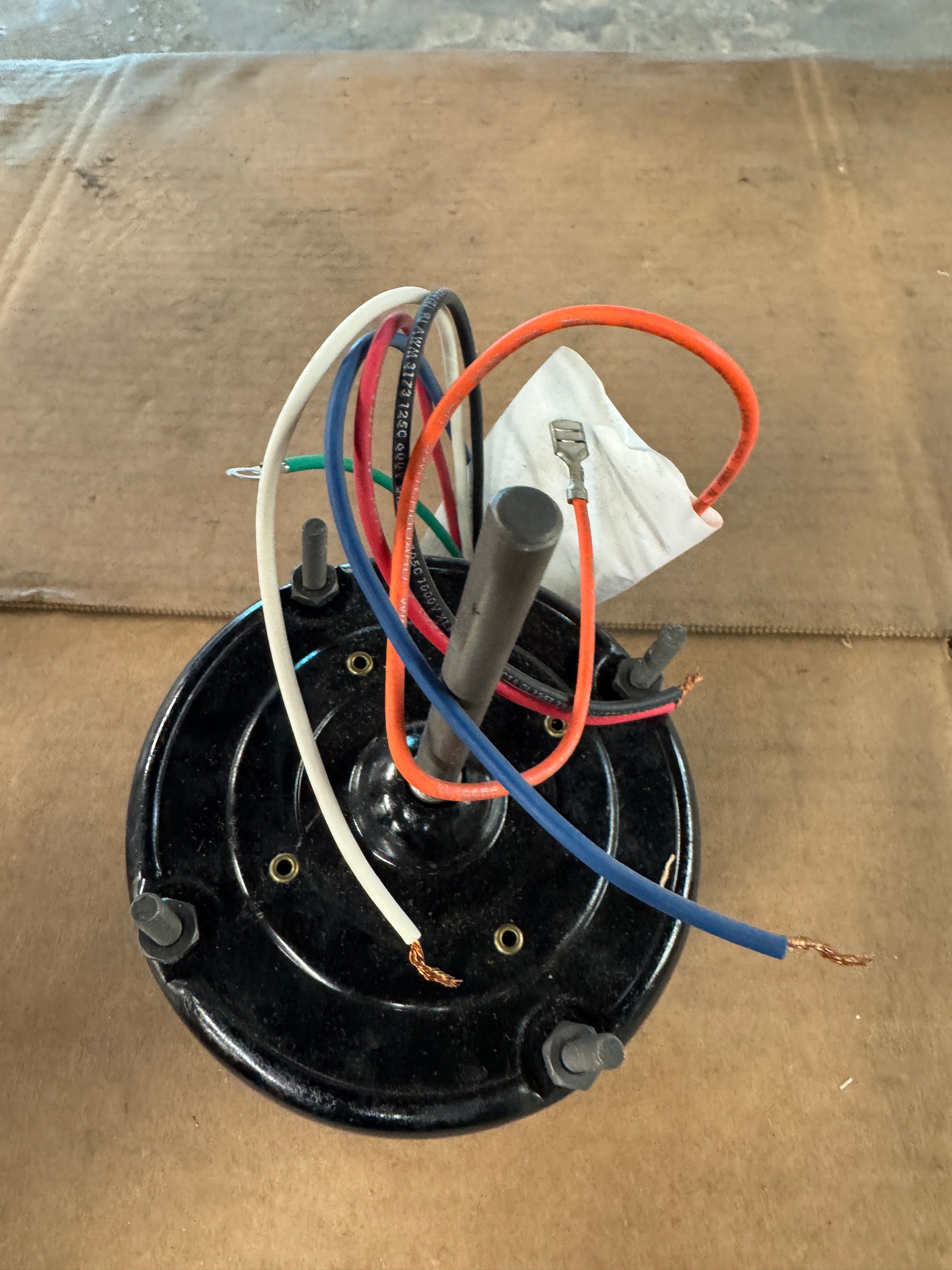

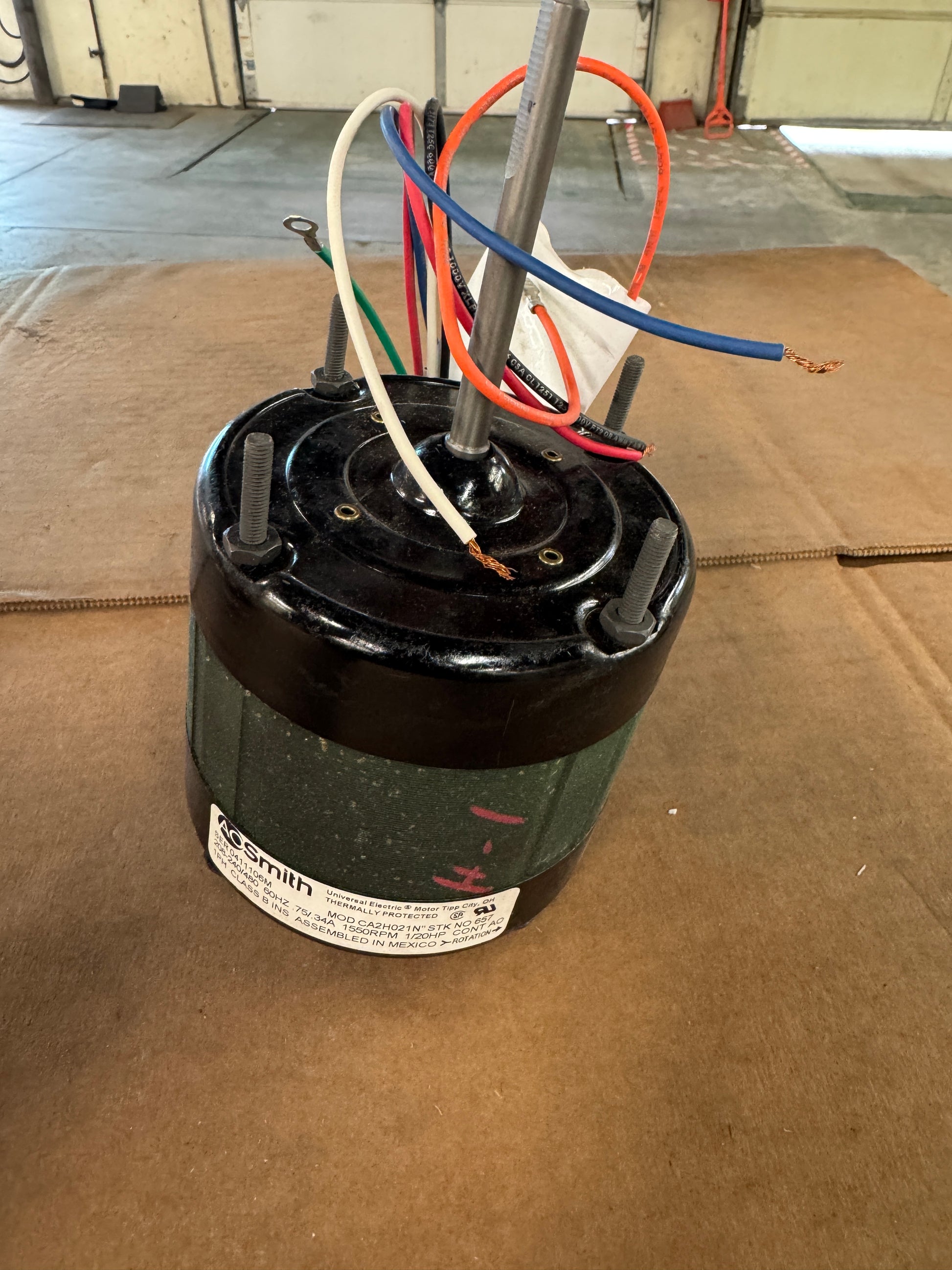

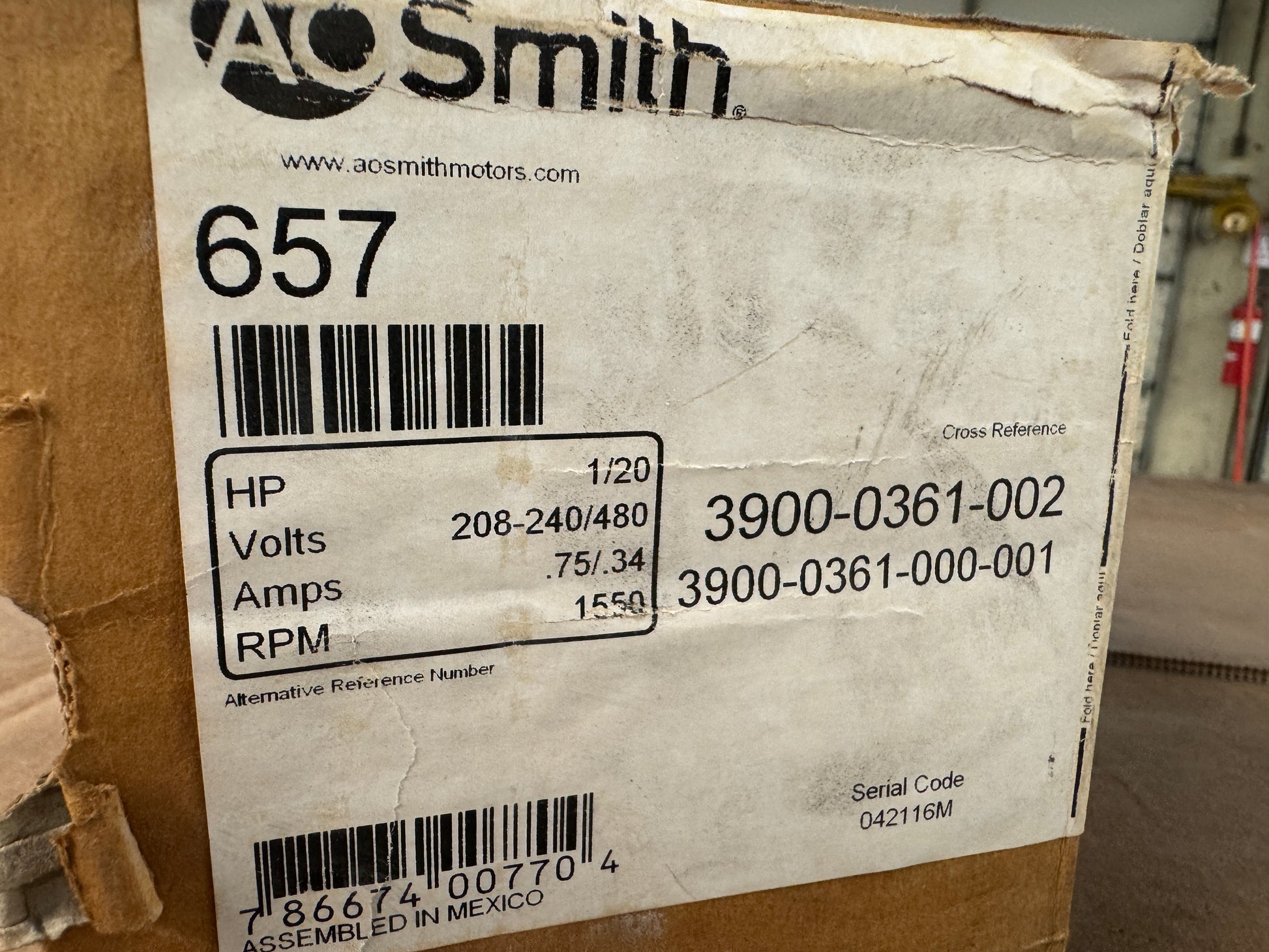

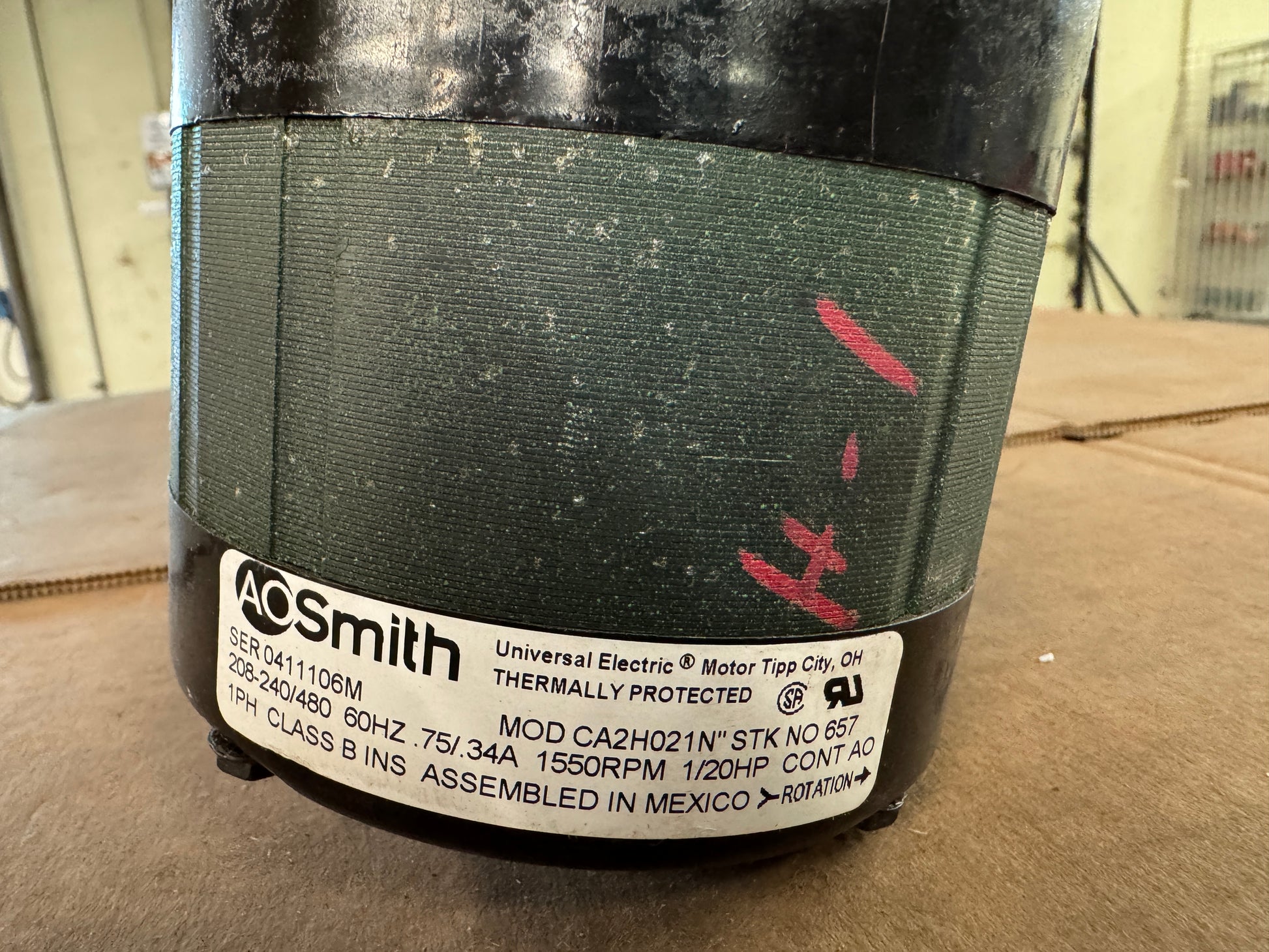

Used in heating, ventilating, and air conditioning applications, the A.O. Smith CA2H021N is a single-phase AC condenser fan motor rated at 1/20 HP and 1550 RPM. The nameplate identifies voltage as 208-240/480V at 60 Hz, with current draw of 0.75/0.34 amps. Serial number 0411106M is visible on the nameplate label, which also indicates Class B insulation and continuous duty (CONT AO) rating. The motor is thermally protected and carries UL and CSA certifications per the rating plate. Country of assembly is Mexico per the nameplate. The unit is sold as model CA2H021N, stock number 657, manufactured by A.O. Smith as a Universal Electric product built in Tipp City, Ohio. Cross-reference part numbers include 3900-0361-002, 3900-0361-000-001, and 3900-0361-888 per published reference data. The motor features a multi-wire lead configuration and a vertical shaft orientation. No original packaging is included. Surface marks and minor soiling are visible in the photos.
Stock # 0526-02470
