A.O. Smith Shaded Pole Motor CA2H021N m02476 - Variable 1500 RPM
A.O. Smith Shaded Pole Motor CA2H021N m02476 - Variable 1500 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:

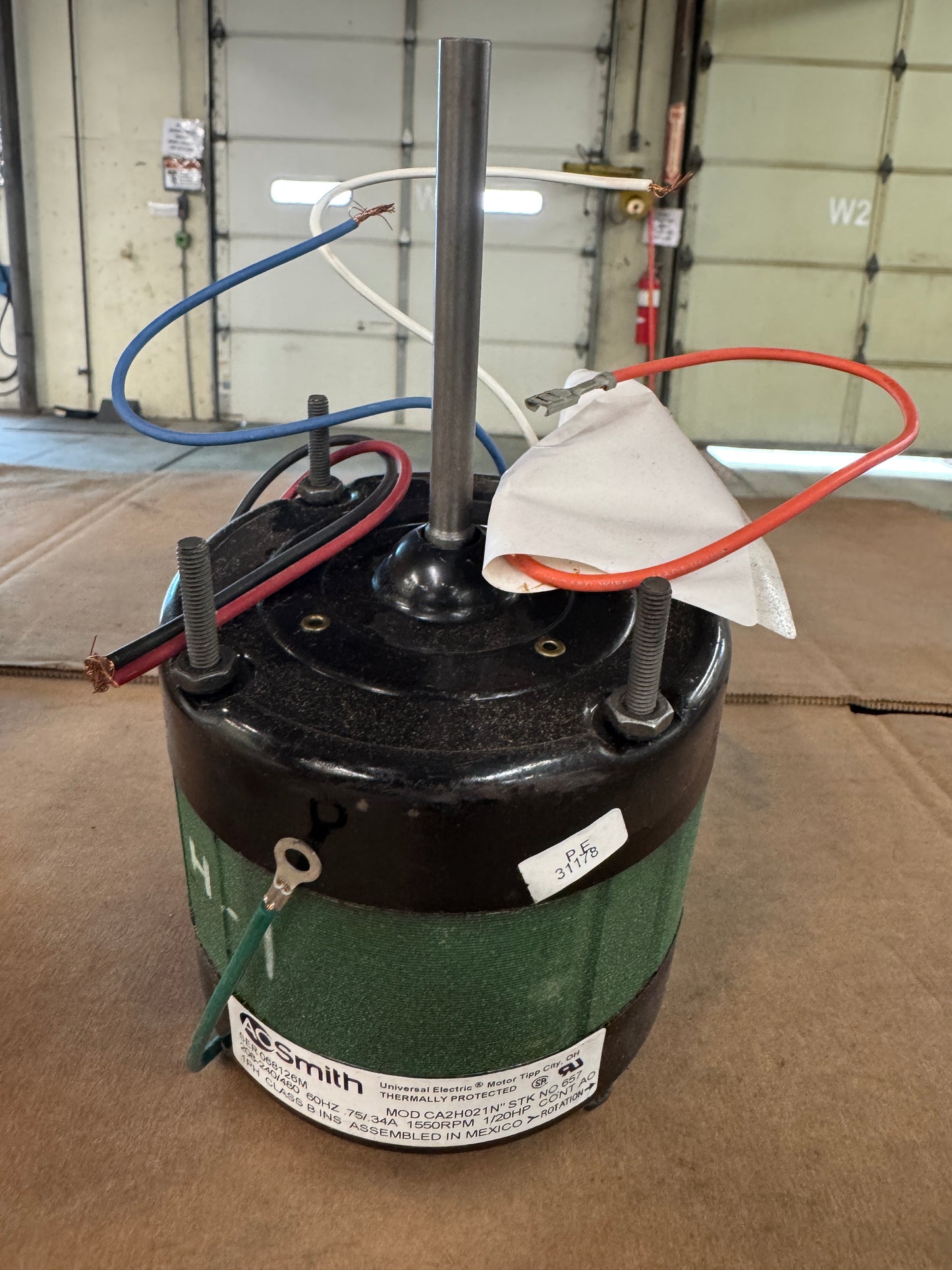

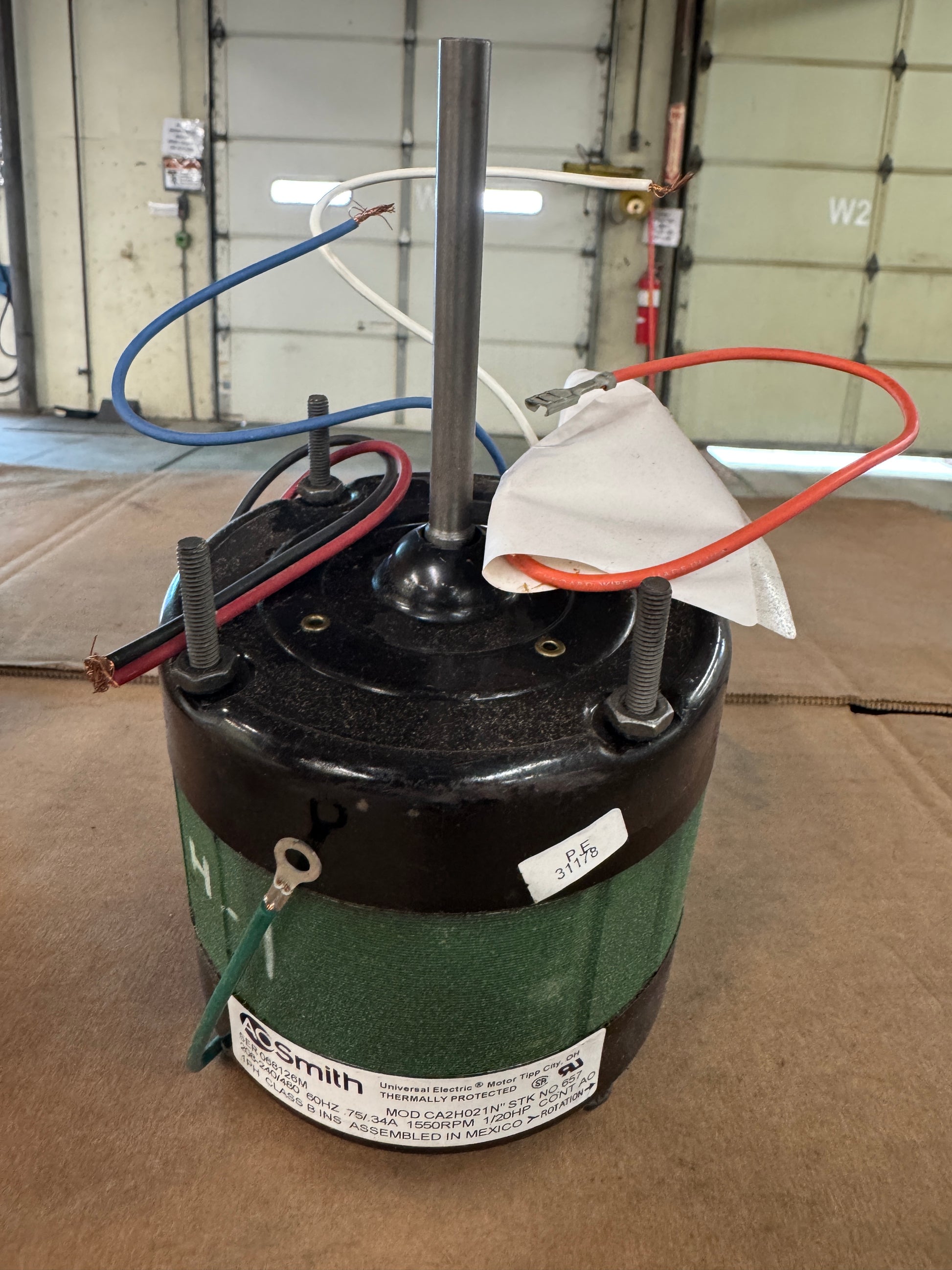

Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

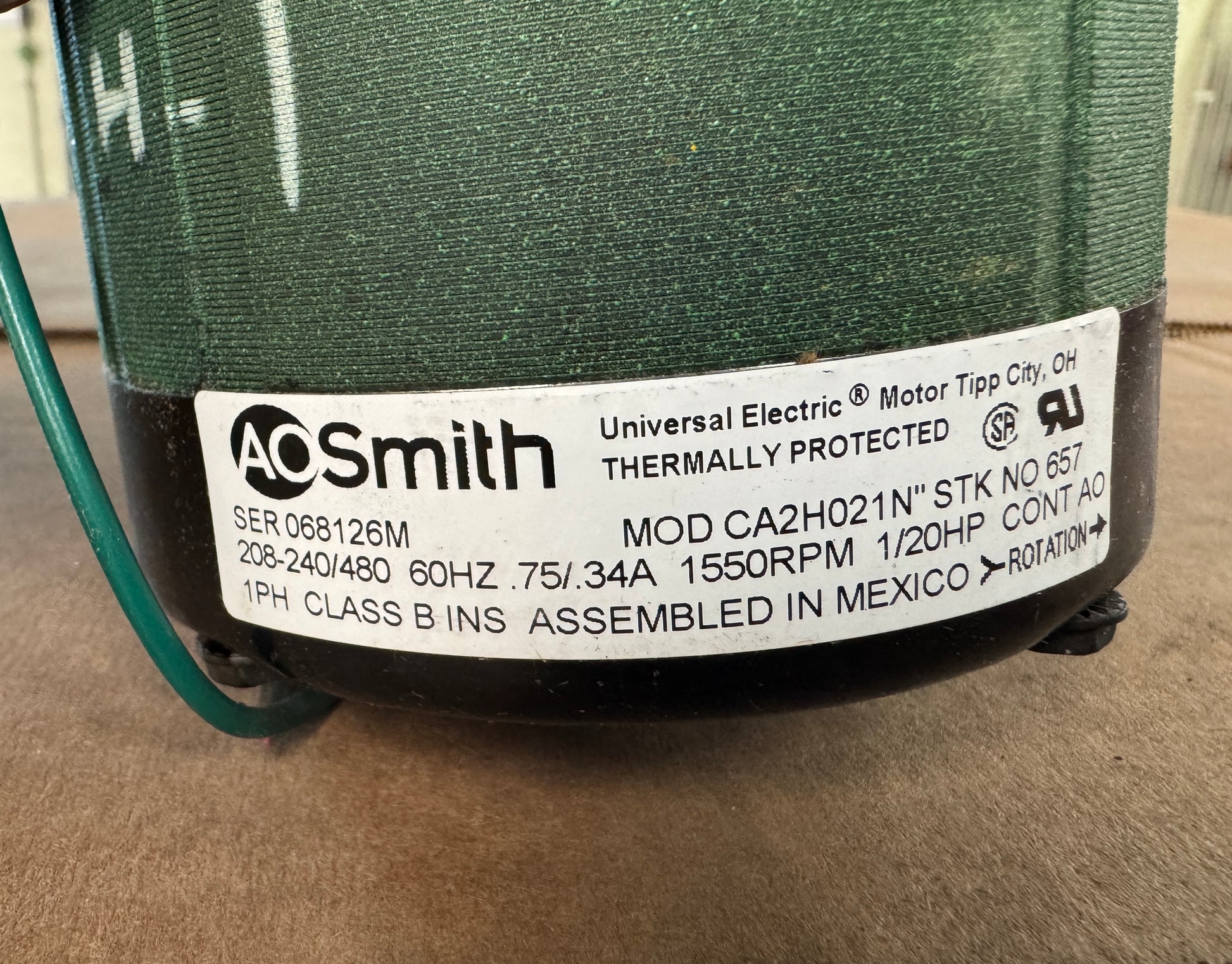

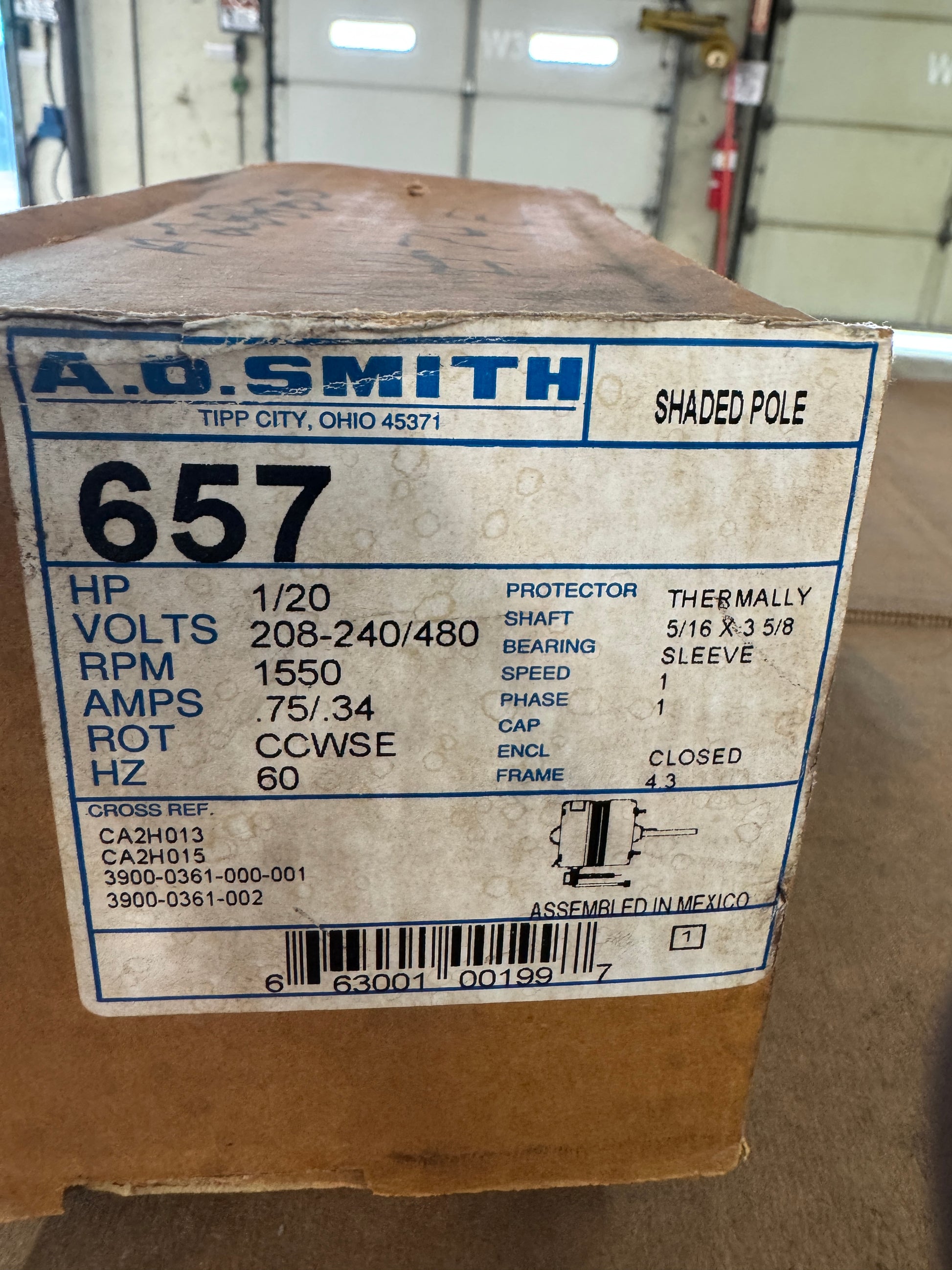

A.O. Smith model CA2H021N is a shaded pole AC motor rated at 1/20 HP with a nameplate speed of 1550 RPM. Voltage is listed as 208-240/480V, operating at 60 Hz with a current draw of 0.75/0.34 amps depending on voltage configuration. The motor is single phase with Class B insulation and carries thermal protection. Enclosure type is totally enclosed air over (TEAO) per the box label, frame designation 43, with a 5/16 inch diameter shaft measuring 3-5/8 inches in length. Bearing type is sleeve. Rotation is CCWSE (counterclockwise, shaft end). Stock number per the original A.O. Smith box is 657. Serial number visible on the nameplate is SER 068126M. Assembled in Mexico. Cross-reference numbers listed on the original packaging include CA2H013, CA2H015, 3900-0361-000-001, and 3900-0361-002. The motor is branded under the A.O. Smith Universal Electric label, manufactured at the Tipp City, Ohio facility. Listings and dimensions confirmed from the original manufacturer box label and motor nameplate. This unit is a single-speed, single-phase shaded pole motor suitable for HVAC and refrigeration fan applications requiring 208-240V or 480V supply.
Stock # 0526-02476
