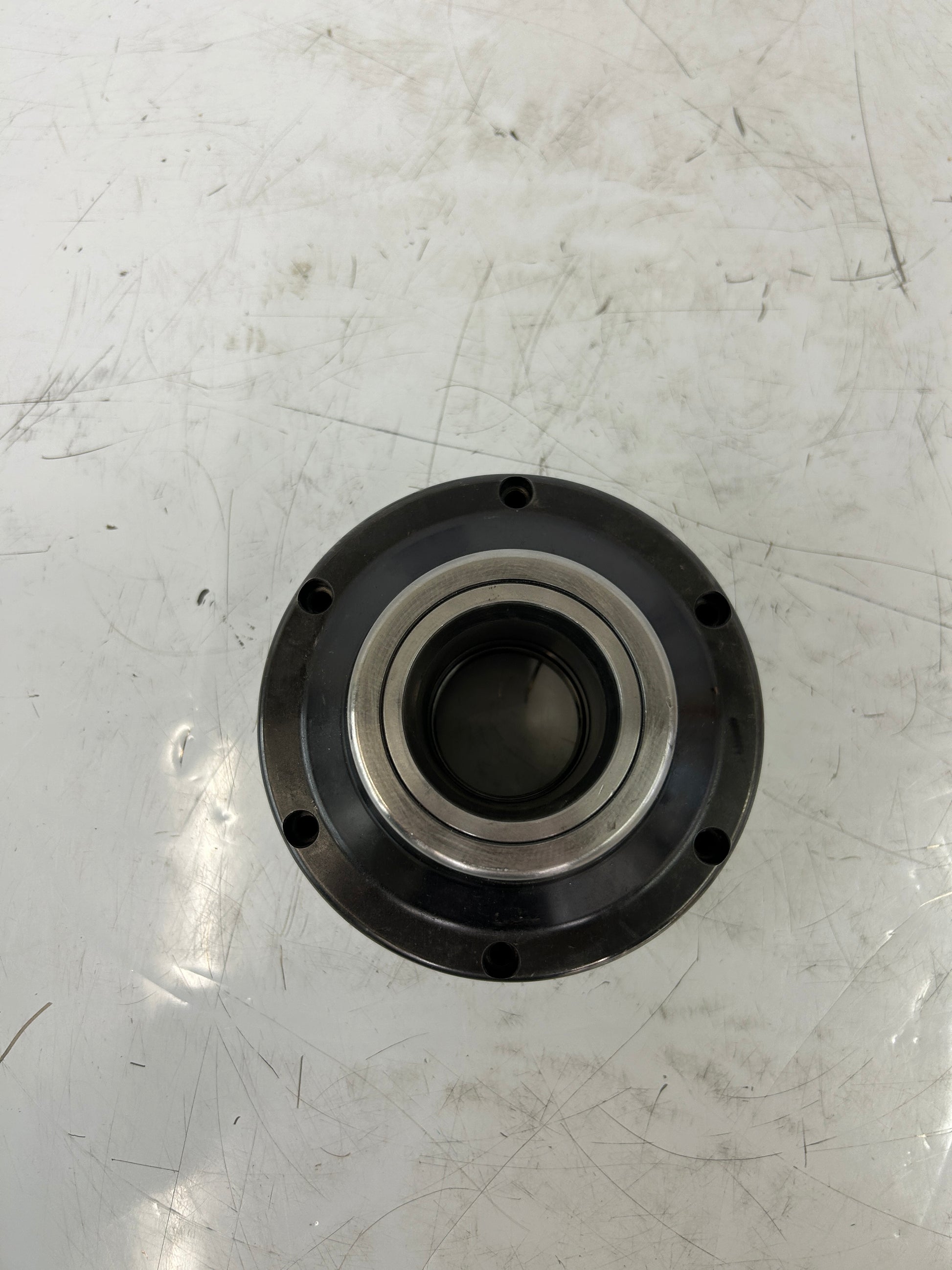

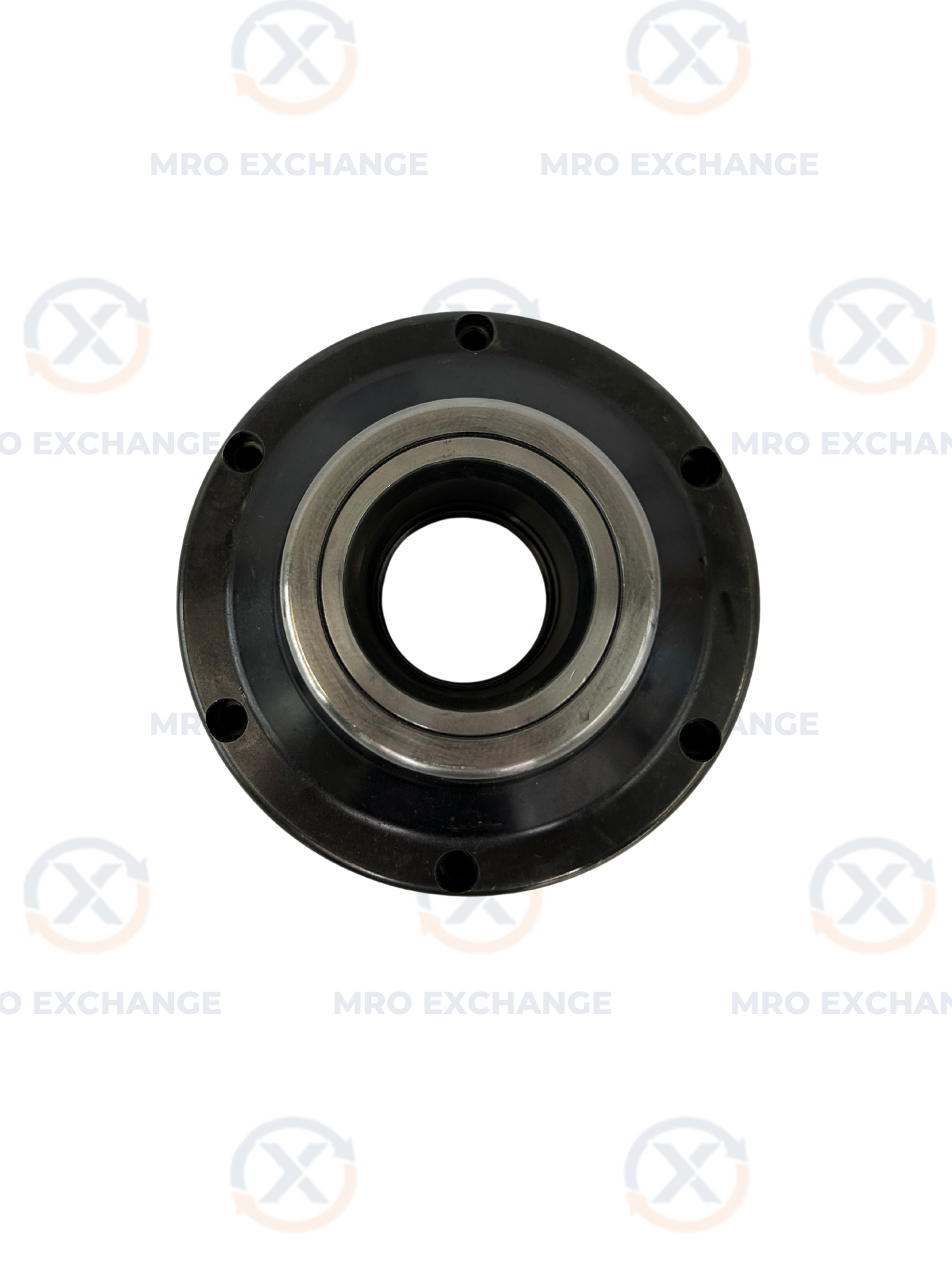

ATS Workholding Scroll True Length Collet Chuck Assembly SC300A-S115 | 1-3/4 in. Collet Capacity
ATS Workholding Scroll True Length Collet Chuck Assembly SC300A-S115 | 1-3/4 in. Collet Capacity
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: SC300A
Stock #: 0226-00682

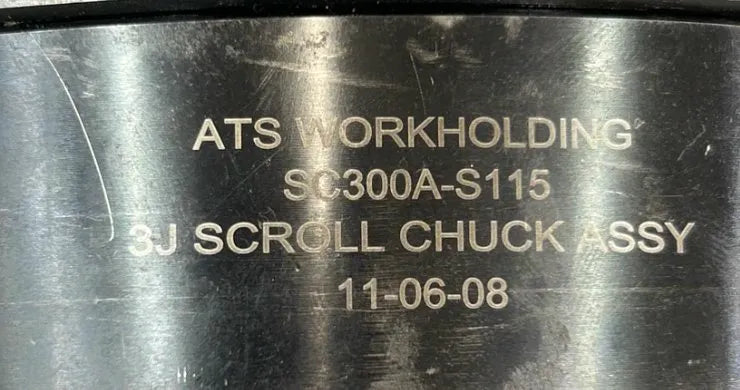

Used in CNC lathe and turning center applications, the ATS Workholding SC300A-S115 is a 3J Scroll True Length Collet Chuck Assembly manufactured on 11-06-08 per the engraved nameplate. ATS Workholding is a US manufacturer known for precision collet chuck systems, and the Scroll True Length series uses a fixed collet position design to maintain linear accuracy during workholding operations. This scroll-actuated style uses a 3/8 inch ratchet drive to turn the scroll and pinion for collet engagement, eliminating the need for a hydraulic or pneumatic drawtube. The chuck accepts standard 3J collets with a collet capacity of 1-3/4 in. per published ATS specifications for the 3J platform. The S115 mount designation indicates a specialized flat-style spindle mount; buyers should verify compatibility with their specific machine spindle configuration prior to purchase. True length designs maintain collet position in a fixed axial location during clamping, making this style well suited for second-operation work, part transfers, and applications requiring consistent Z-axis repeatability. The assembly is made in the USA.
Stock # 0226-682
