Barksdale Pressure Actuated Switch C9622-2 1/4 in. NPT Female 7000 PSI Proof Pressure m00383
Barksdale Pressure Actuated Switch C9622-2 1/4 in. NPT Female 7000 PSI Proof Pressure m00383
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

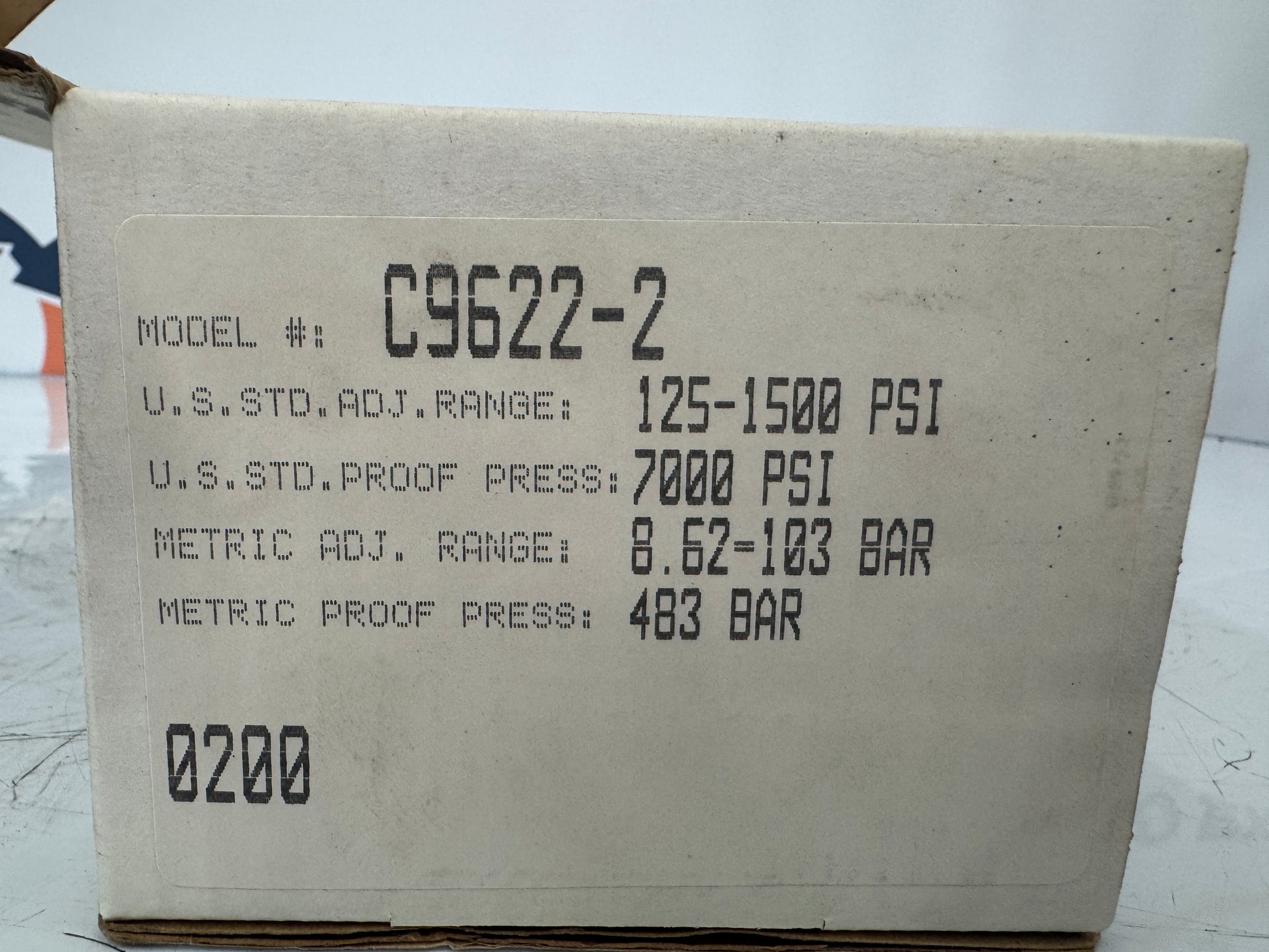

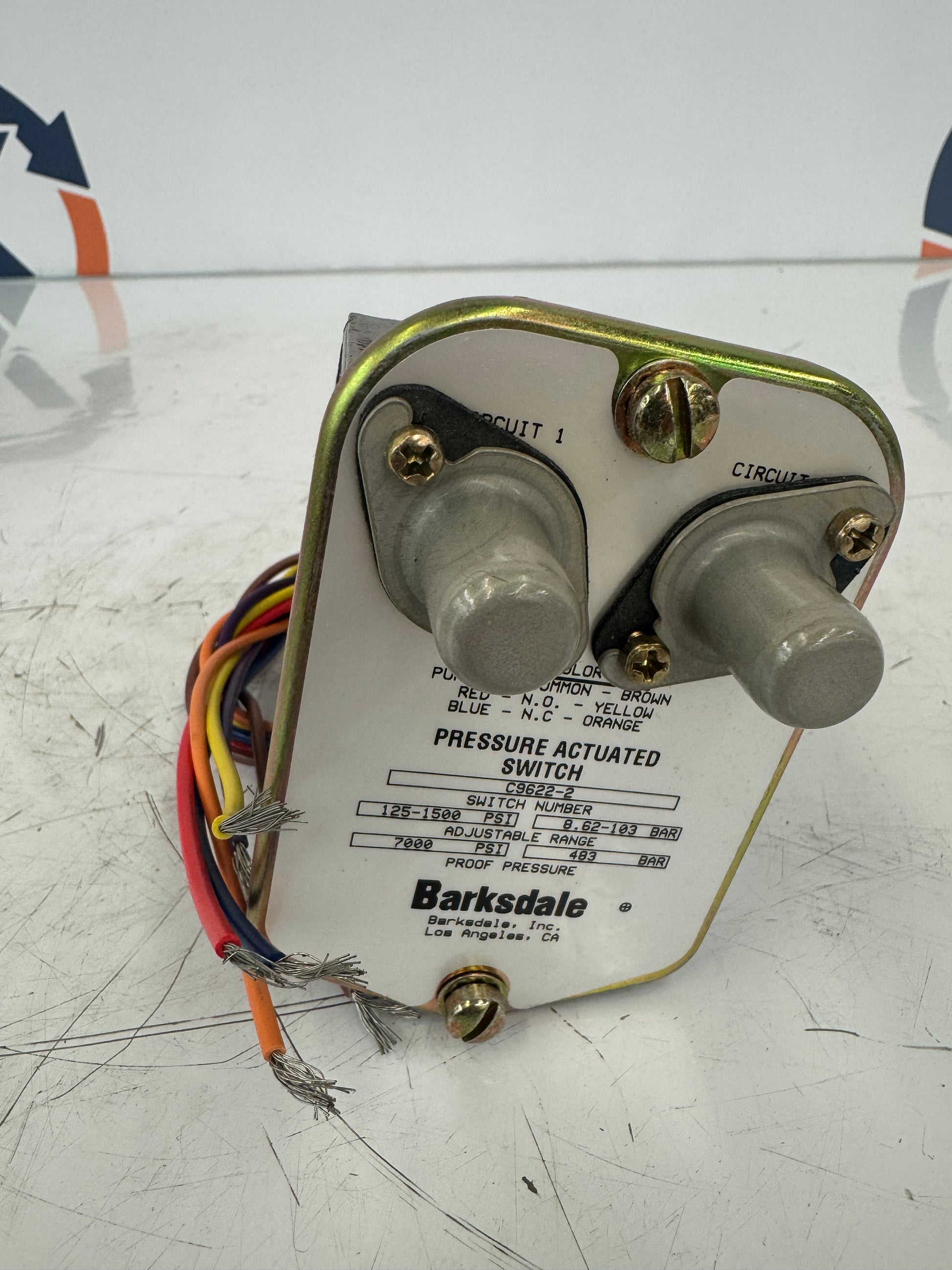

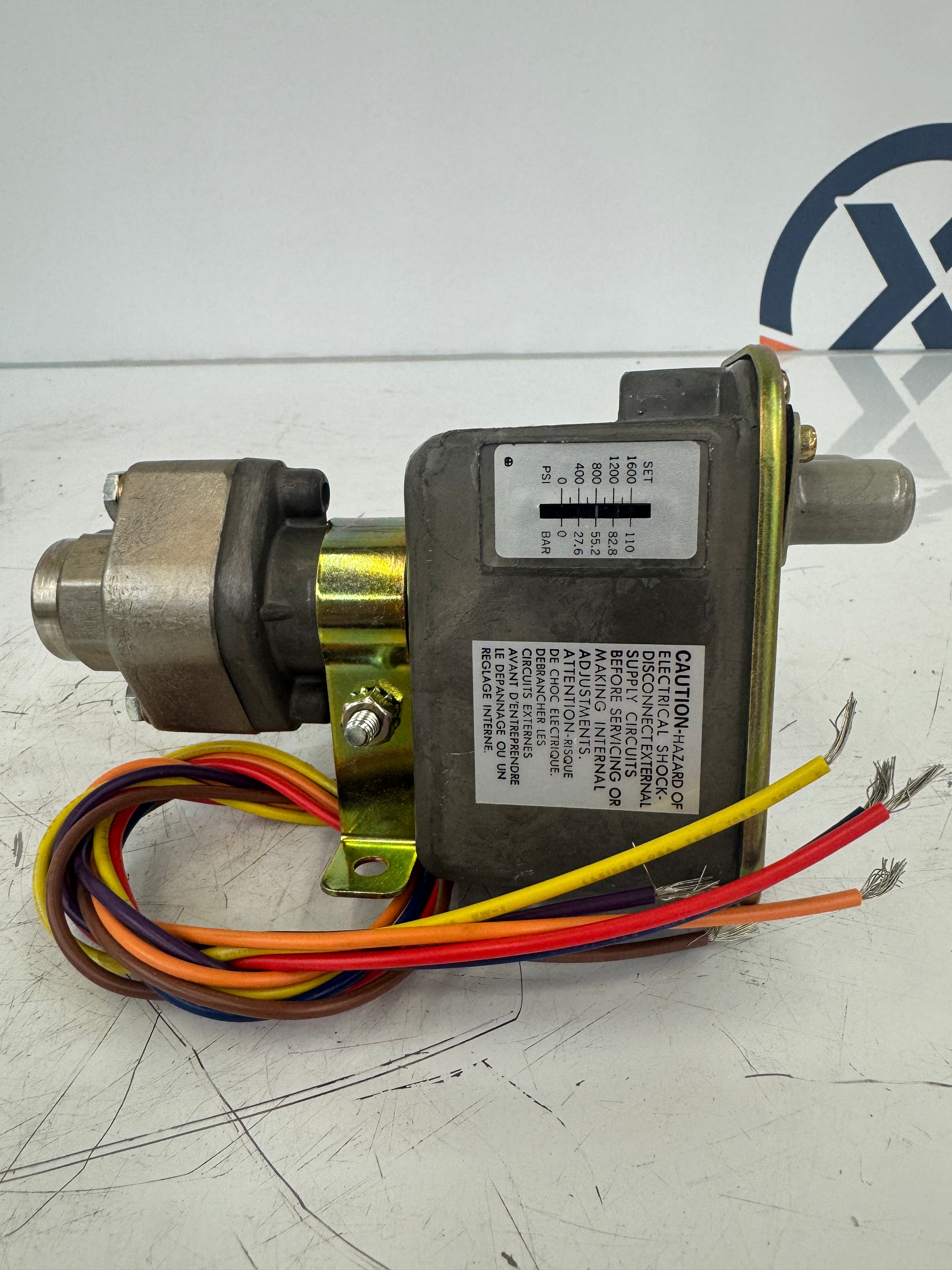

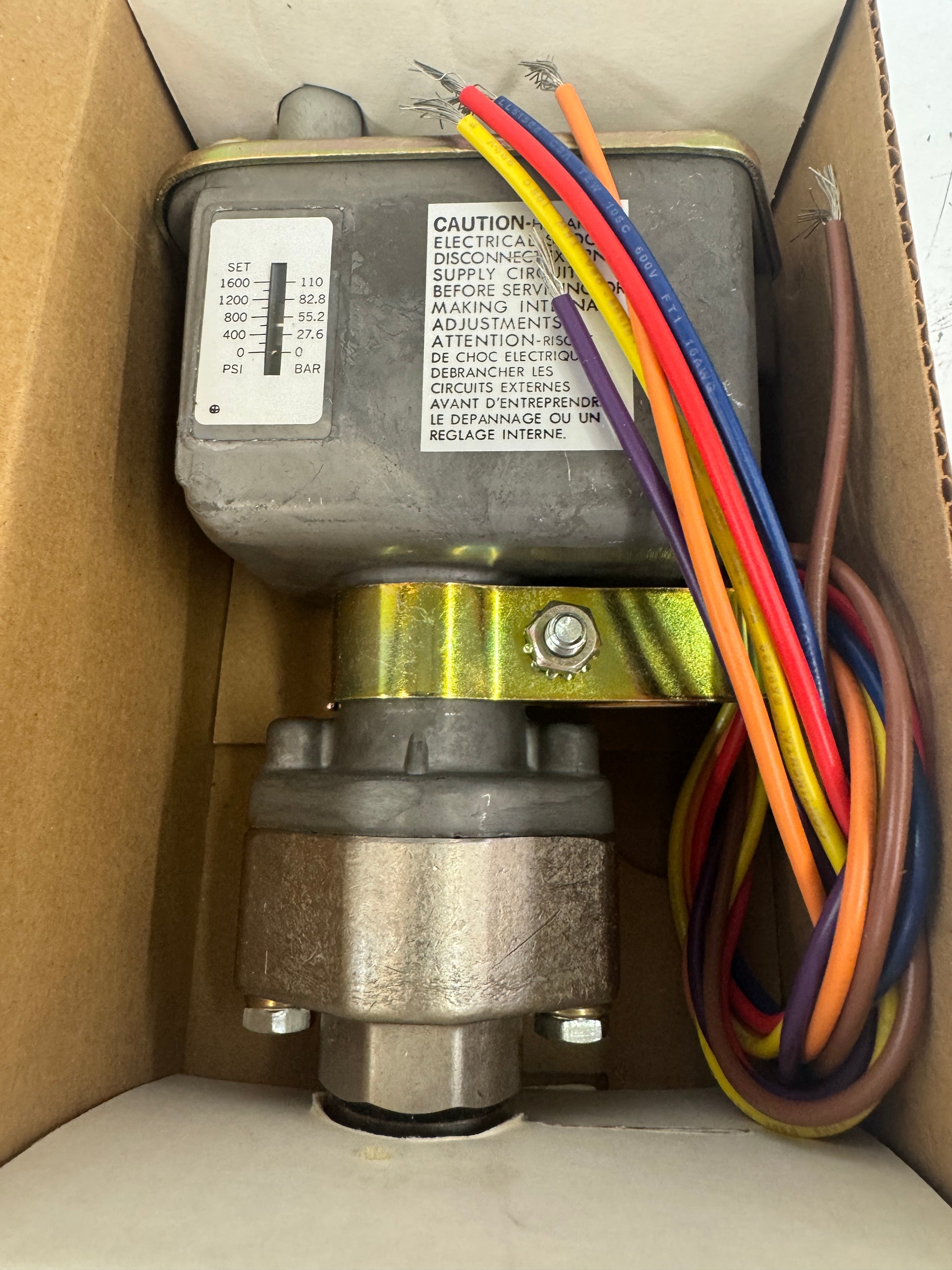

Used in hydraulic presses, compactors, machine tools, and other industrial fluid power systems, the Barksdale C9622-2 is a Series C9622 sealed piston pressure actuated switch with a dual setpoint configuration. The adjustable pressure range spans 125 to 1500 PSI (8.62 to 103 bar), with a proof pressure rating of 7000 PSI (483 bar). The switch uses SPDT snap action contacts rated at 10 amps at 125, 250, and 480 VAC, with a 1/4 in. 18 NPT female pressure port connection. Two independent switch circuits are included, with color-coded 18 in. free leads: red for common, blue for normally open, and orange for normally closed on each circuit. The anodized aluminum enclosure carries a NEMA 3 rating and features a tamper-resistant adjustment screw cover and an integrated 27/32 in. hole for 1/2 in. NPT conduit connection. A visual set-point indicator scale is visible on the enclosure face, graduated in both PSI (0 to 1600) and bar (0 to 110). The piston is constructed of 416 stainless steel, with Buna-N O-ring seals and a nickel-plated aluminum process fitting as standard. Part number C9622-2 is manufactured by Barksdale, Inc., Los Angeles, CA, and is shown in its original carton with matching model label confirming all specifications.
Stock # 0326-383
