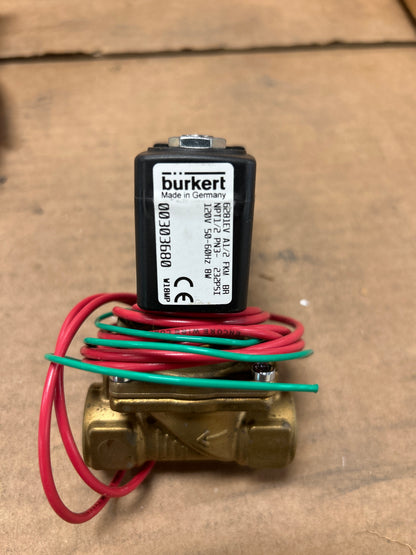

Burkert Solenoid Valve 6281EV A1/2 FKM BR 1/2 In. NPT 232 PSI
Burkert Solenoid Valve 6281EV A1/2 FKM BR 1/2 In. NPT 232 PSI
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
Used in fluid control systems requiring servo-assisted shutoff, the Burkert 6281EV A1/2 FKM BR is a 2/2-way normally closed diaphragm solenoid valve with a brass body and FKM (Viton) diaphragm seal. The 1/2 in. NPT port connections and 232 PSI (PN 16) maximum pressure rating make it well suited for water, steam-compatible, and chemically aggressive media applications where FKM elastomers are required.
The solenoid coil is rated at 120V AC, 50-60Hz, drawing 8 watts. The valve operates on a servo-assisted principle, requiring a minimum differential pressure for full opening. Internally, the diaphragm is actuated by the pressure differential across the valve body in combination with the solenoid pilot, a common design for larger-orifice applications where direct-acting operation would require significantly more coil power.

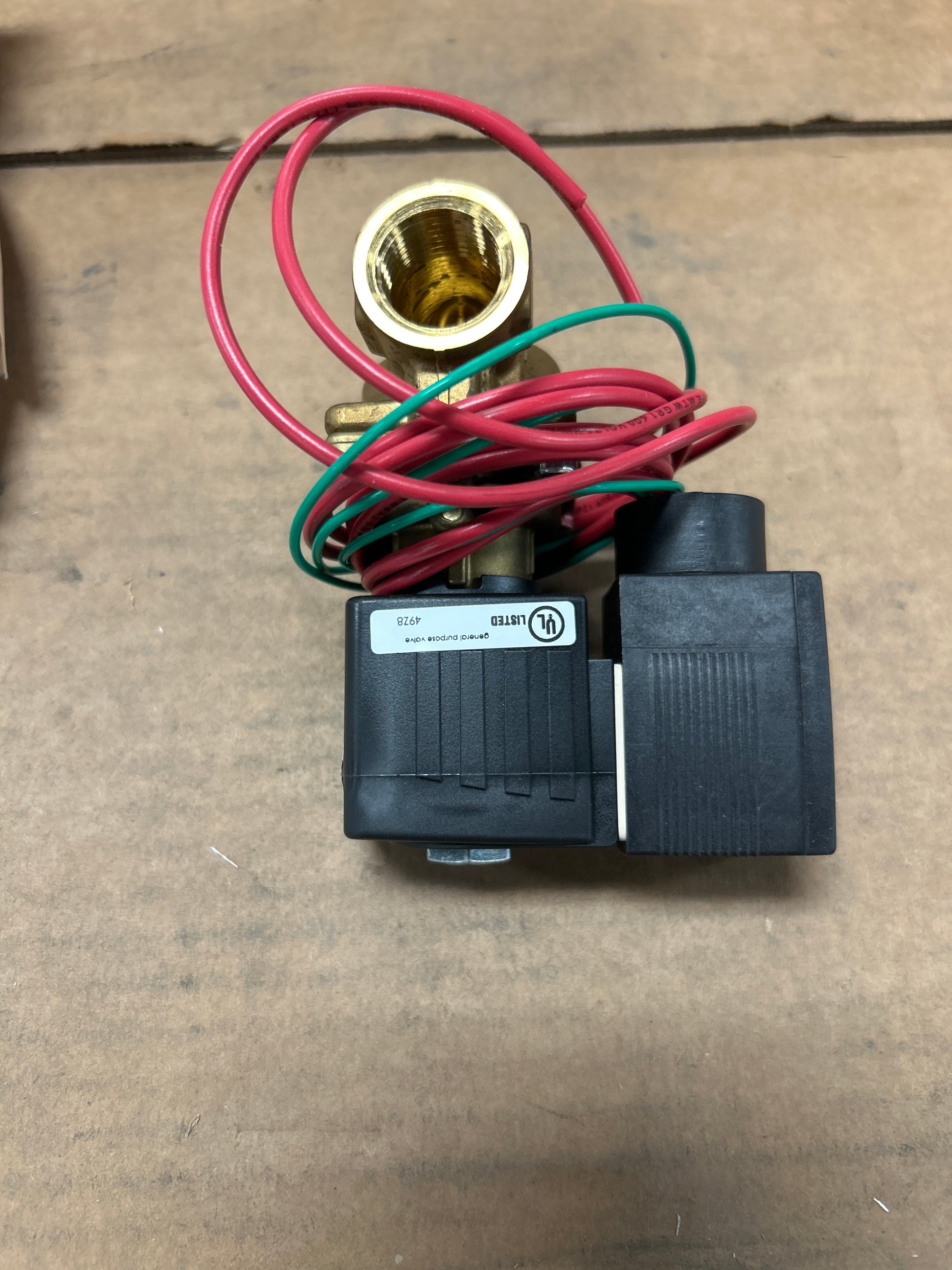

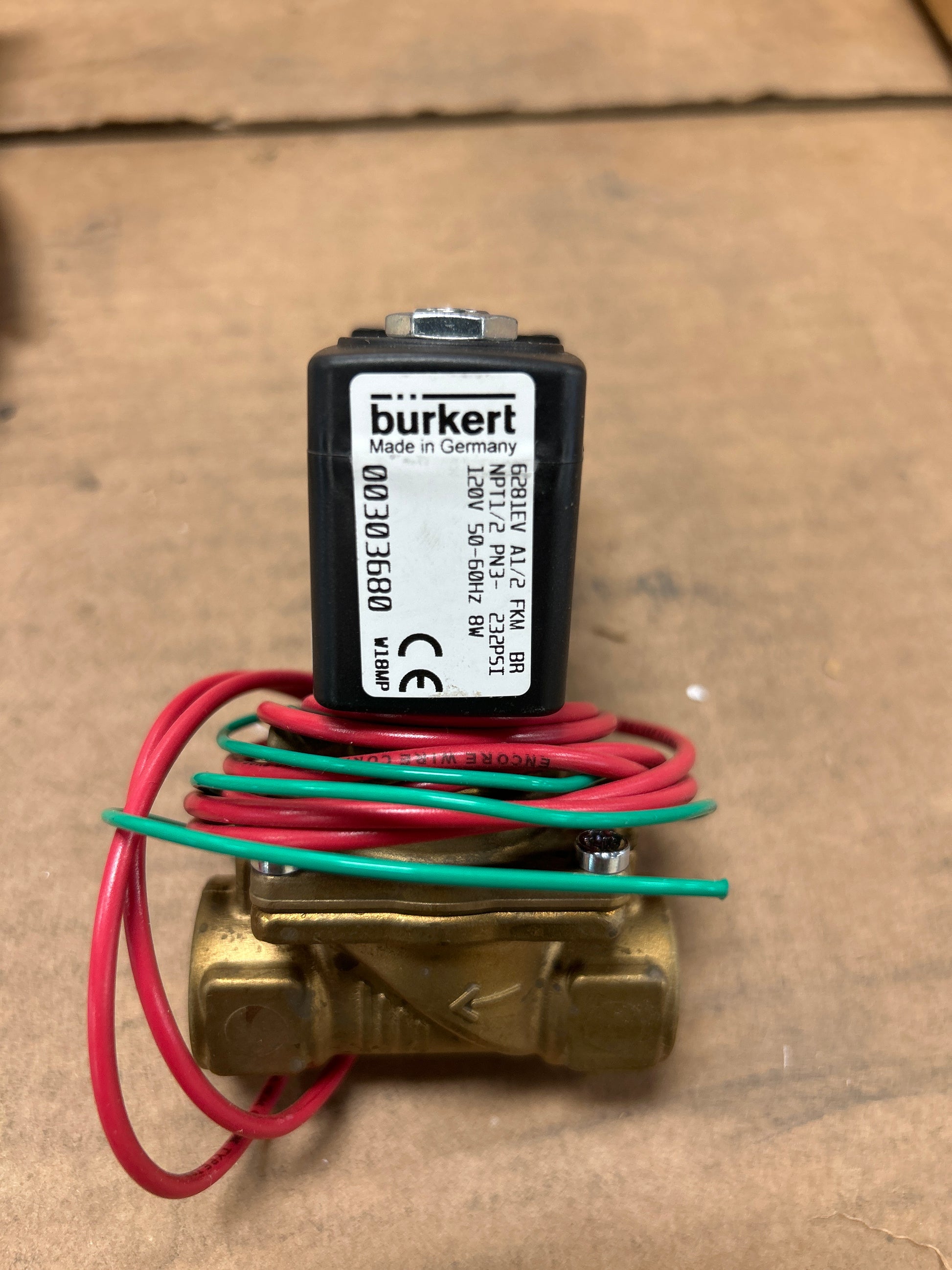

Serial number 00303680 is visible on the coil housing label. The valve is CE marked and UL Listed as a General Purpose Valve (UL file 4928). "BR" in the model designation indicates a standard brass body, and "FKM" denotes the fluoroelastic seal material rated for use with a broad range of process media including oils, fuels, and many aggressive chemicals. The coil housing is a molded thermoplastic enclosure with a DIN 43650 Form A plug interface.
Stock # 0526-02488
