Dayton Industrial Motor 3N855BA - 1 HP 3600 RPM
Dayton Industrial Motor 3N855BA - 1 HP 3600 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

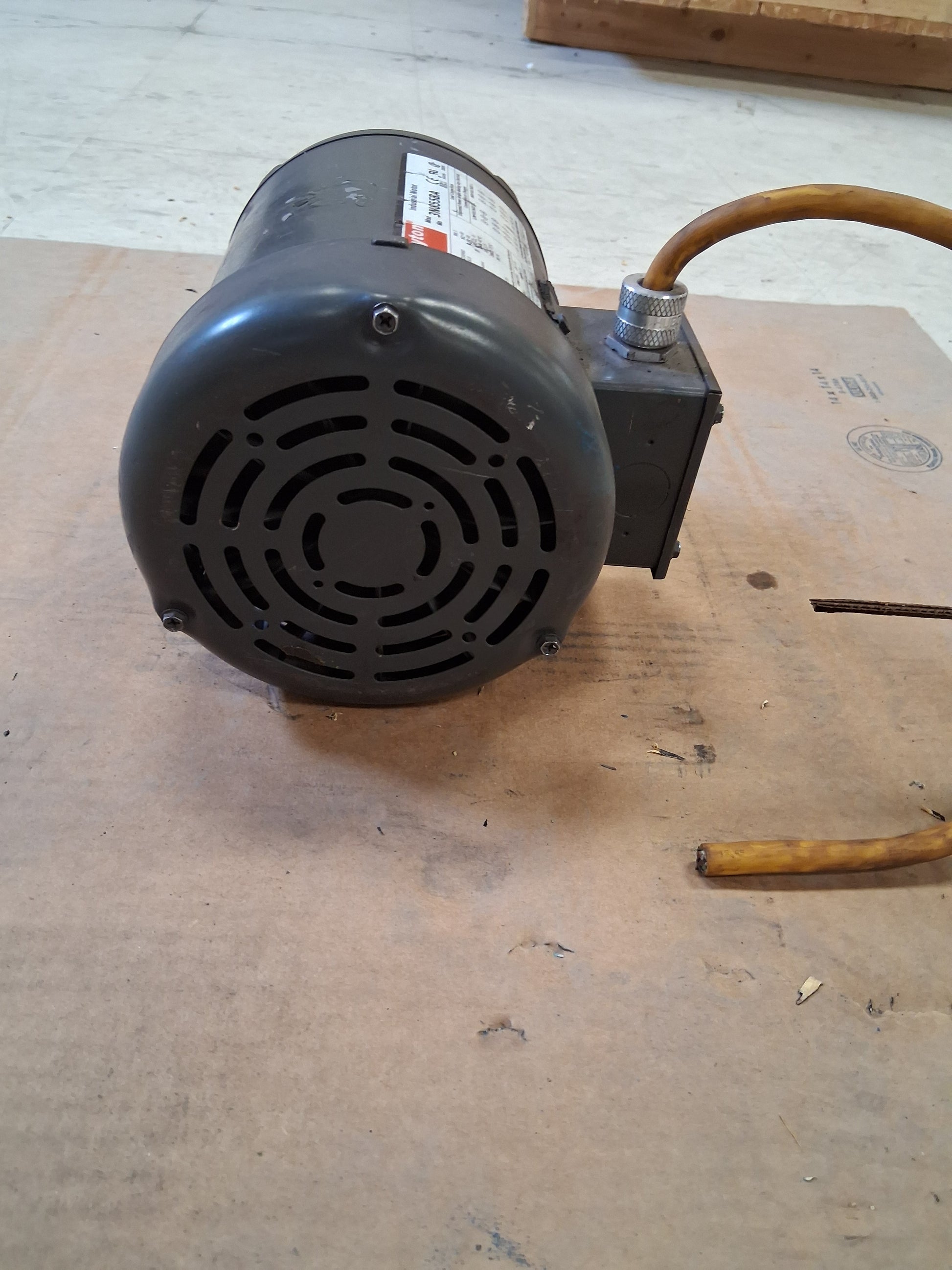

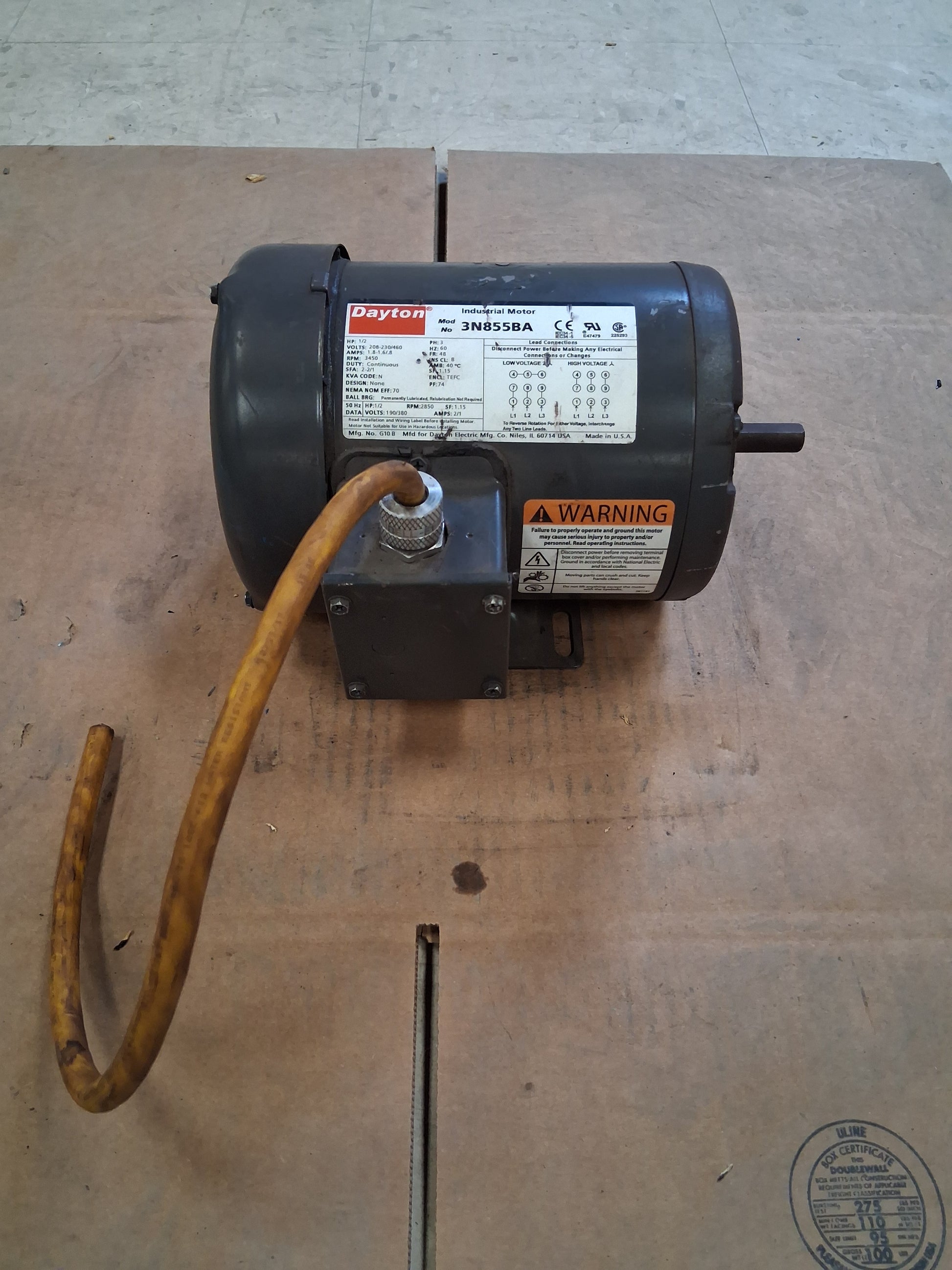

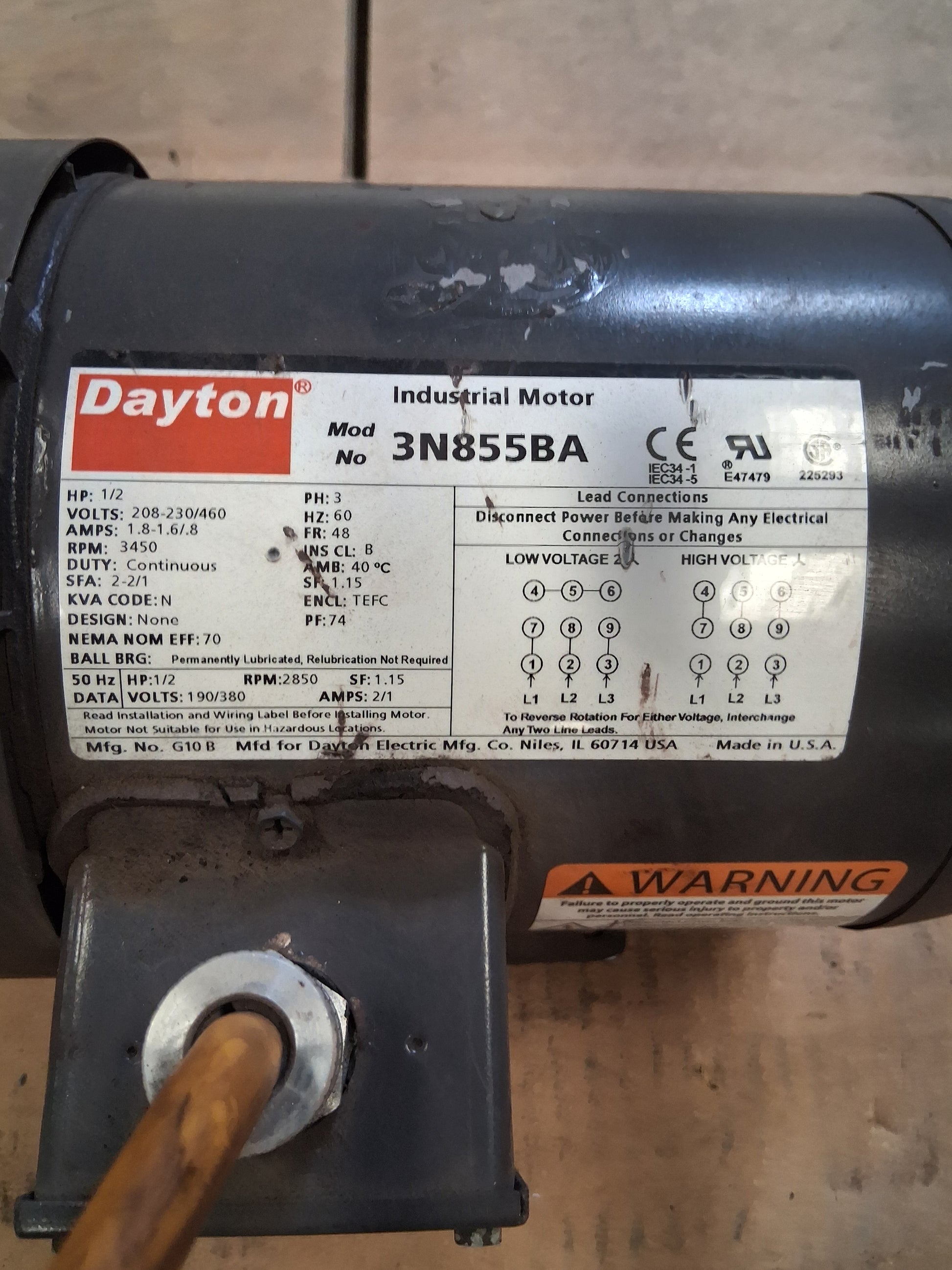

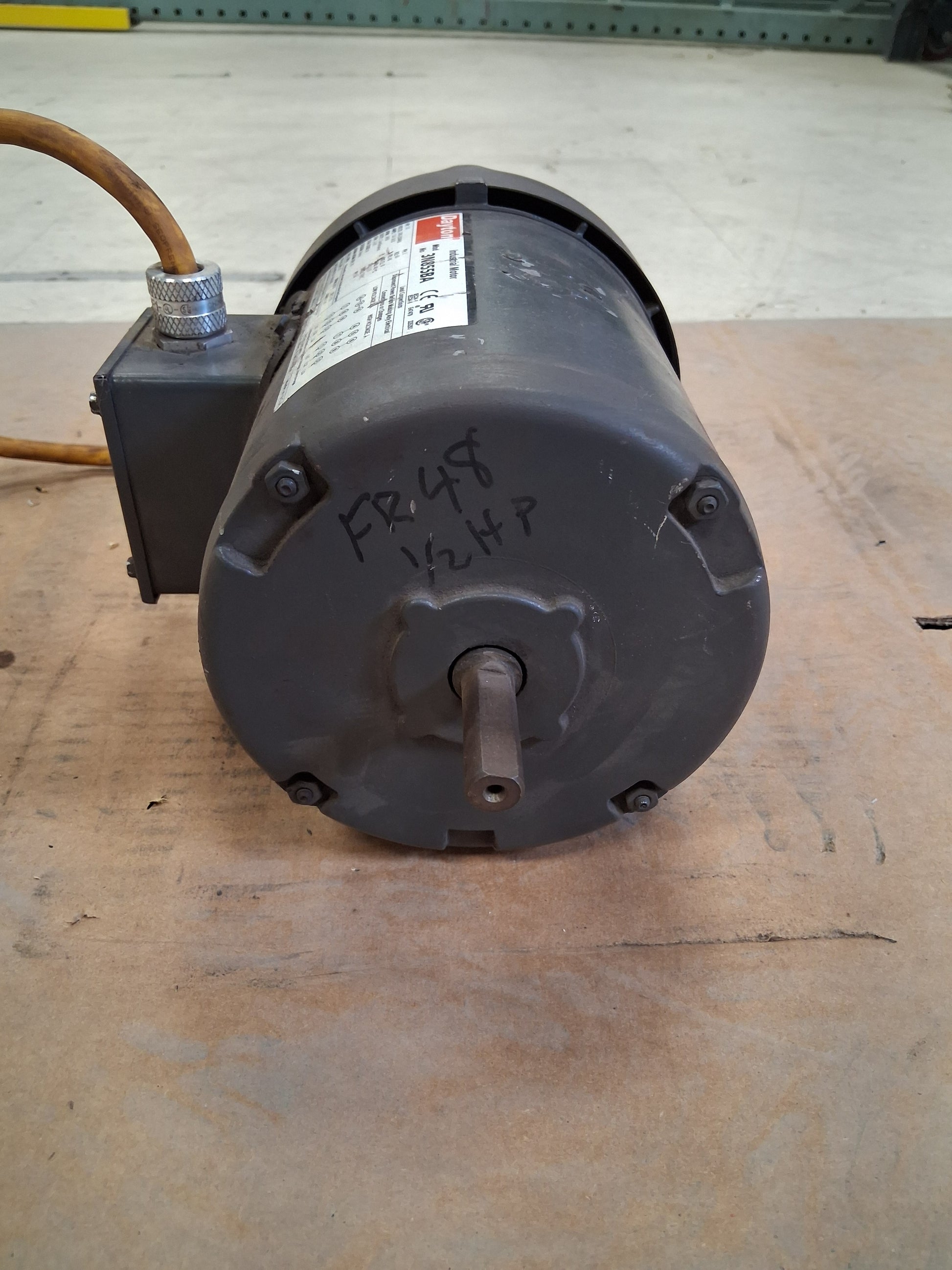

The Dayton 3N855BA is a three phase industrial AC motor rated at 1/2 HP with a nameplate speed of 3450 RPM at 60 Hz. The nameplate lists dual voltage operation at 208-230/460 VAC with full load amps of 1.8-1.6/.8 and a service factor of 1.15. The motor is built on a NEMA 48 frame with a TEFC (Totally Enclosed Fan Cooled) enclosure, Class B insulation, and continuous duty rating. A 50 Hz rating sheet on the nameplate lists 190/380 VAC operation at 2850 RPM with the same 1.15 service factor. Ball bearings are permanently lubricated and require no relubrication per the nameplate. NEMA nominal efficiency is listed at 70 and power factor at 74. Lead connections are shown on the nameplate for both low voltage (delta) and high voltage (wye) configurations, with rotation reversal accomplished by interchanging any two line leads. The motor carries CE, UL (file E47479), and CSA (file 225293) markings, with IEC34 1 and IEC34 5 compliance noted. Manufactured in the USA for Dayton Electric Mfg. Co., Niles, IL. Mfg. No. G10 B. Applications include pumps, fans, blowers, conveyors, machine tools, and other general purpose three phase industrial drives in non hazardous locations.
Stock # 0526-02306
