Electro Motive Division General Motors Corporation Magnetic Switch Contactor EMD PT NO 8464117 14-192-330-505
Electro Motive Division General Motors Corporation Magnetic Switch Contactor EMD PT NO 8464117 14-192-330-505
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
The Electro Motive Division (General Motors Corporation) part number 8464117 is a heavy duty magnetic switch contactor rated for 1000 amperes, used in EMD diesel electric locomotive electrical control assemblies. The unit is built by Siemens under drawing number 14-192-330-505 and carries Siemens inspection tag dated August 16, 1991, with serial number 41H03M79002 014. The integrated operating coil is a Siemens 14-183-219-501, N-1044, rated at 28 VDC.

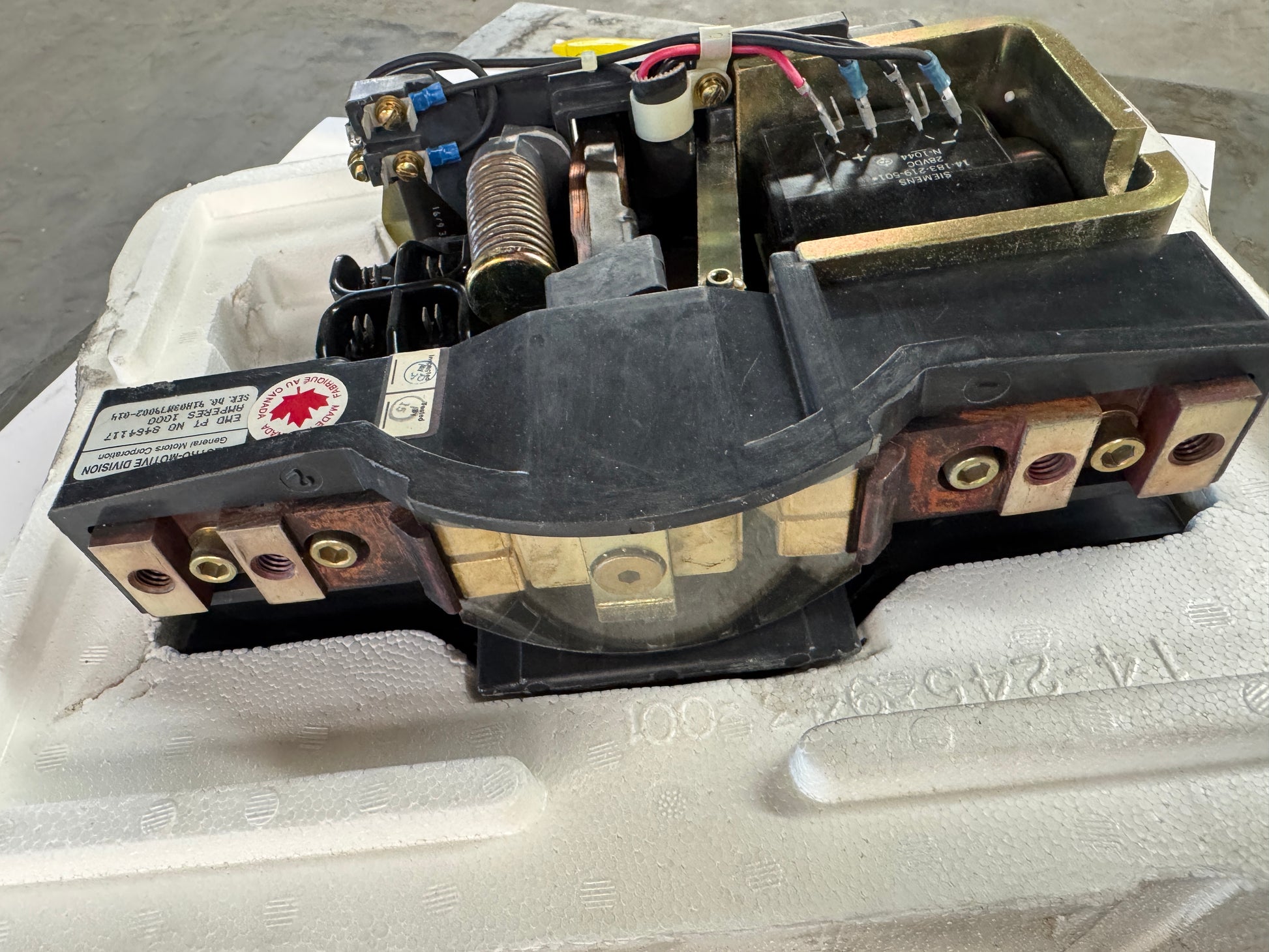

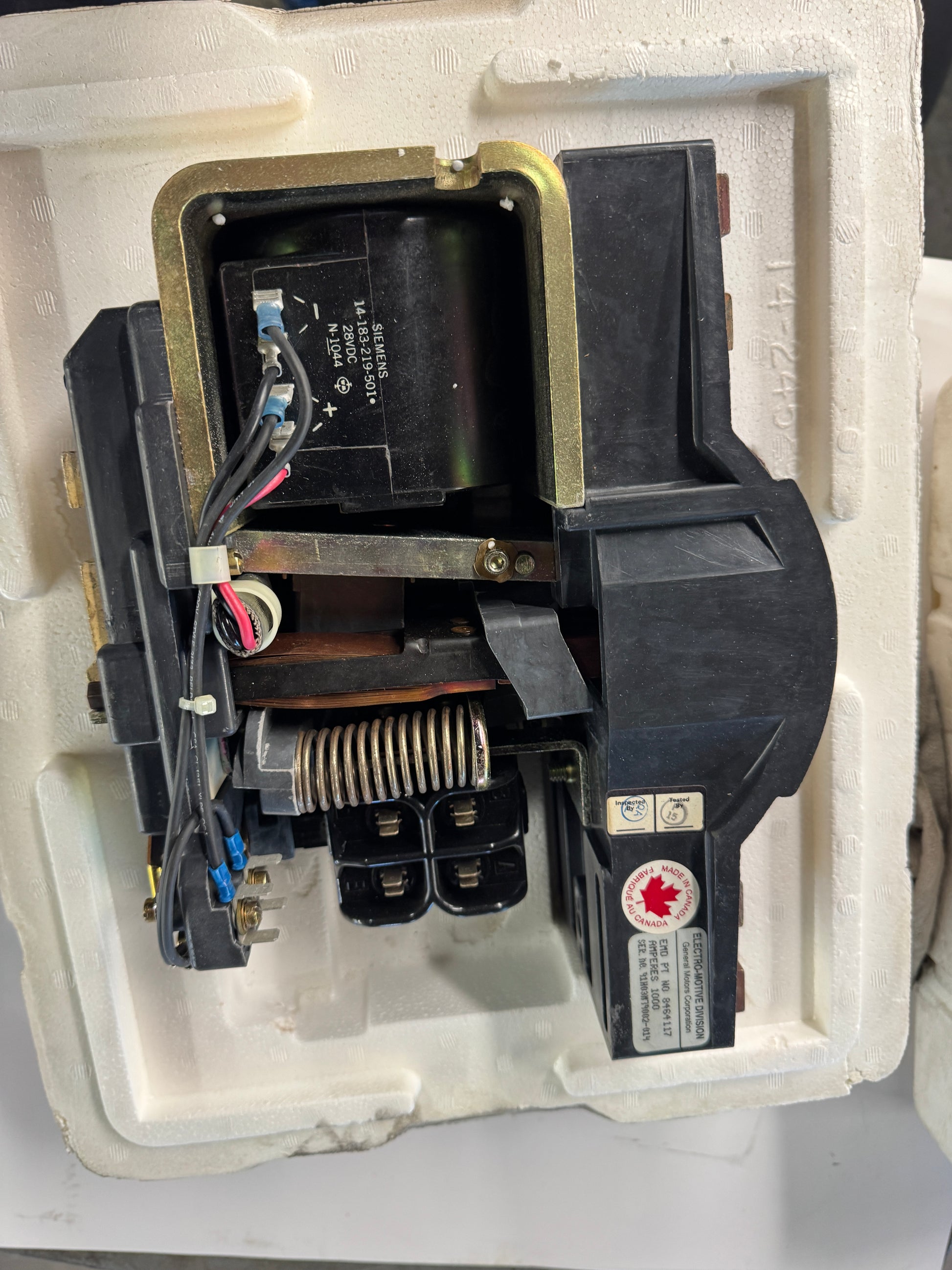

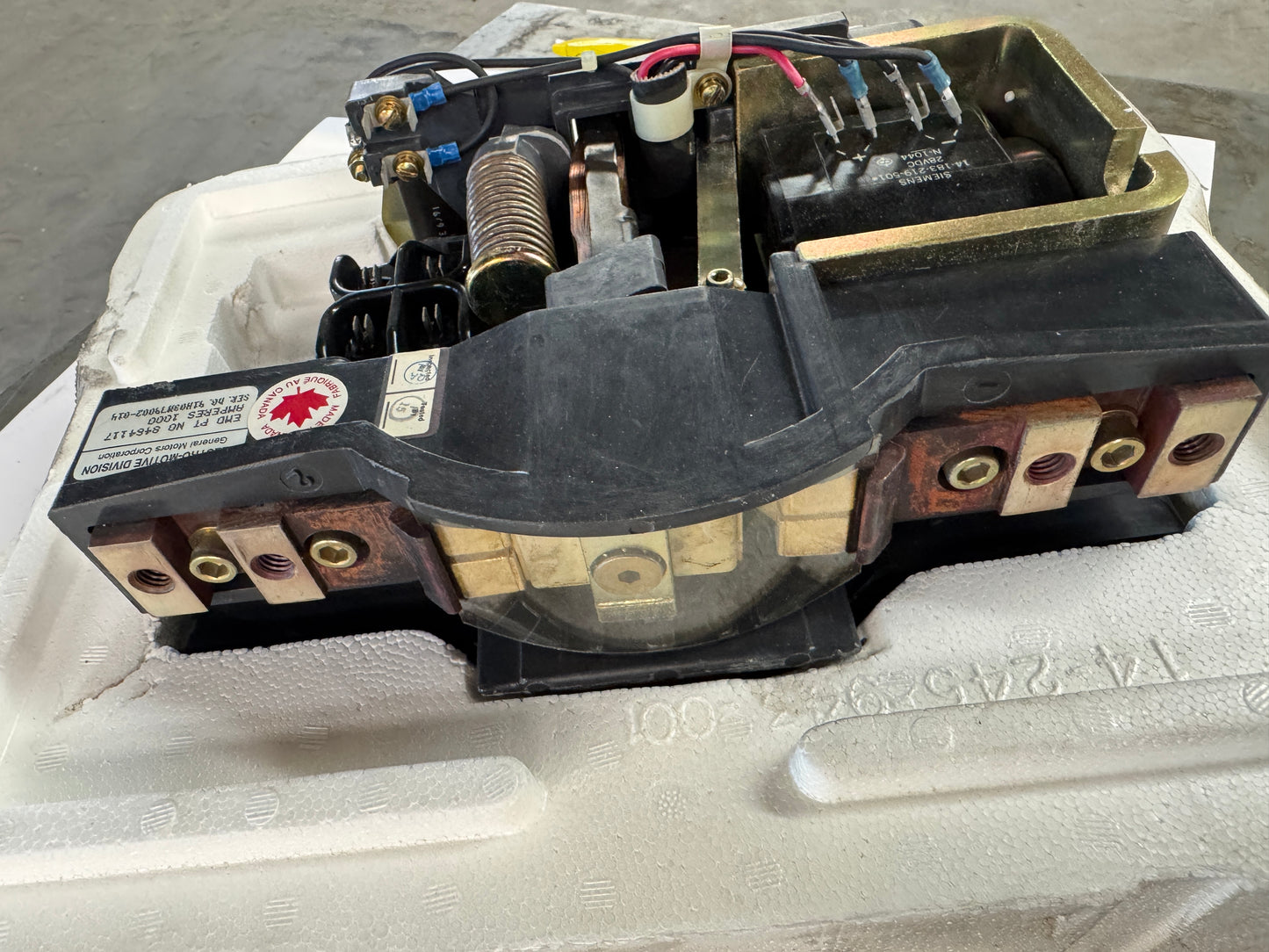

Construction includes large copper power terminals on both poles, an arc chute assembly with insulated barriers, return spring, auxiliary contact block with spade terminations, and a molded base. The polarity-marked coil terminals (+ and minus) are wired with red and black leads, and a multi-pin auxiliary connector is fitted alongside the magnet frame. The contactor is identified as a Magnetic RVF / RVR type switch within EMD locomotive parts catalogues, used in reversing and main power switching applications inside the locomotive electrical cabinet.

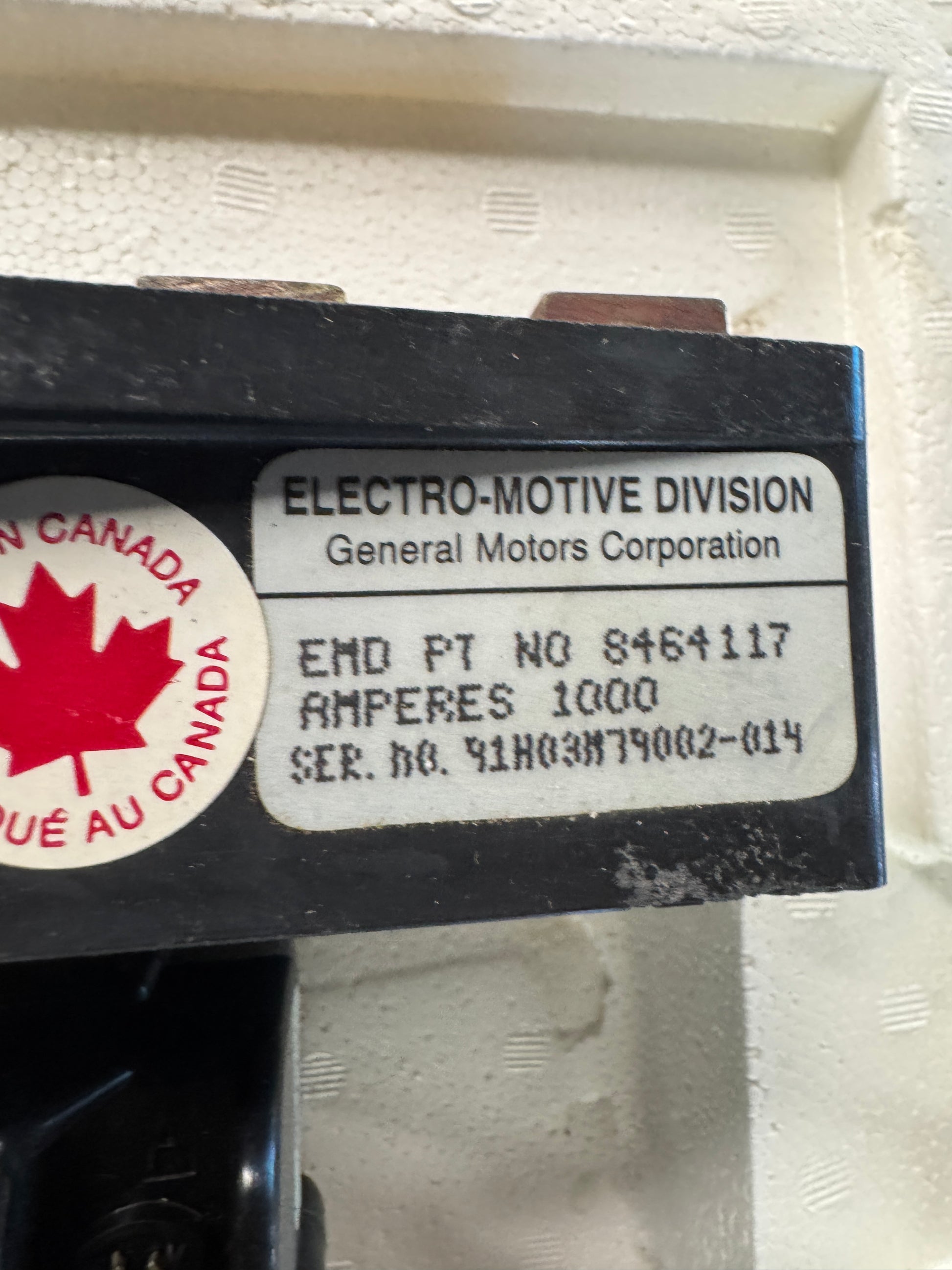

Stamped and printed markings on the unit include the EMD nameplate (EMD PT NO 8464117, AMPERES 1000), the Siemens coil identification plate, a Made in Canada / Fabriqué au Canada label, and QA inspected and tested stamps. The original yellow Siemens inspection tag identifies a manufactured batch of 24 units on order 984630, routed To Stock. Item arrives in original molded foam packaging. Buyers requiring railway locomotive obsolete electrical spares for EMD platforms typically reference part number 8464117 or the prior equivalent 8341261.
Stock # 0526-02263
