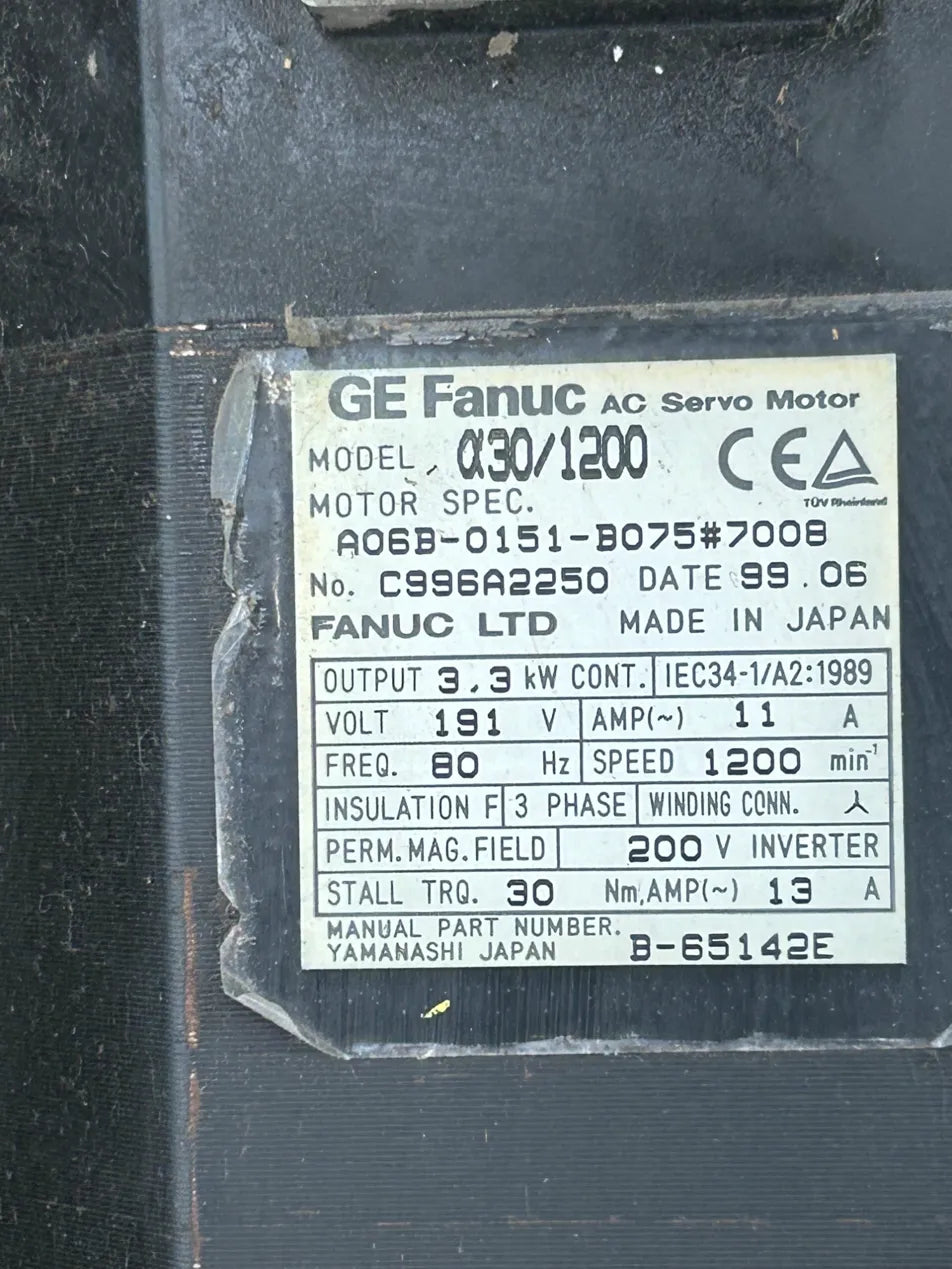

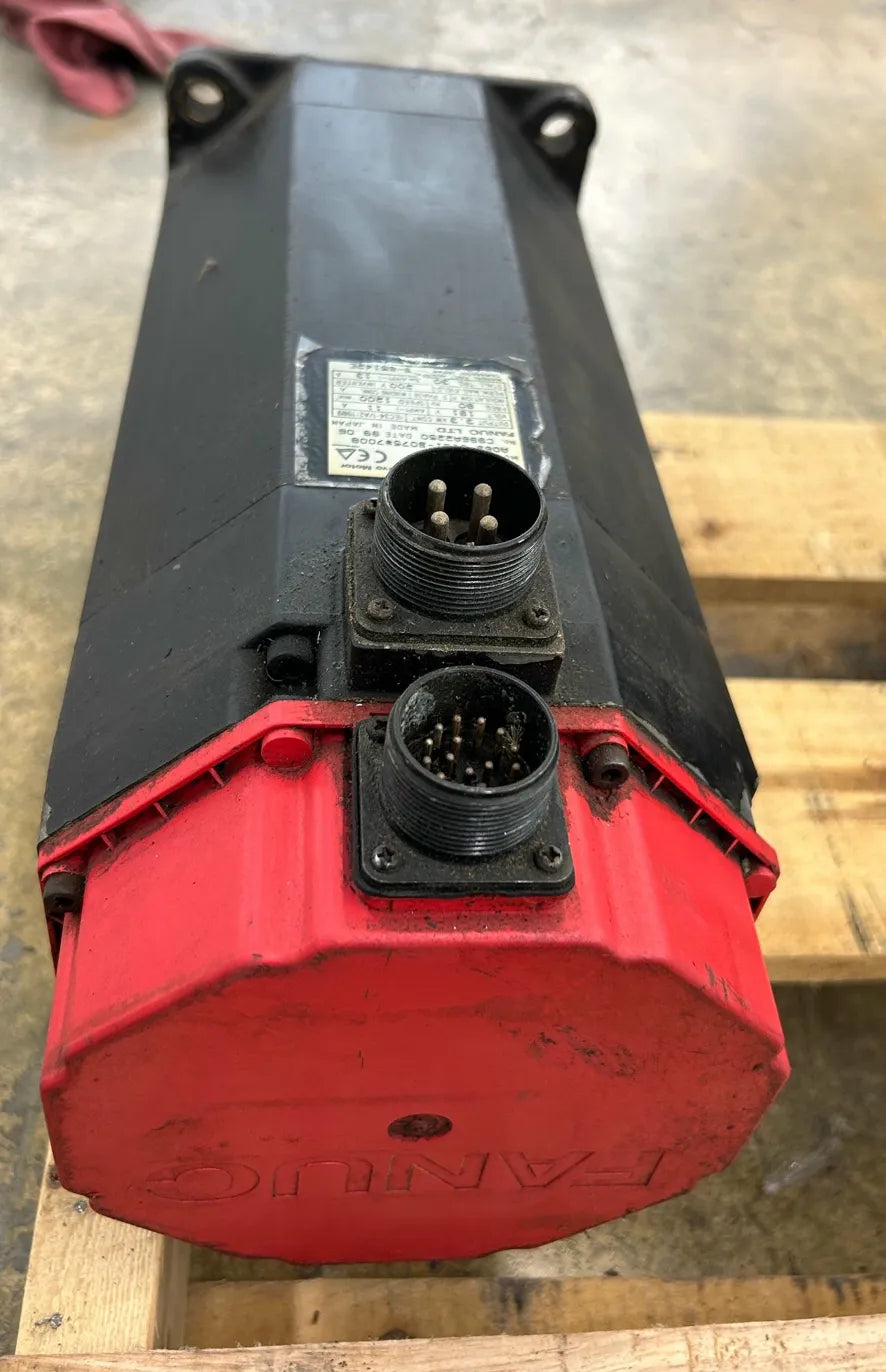

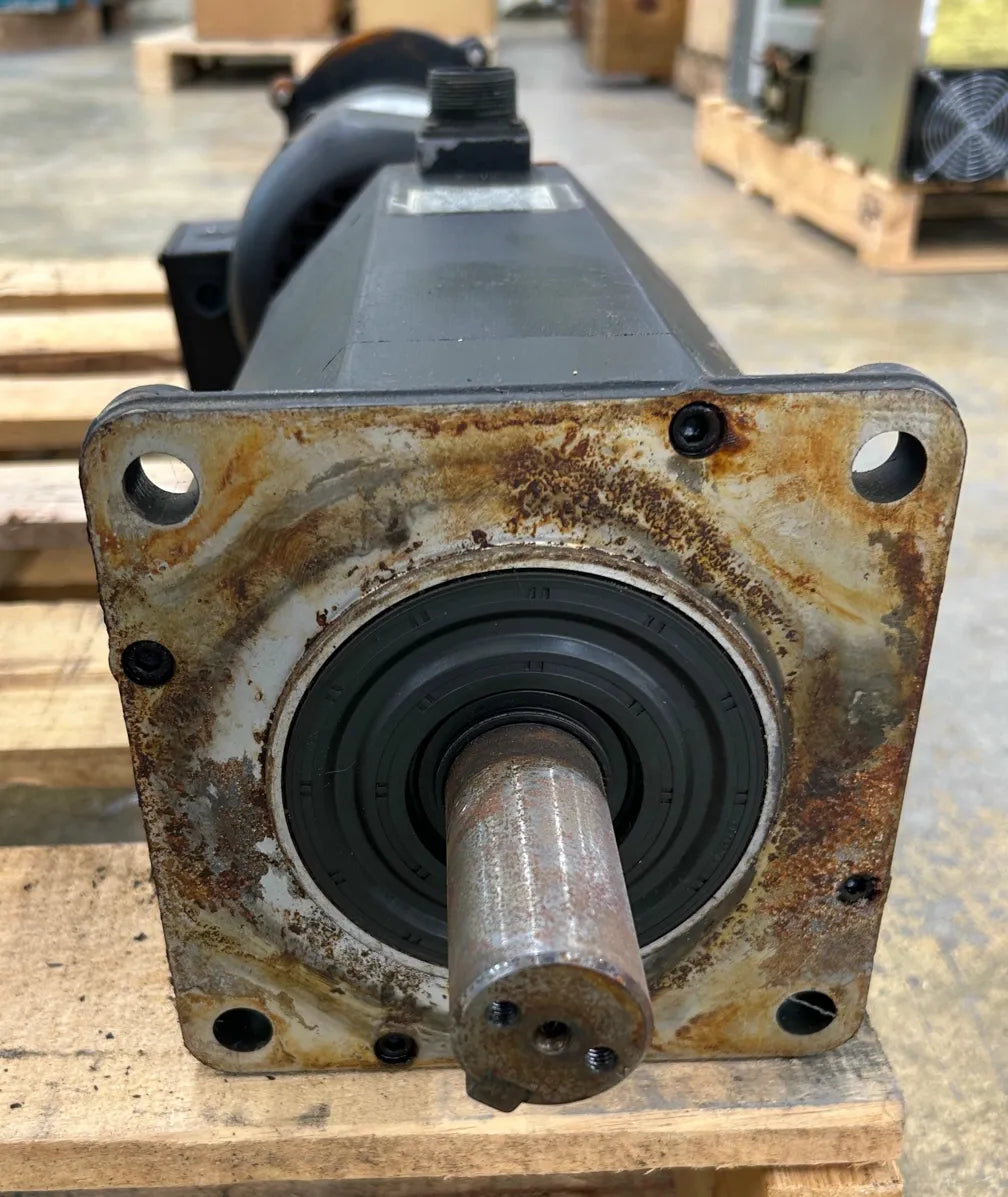

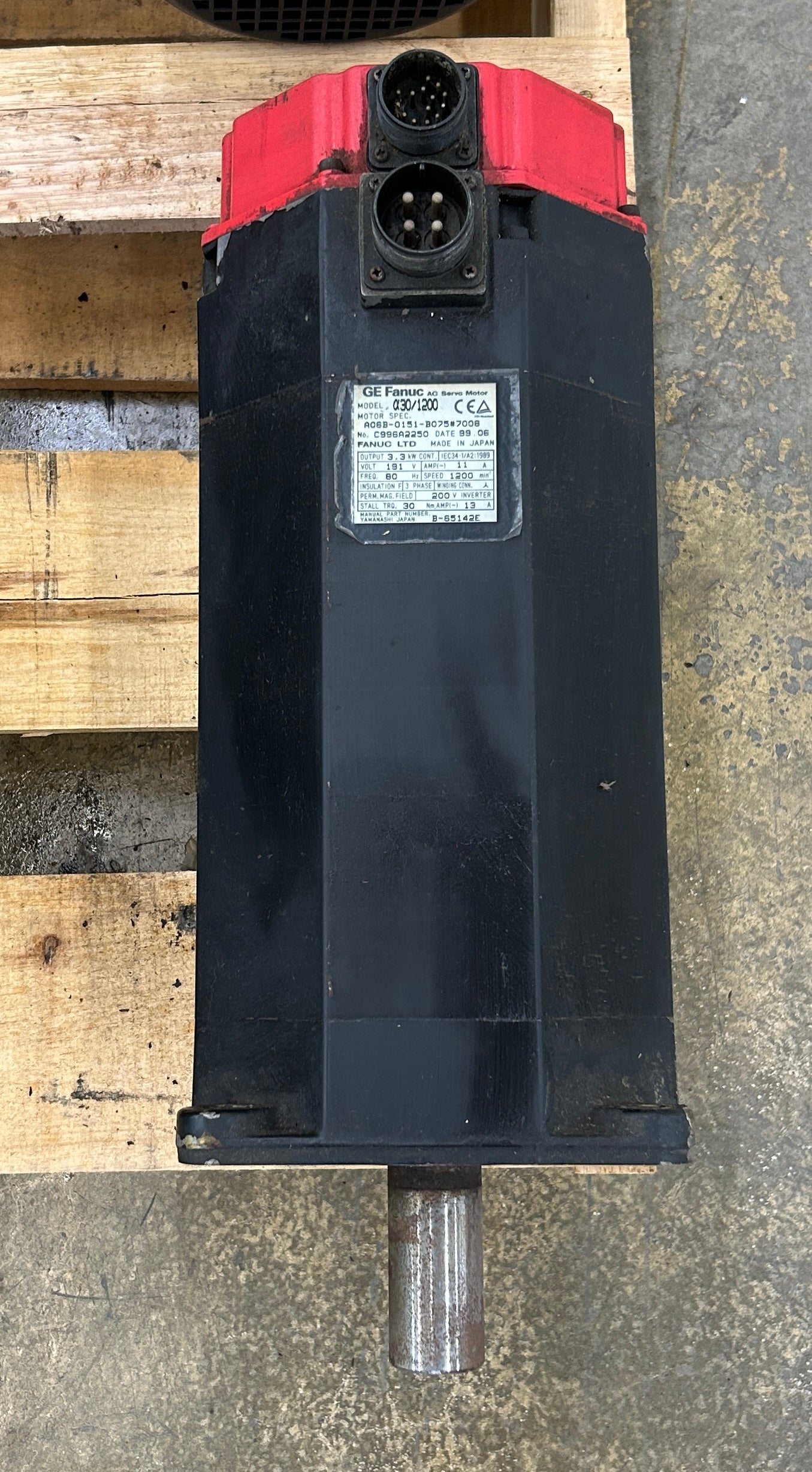

The Fanuc Alpha series A06B-0151-B075#7008 is a three-phase AC servo motor rated at 3.3 kW continuous output at 1200 RPM. Manufactured by Fanuc Ltd in Yamanashi, Japan, this motor carries model designation Alpha 30/1200 and was produced under motor spec A06B-0151-B075#7008. The nameplate lists an input voltage of 191 V AC, a current draw of 11 A, and an operating frequency of 80 Hz. Permanent magnet field voltage is rated at 200 V inverter. Stall torque is 30 Nm at a stall current of 13 A. Winding connection is wye (Y) configuration with Class F insulation. The motor is equipped with two rear-mounted connectors: one for the A64 pulse encoder and one for power, consistent with the #7008 suffix designation indicating a straight keyed shaft configuration. The motor body is constructed of cast aluminum with a square flange mounting face and a cylindrical output shaft. This unit is compatible with Fanuc Alpha series servo amplifiers and is commonly found in CNC machine tool axis and spindle applications. Serial number C996A2250 is visible on the nameplate, with a manufacturing date of June 1999. The manual reference number listed is B-65142E.
