GE Fanuc A06B-0128-B575#7008 AC Servo Motor 2 kW 3000 RPM
GE Fanuc A06B-0128-B575#7008 AC Servo Motor 2 kW 3000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

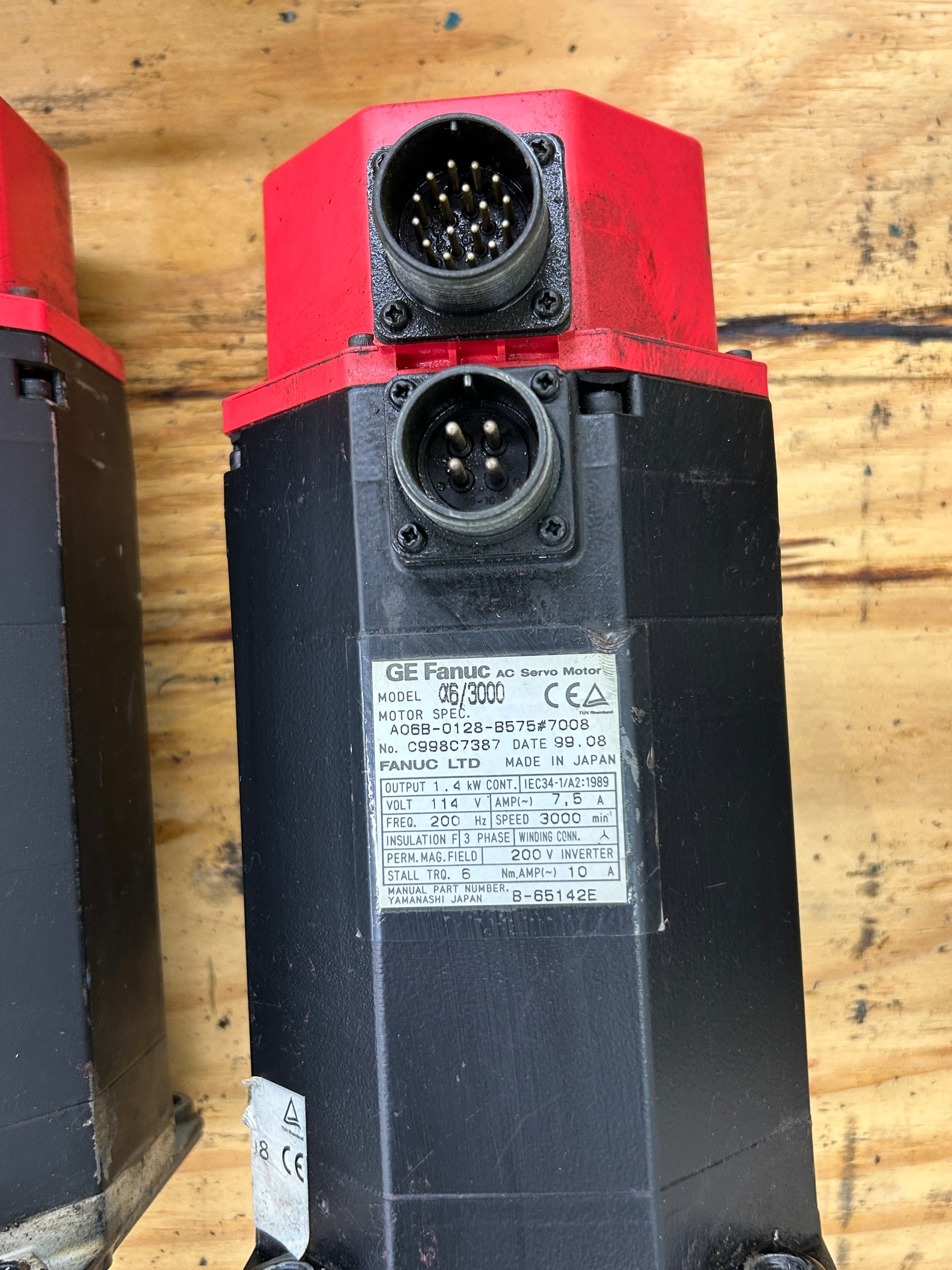

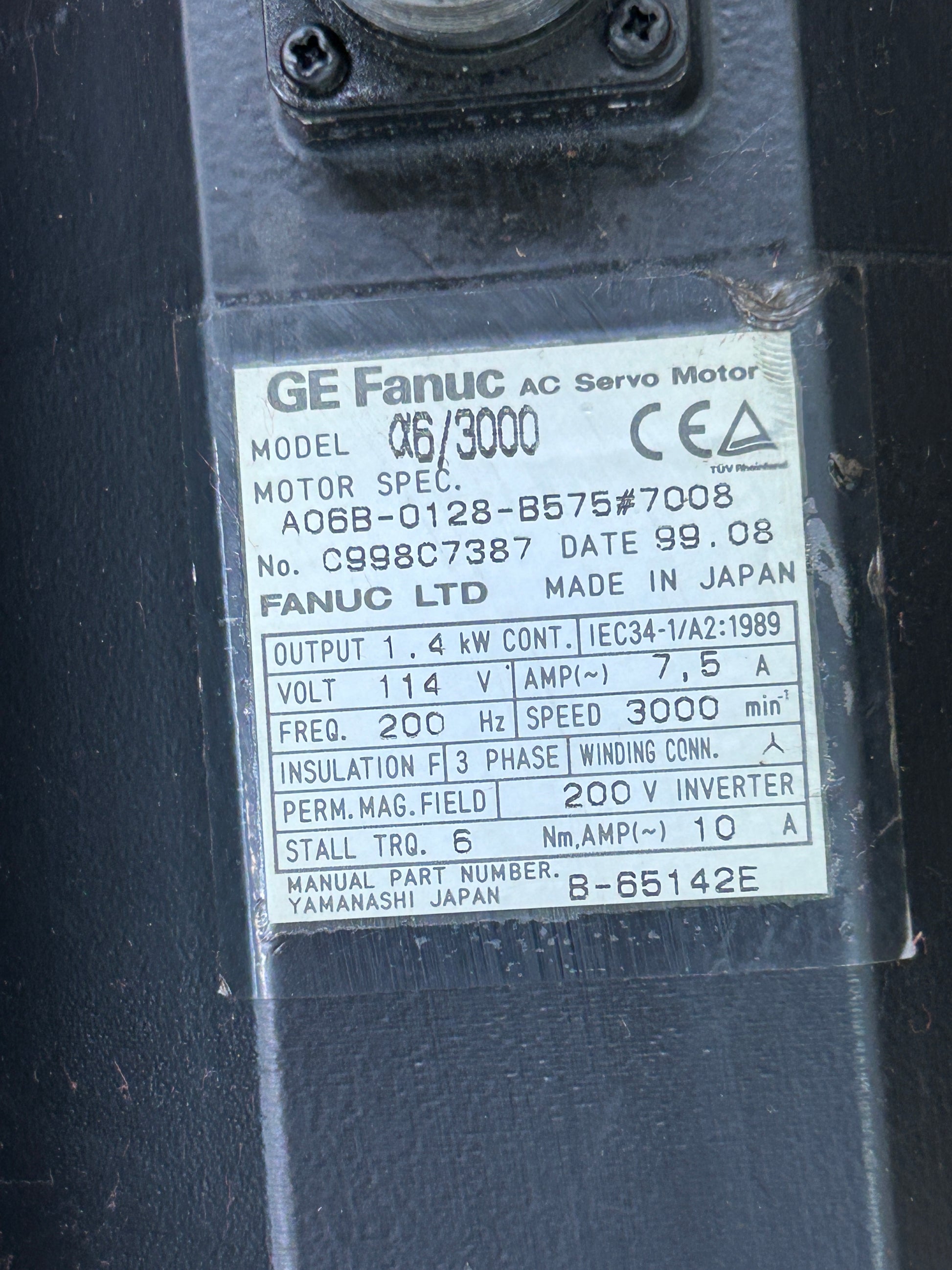

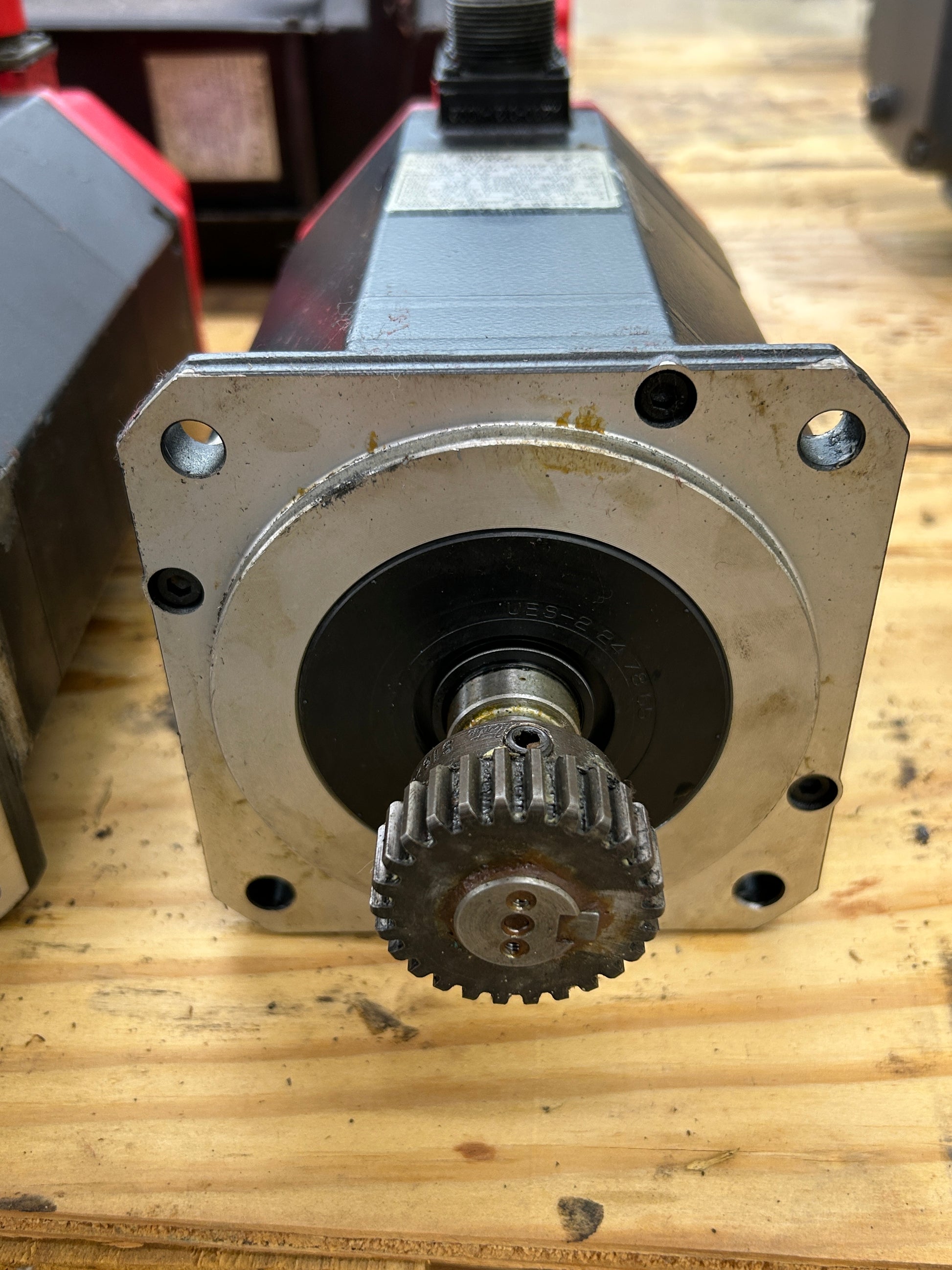

The GE Fanuc A06B-0128-B575#7008 is an AC servo motor from the Alpha 6/3000 series, manufactured by Fanuc Ltd. in Yamanashi, Japan. The nameplate identifies the unit as Model A6/3000 with motor specification A06B-0128-B575#7008 and serial number C998C7387, with a date code of 99.08. Rated output is 1.4 kW continuous, with a rated voltage of 114 V, rated current of 7.5 A, and a frequency of 200 Hz. Maximum speed is 3,000 rpm. The motor operates on 3 phase power with a star (Y) winding connection and is designed for use with a 200 V inverter. Insulation class is F, and the unit features a permanent magnet field design. Stall torque is rated at 6 Nm with a stall current of 10 A. The motor is compliant with IEC34 1/A2:1989 and carries the CE and TUV Rheinland marks. The manual part number listed on the nameplate is B 65142E. This Alpha series motor is fitted with an A64 absolute encoder and a straight keyed shaft, and is commonly used in CNC machining centers and lathes including Hardinge QC and Quest Twin platforms. Equivalent OEM references include A06B0128B575, A06B 0128 B575, and variant suffixes #0008, #7000, #7076, and #F008 within the same product series. Buyers should verify compatibility with the controlling Fanuc servo amplifier and CNC system before installation.
Stock # 0226-108
