GE Fanuc A06B-0158-B075#7008 AC Servo Motor 10 HP 2000 RPM
GE Fanuc A06B-0158-B075#7008 AC Servo Motor 10 HP 2000 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

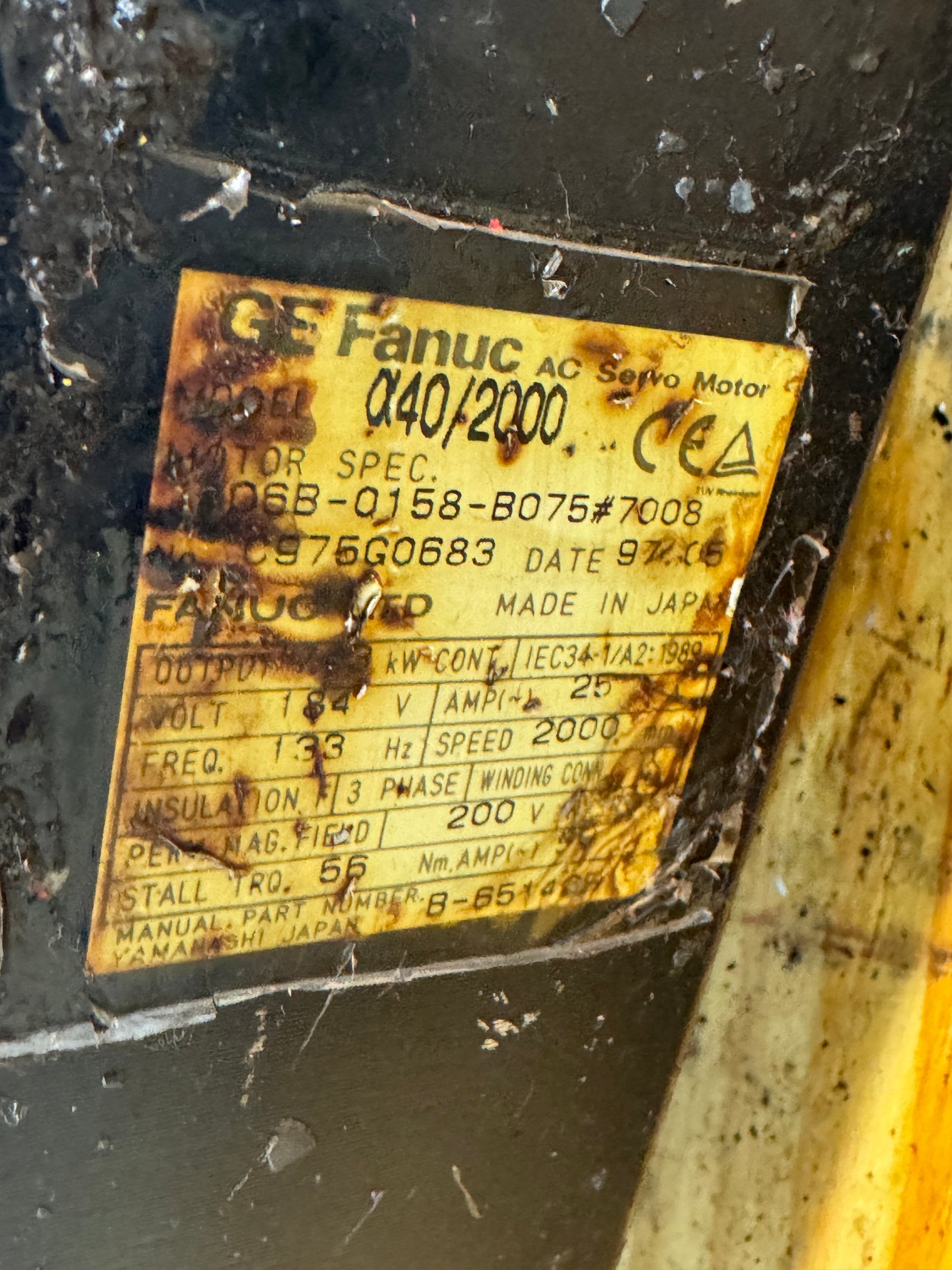

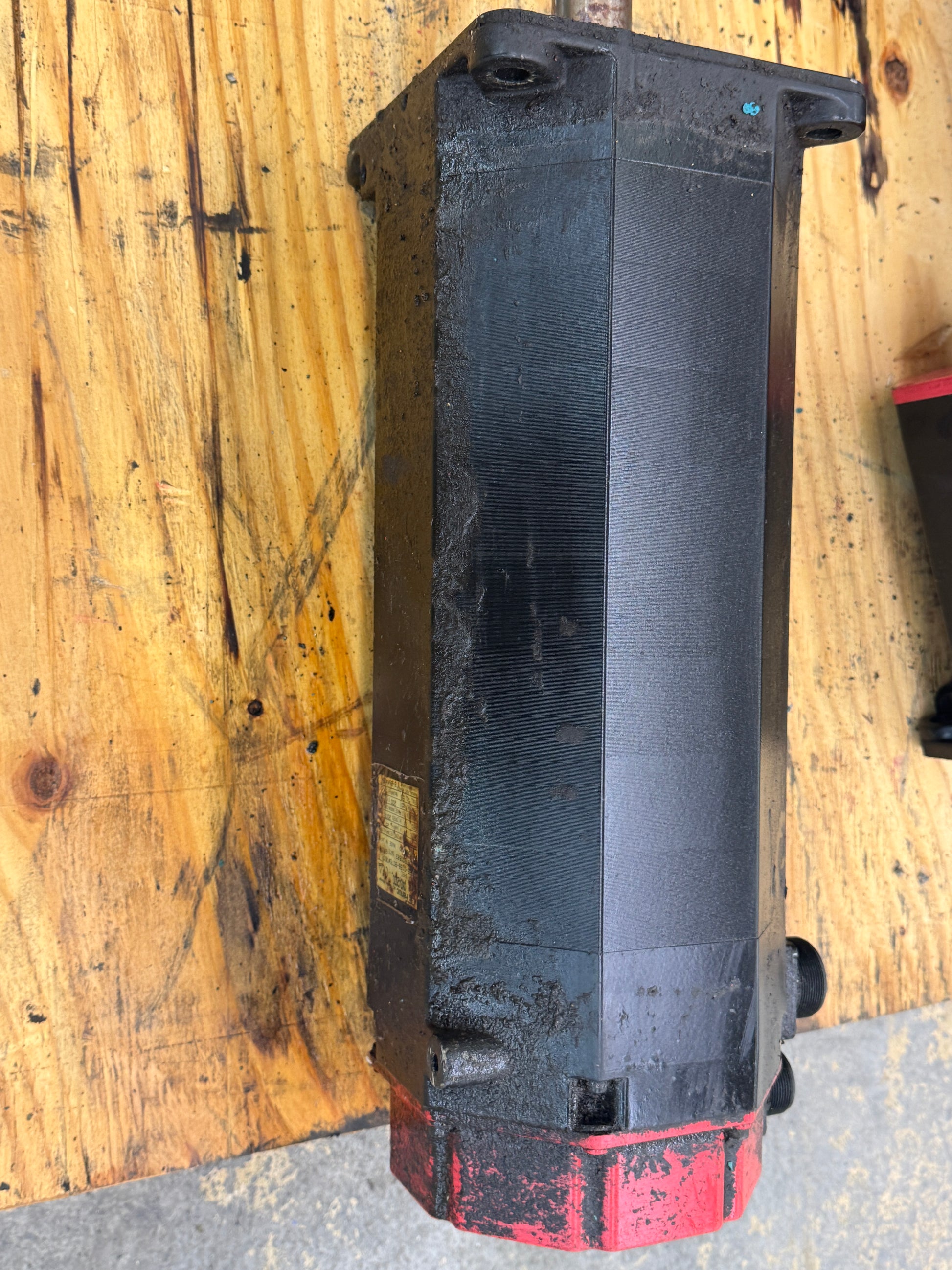

The GE Fanuc A06B-0158-B075#7008 is an AC Servo Motor from the Alpha series, model designation a40/2000. Nameplate data confirms a continuous rating of 7.3 kW, 184 V, 25 A, 133 Hz, three phase, with a maximum speed of 2000 RPM and a continuous stall torque of 55 Nm. Insulation is Class F and the motor is configured with permanent magnet field excitation. The unit is built for use in CNC machining centers and machine tool feed axis applications, paired with Fanuc Alpha series servo amplifiers such as the A06B-6079-H1xx and A06B-6096-H1xx drive families. The #7008 suffix designates the standard configuration with twin radial cooling fans mounted on the front housing and an A64 absolute pulse coder mounted on the rear. The motor features a straight keyed shaft and a flanged mounting interface. Manual part number 8 65140X is stamped on the nameplate. Manufactured by Fanuc Ltd. in Yamanashi, Japan, with a date code of 97.05. Compatible with the wider Fanuc Alpha CNC platform used on small to medium machining centers, turning centers, and similar machine tools. Suitable as a direct replacement or core exchange unit for the A06B-0158-B075 family, including the #0008 and #7008 variants. CE marked per the original manufacturer plate. Approximate shipping dimensions reflect a heavy cast iron and steel construction with twin top mounted cooling fans and rear pulse coder housing.
Stock # 0226-097
