GE Fanuc A06B-0514-B574#7008 Model 5S/3000 AC Servo Motor 2.5 HP 3000 RPM
GE Fanuc A06B-0514-B574#7008 Model 5S/3000 AC Servo Motor 2.5 HP 3000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

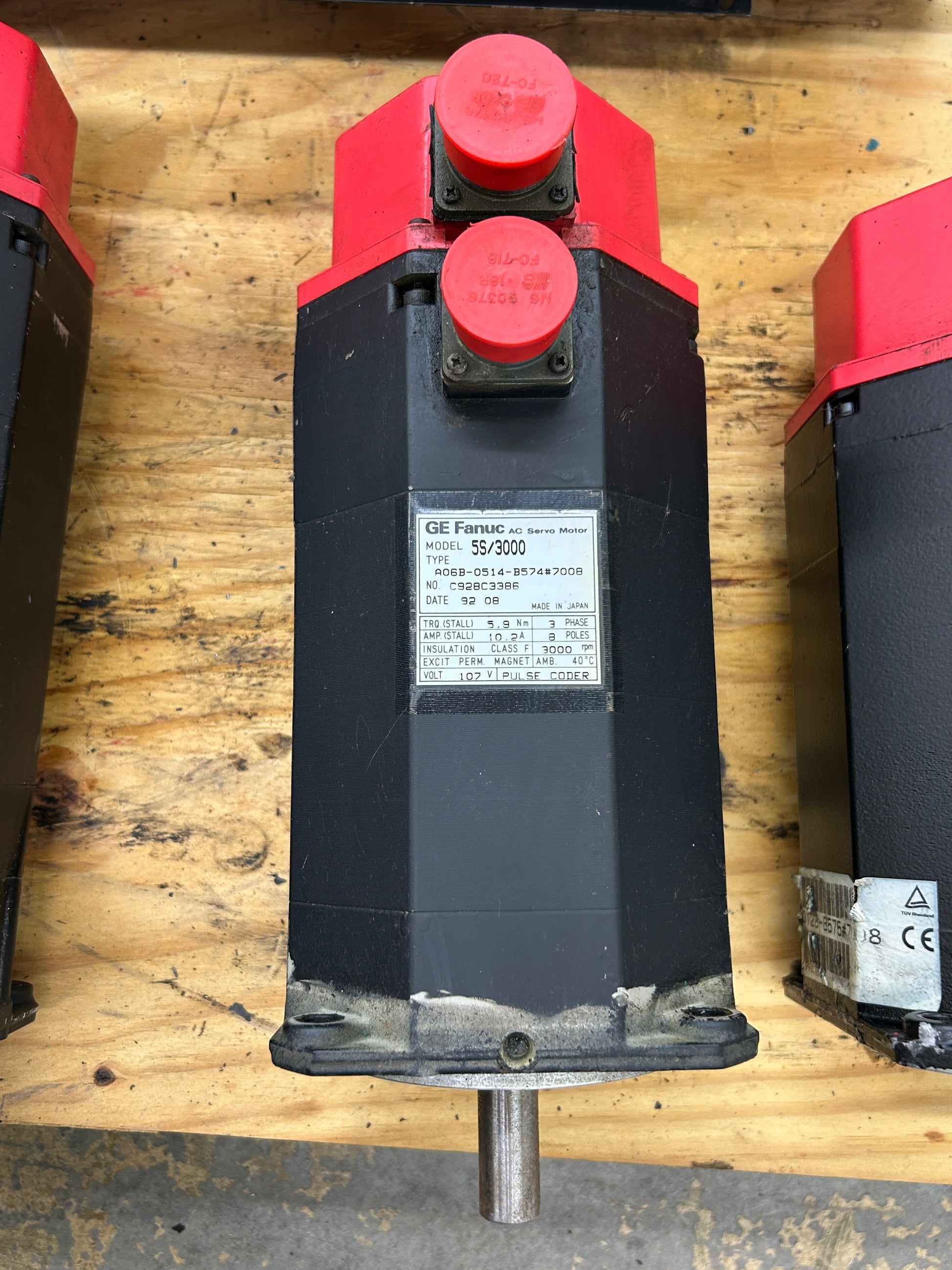

The GE Fanuc A06B-0514-B574#7008 is an AC servo motor from the Fanuc 5S/3000 series, identified by the nameplate as Model 5S/3000. The unit operates at 107 V, three phase, with eight poles and a rated speed of 3,000 RPM. Stall torque is listed at 5.9 Nm and stall current at 10.2 A. Insulation is Class F, with an ambient temperature rating of 40 °C. Excitation is by permanent magnet, and the motor integrates a pulse coder for position feedback to the servo drive. Serial number C928C3386 is present on the nameplate, with a date code of 92 08. The motor is built in Japan.

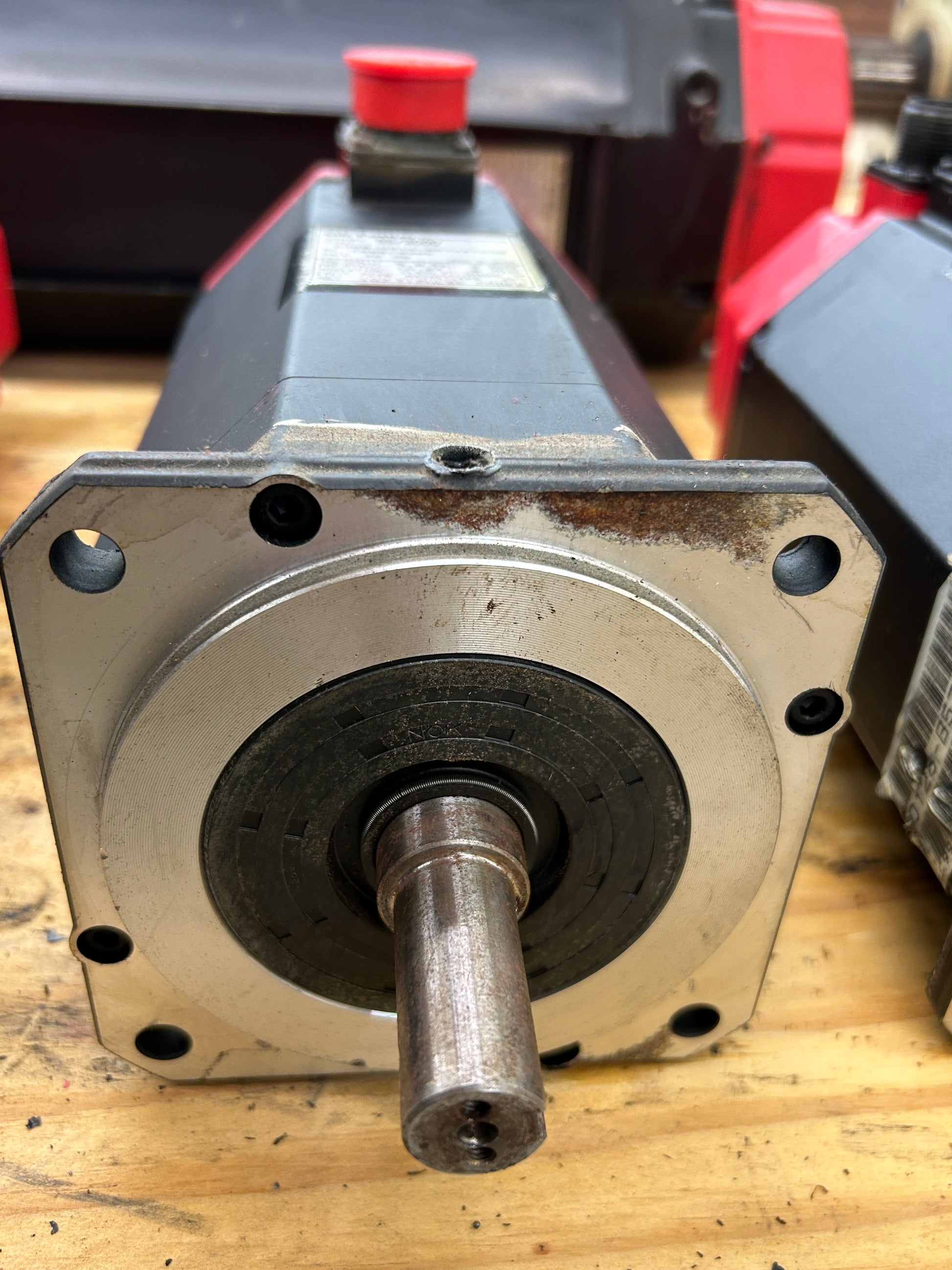

This servo is commonly used as a feed axis motor on Fanuc controlled CNC lathes, machining centers, and other automation equipment that pair with Fanuc Serial C compatible servo amplifiers. The straight shaft with key configuration allows direct coupling to ball screws, gear reducers, or belt drives in machine tool applications. The compact frame and permanent magnet construction support precise positioning in feed axis service.

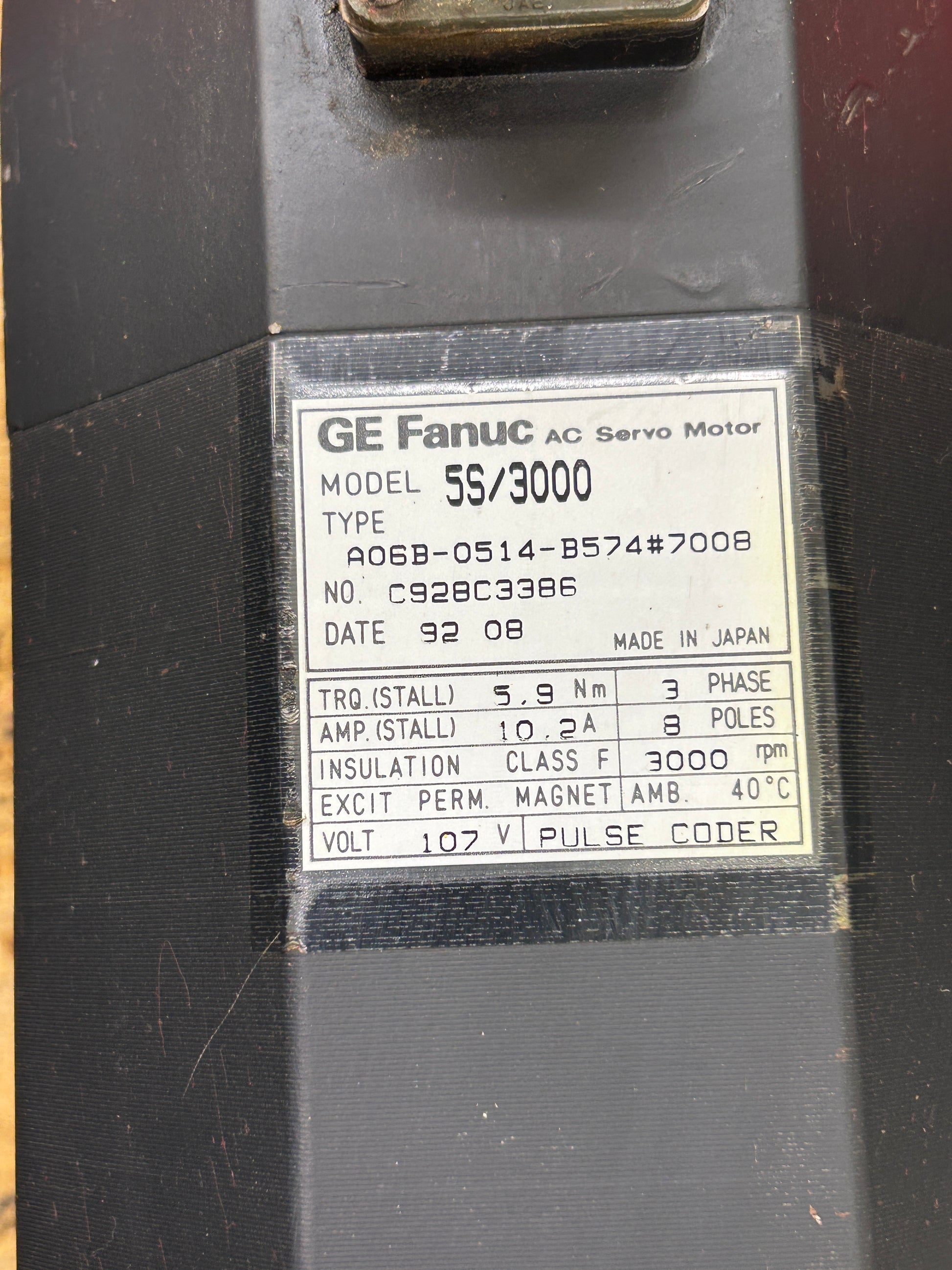

Confirmed nameplate data includes Model 5S/3000, Type A06B-0514-B574#7008, 107 V input, 3 phase, 8 poles, 3,000 RPM, 5.9 Nm stall torque, 10.2 A stall current, Class F insulation, 40 °C ambient, permanent magnet excitation, and pulse coder feedback. The Fanuc Type designation A06B-0514-B574#7008 is the OEM part number used for replacement and cross referencing on Fanuc CNC and servo drive systems.
Stock # 0226-107
