GE Fanuc A06B-0514-B674#7008 AC Servo Motor 2.5 HP 3000 RPM
GE Fanuc A06B-0514-B674#7008 AC Servo Motor 2.5 HP 3000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

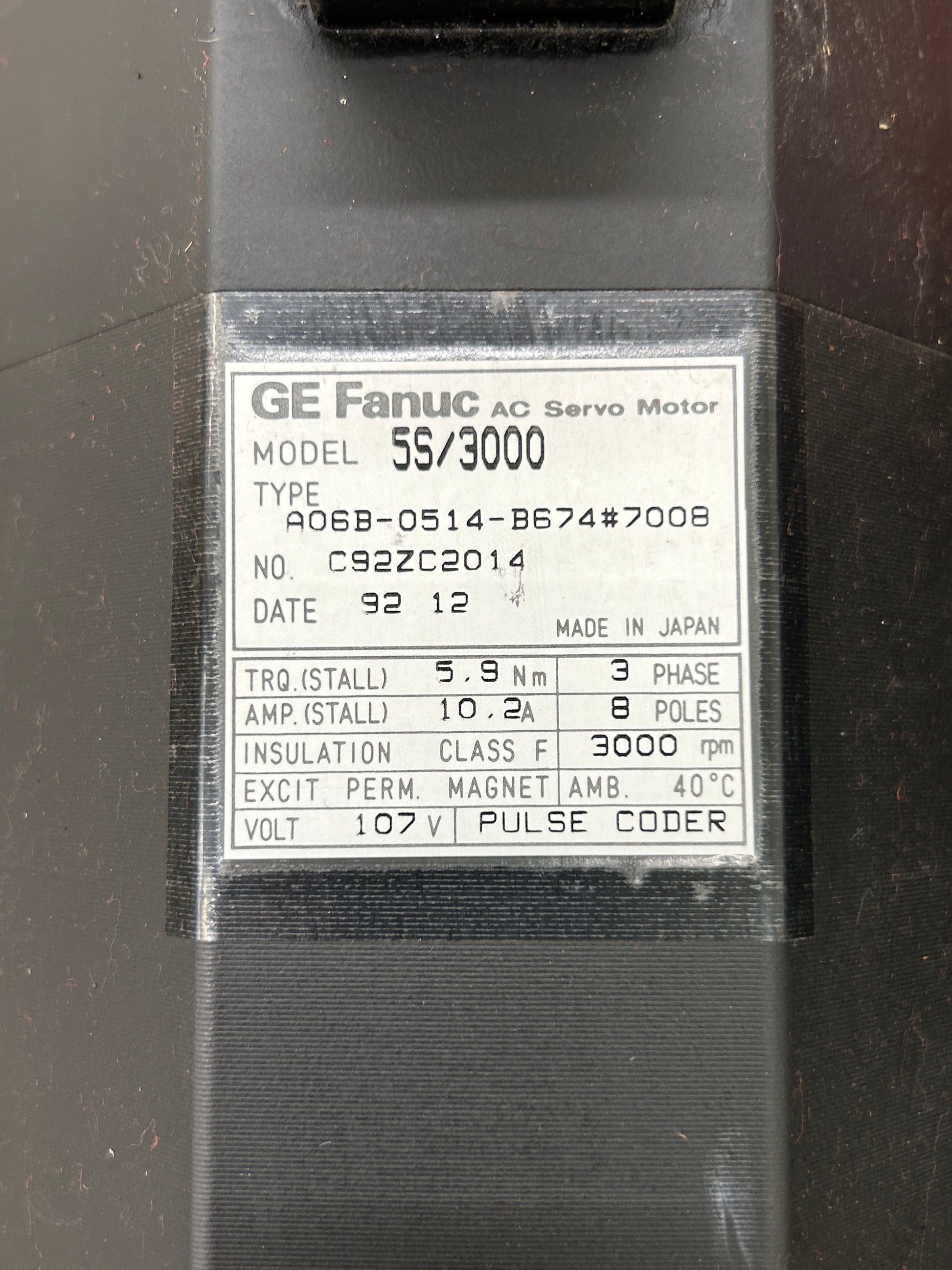

The GE Fanuc A06B-0514-B674#7008 is an AC servo motor from the Fanuc 5S/3000 series, manufactured in Japan with a date code of 92.12 and serial number C92ZC2014. The nameplate identifies a 3 phase, 8 pole configuration rated at 107 volts with a stall current of 10.2 amps and stall torque of 5.9 Nm. Maximum speed is rated at 3000 RPM. Insulation is Class F with an ambient temperature rating of 40 degrees C. Excitation is by permanent magnet, and the unit is equipped with an integrated pulse coder for position feedback. The #7008 suffix designates a straight shaft with keyway, holding brake, and Fanuc Serial C pulse coder configuration. This motor is part of the Fanuc S series of AC servo motors used in legacy CNC machining centers, turning centers, and industrial automation systems where Fanuc control architecture is present. Typical applications include axis drives on Fanuc System 0, 6, 10, 11, 15, and 16 era control platforms paired with compatible Fanuc S series servo amplifiers. The 5S/3000 designation refers to a 5 Nm class motor with a 3000 RPM rated speed. The integrated holding brake provides axis retention when power is removed. Mounting follows standard Fanuc flange dimensions for the A06B-0514 frame size. The full Fanuc nomenclature for this configuration is A06B-0514-B674#7008, also referenced as A06B0514B6747008.
Stock # 0226-106
