GE Fanuc AC Servo Motor A06B-0158-B075#7008 - 6 kW 2000 RPM
GE Fanuc AC Servo Motor A06B-0158-B075#7008 - 6 kW 2000 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

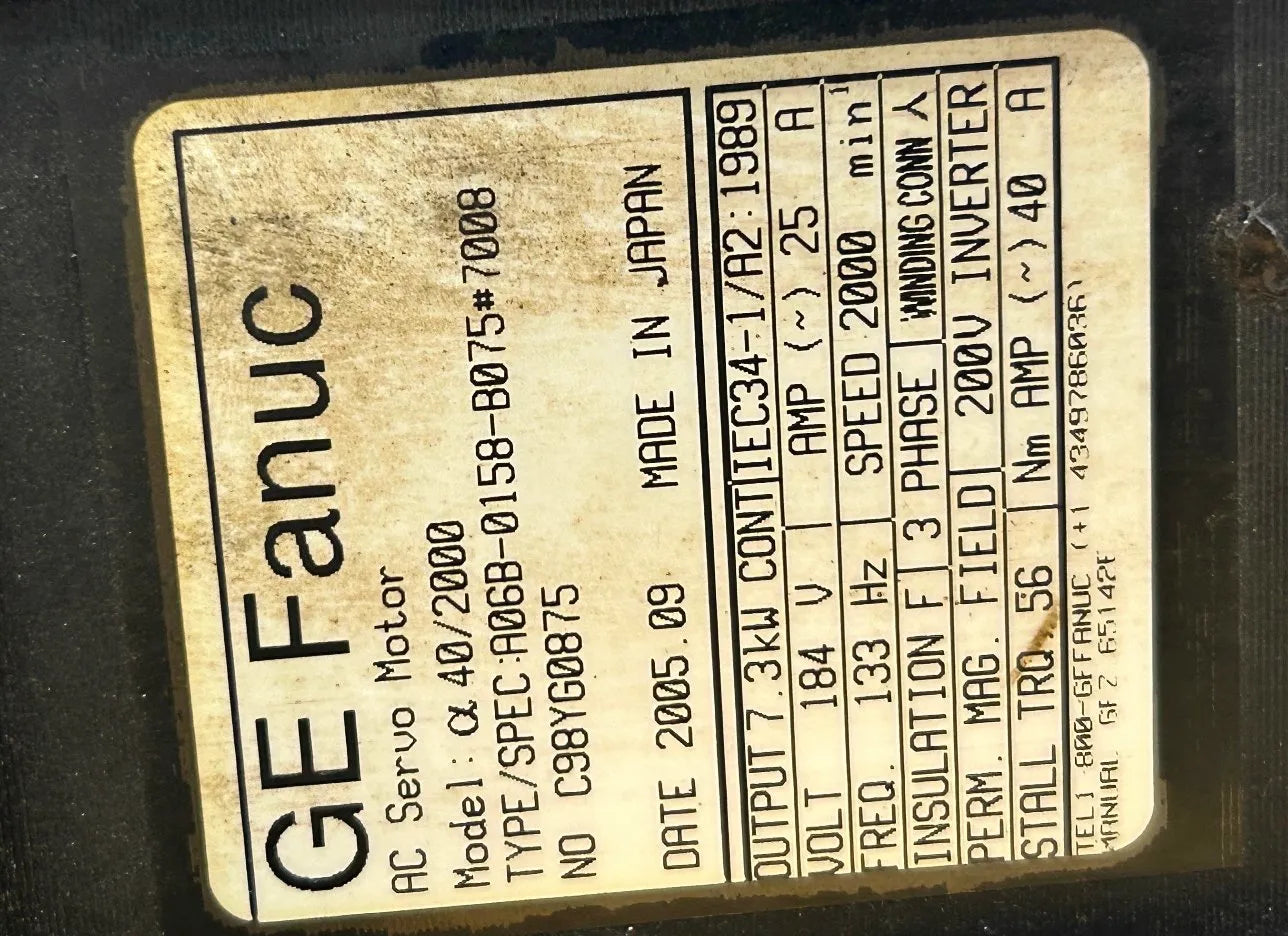

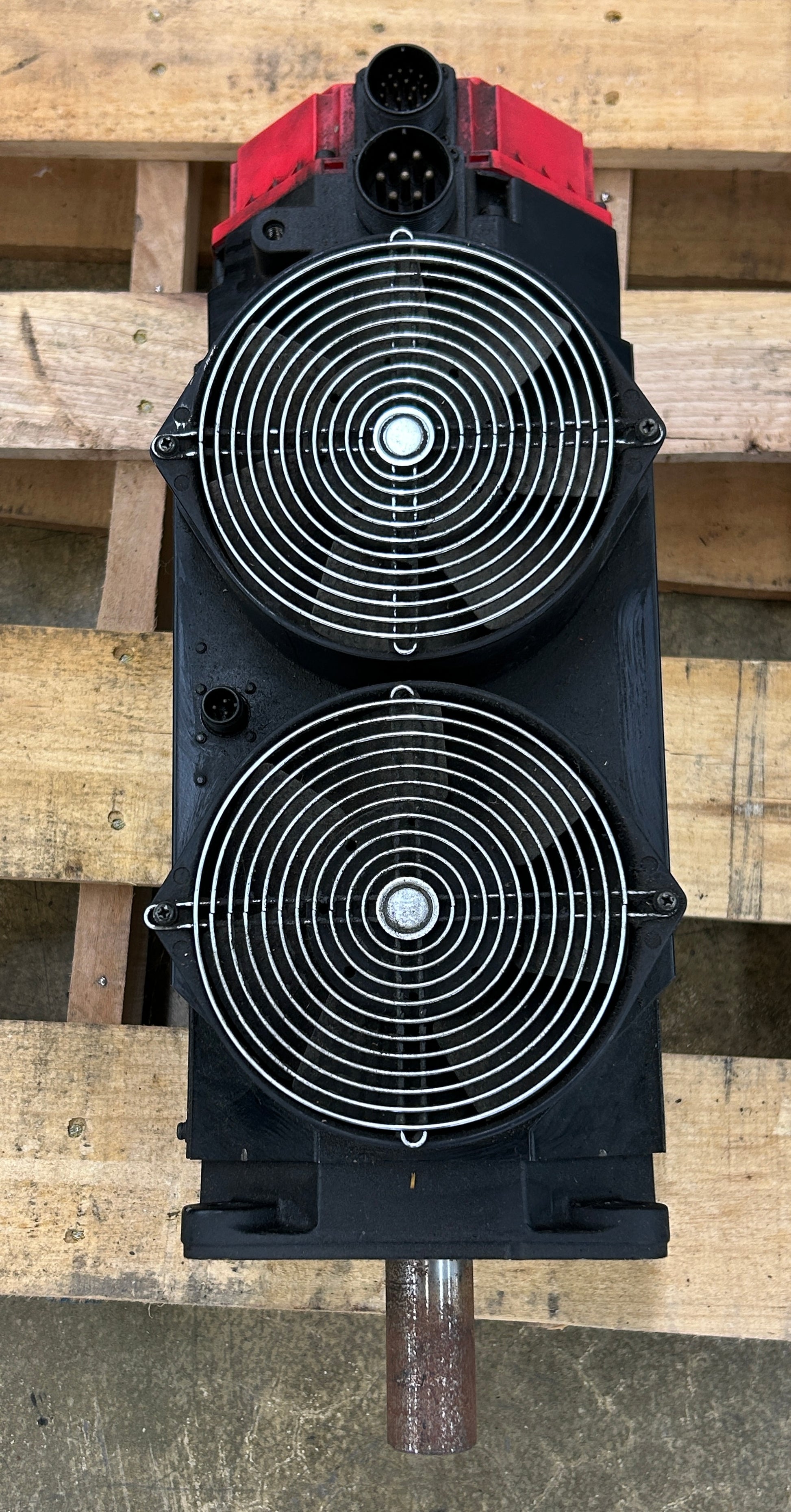

Used in CNC machining centers and large-format machine tools, the GE Fanuc Alpha 40/2000 AC servo motor carries part number A06B-0158-B075#7008 and is part of the red cap 0158 Alpha series. Rated at 7.3 kW continuous output, this motor operates on a three-phase 184V inverter supply at 133 Hz with a maximum speed of 2000 RPM and a stall torque of 56 Nm. Current draw is rated at 25 amps. The nameplate confirms IEC 34-1/A2:1989 compliance, Class F insulation, and a permanent magnet field configuration. Two radial cooling fans are mounted in series on the front face, which is characteristic of the 0158 Alpha fan-motor series. The shaft is a straight keyed configuration as indicated by the #7008 suffix, with no holding brake. A FANUC Alpha A64 pulsecoder is mounted on the rear of the motor for position and velocity feedback, making this unit compatible with FANUC axis drive modules in the A06B-6079-H1xx and A06B-6096-H1xx families. The serial number is C98YG0875 and the manufacture date is September 2005. This motor is commonly used as a direct replacement for other A06B-0158-B075 variants on horizontal and vertical machining centers equipped with FANUC CNC systems.
Stock # 0226-769
