GE Fanuc AC Servo Motor A06B-0314-B001#7000 - 1 kW 2000 RPM
GE Fanuc AC Servo Motor A06B-0314-B001#7000 - 1 kW 2000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

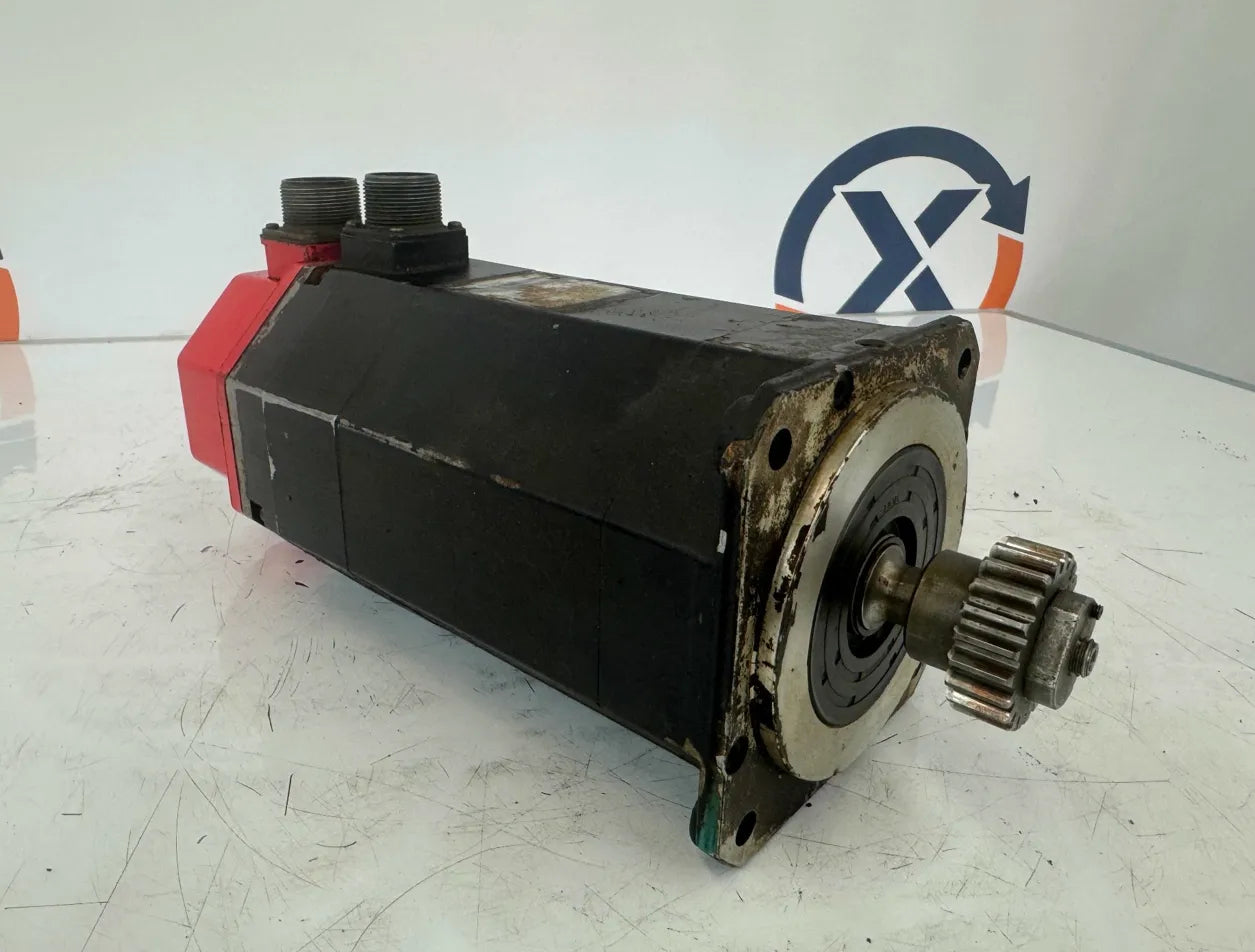

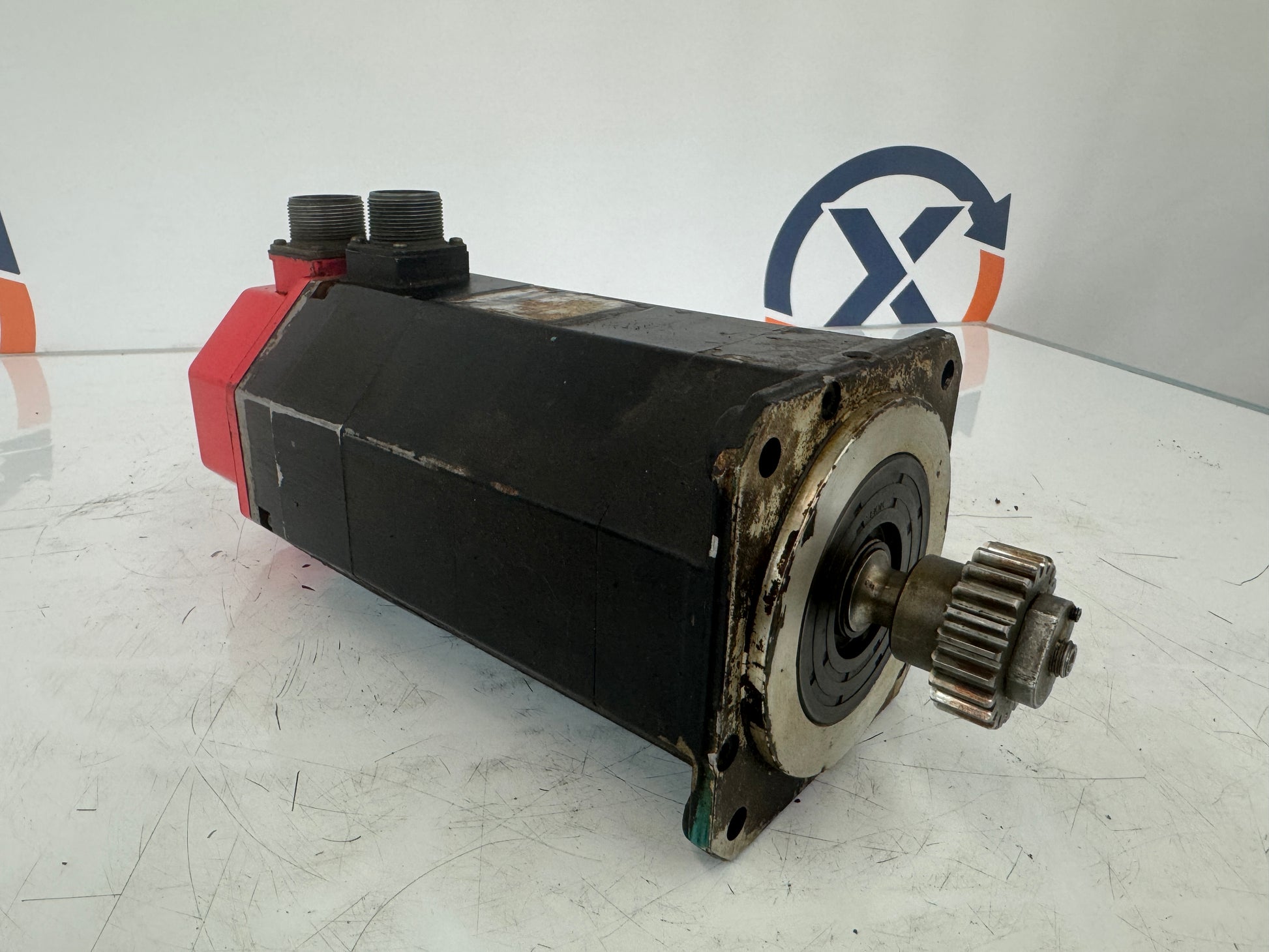

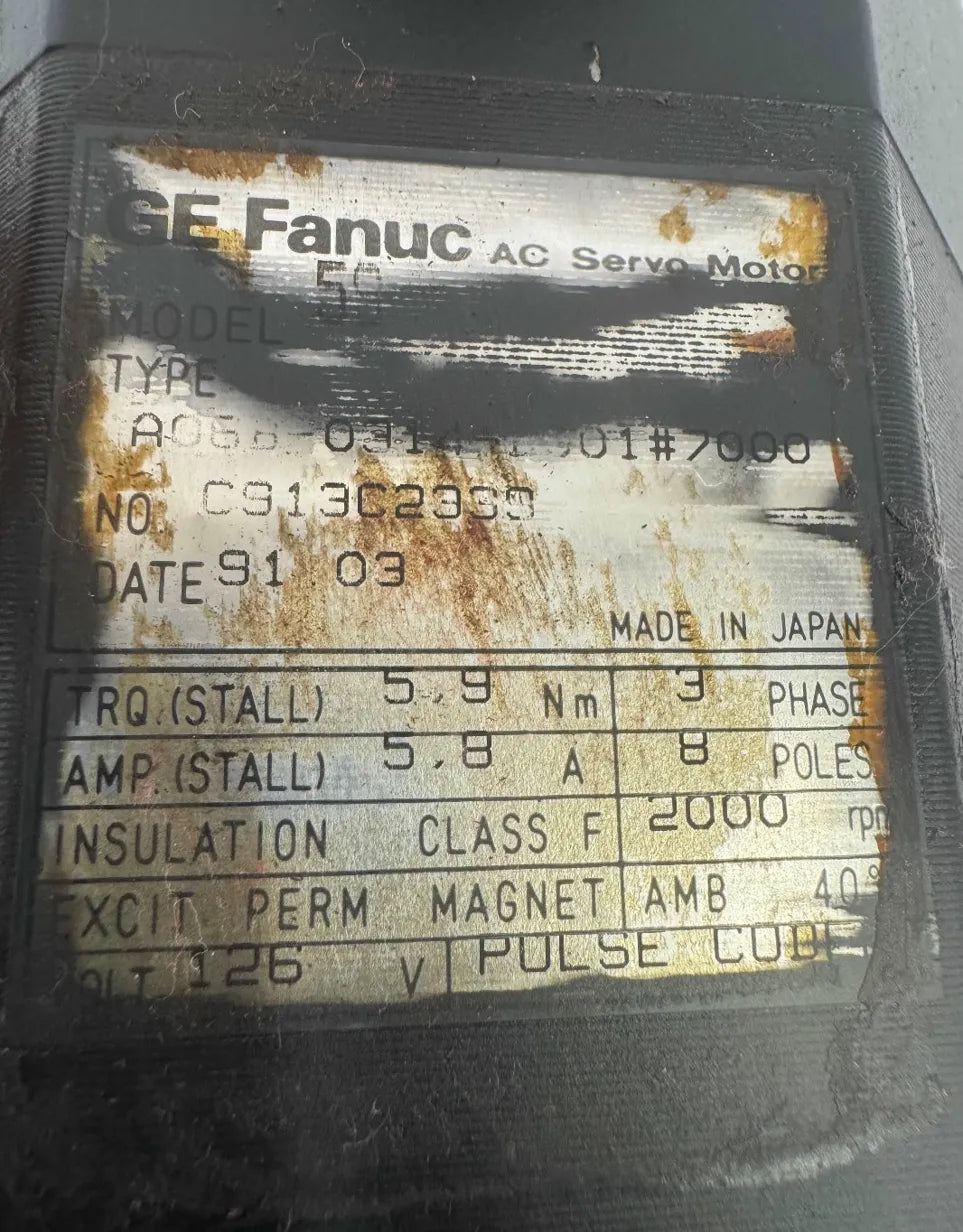

Used in CNC machining centers and automated machine tool applications, the GE Fanuc AC Servo Motor Model 5S carries part number A06B-0314-B001#7000 and was manufactured in Japan. The nameplate confirms 3-phase operation, 8 poles, 126V, a stall current of 5.8A, stall torque of 5.9 Nm, and a rated speed of 2000 RPM. Insulation is Class F, rated for ambient temperatures up to 40°C. Excitation is via permanent magnet. The motor is equipped with a pulse coder feedback device for closed-loop position and velocity control, making it compatible with Fanuc Series 0, Series 6, Series 10, Series 11, and Series 15 CNC systems that use the A06B-0314 motor series. Serial number C913C2935 and date code 91 03 are legible on the nameplate. The output shaft has a spur gear installed as visible in the photos. The motor features a square flange mount with four-bolt pattern and dual conduit entry ports on the rear. This unit is offered as surplus industrial equipment.
Stock # 0226-589
