General Electric Manual Motor Starter CR1062R1B 600V AC

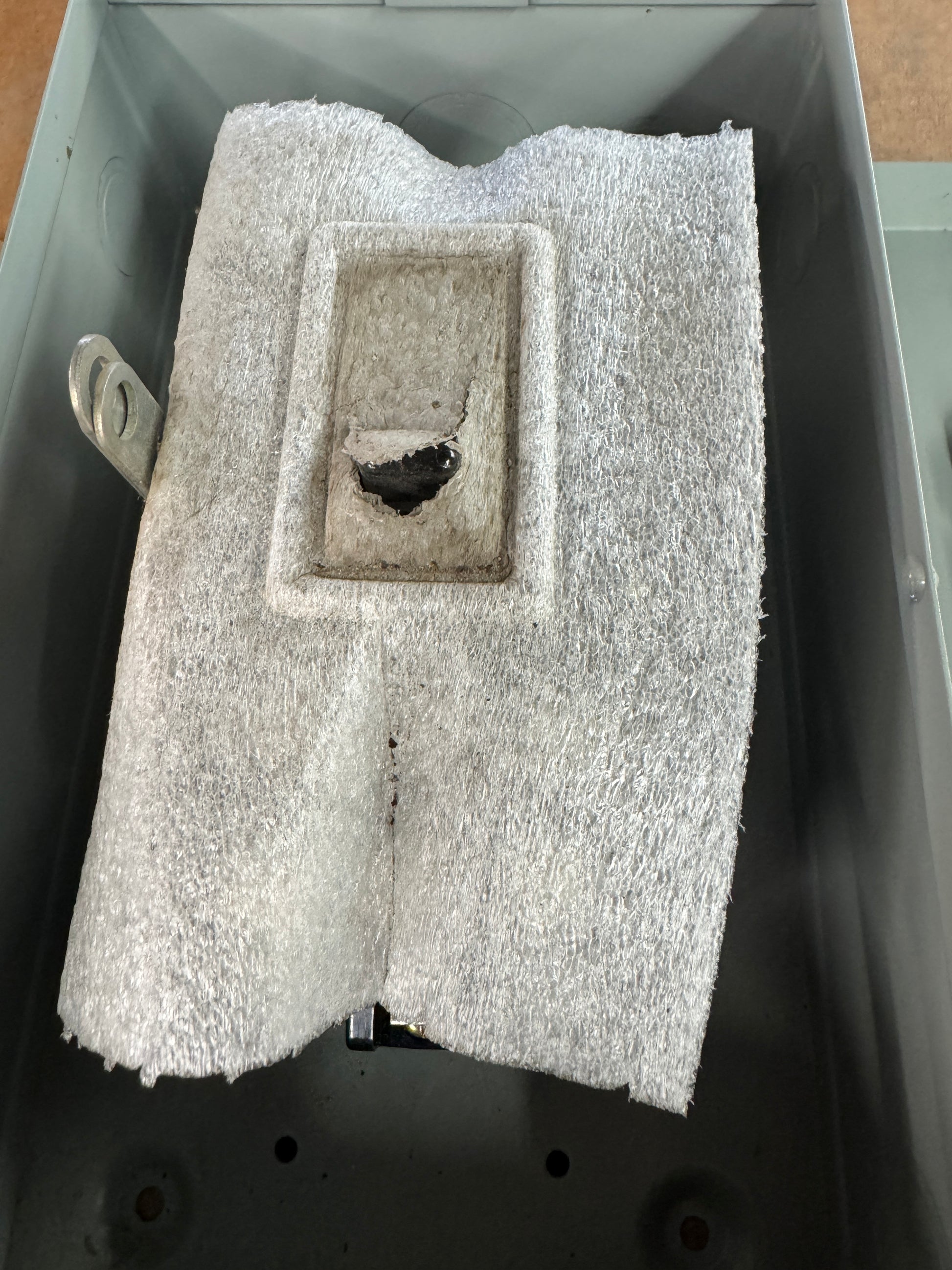

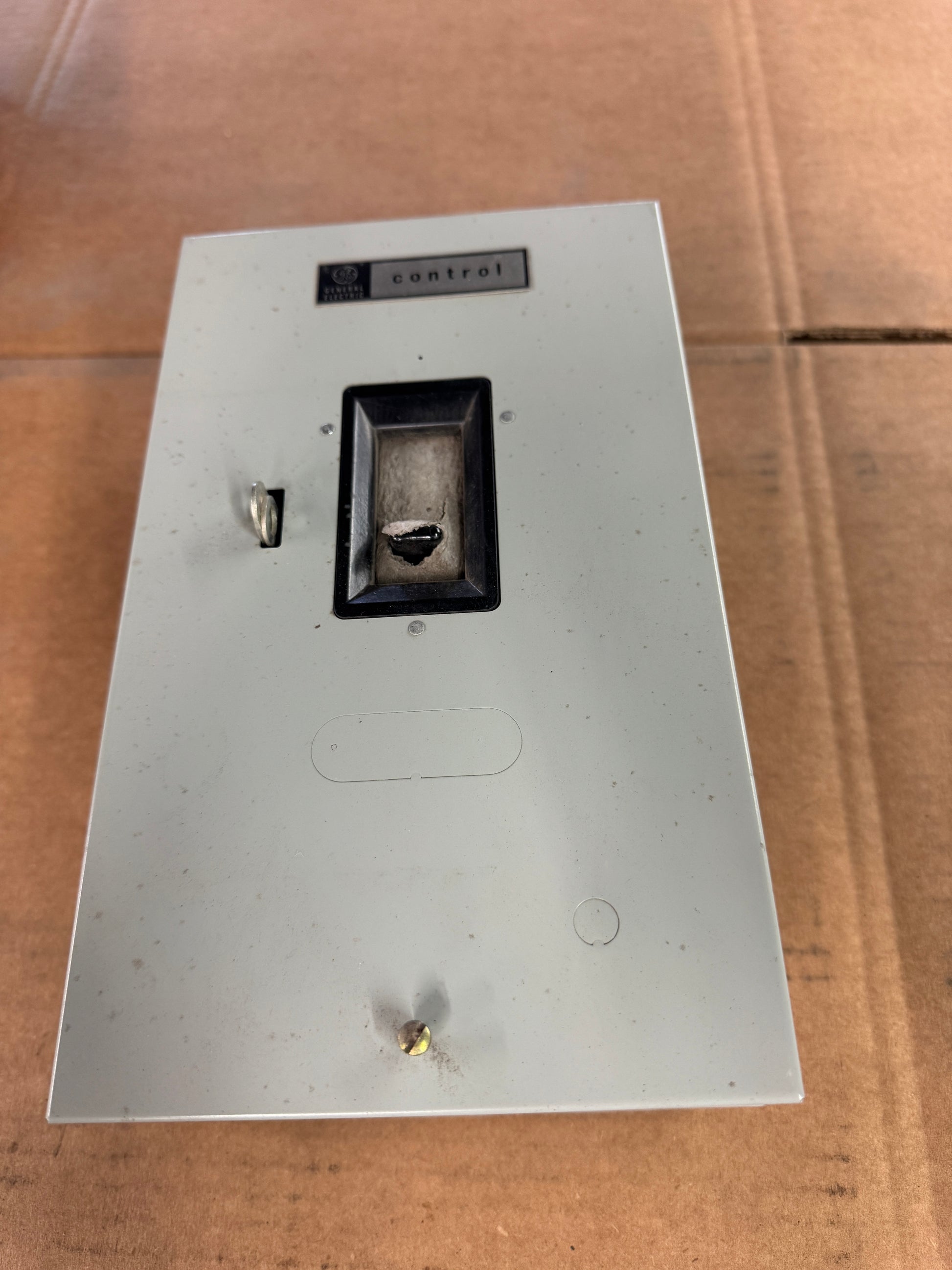

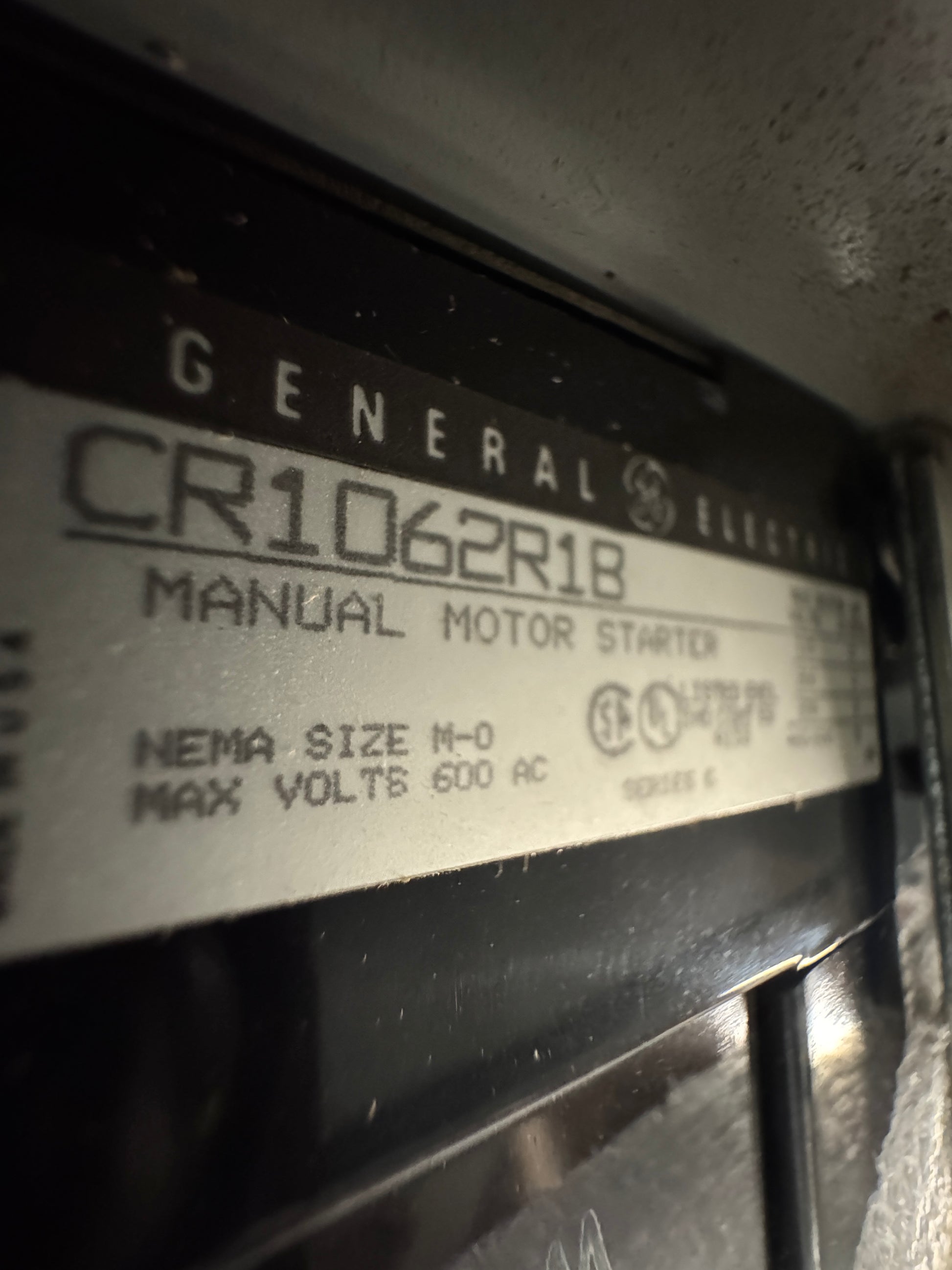

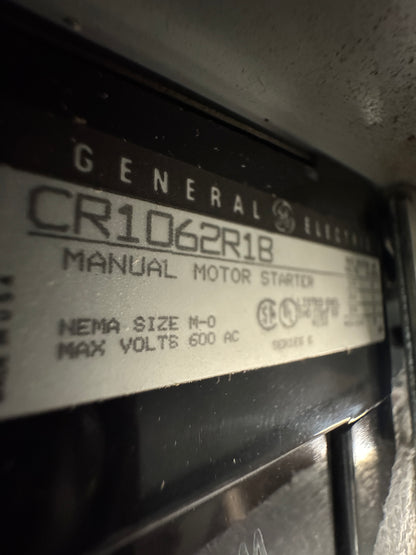

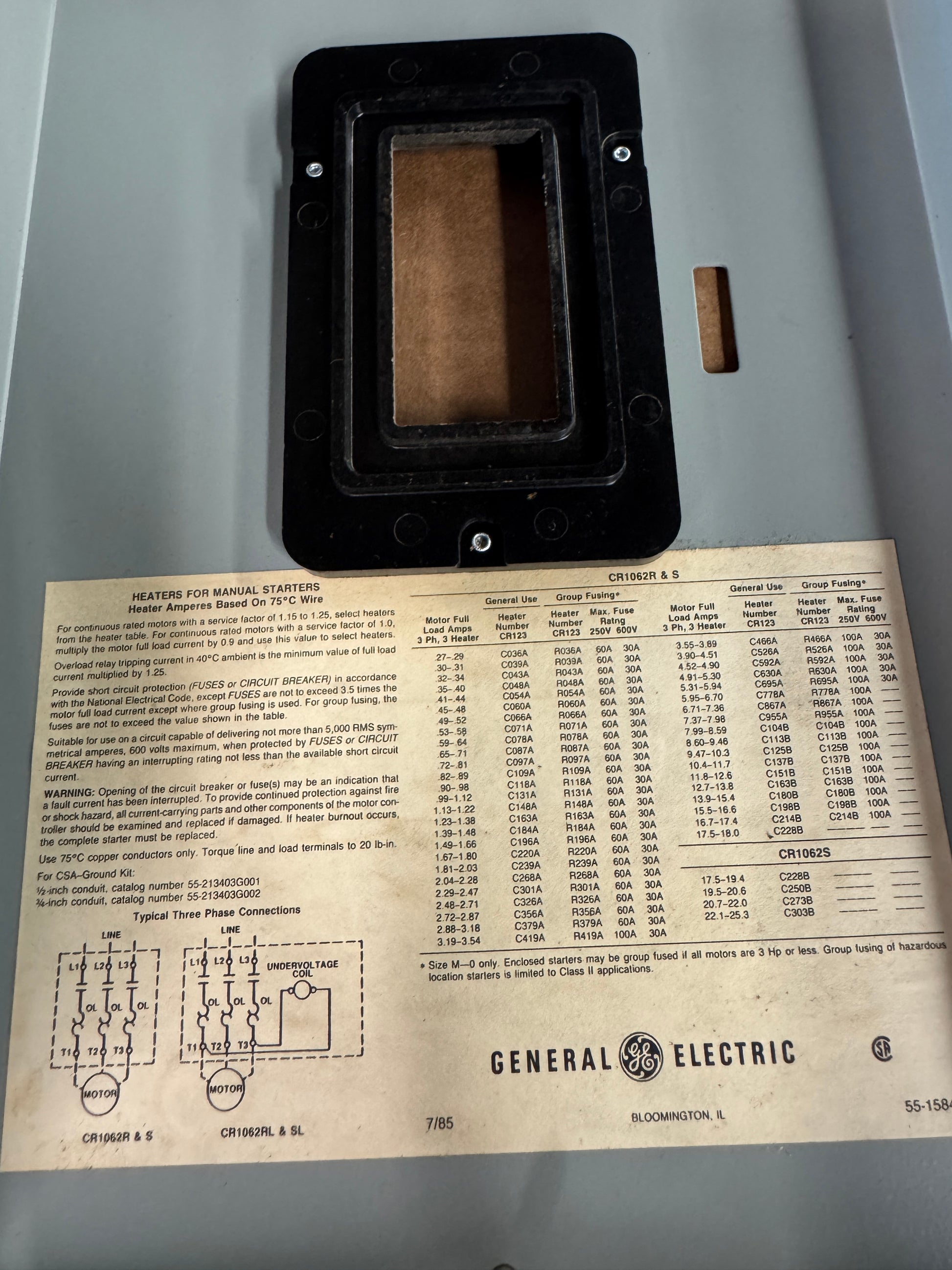

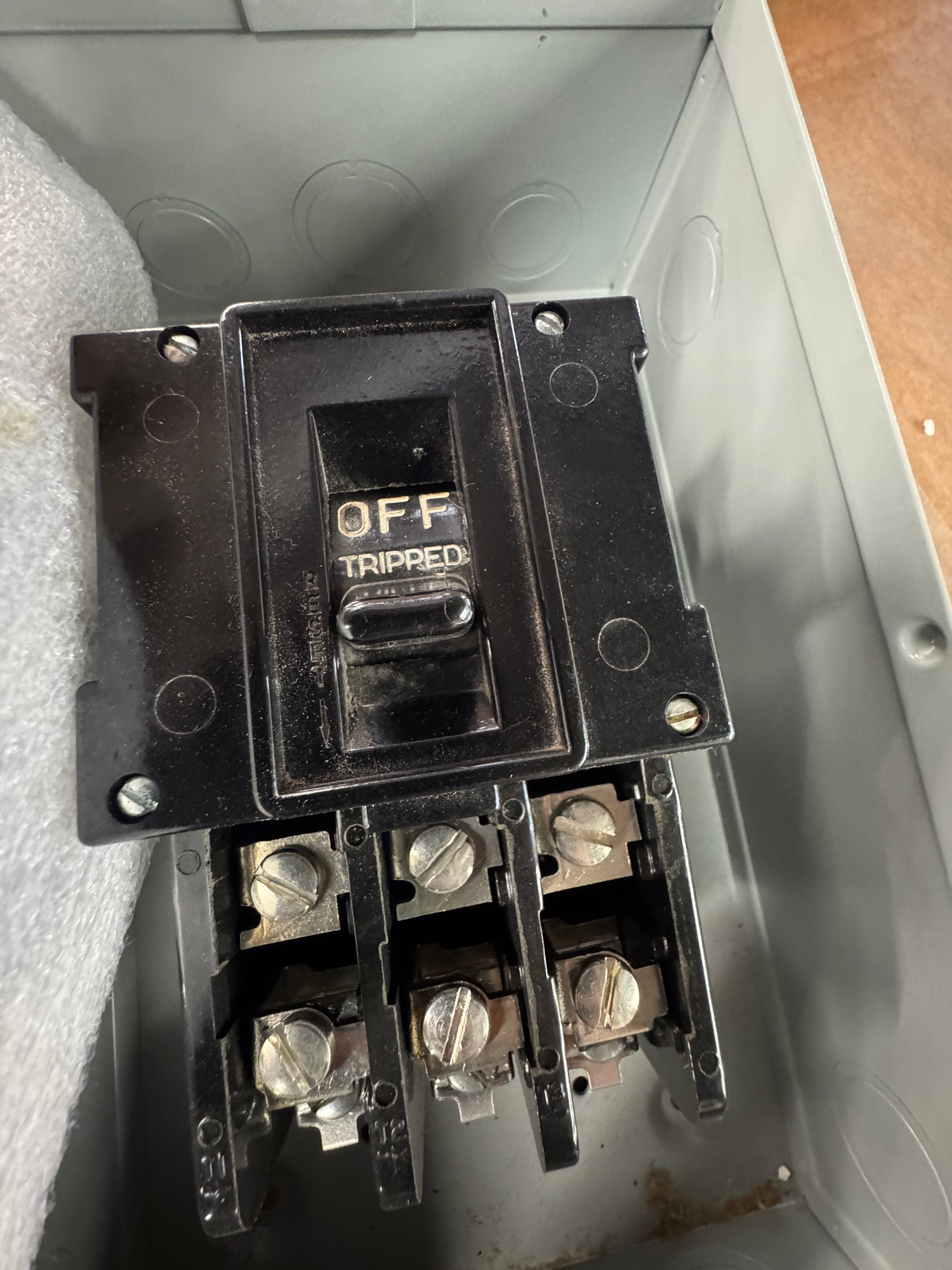

A General Electric CR1062R1B Manual Motor Starter housed in a NEMA 1 enclosure with a toggle operator. This unit is rated NEMA Size M-0, with 3 poles, 3 overload positions, and a maximum voltage rating of 600 VAC. The CR1062R series is part of the GE Industrial Controls family of full voltage non reversing manual starters used to start, stop, and protect small AC motors in single phase and three phase applications. Per the GE published heater chart visible on the door label, this M-0 frame supports motor full load amps from 0.27 A through 25.3 A using selectable CR123 heater elements for overload protection. The enclosed assembly includes the operator escutcheon, mounting hardware, and the original GE heater selection and wiring diagram label inside the door. The internal nameplate identifies the unit as CR1062R1B, Series C, with CSA and UL agency markings. The toggle operator block shows damage to the bakelite housing, including a broken opening at the toggle aperture. The 3 pole contact block and terminal assembly remain present with line and load terminal screws intact. Typical applications include conveyor motors, fans, blowers, pumps, and small machine tool drives requiring local manual start, stop, and overload protection. Heater elements are not included. Date code on the cover paperwork reads 7 85, indicating original manufacture documentation from July 1985.

Stock # 0526-02318
