Giddings & Lewis Electronics Servo Interface Board 501-03882

$249.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: 501-03882
Stock #: 0226-00451

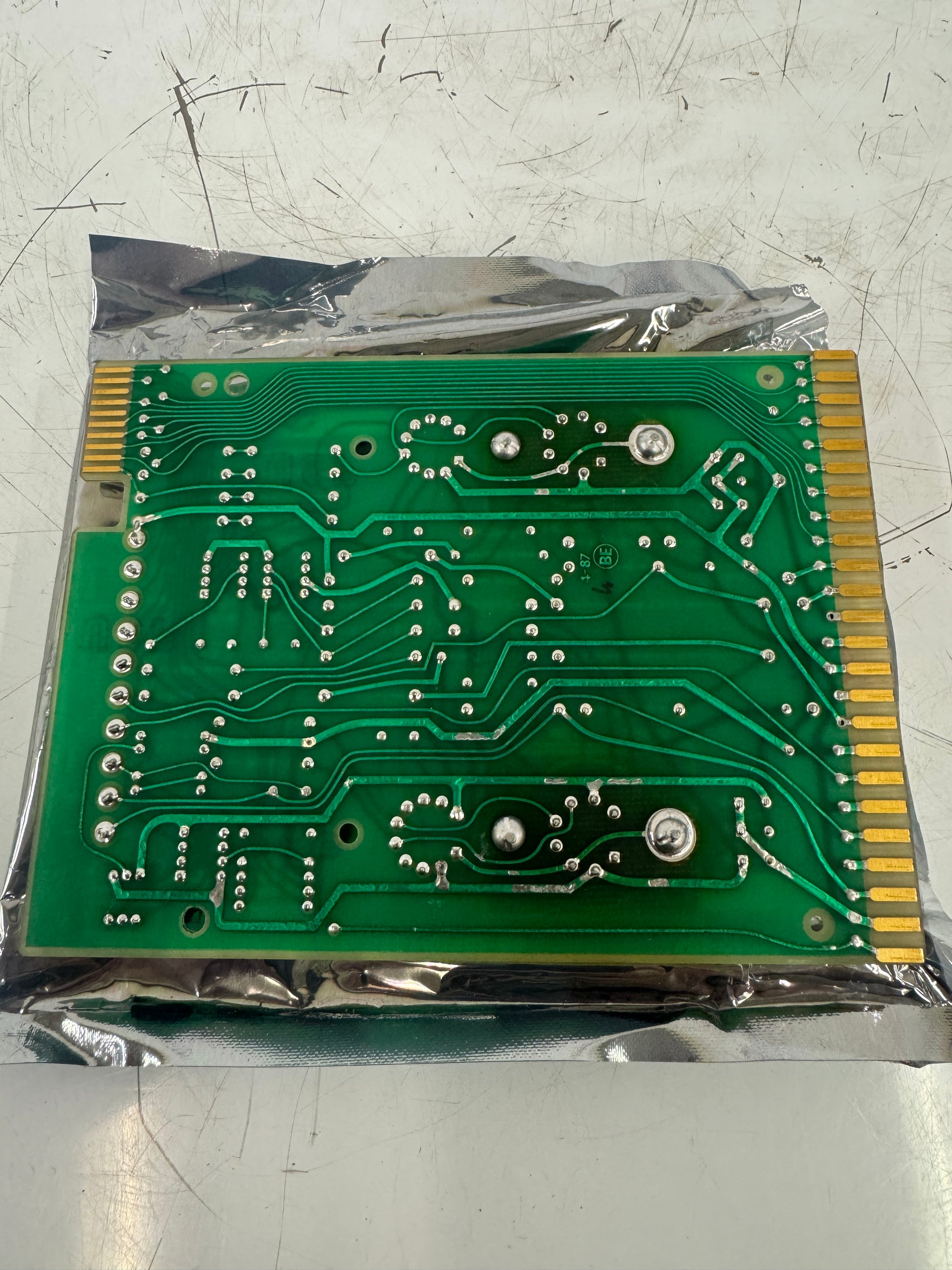

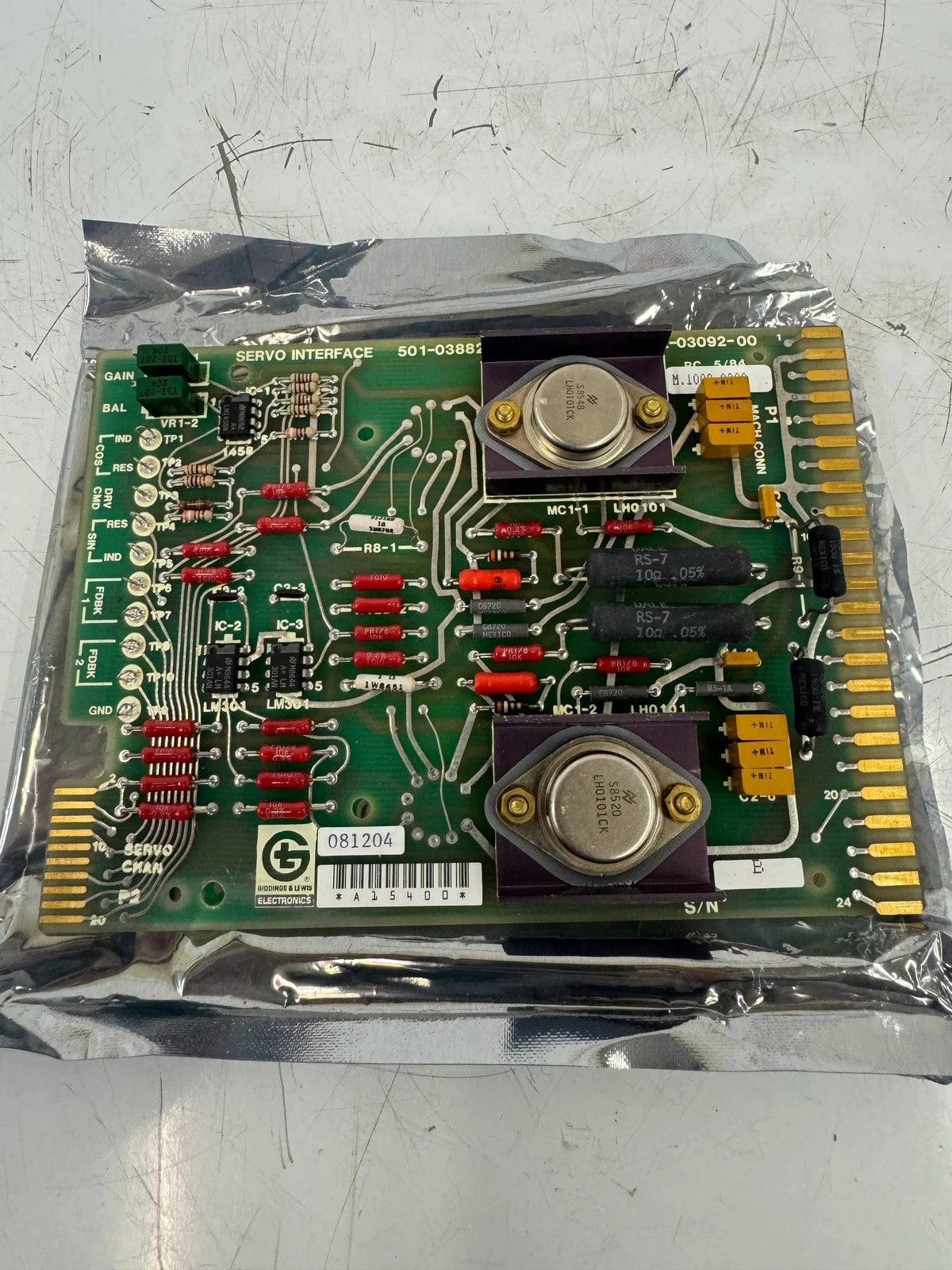

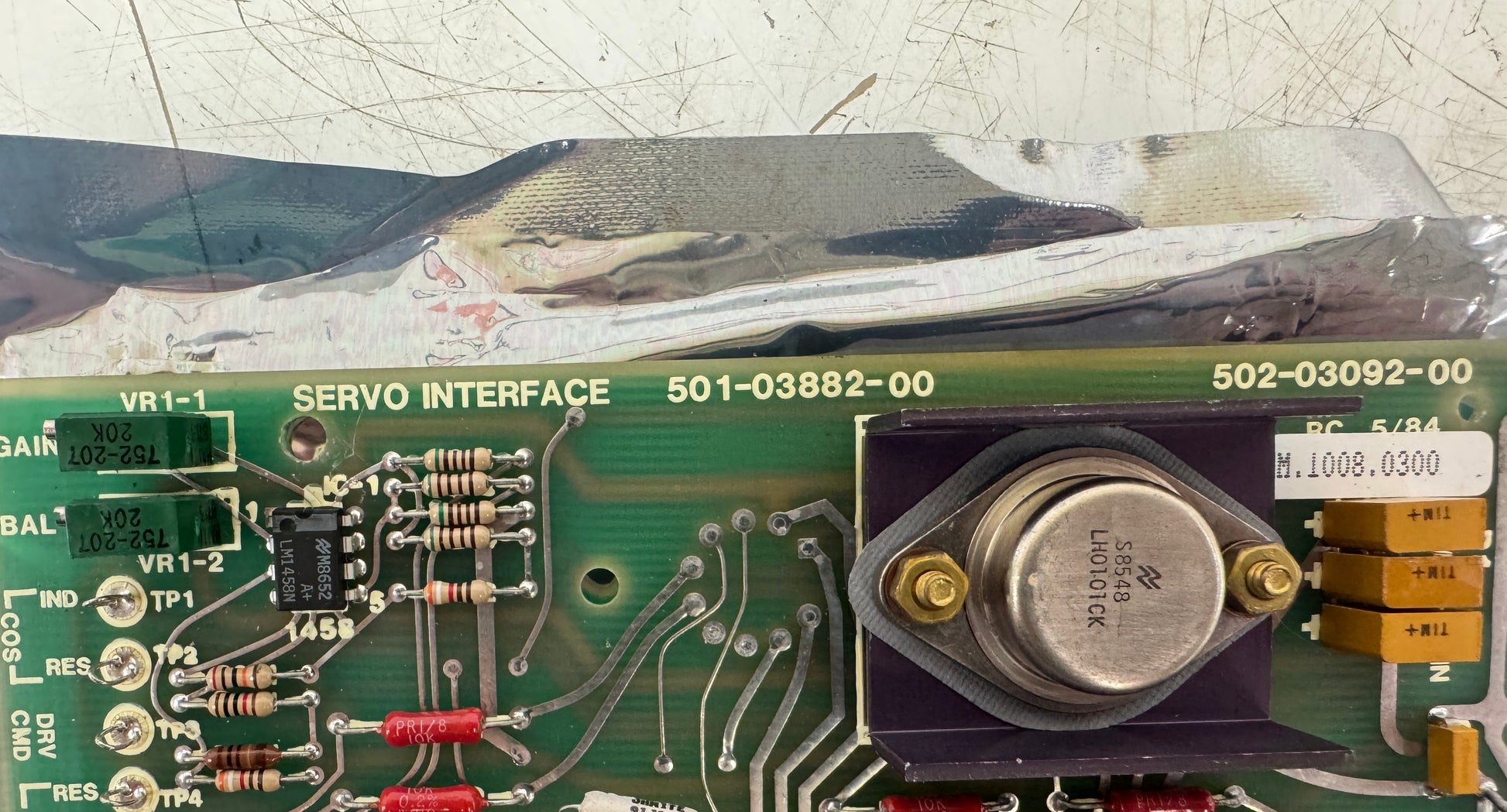

Giddings & Lewis Electronics Servo Interface board, part number 501-03882, assembly 503-03092-00, Revision RC (May 1984). Features dual National Semiconductor LH0101CK high-current operational amplifiers in TO-3 packages with direct heat-sinking, precision Bale RS-7 resistors (10Ω, 0.05%), and LM301 op-amps for servo drive output stage functionality. Includes adjustable GAIN and BAL trimmer potentiometers, comprehensive test points (COS, SIN, IND, RES, DRV CMD, FDBK 1, FDBK 2, GND), and dual edge connectors (MACH CONN, SERVO CHAN) for system integration. Serial number A15400. Designed as a per-axis servo channel interface module for mid-1980s Giddings & Lewis CNC control systems. Removed unit, untested. Verify compatibility with OEM documentation before installation.

Stock # 0226-451
