Giddings & Lewis LLC CMOS Memory Module M.1016.8736
Giddings & Lewis LLC CMOS Memory Module M.1016.8736
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: M.1016.8736
Stock #: 0226-00444

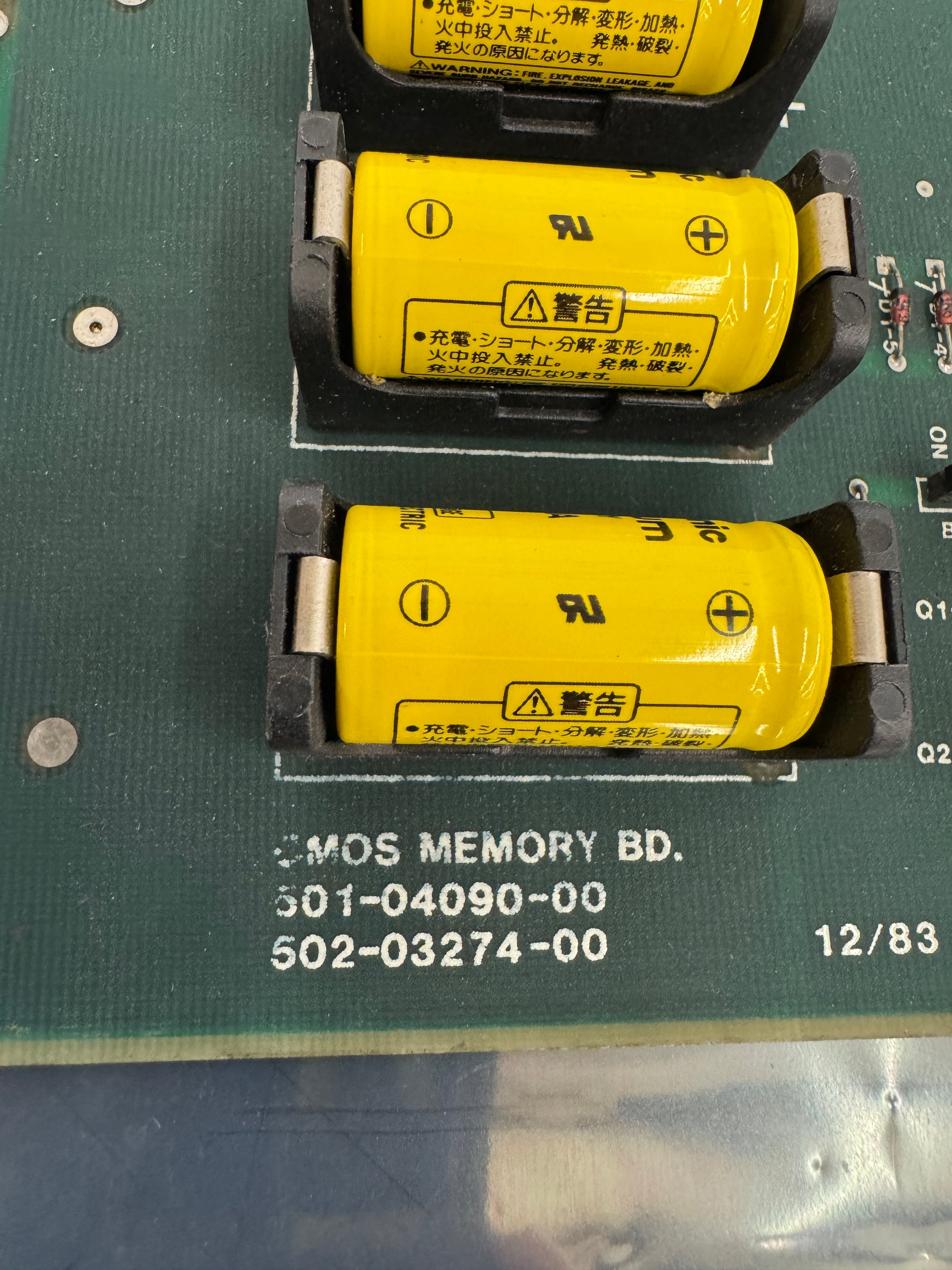

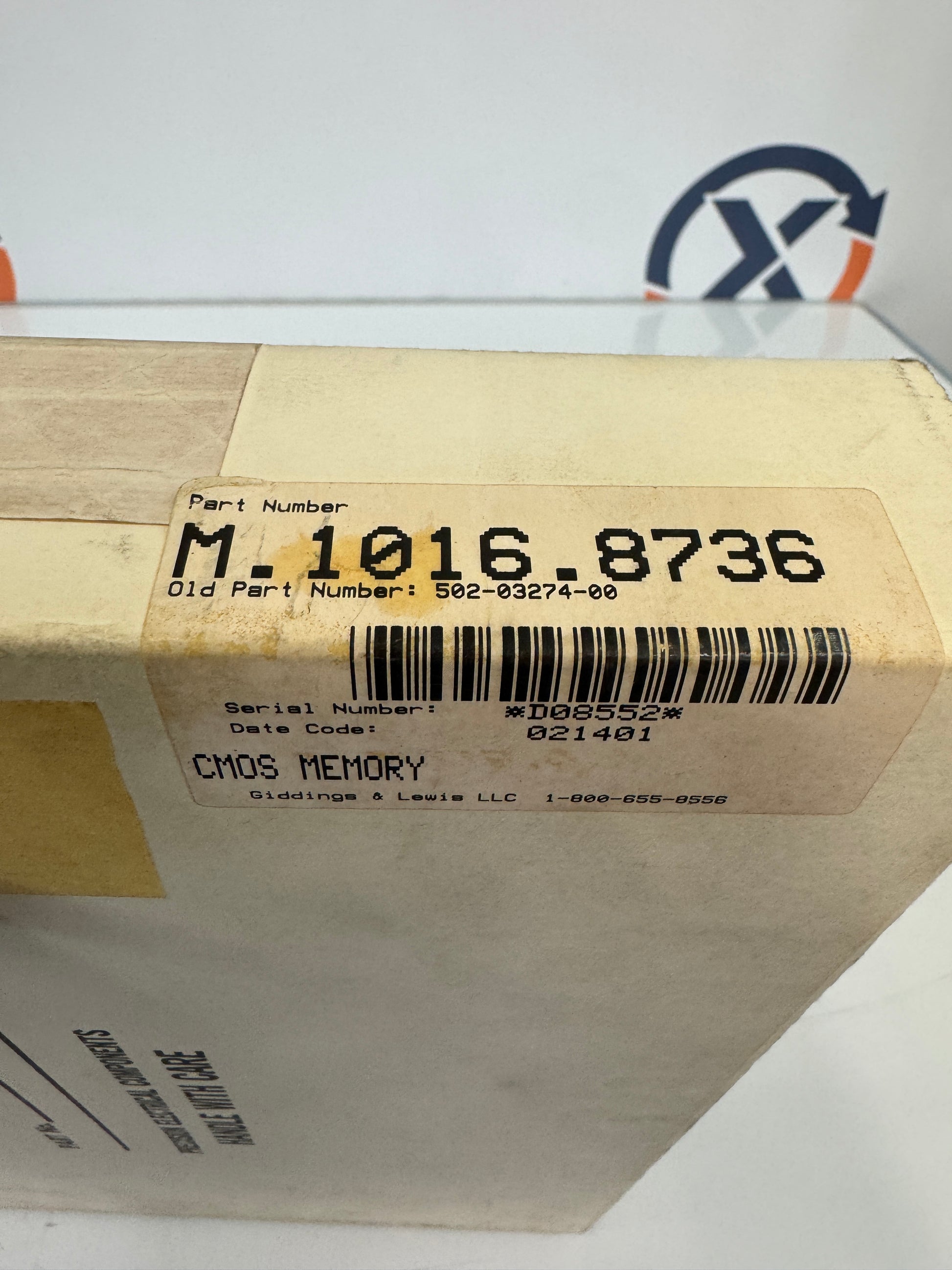

The Giddings & Lewis LLC CMOS Memory Module, part number M.1016.8736, is an industrial control PCB assembly used in CNC and motion control systems. The identification label shows part number M.1016.8736 with old part number 502-03274-00. The board silkscreen is marked “CMOS MEMORY BD.” with assembly numbers 501-04090-00 and 502-03274-00 and a date marking of 12/83. Serial number D08552 is shown on the label.

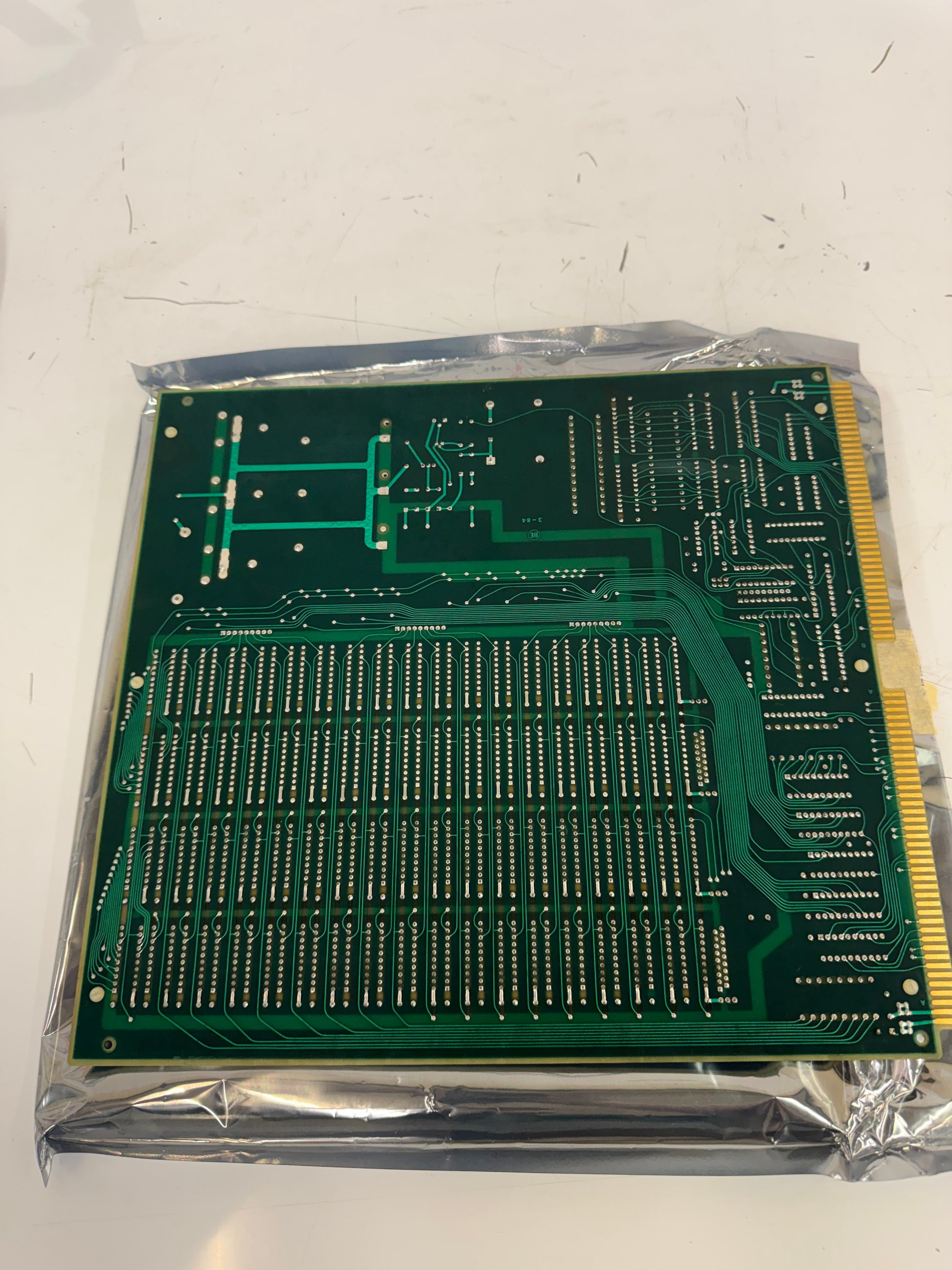

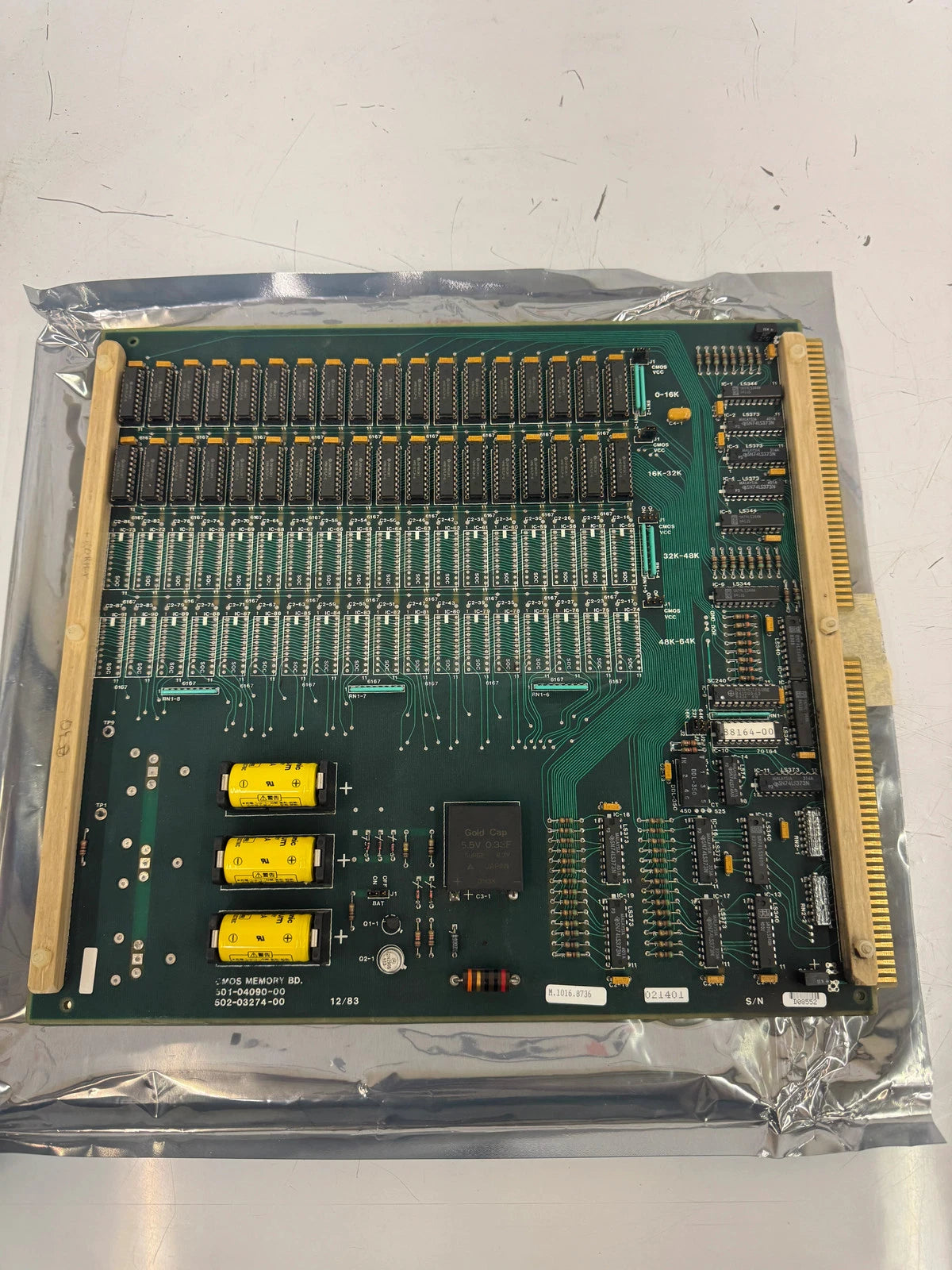

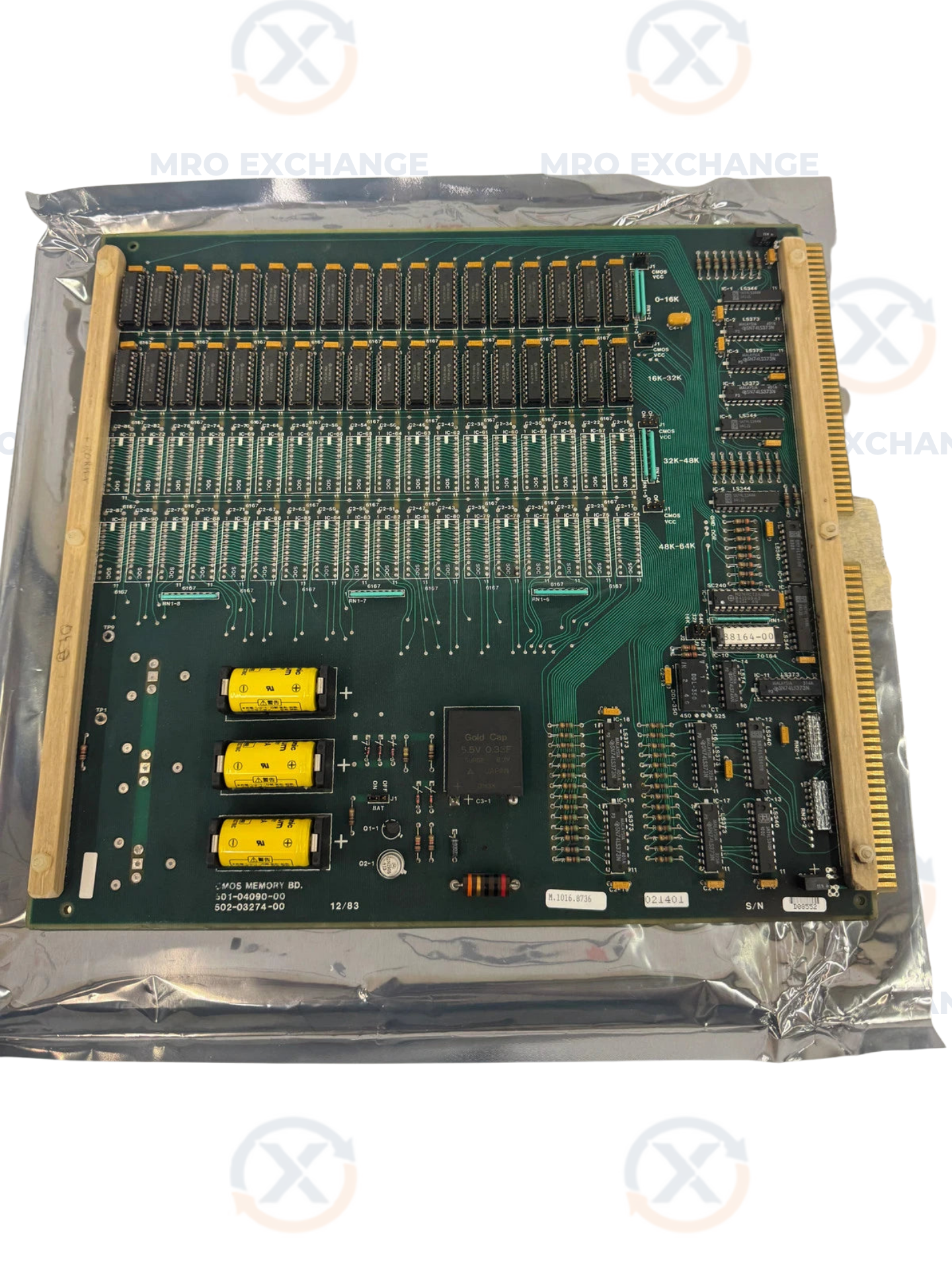

The board features multiple rows of memory IC sockets and installed integrated circuits, organized in segmented address ranges marked 0–16K, 16K–32K, 32K–48K, and 48K–64K. Battery-backed memory support is provided by three cylindrical batteries and a Gold Cap 5.5V 0.33F capacitor mounted on the PCB. Additional discrete components include resistors, capacitors, logic ICs, and edge connectors for rack or chassis installation.
This module is designed for use as a CMOS memory board within compatible Giddings & Lewis control systems. Identification details are based strictly on visible labels and PCB markings present on the assembly.
Stock # 0226-444
