Giddings & Lewis Operator Station Board 501-04305-00

$229.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: 501-04305
Stock #: 0226-00459

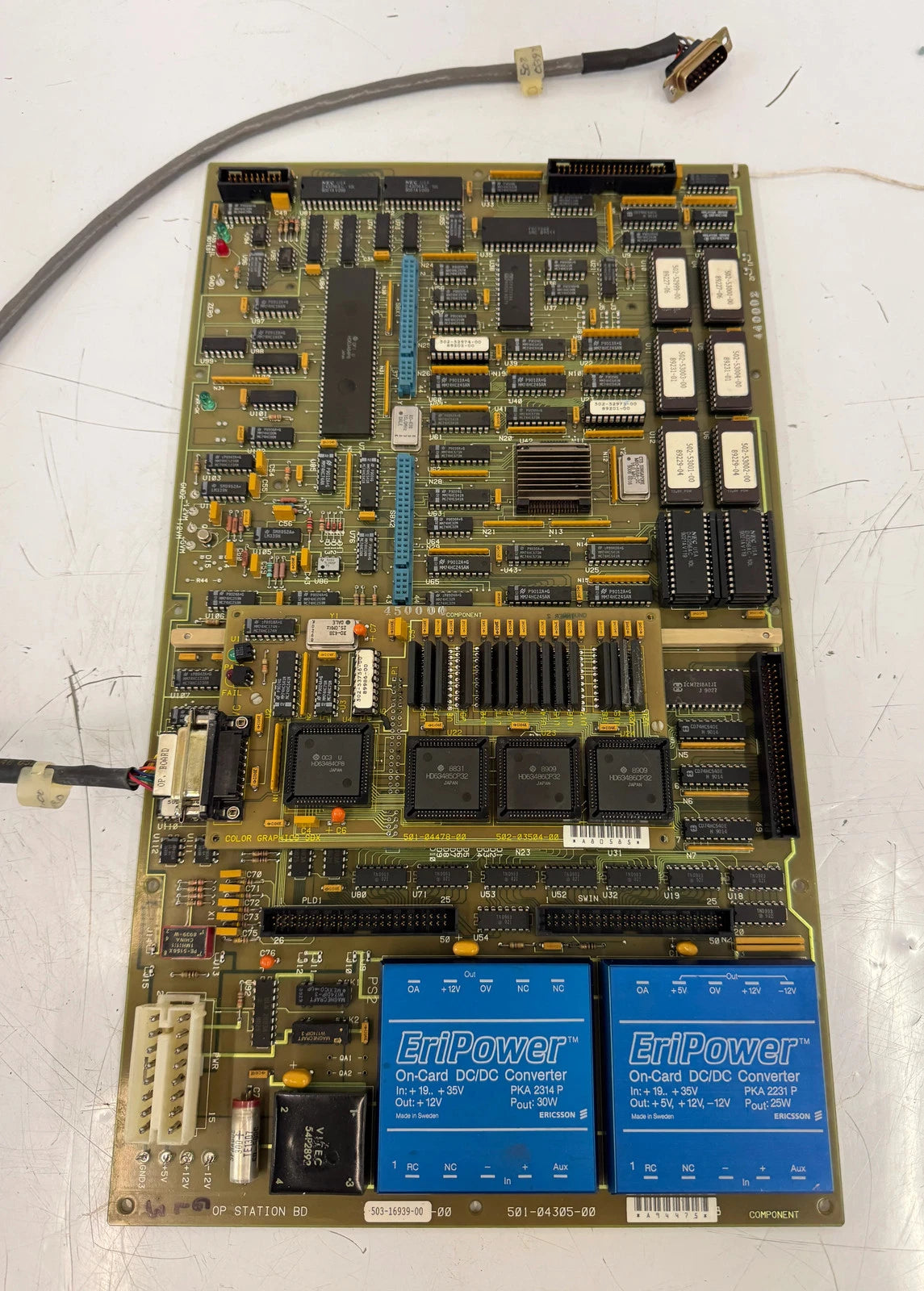

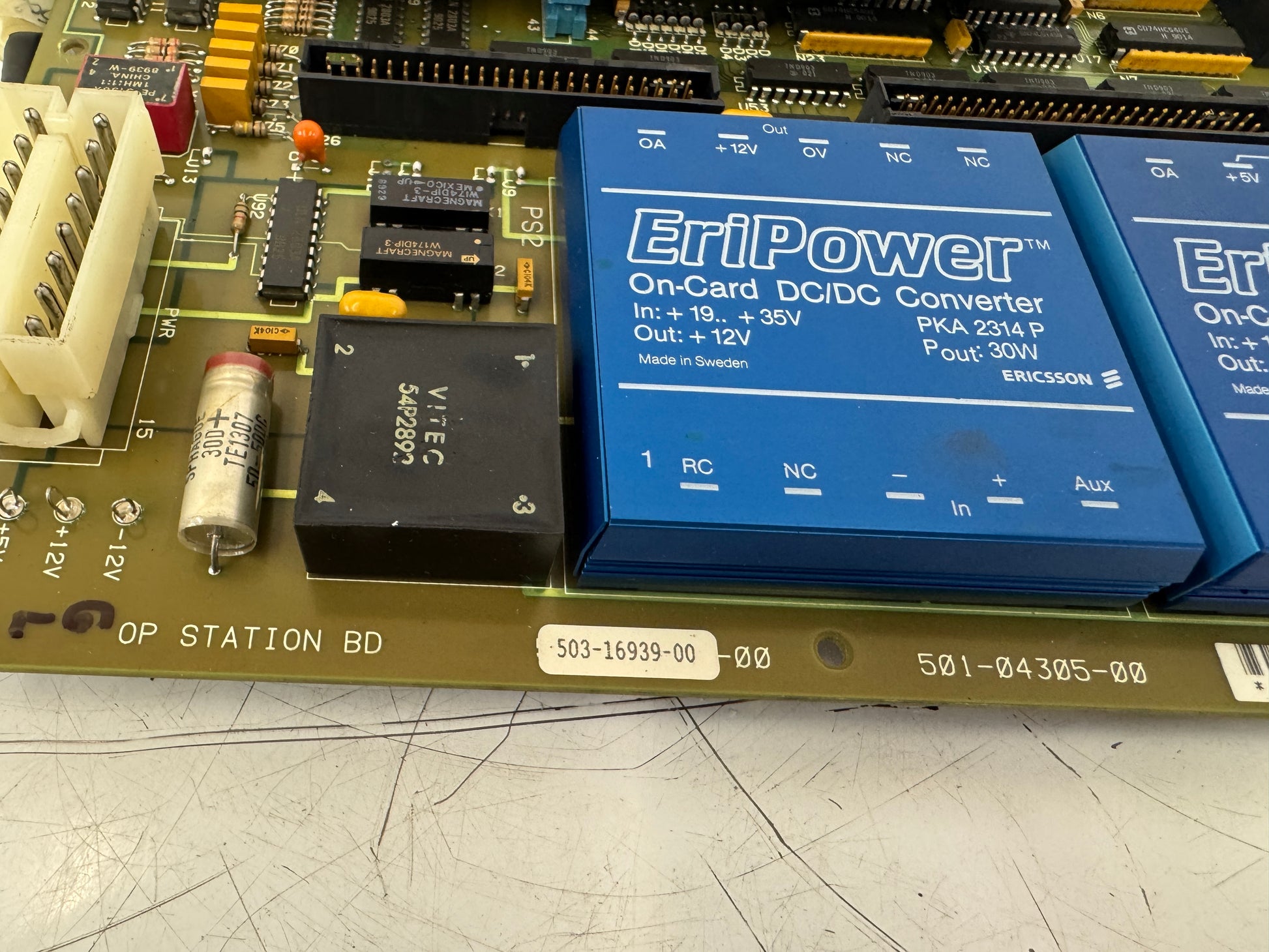

Giddings & Lewis Operator Station Board, part number 501-04305-00, assembly number 503-16939-00-00. Board edge label reads "OP STATION BD" and "COMPONENT." Barcode label A94475 visible. This PCB is a control platform board from the Giddings & Lewis CNC machine tool control system, used in large-format CNC machine tools including vertical turning centers (VTL), horizontal boring mills, and machining centers. The board is populated with two Ericsson EriPower on-card DC/DC converter modules made in Sweden: PKA 2314 P (input +19 to +35V, output +12V, 30W) and PKA 2231 P (input +19 to +35V, output +5V, +12V, -12V, 25W). Additional visible components include two Magnecraft W174DIP-3 reed relays, a VITEC 542B892 transformer module, Magnecraft W174DIP relay, PE-51566X transformer, and supporting passive components. Connector J14 is present on the board edge along with labeled signal nodes for GND, +5V, +12V, -12V. The board carries edge connector positions consistent with the Giddings & Lewis VME or proprietary backplane architecture of the period. Giddings & Lewis (G&L) is a US-origin CNC machine tool builder whose controls are widely installed across heavy industrial machining environments. Surplus boards of this type are in demand as spare and replacement parts for facilities maintaining G&L equipped machines.
