Glacier Tanks Pneumatic Butterfly Valve 16AMP-G300 Rev 0 3 In. Tri Clamp
Glacier Tanks Pneumatic Butterfly Valve 16AMP-G300 Rev 0 3 In. Tri Clamp
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

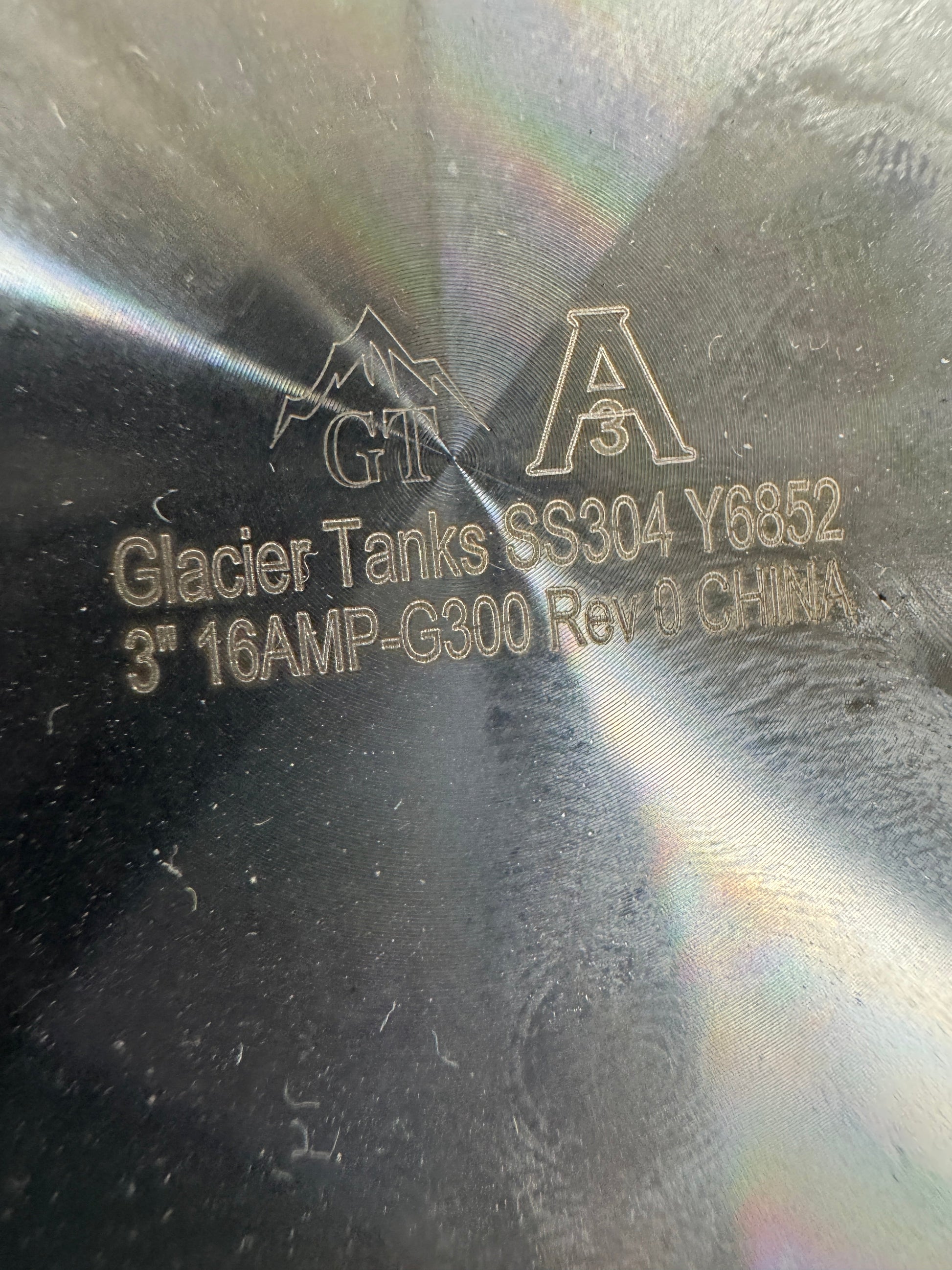

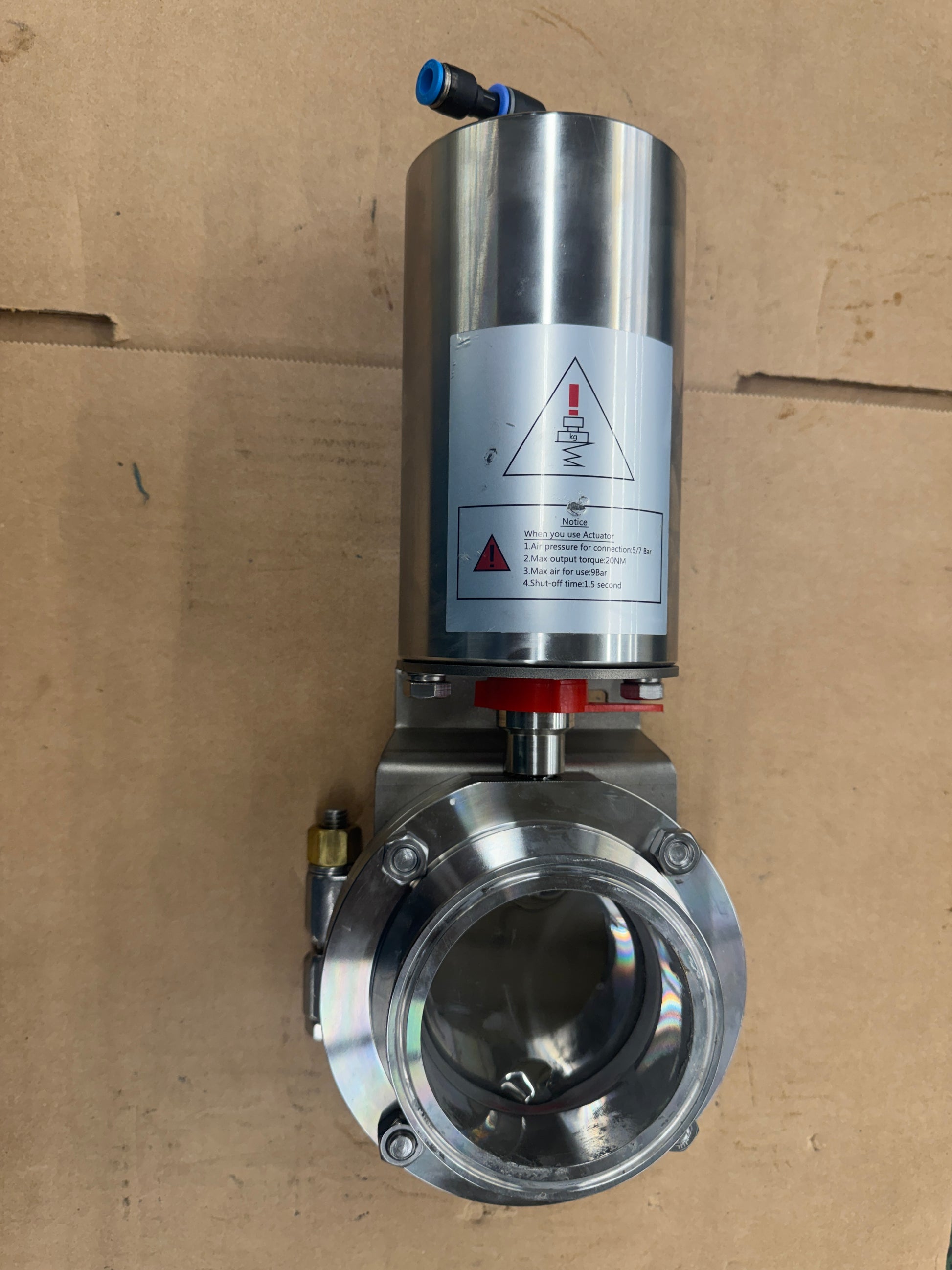

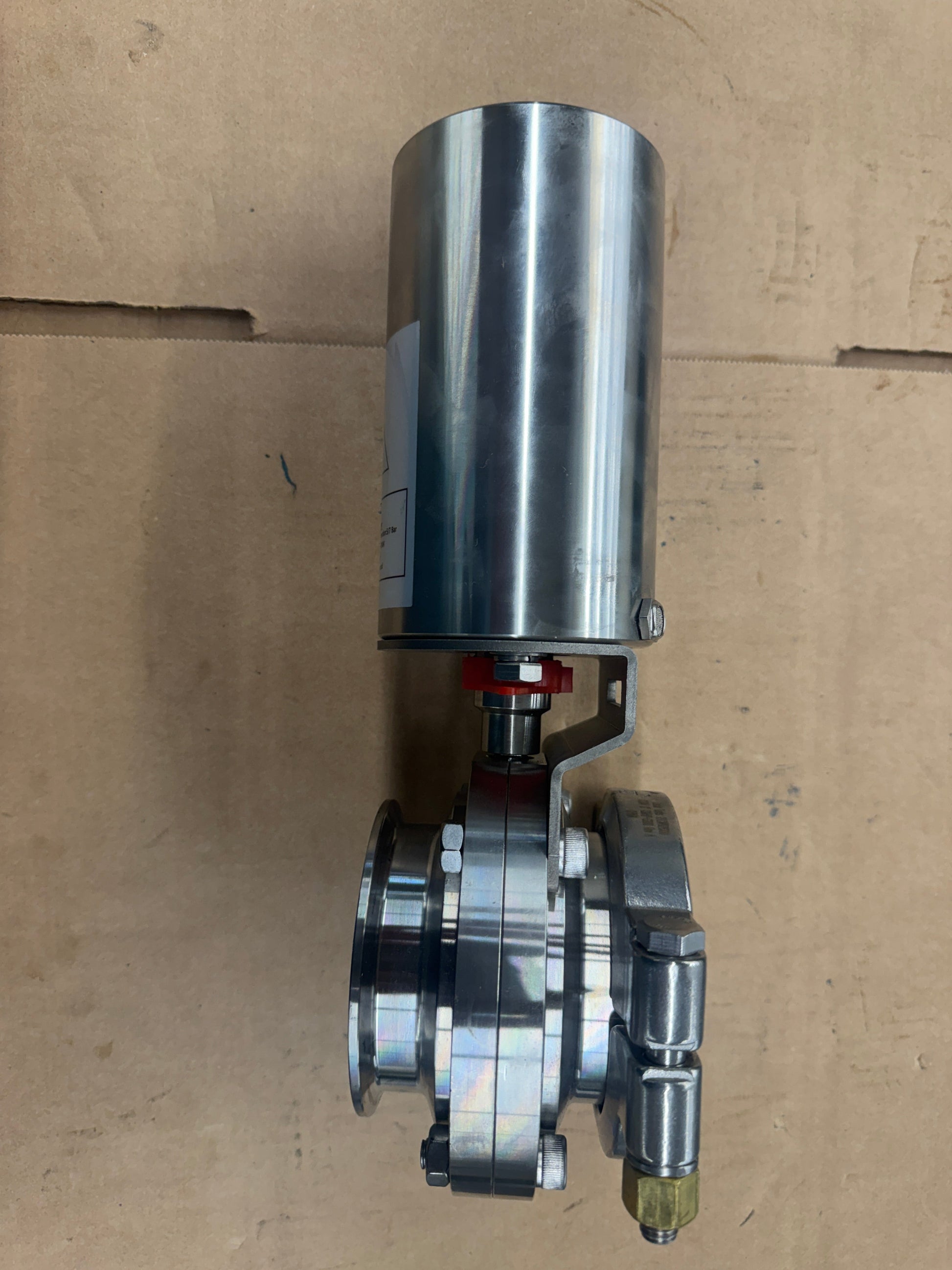

A sanitary pneumatic butterfly valve from Glacier Tanks, marked with part number 16AMP-G300 Rev 0. The valve body is constructed from SS304 stainless steel with a tri clamp OD of 91 mm, corresponding to a 3 in. sanitary pipe size. The pneumatic actuator is a heavy-duty cylindrical spring-return design, with an actuator air supply range of 5 to 7 bar (72 to 102 PSI) as shown on the notice label. Maximum output torque is rated at 20 NM, and shutoff time is listed at 1.5 seconds. A push-to-connect pneumatic fitting is present at the top of the actuator for air supply connection, and a position indicator port is visible on the actuator body. The valve incorporates a red adjustment mechanism at the actuator-to-valve interface. The butterfly disc is exposed at the tri clamp face and shows a polished stainless steel finish. The valve is manufactured in China for Glacier Tanks and carries the A3 marking visible on the nameplate face, consistent with 3-A sanitary standards designation used on Glacier Tanks products. Suitable for use in food, beverage, brewing, dairy, and similar sanitary process piping systems requiring automated pneumatic actuation with tri clamp connections.
Stock # 0326-932
