Grundfos CRE1-4 N-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump, 0.5 HP, 60 Hz
Grundfos CRE1-4 N-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump, 0.5 HP, 60 Hz
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:

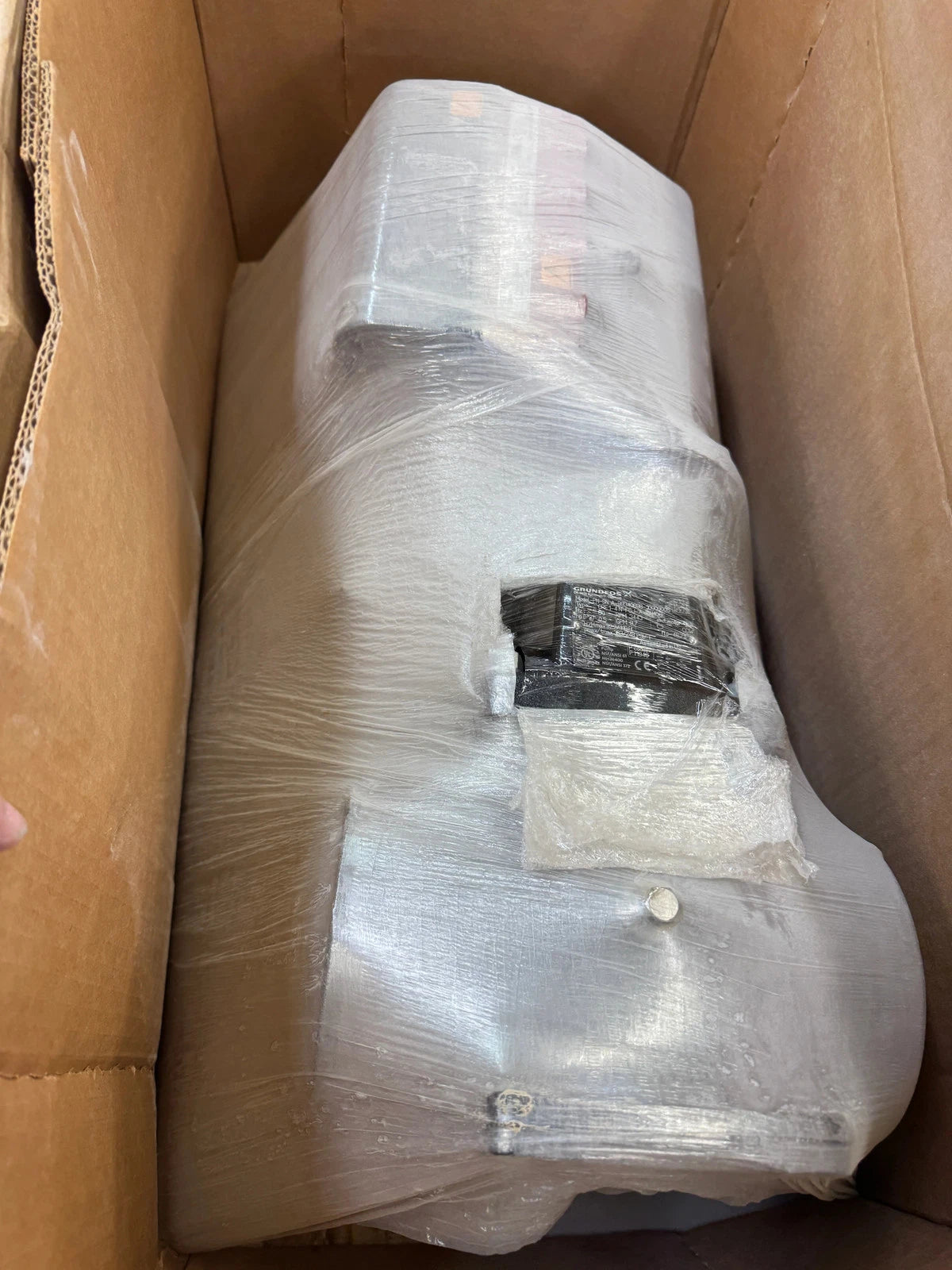

Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
Grundfos CRE1-4 N-FGJ-A-E-HQQE vertical multistage centrifugal pump, rated 0.5 horsepower, single phase 1x200–240 VAC, 60 Hz. Nameplate data indicates 3443 RPM at 60 Hz, IP55 enclosure rating, and maximum pressure (pmax) 145 PSI. Listed flow rate is 9.7 GPM. Rotation is marked CCW. Serial number 99340698 is shown on the labeling, and the unit is marked Assembled in United States. Motor designation IP21 is visible on the nameplate.

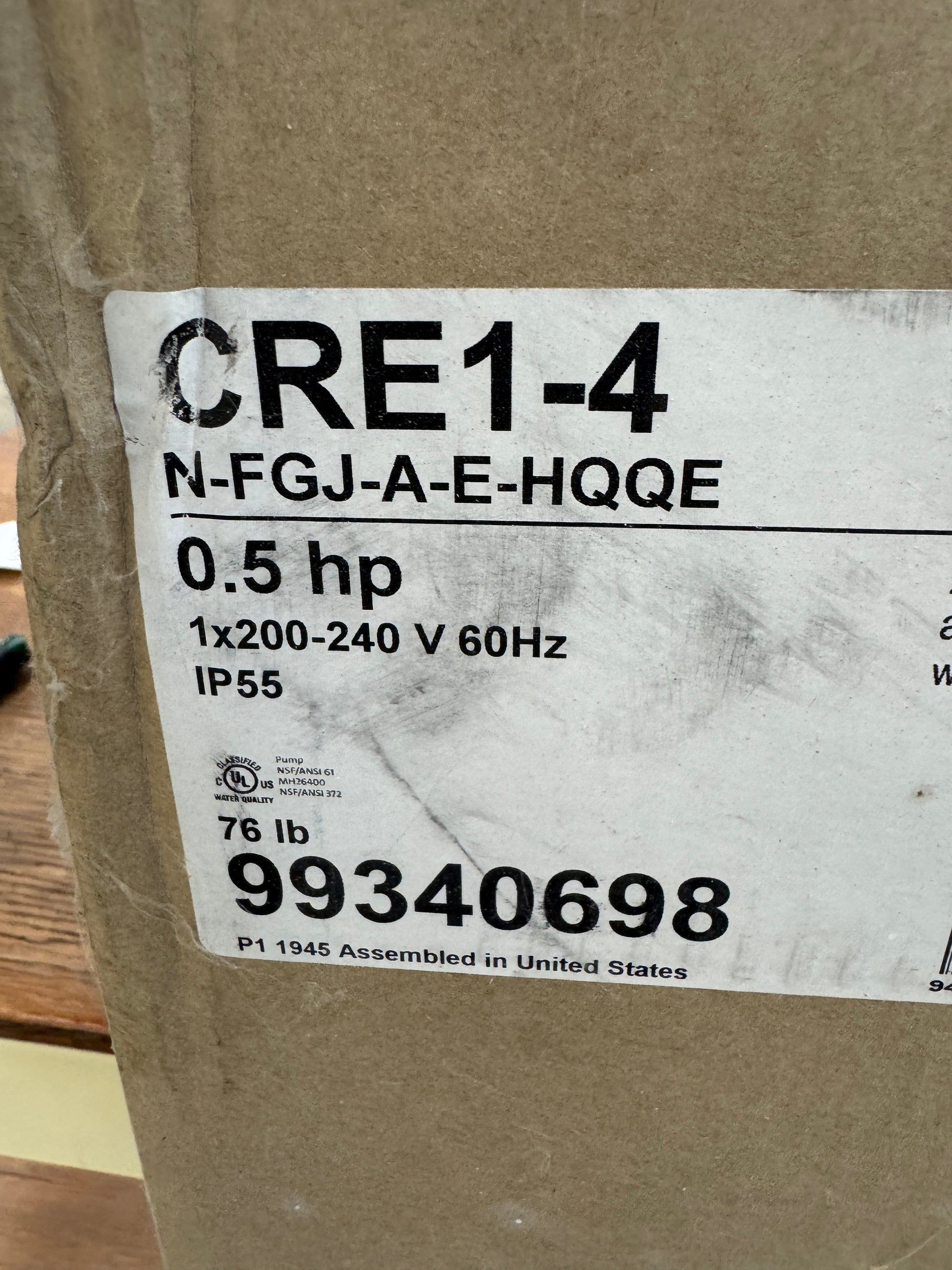

This model is part of the Grundfos CRE series of inline vertical multistage pumps designed for closed-loop and pressure boosting applications. The pump and motor are integrated into a compact vertical configuration suitable for mechanical rooms and industrial systems requiring 200–240V single phase power. The specific configuration code N-FGJ-A-E-HQQE is printed on both the carton label and pump nameplate.
All electrical ratings, pressure limits, speed, and identification numbers are taken directly from visible manufacturer labeling. Buyers sourcing a replacement Grundfos CRE1-4 pump should match the full model code CRE1-4 N-FGJ-A-E-HQQE and verify voltage, phase, and pressure specifications to ensure compatibility with the existing installation.
Stock # 0226-269
