Grundfos Immersible Multistage Coolant Pump MTR4-7/7 A-WB-A-HUUV 363 PSI Max
Grundfos Immersible Multistage Coolant Pump MTR4-7/7 A-WB-A-HUUV 363 PSI Max
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

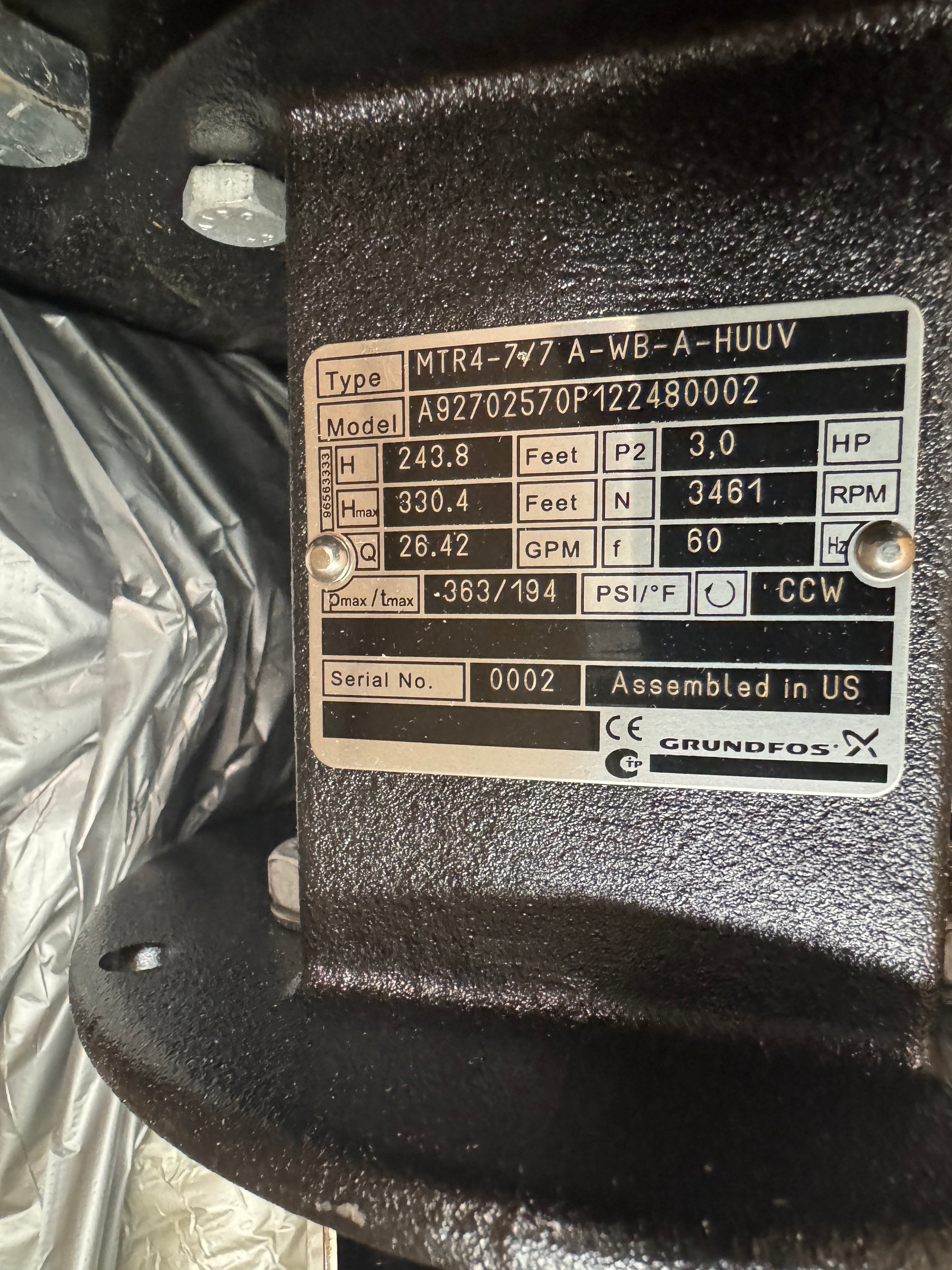

The Grundfos MTR4-7/7 A-WB-A-HUUV is a vertical multistage immersible coolant pump rated at 3.0 HP with a speed of 3,461 RPM at 60 Hz. The nameplate confirms a flow rate of 26.42 GPM, a head of 243.8 feet, and a maximum head of 330.4 feet. Maximum operating pressure is 363 PSI and maximum temperature is 194 degrees F. Rotation is counterclockwise (CCW) as noted on the nameplate. The model number on the nameplate is A92702570P122480002 and the serial number is 0002. The unit is noted as assembled in the United States and carries CE certification.
The MTR series from Grundfos is designed for tank top mounting with the pump chamber stack immersed in the liquid. Typical applications include cutting oil and coolant lubricant circulation in CNC machining centers and other metal processing equipment, as well as condensate transfer and industrial liquid handling. The WB suffix in the type designation indicates a stainless steel pump end with a cast iron motor bracket, and the HUUV suffix indicates shaft seal and liquid end material configuration specific to this build.

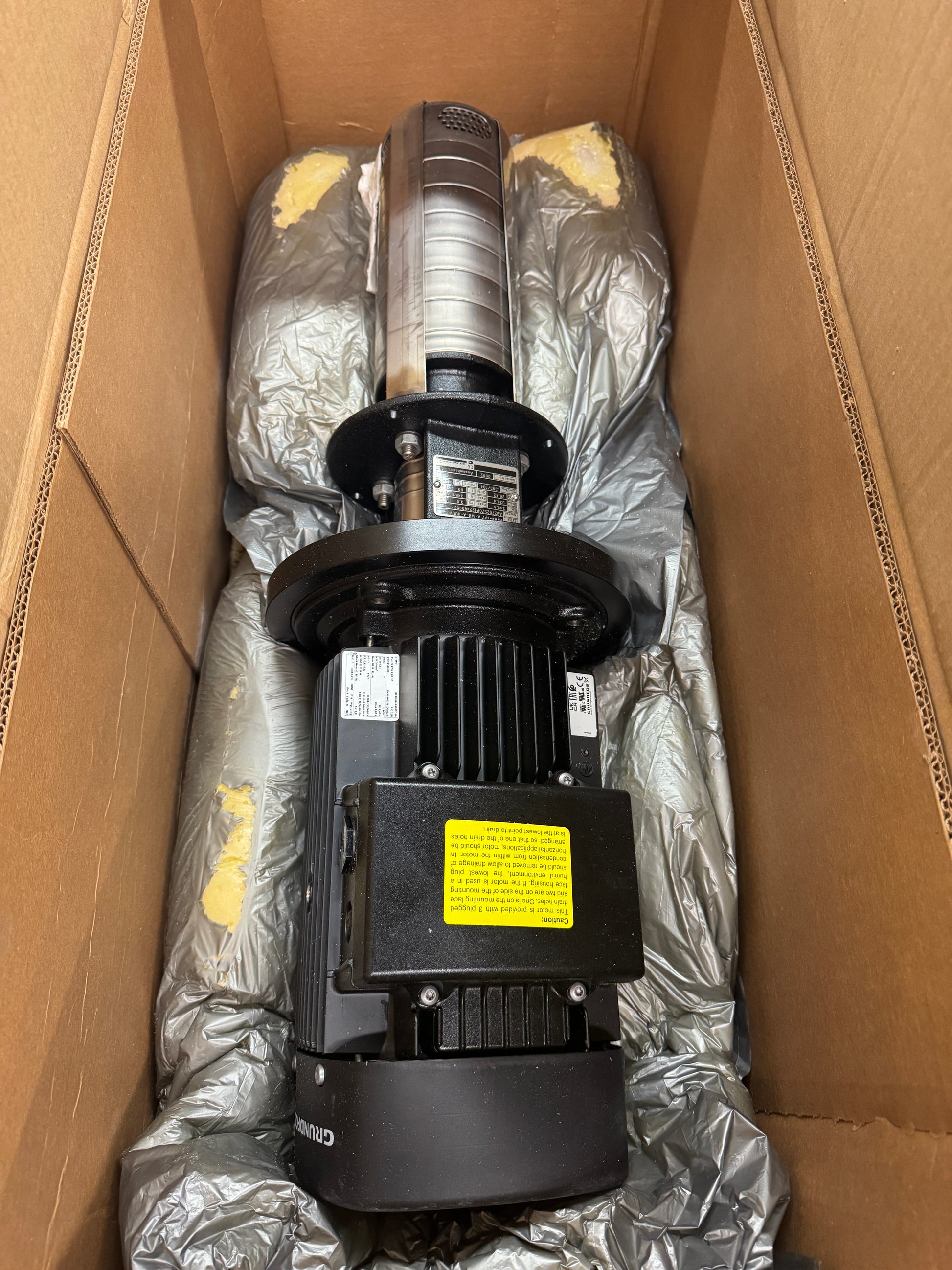

The item is photographed in an open original cardboard shipping box with protective wrap in place. Grundfos is a globally recognized manufacturer of industrial and commercial pump solutions.
Stock # 0426-02126
