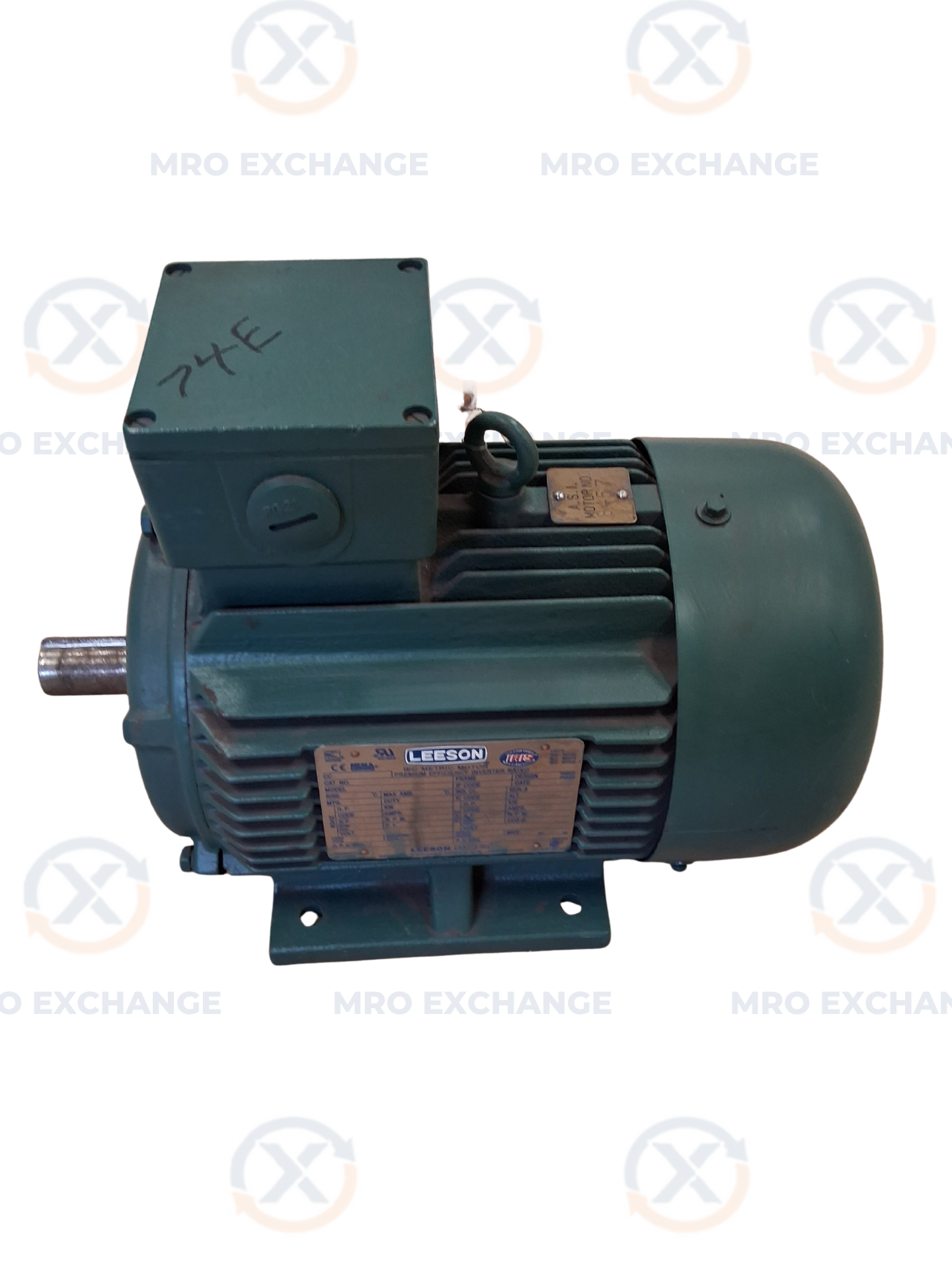

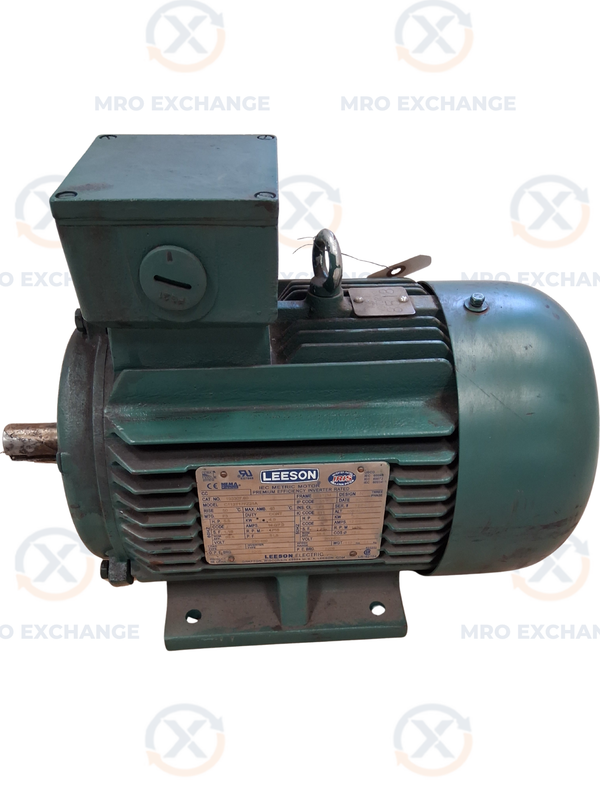

Leeson Electric IEC Metric Motor 193307.60 (Model C112T17FZ21A) - 4 kW 1800 RPM
Leeson Electric IEC Metric Motor 193307.60 (Model C112T17FZ21A) - 4 kW 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

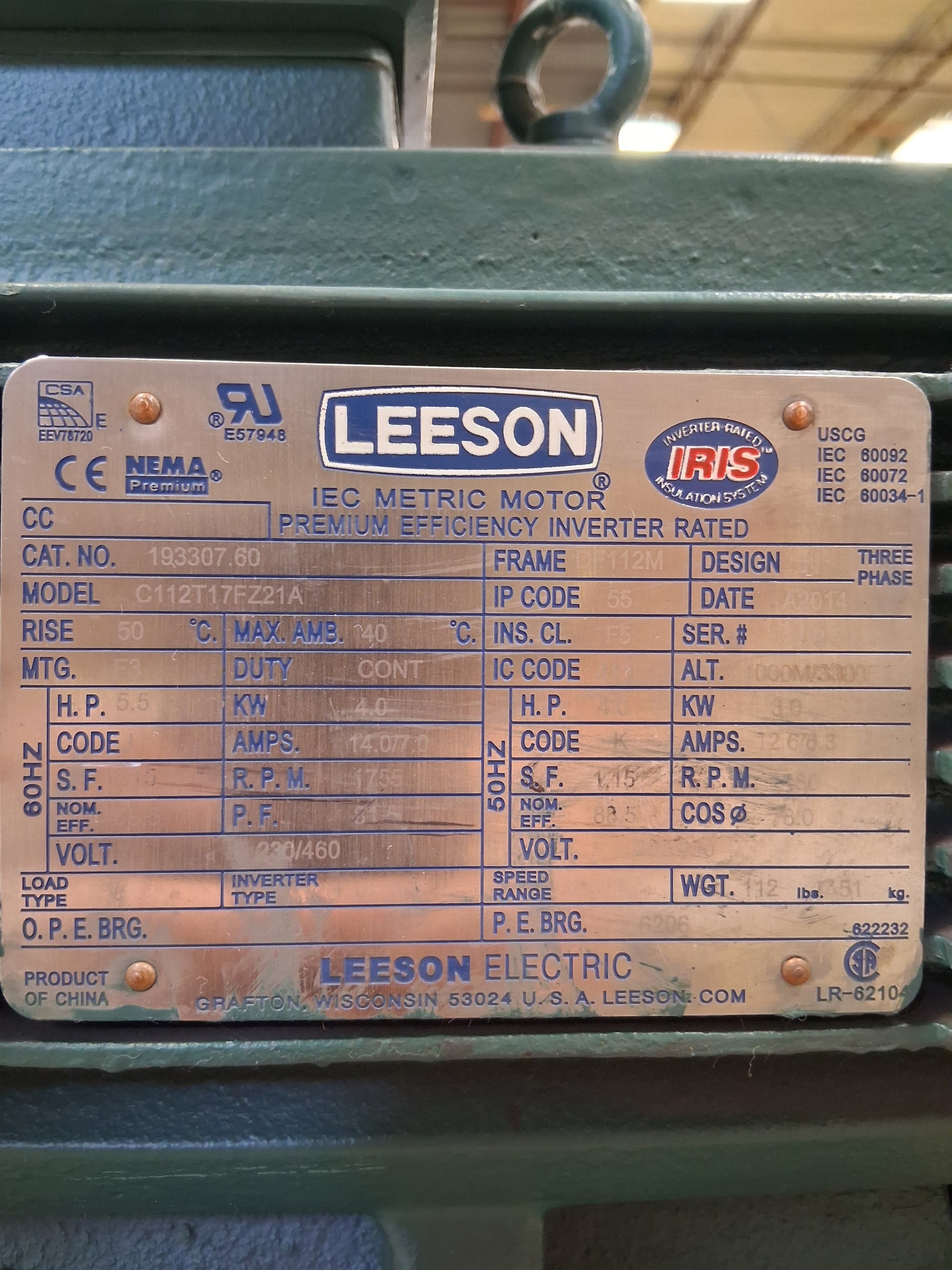

The Leeson Electric 193307.60 is a premium efficiency IEC metric motor rated at 5.5 HP (4.0 kW) at 60 Hz and 4.0 HP (3.0 kW) at 50 Hz. Catalog number 193307.60 corresponds to model C112T17FZ21A. This three phase motor operates on 230/460 VAC, with full load amperage of 14.0/7.0 A at 60 Hz. Nominal speed is 1755 RPM at 60 Hz operation. Frame designation is DF112M with rigid foot mounting (B3) and an IP55 weatherproof rating, suitable for damp and dusty industrial environments. Construction features a cast iron frame, totally enclosed fan cooled (TEFC) design, and Class F insulation with the IRIS inverter rated insulation system. Service factor is 1.15 and duty rating is continuous (CONT). Temperature rise is 50 C with a maximum ambient of 40 C. The motor carries CSA, UL (file E57948), CE, and NEMA Premium certifications, and meets USCG IEC 60092, 60072, and 60034 1 standards. Bearings are 6206 on the pilot end. Manufactured by Leeson Electric of Grafton, Wisconsin, the IEC series is commonly used as a replacement on machine tools, textile machinery, and other equipment with metric dimensions but requiring the higher torque and performance characteristics of North American motors. Verified OEM equivalents include the Marathon R325B and Baldor EMM3615.
Stock # 0526-02310
