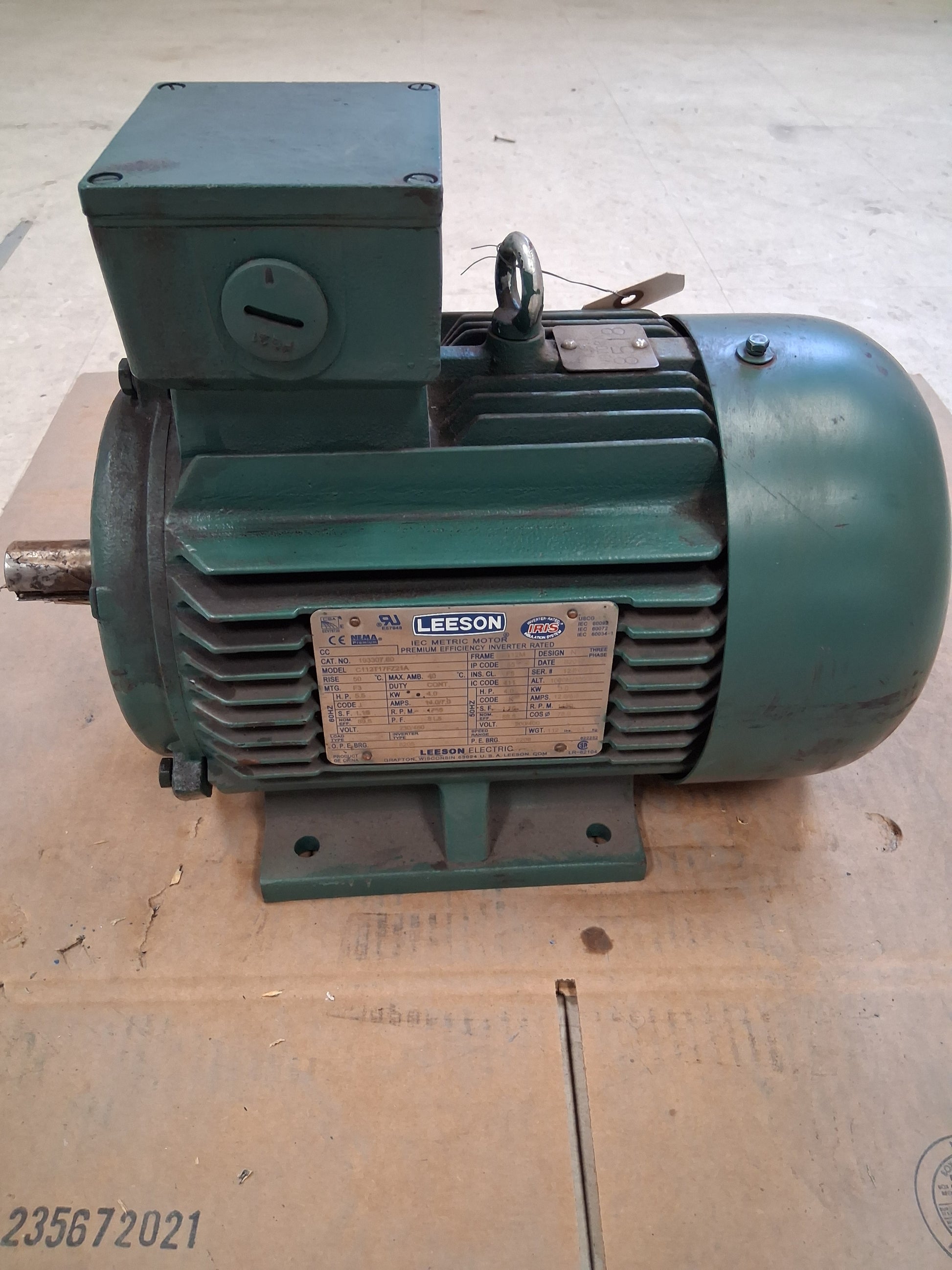

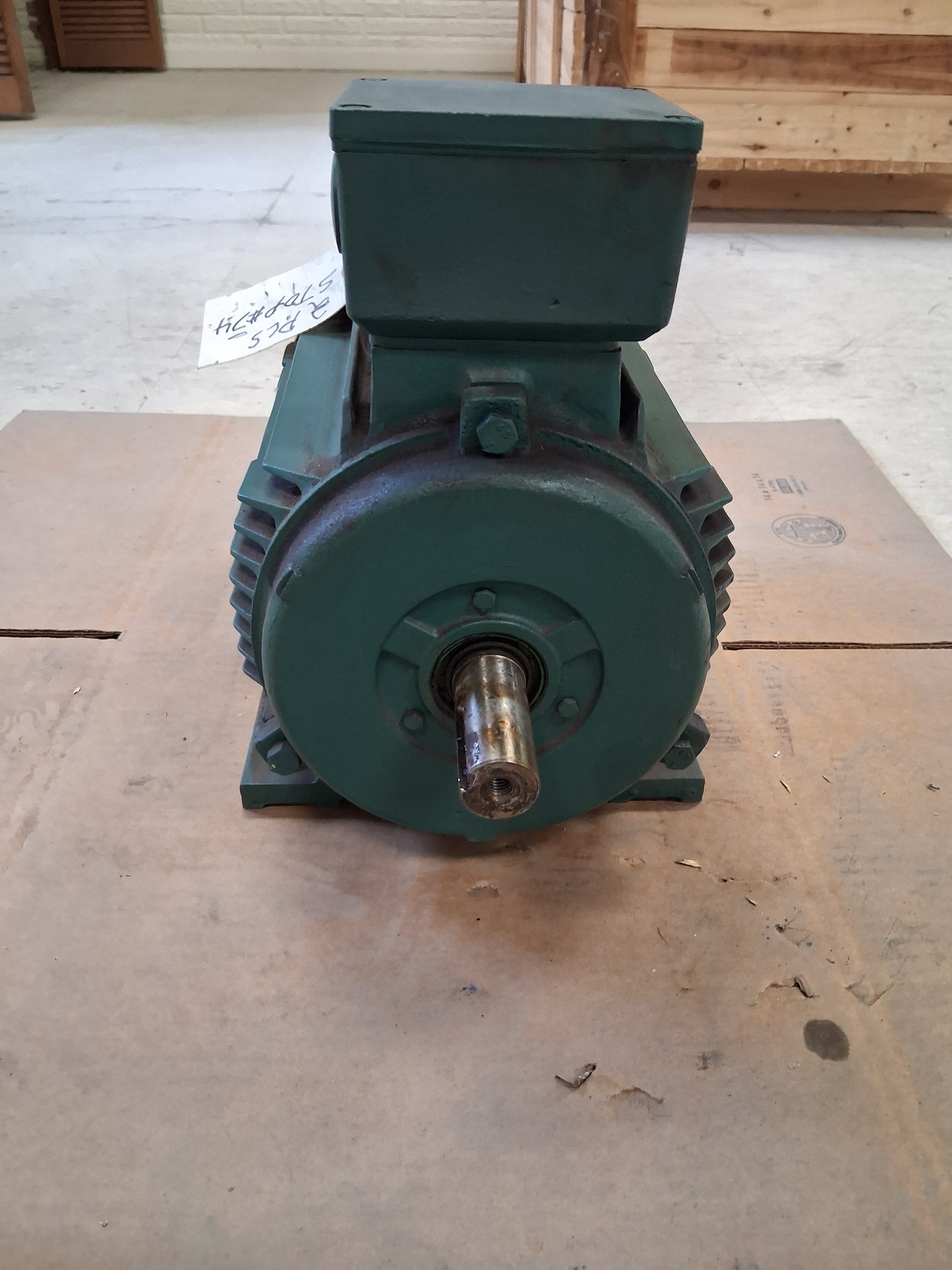

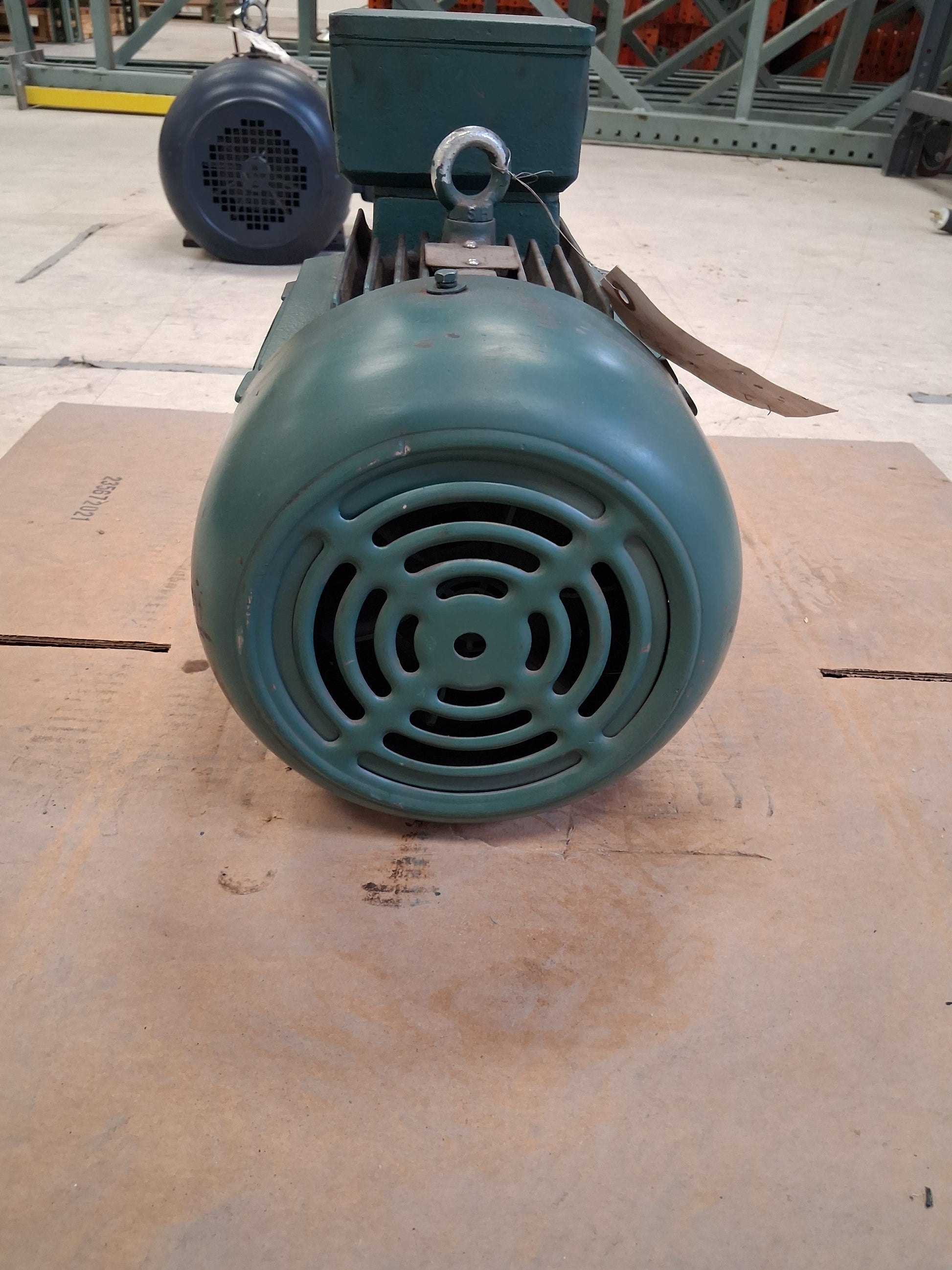

Leeson IEC Metric Motor C112T17FZ21A - 5 HP 1800 RPM

Leeson IEC Metric Motor C112T17FZ21A - 5 HP 1800 RPM

$1,000.00 USD
$1,000.00 USD
Sale Sold out
⚠️ Freight Not Included
The shipping fee at checkout covers handling and loading only.
  • U.S. shipping, securely packaged. Ships in 1-2 Days
  • Questions? Real support team available before purchase
  • Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

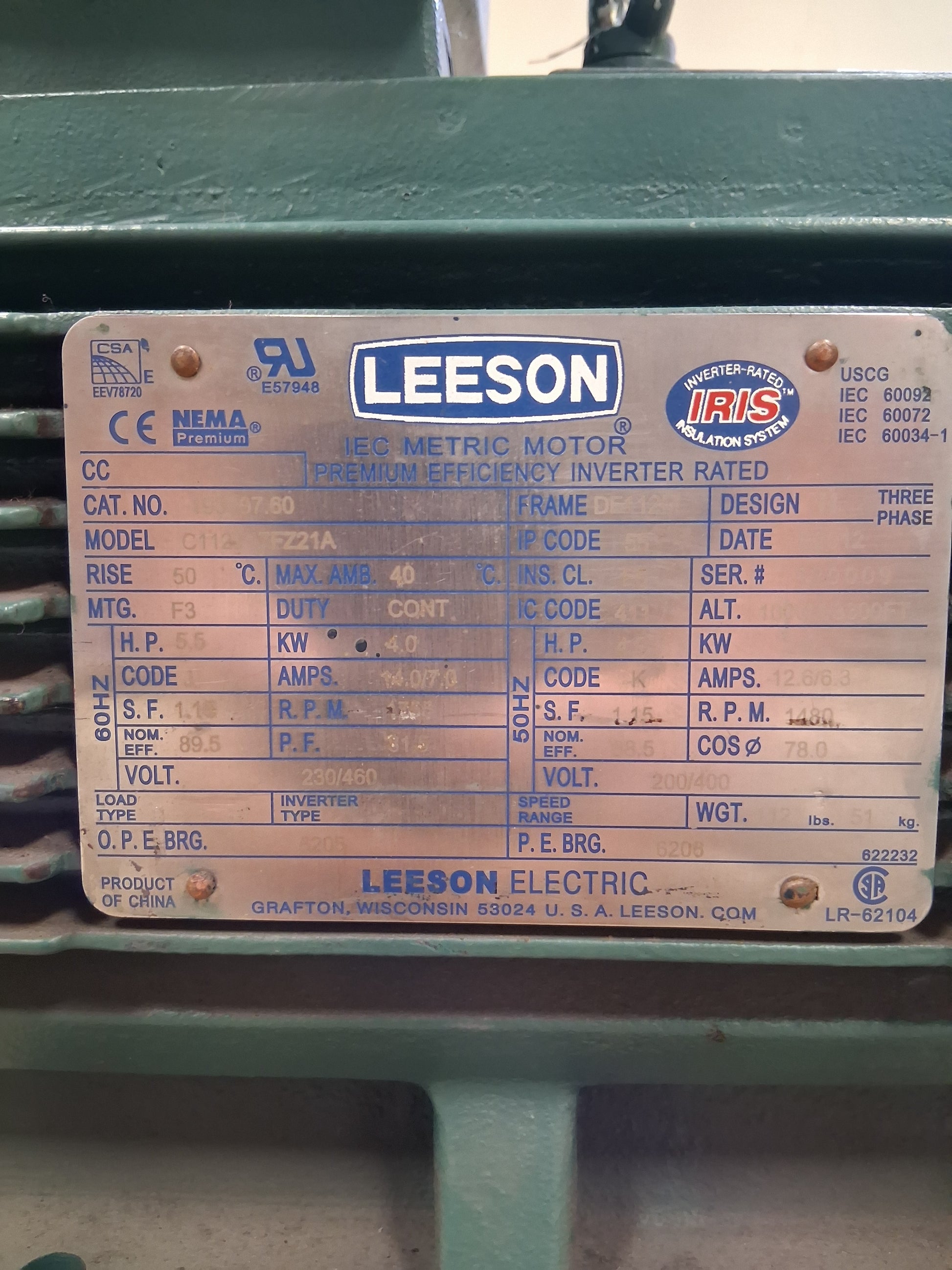

The Leeson C112T17FZ21A (catalog number 193307.60) is a premium efficiency IEC metric motor rated at 5.5 HP (4.0 kW) for 60 Hz operation and 4.0 kW for 50 Hz operation. This three phase TEFC induction motor operates on 230/460V at 60 Hz with full load amps of 14.0/7.0 and a nameplate speed of 1755 RPM. At 50 Hz operation, it accepts 200/400V input with full load amps of 12.6/6.3 and runs at 1480 RPM, providing 60/50 Hz interchangeability for international applications. Construction features cast iron frame in IEC frame size 112M with F3 conduit box mounting, rigid base mount, and IRIS inverter rated insulation system suited for variable frequency drive operation. Service factor is 1.15 with a 50 degrees C rise rating and 40 degrees C maximum ambient. Nominal efficiency is 89.5 percent at 60 Hz and the motor carries NEMA Premium designation. Bearings are 6205 on the opposite drive end and 6206 on the drive end. The motor is duty rated for continuous operation and carries CSA, UL, and CE approvals along with USCG certifications under IEC 60092, IEC 60072, and IEC 60034 1 standards. The 28mm keyed shaft and standardized IEC mounting dimensions make this motor a direct replacement for machine tool, textile machinery, conveyor, pump, and general industrial applications requiring metric dimensions with North American performance characteristics. Manufactured by Leeson Electric in Grafton, Wisconsin.

Stock # 0526-02311
