Marco Fluid Tech 164 065 12 PWM-Ready UP6-P PEEK Gear pump 6.9 gpm – 26 l/min (12 Volt)
Marco Fluid Tech 164 065 12 PWM-Ready UP6-P PEEK Gear pump 6.9 gpm – 26 l/min (12 Volt)
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
The Marco Fluid Tech UP6-P is a self-priming electric gear pump designed for transferring water, liquid additives, and similar fluids in marine, vehicle, and light industrial applications. Operating on 12V DC, the pump carries part number 164 065 12 and features PTFE (PEEK) gears housed in a nickel-plated brass body with a stainless steel shaft, providing chemical resistance for a wide range of compatible liquids.

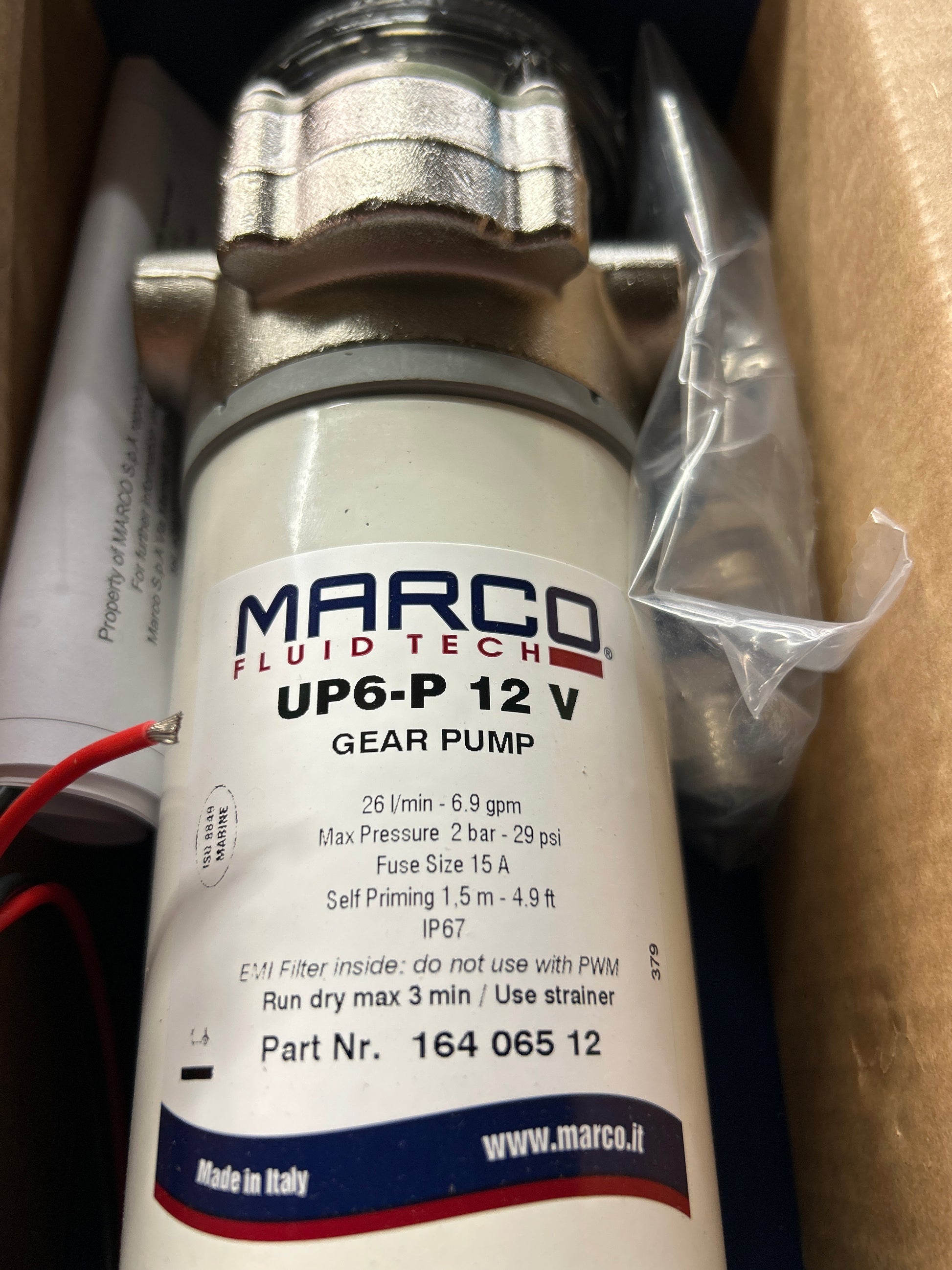

Nameplate-confirmed specifications include a maximum flow rate of 26 liters per minute (6.9 gpm), maximum working pressure of 2 bar (29 psi), self-priming capability to 1.5 m (4.9 ft), and an IP67 ingress protection rating. The motor draws 10A continuously with a 15A fuse requirement. An internal EMI filter is integrated; the pump is not compatible with PWM speed controllers. Run-dry operation is limited to a maximum of 3 minutes, and use of a strainer is specified on the nameplate. Motor construction meets ISO 8849 Marine bilge pump standards.

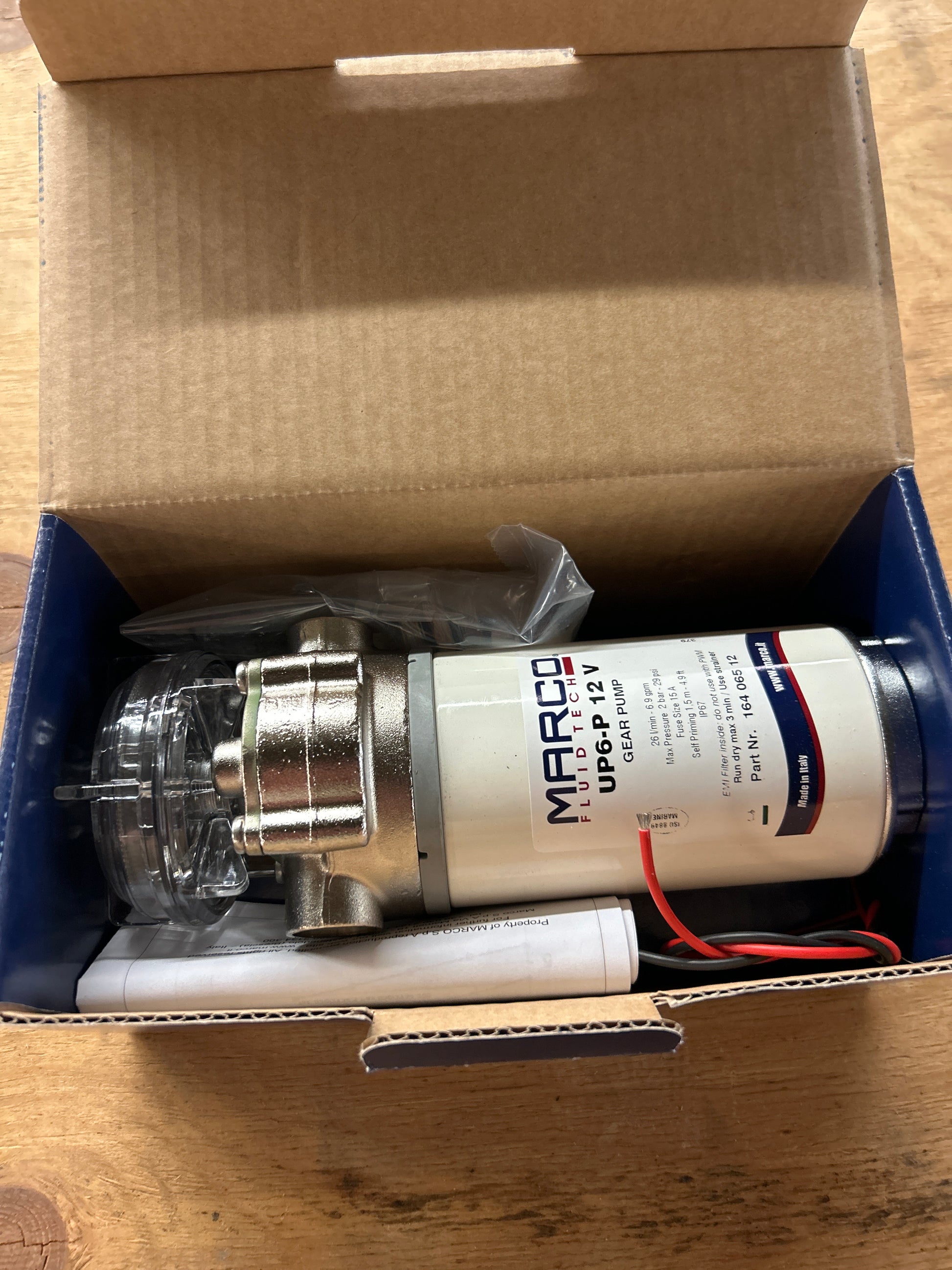

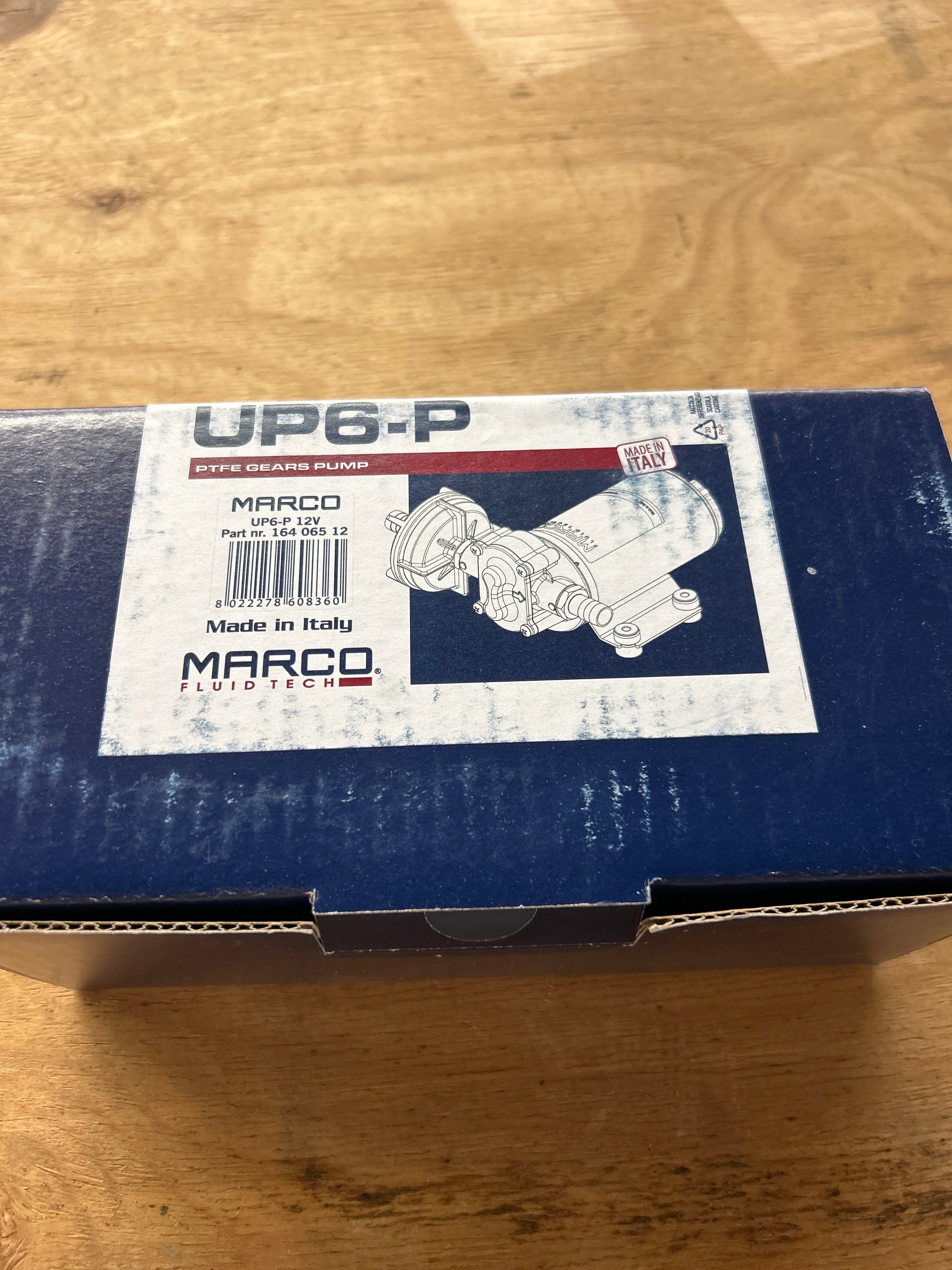

The unit is supplied in original Marco Fluid Tech retail packaging with mounting hardware accessories. Overall dimensions per published specifications are approximately 201 x 174 x 111 mm; published weight is 3.1 kg. Port connections are 1/2 in. BSP female with included 16 mm brass hose barbs. Made in Italy.
Stock # 0526-01408
