Parker Hannifin Hydraulic Cylinder 03.25 BB3LT34A 5.000 SAE-10 1200 PSI
Parker Hannifin Hydraulic Cylinder 03.25 BB3LT34A 5.000 SAE-10 1200 PSI
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

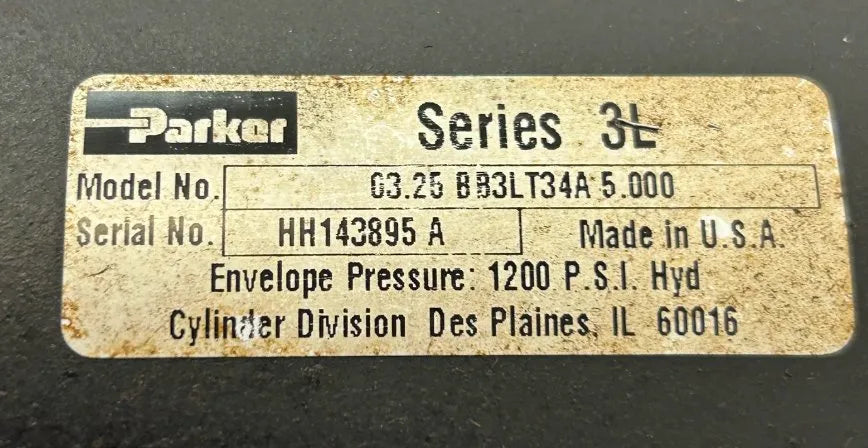

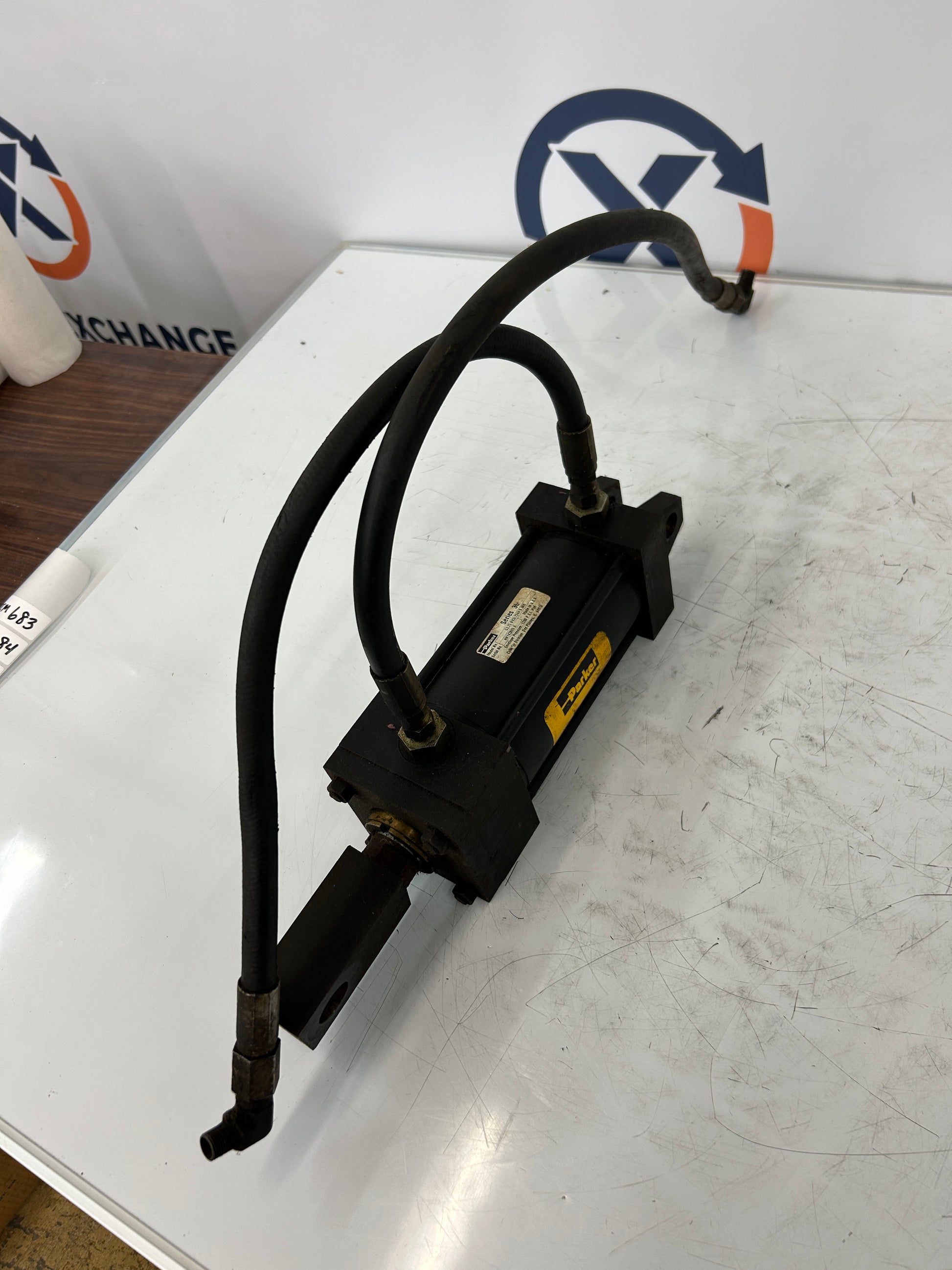

Used in industrial fluid power applications, the Parker Series 3L medium-duty hydraulic cylinder is a tie-rod construction unit rated at an envelope pressure of 1200 PSI. The model number 03.25 BB3LT34A 5.000 decodes to a 3-1/4 inch bore, both-end rectangular flange mounting (NFPA style MF2), SAE ported head and cap, and a 5 inch stroke. Parker Series 3L cylinders conform to NFPA interchangeability standards, making this unit compatible with standard Parker 3L replacement seals and service components. The cylinder was manufactured by Parker Hannifin Corporation, Cylinder Division, Des Plaines, Illinois. Serial number HH143895 A is visible on the nameplate. The 3L series features rolled thread tie rods and a serviceable rod gland design, allowing seal replacement without full disassembly in many configurations. Both-end flange mounting provides rigid, positive positioning on front and rear faces. At 3.25 inch bore and 5 inch stroke, this cylinder is suited for compact installation spaces requiring moderate force output at medium hydraulic pressure. Port size and thread type are SAE-10 per published Parker 3L model nomenclature for the T34A designation. Buyers should verify port size, rod diameter, and mounting dimensions against their application requirements prior to installation.
Stock # 0226-683
