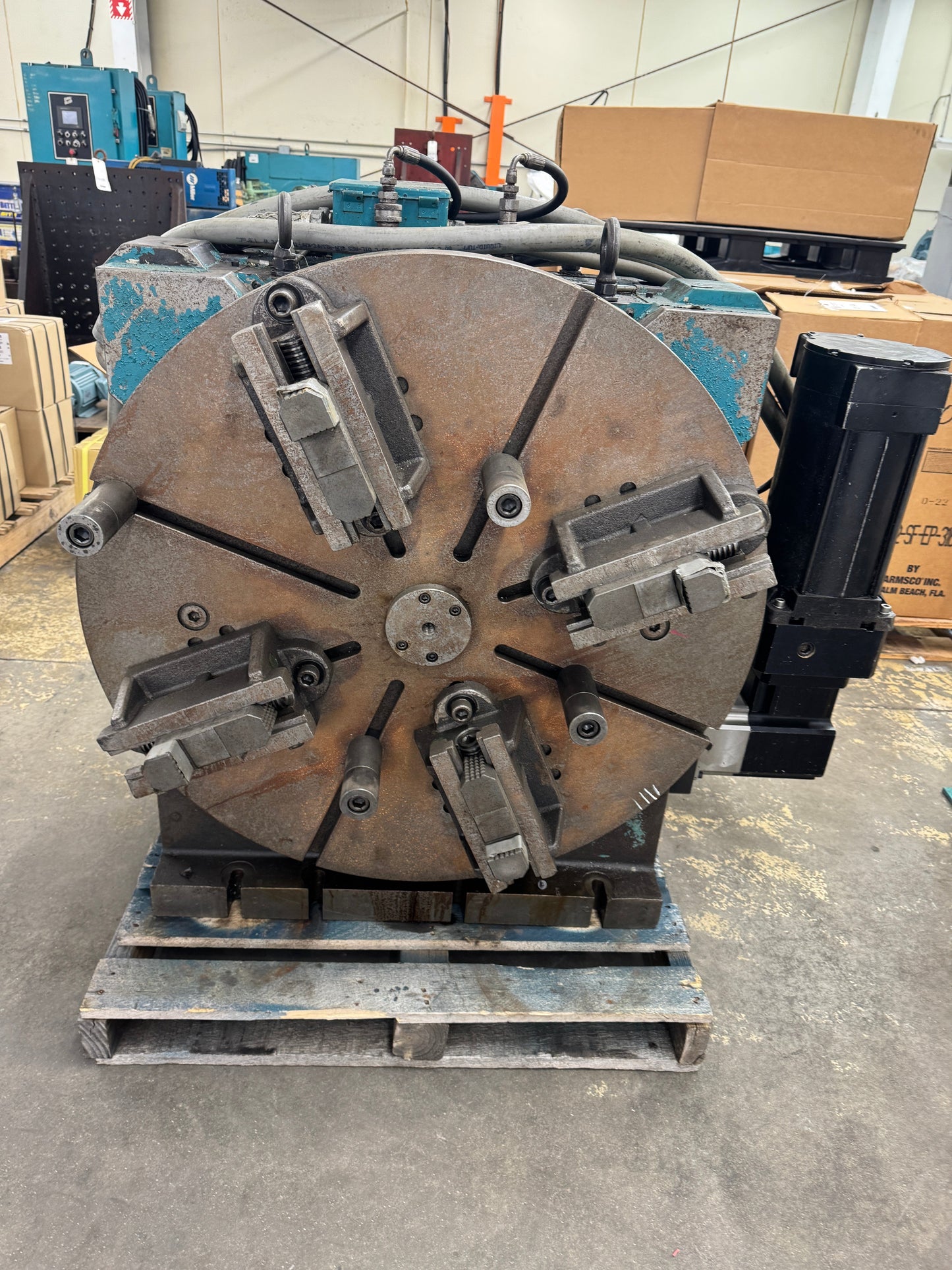

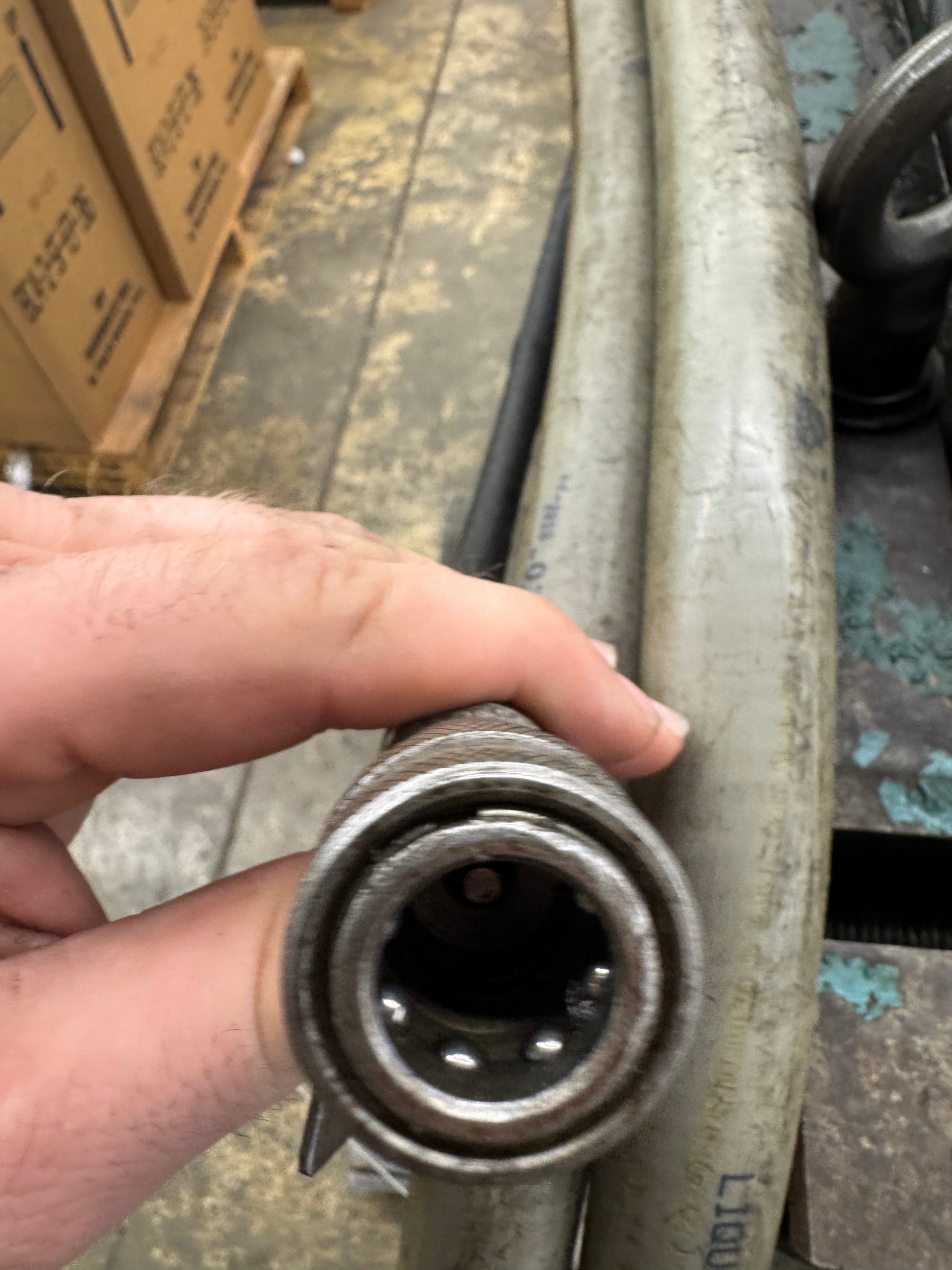

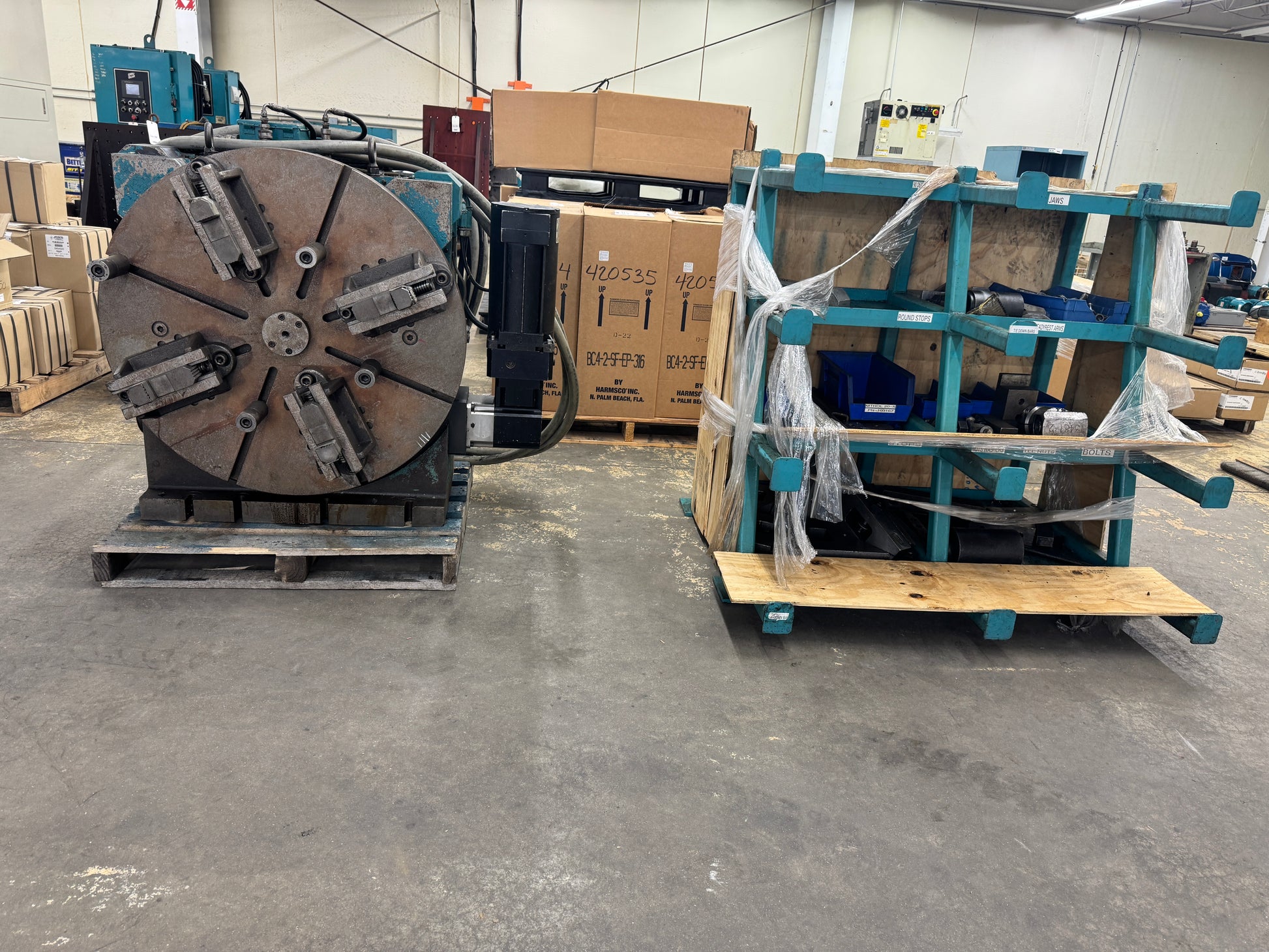

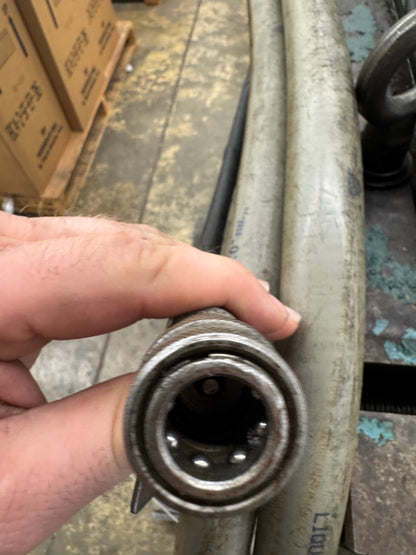

Producto Machine Co. NC Rotary Table offered as a complete lot including the rotary table unit, a mounted Allen-Bradley Bulletin 1326 AC servo motor (Cat. No. 1326AB-C2E-11, Part No. 122256), hydraulic power unit with braided flex hoses and fittings, and a full accessories crate organized by component type.

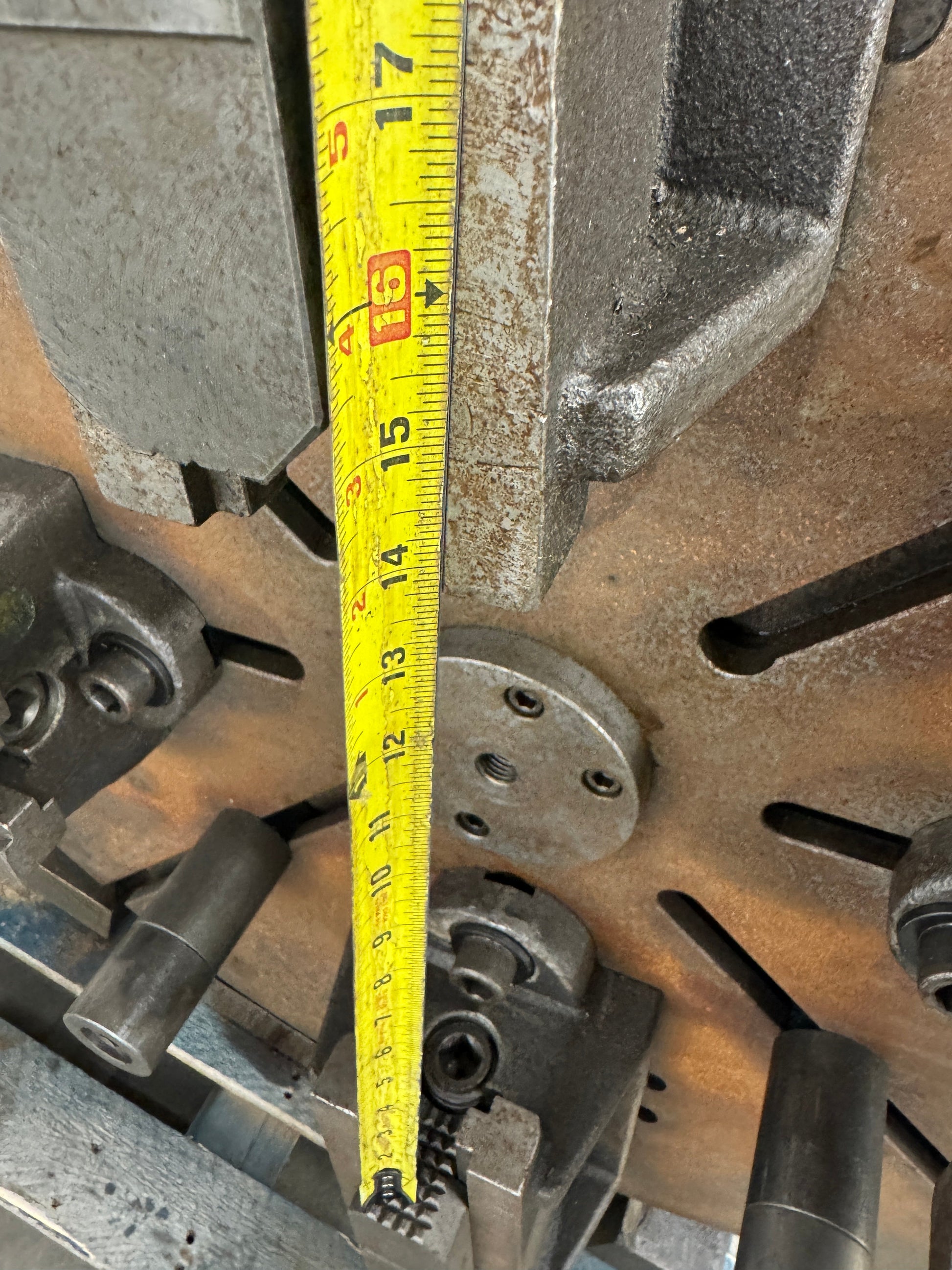

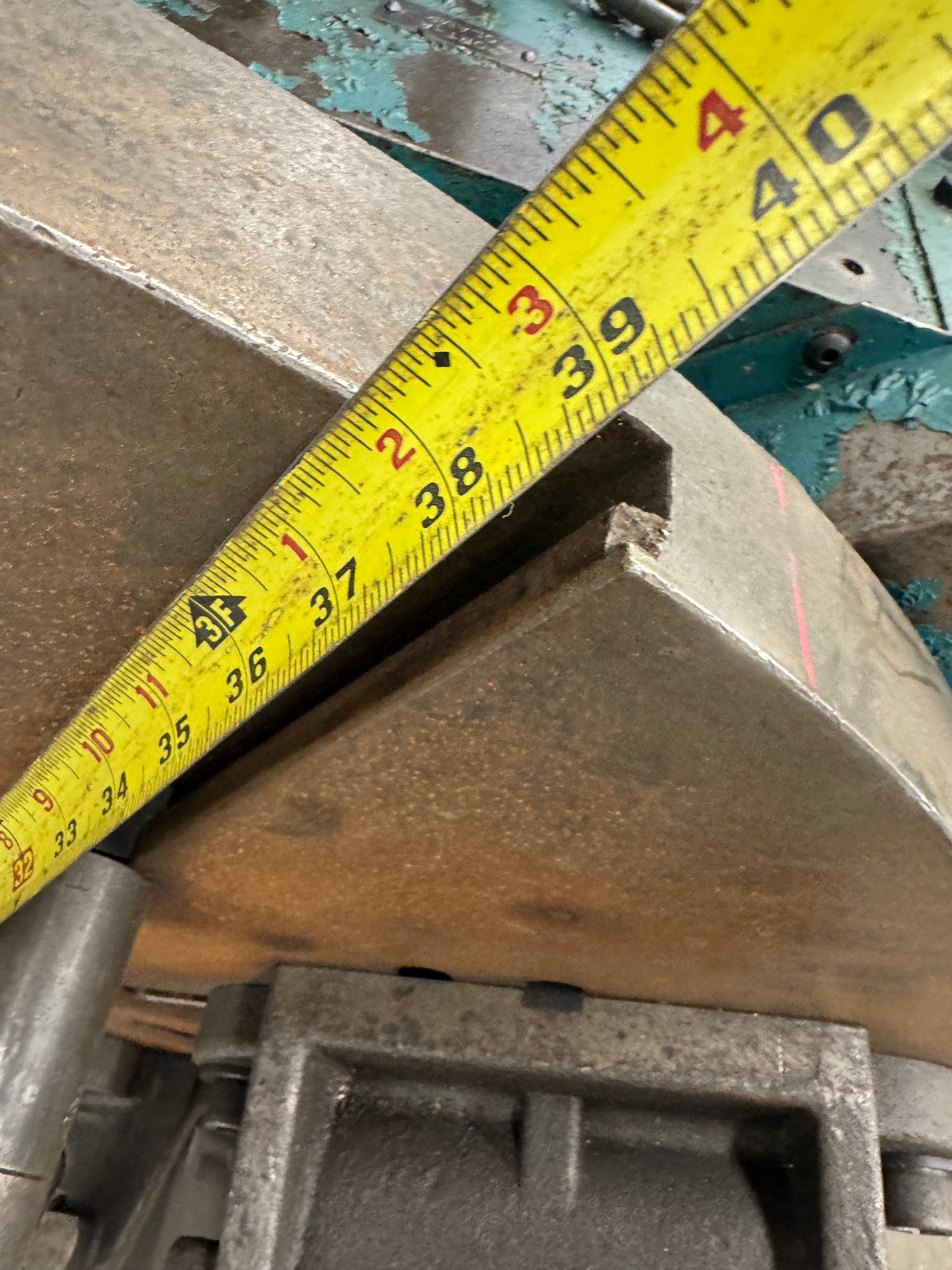

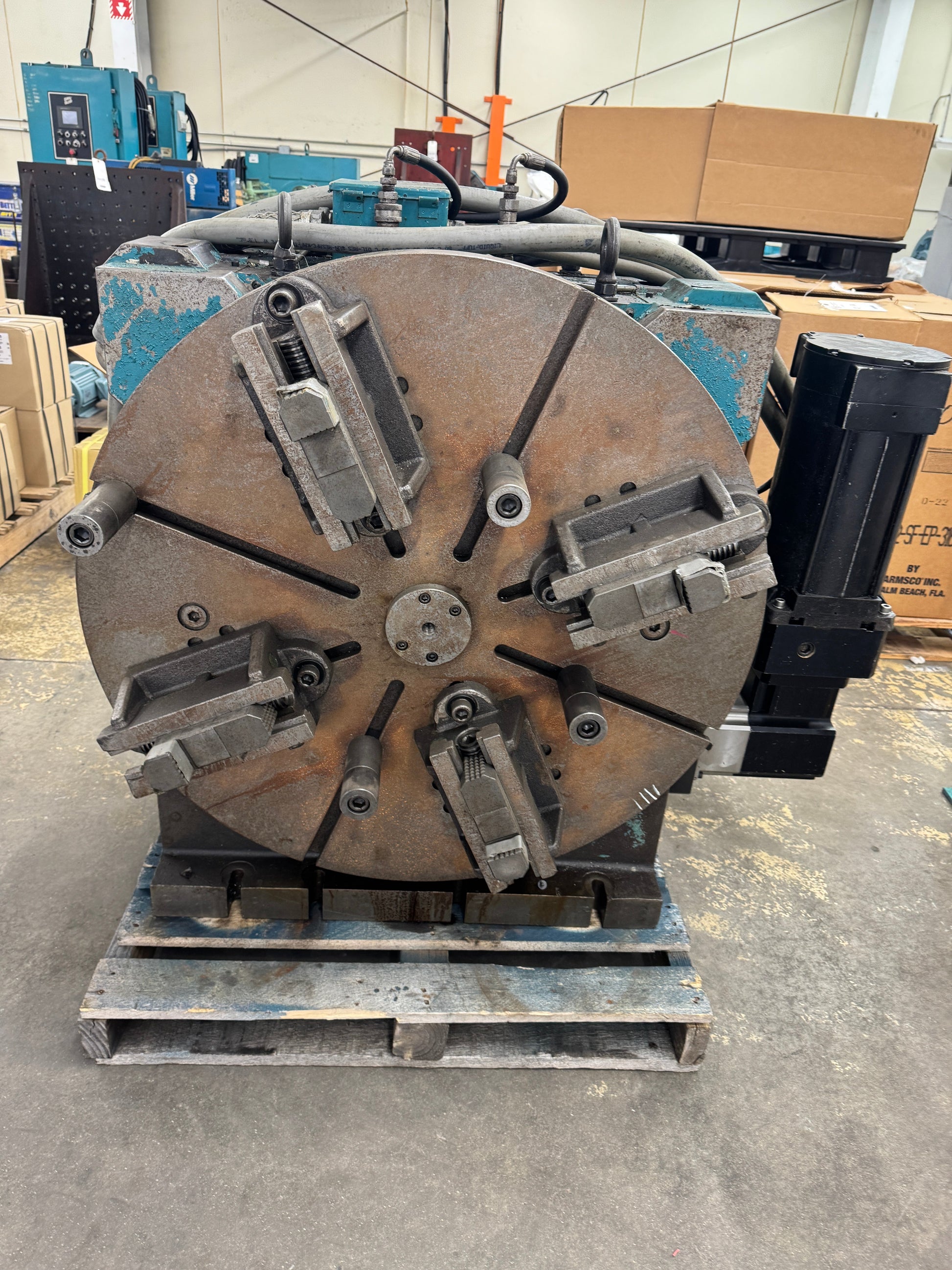

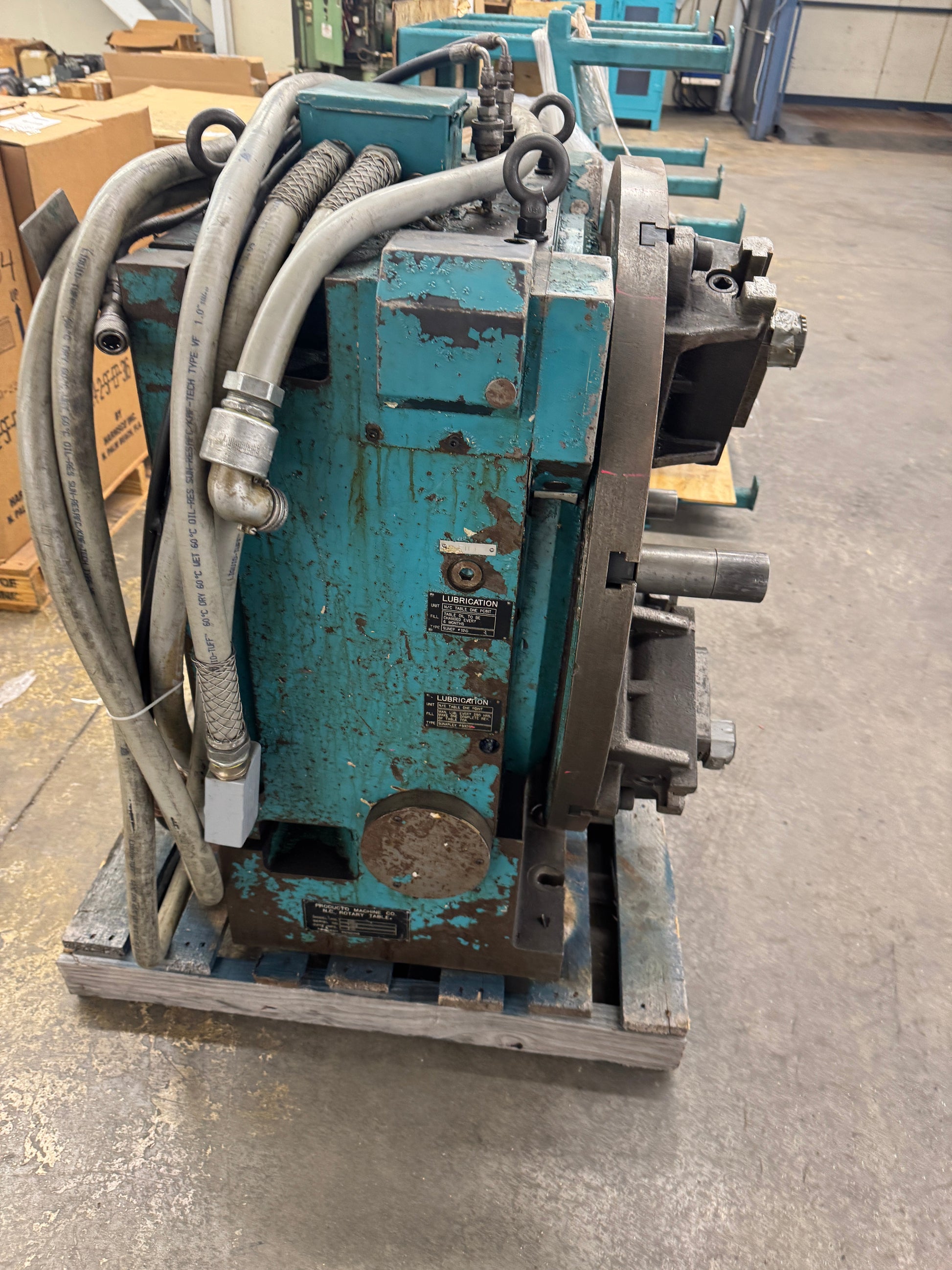

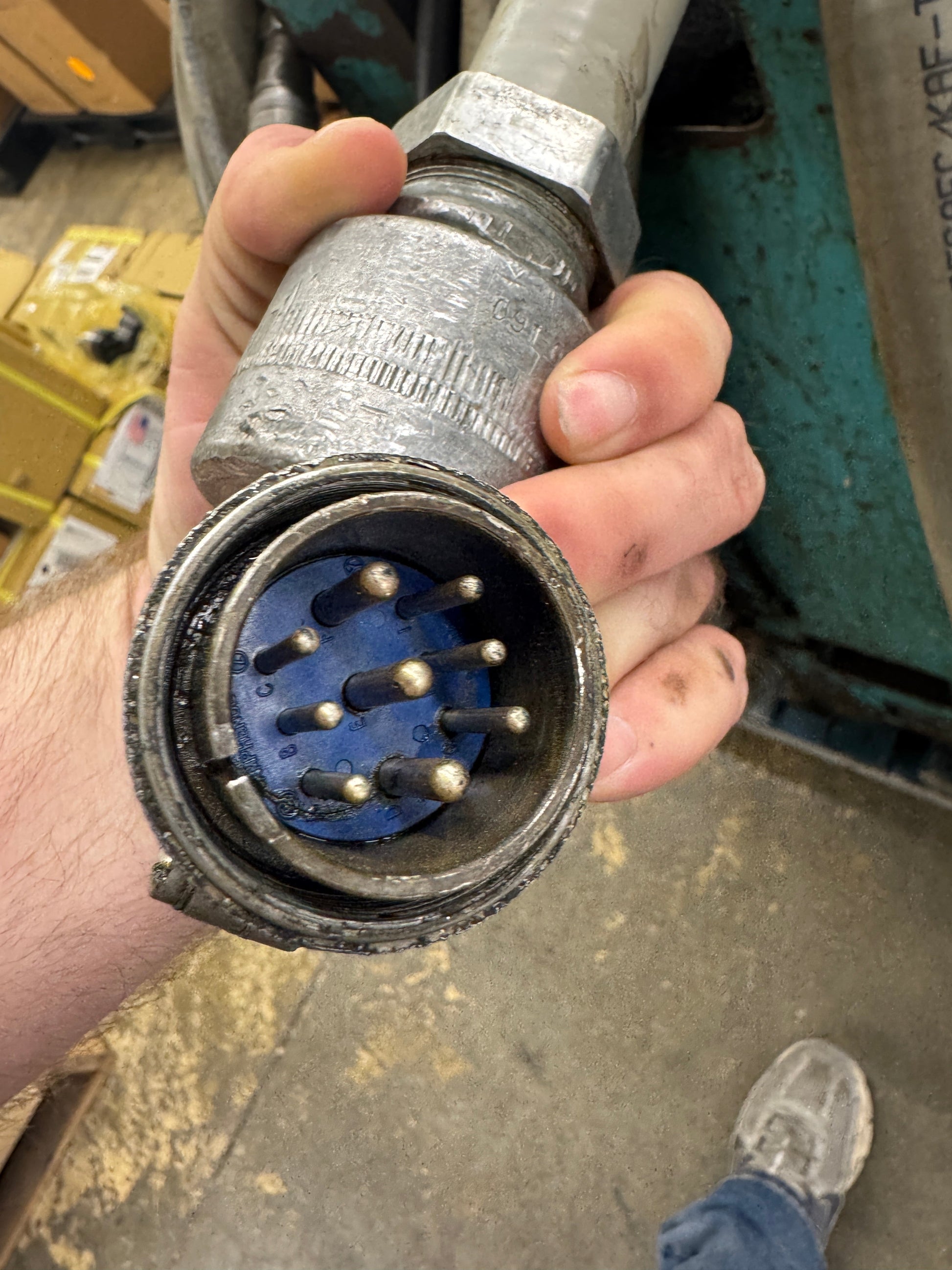

The faceplate measures approximately 40 inches in diameter based on visible tape measure reference in the photos. The face features 6 T-slot jaw positions with independent clamp assemblies. The hydraulic rotary drive body carries two lubrication plates visible on the side housing. A multi-pin circular connector (approximately 10-pin) is present at the cable exit on the servo motor.

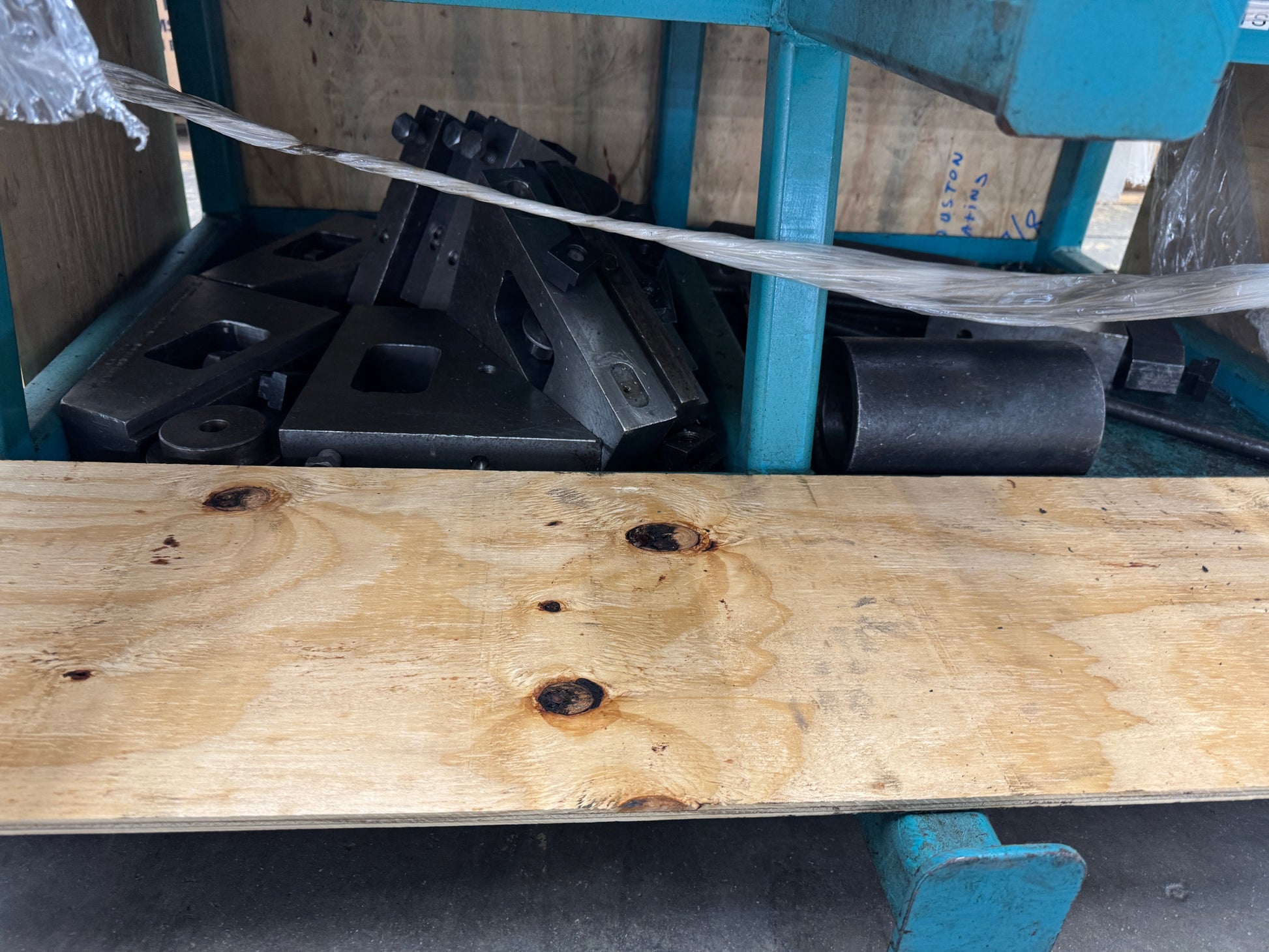

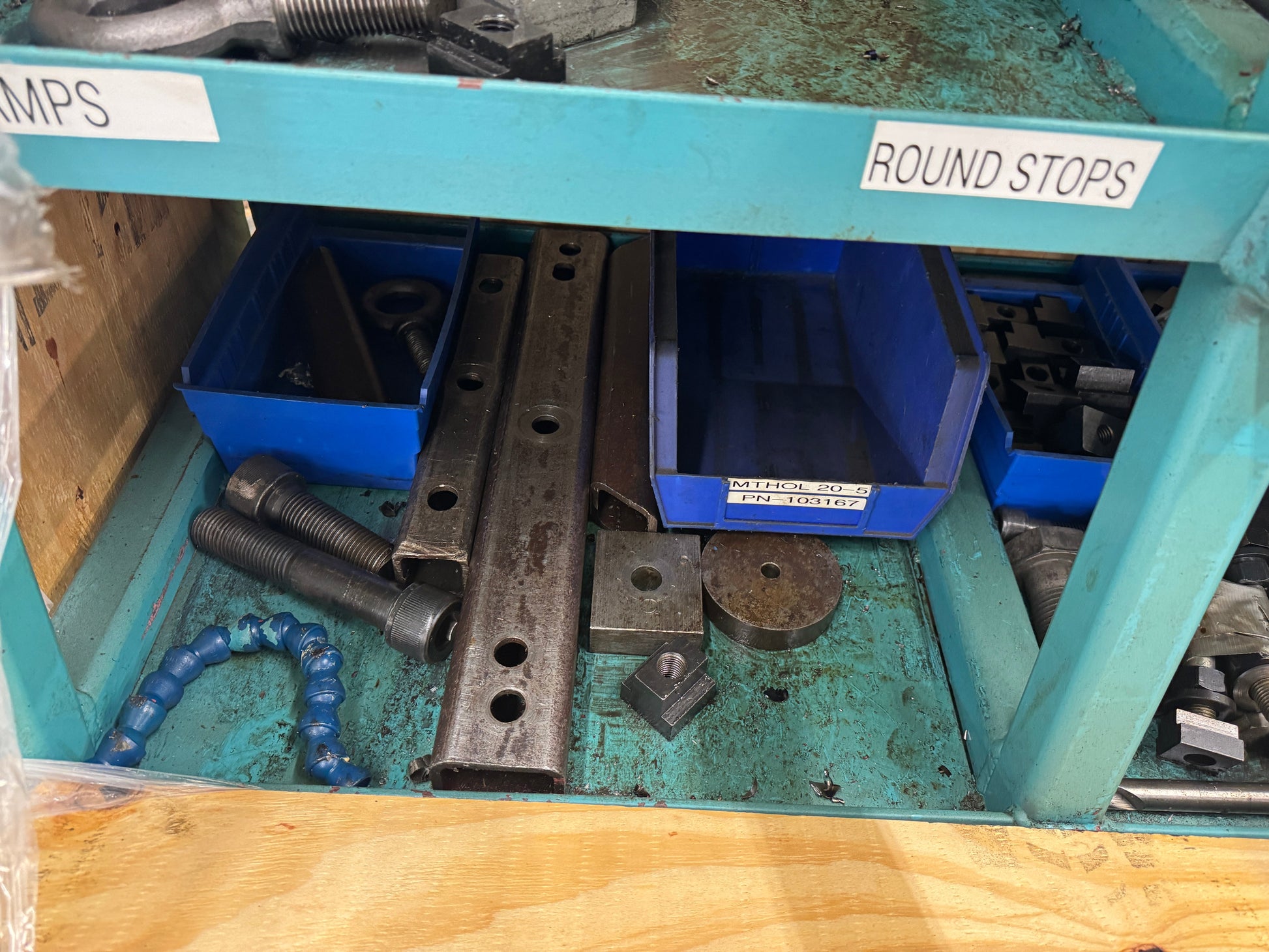

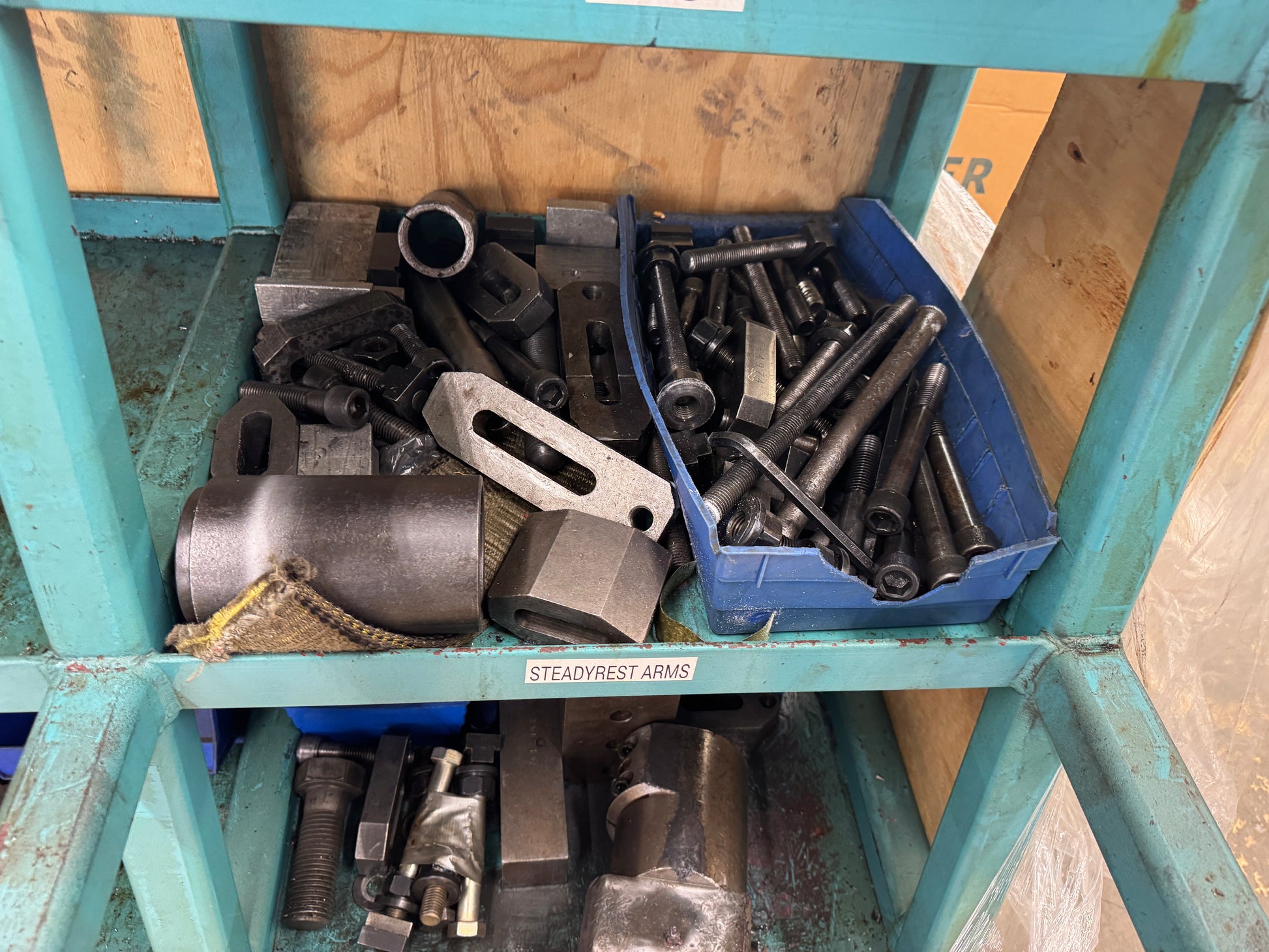

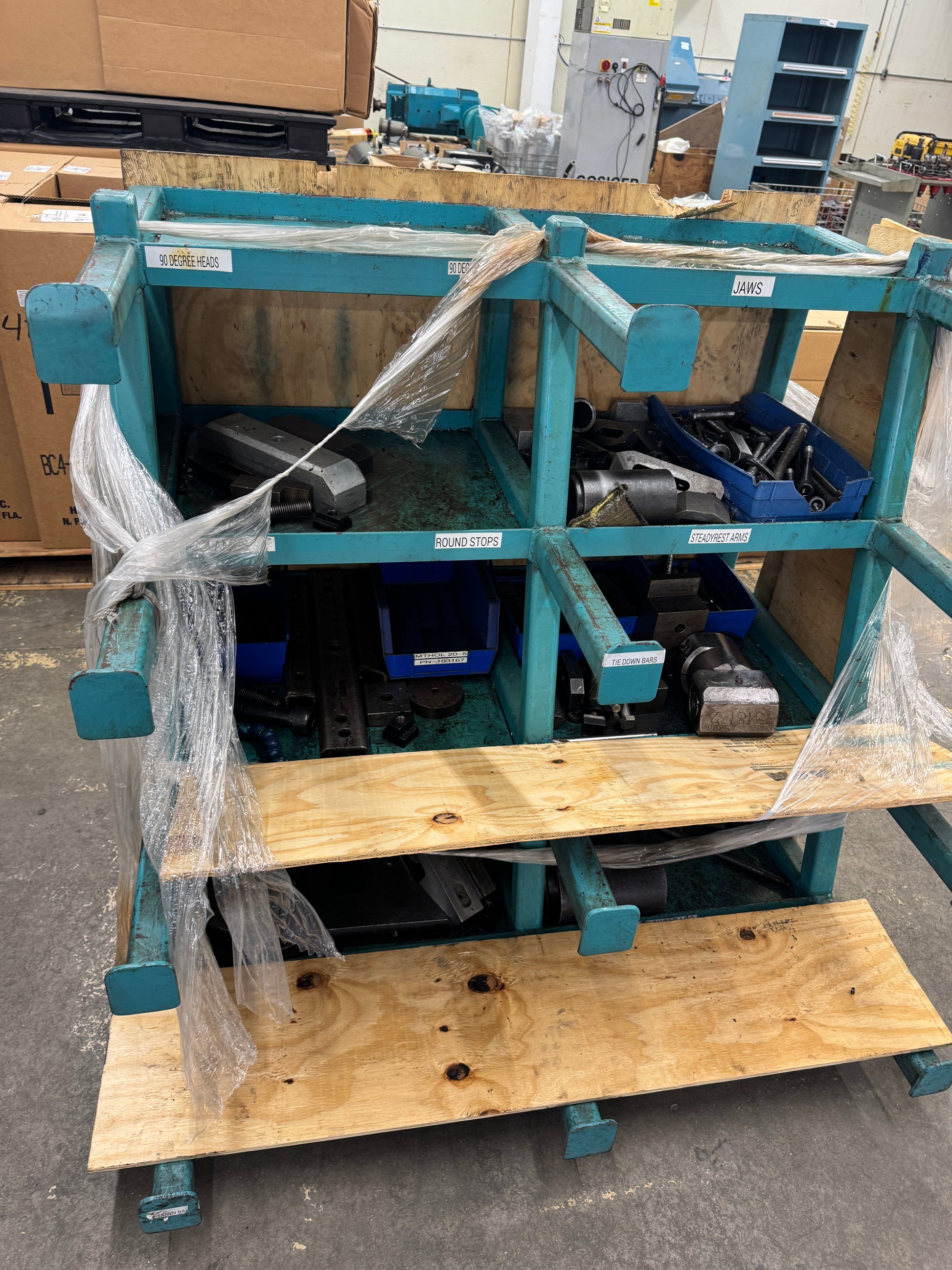

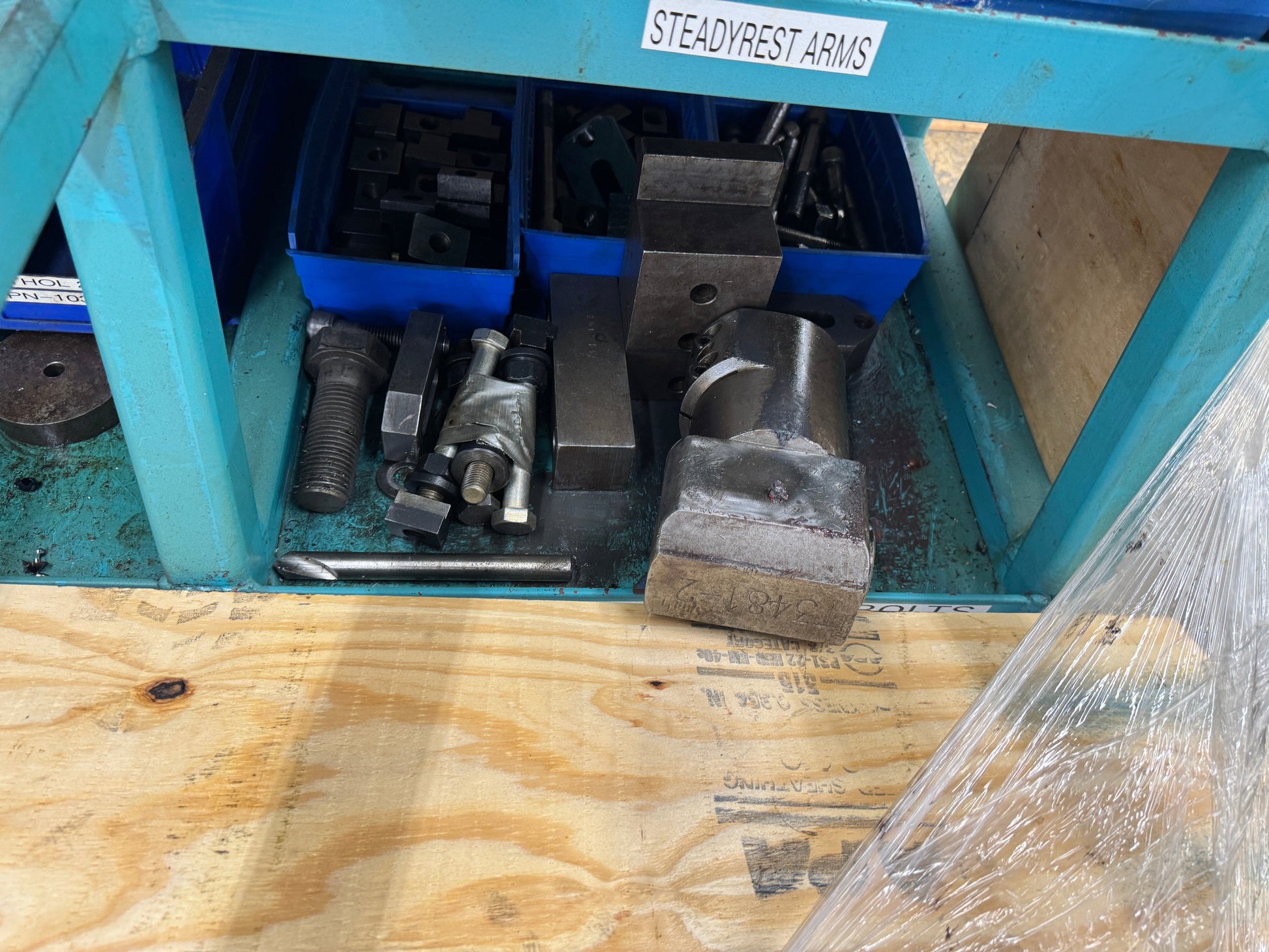

The accessories crate is a steel-framed storage unit with labeled compartments containing: JAWS, ROUND STOPS, STEADYREST ARMS, TIE DOWN BARS, 90 DEGREE HEADS, BOLTS, and CLAMPS. One blue bin is labeled MTHOL 20-5 / PN-103167. Contents include T-slot bolts, step clamps, round stop discs, angle plates, tie-down bar stock, and various fasteners.

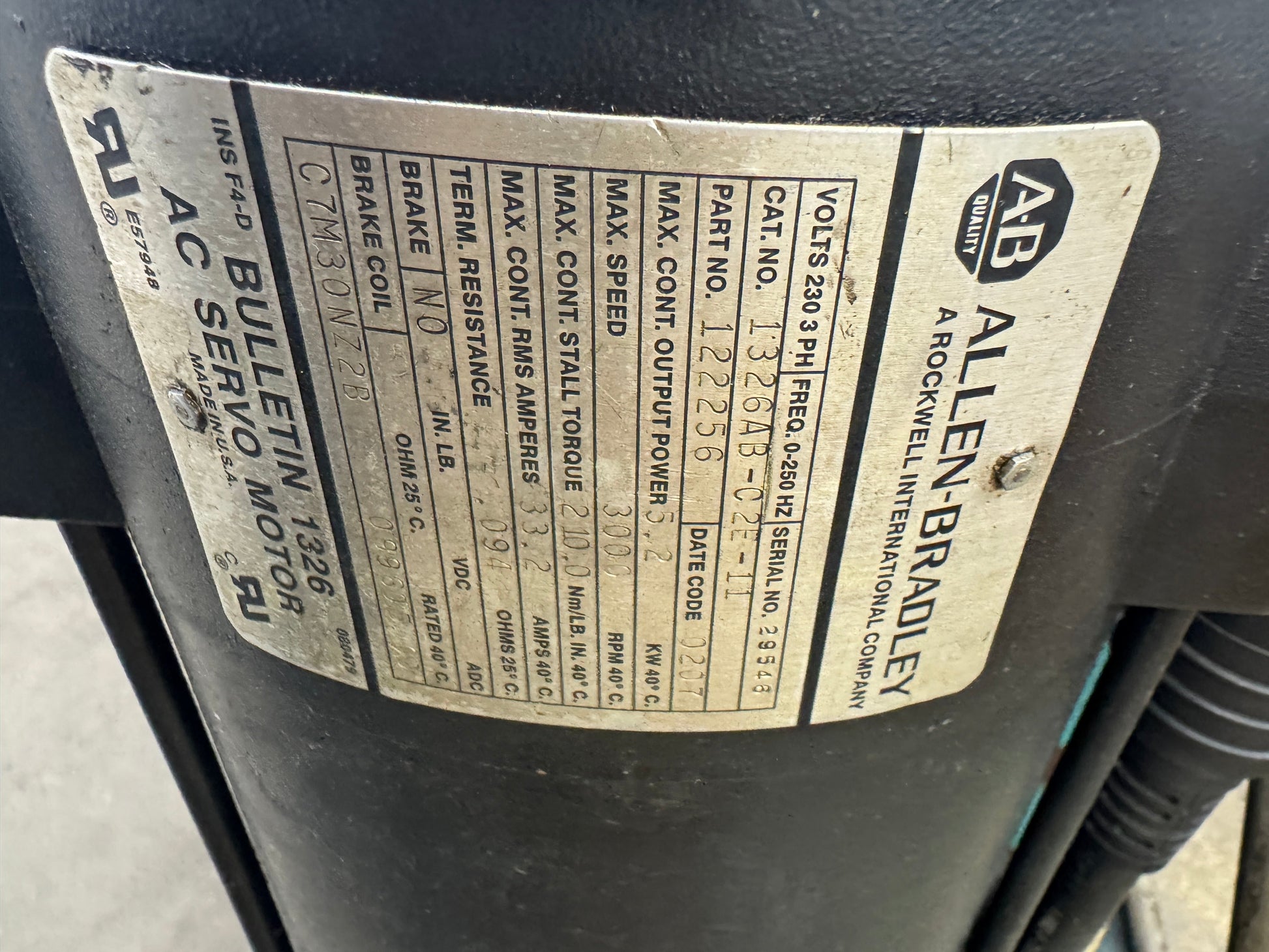

The Allen-Bradley 1326AB-C2E-11 servo motor nameplate data: 230V 3-phase, 0-250 Hz frequency range, 5.2 kW max continuous output power at 40 degrees C, 3000 RPM max speed at 40 degrees C, 210.0 Nm/lb-in max continuous stall torque at 40 degrees C, 33.2 A max continuous RMS amperes at 40 degrees C, 0.094 ohm terminal resistance at 25 degrees C, no brake, Serial No. 29348, Brake Coil C7M30N272B. Made in USA. Rated INS F4-D. UL listed E57948.
No calibration documentation, test records, or machine builder traceability labels are visible. Buyer is responsible for verifying complete inventory of accessories crate contents prior to purchase.
