Troyke Motorized Rotary Table U-25-P
Troyke Motorized Rotary Table U-25-P
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

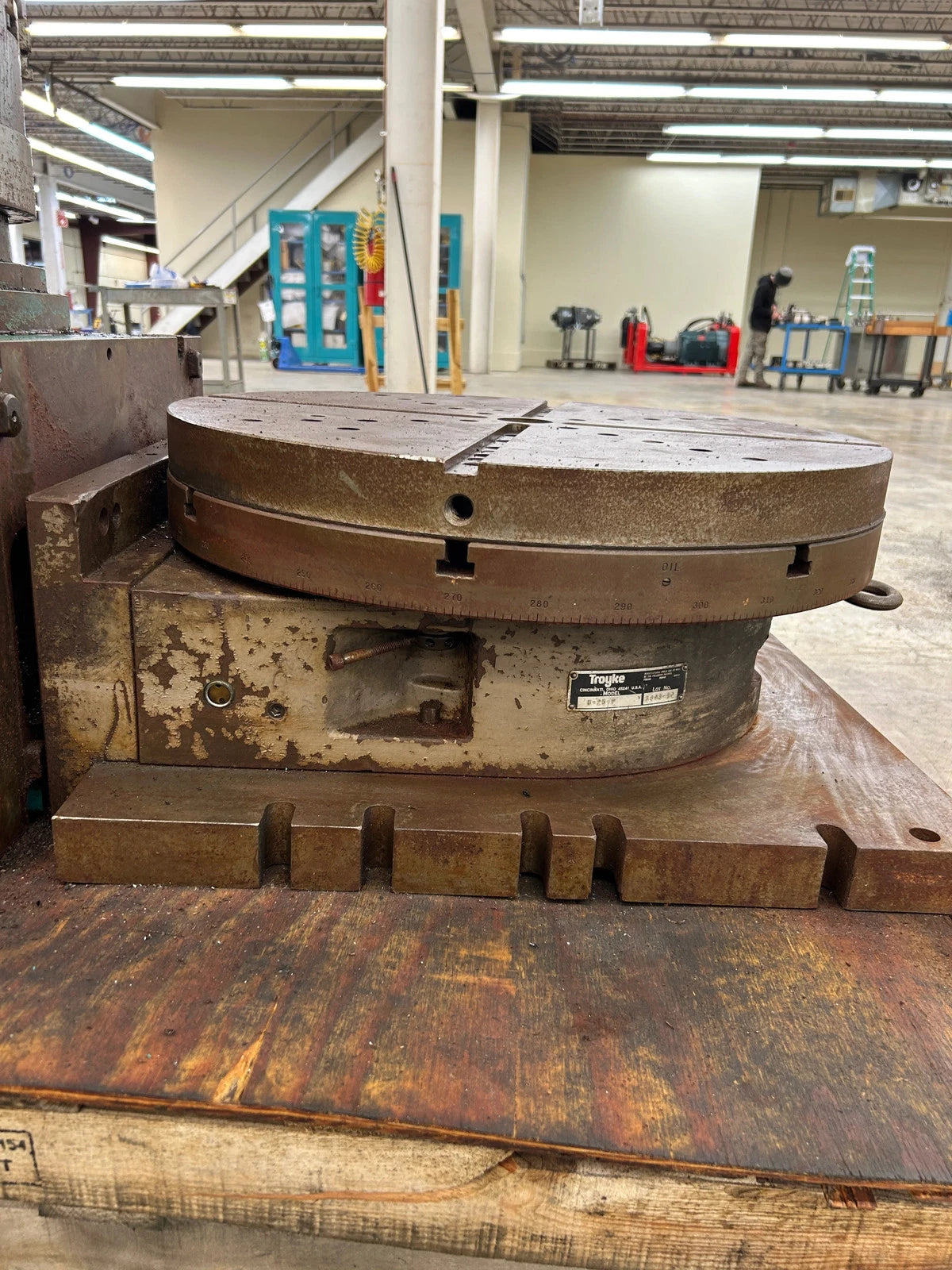

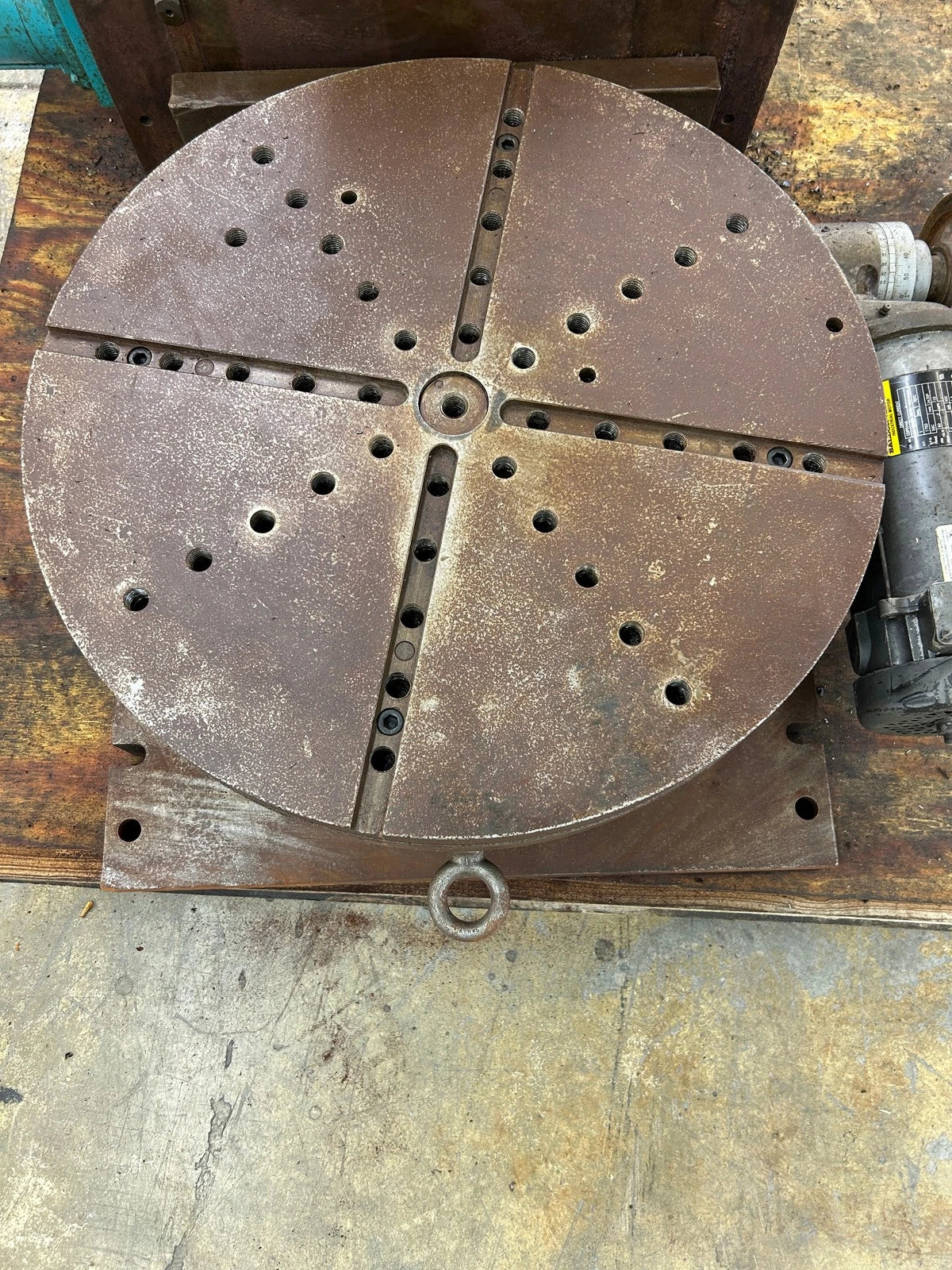

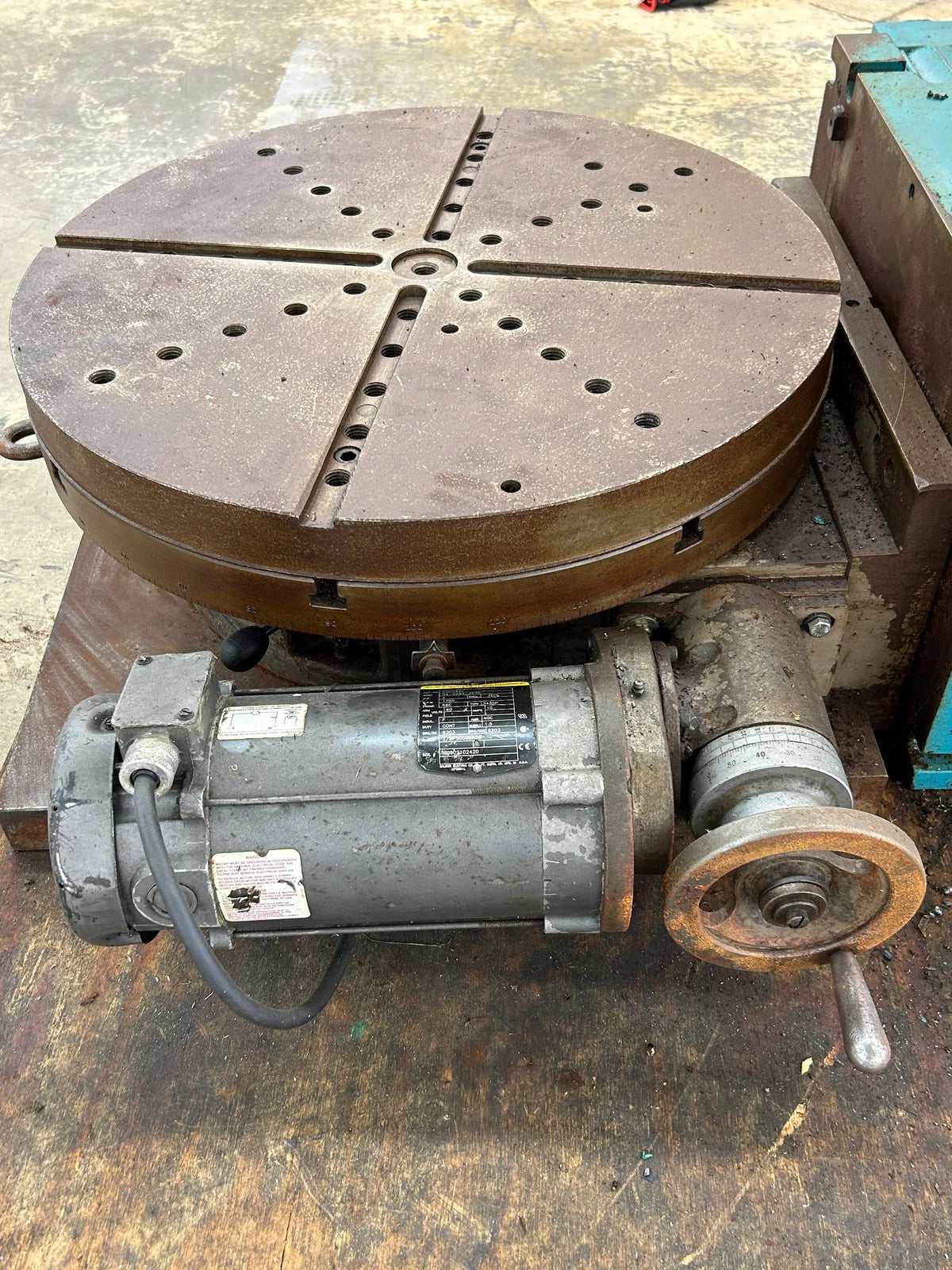

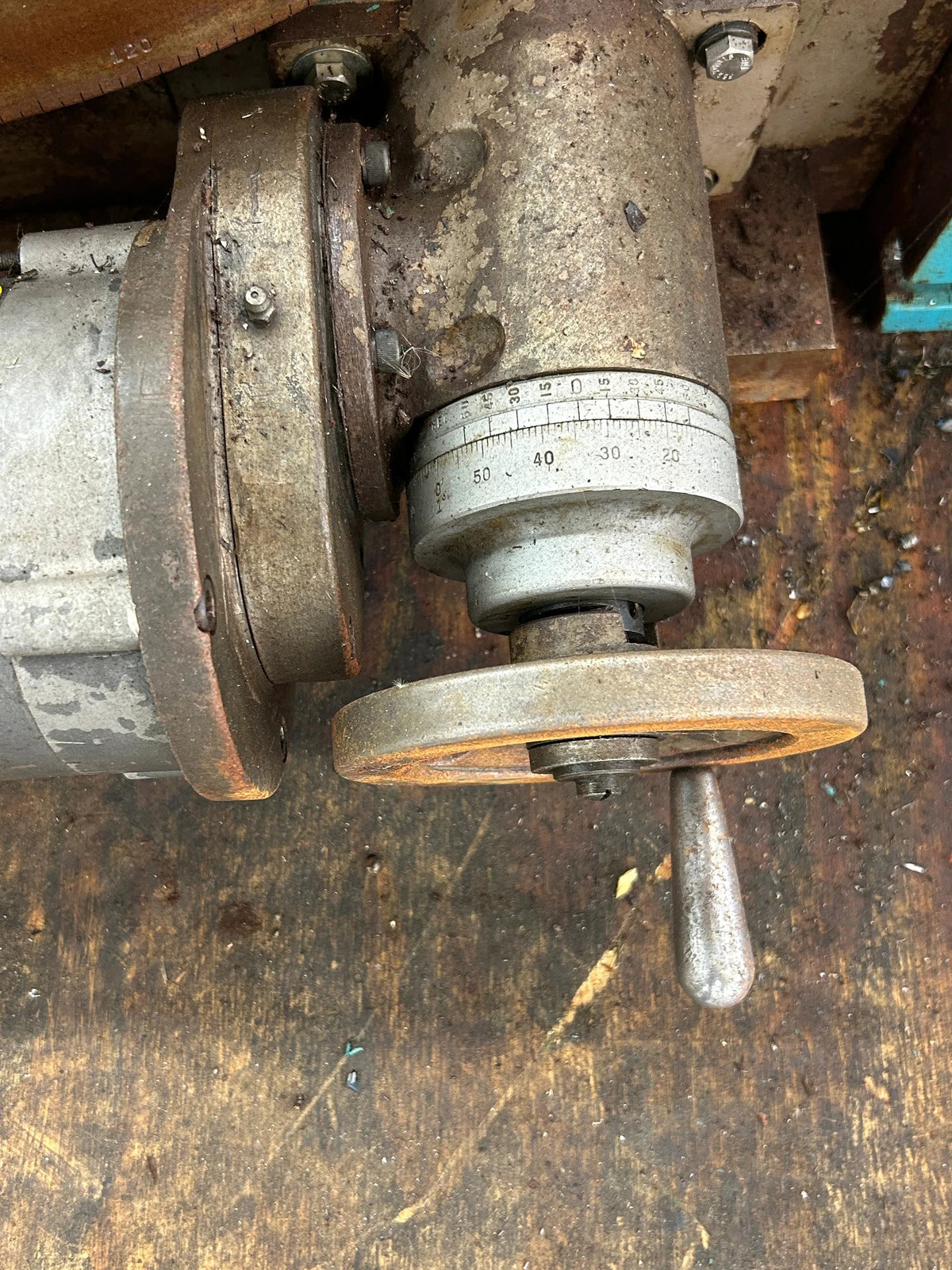

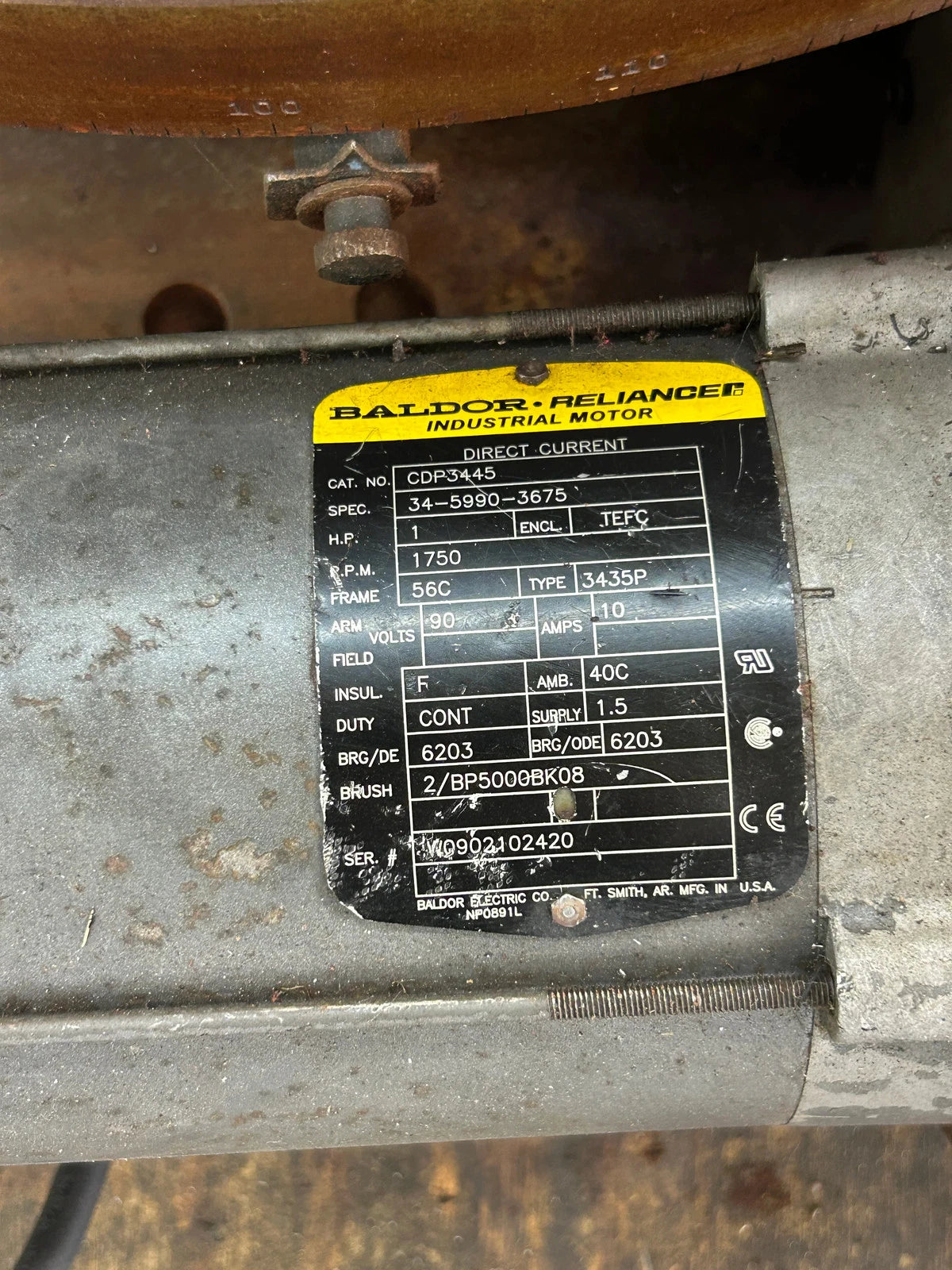

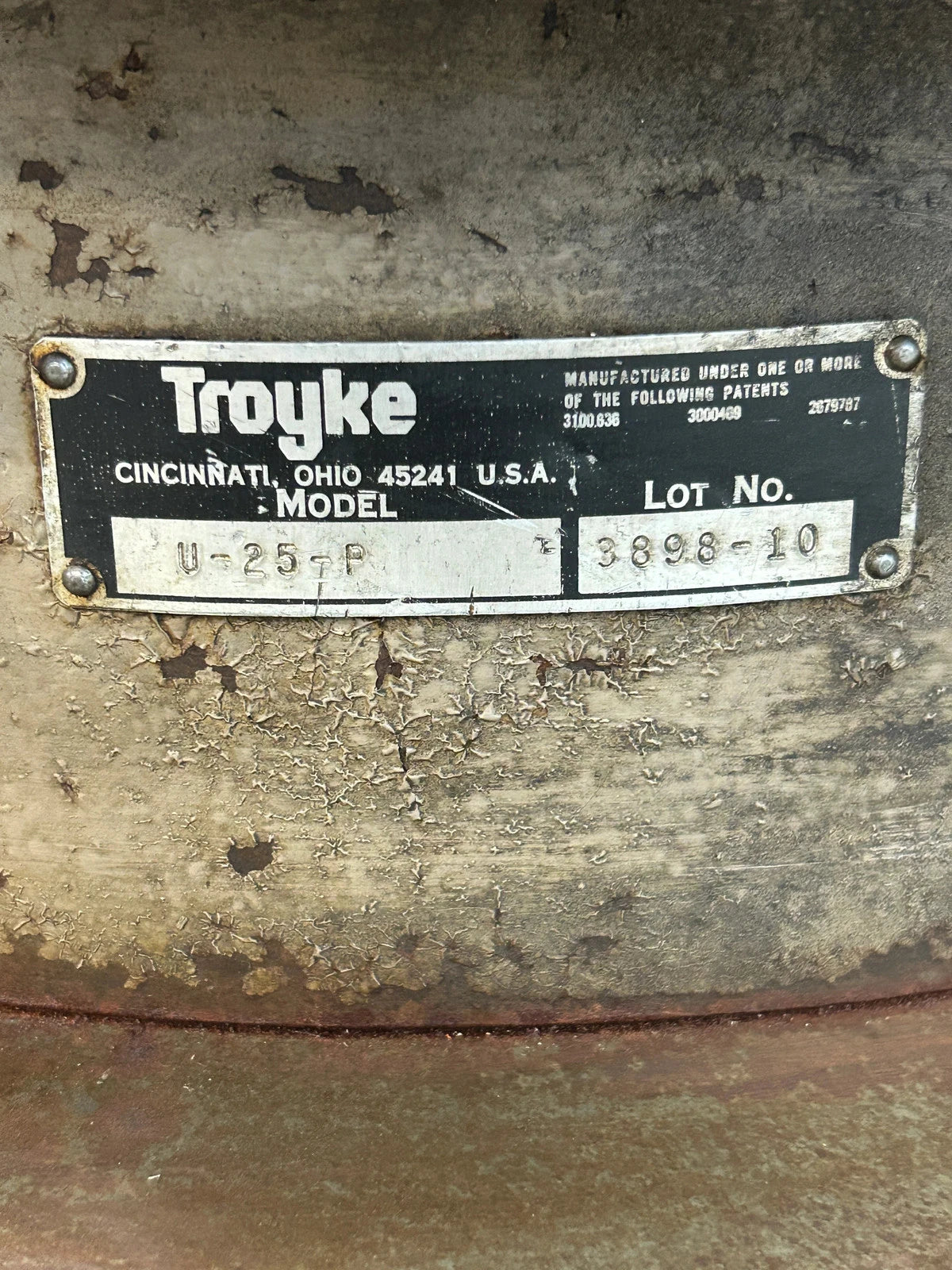

A motorized rotary table from Troyke Manufacturing Company of Cincinnati, Ohio, model U-25-P, Lot No. 3898-10. Troyke precision rotary tables are recognized as premium heavy-duty workholding equipment for milling, drilling, and indexing operations. The U-25-P features a 25-inch diameter T-slotted faceplate with four T-slots arranged in a cross pattern and a center bore, providing versatile workholding for large-diameter workpieces. The faceplate supports 360-degree continuous rotation and is graduated with a degree scale visible around the circumference of the table body. The table is mounted on a substantial base with T-slots for machine table mounting. Power is supplied by a Baldor-Reliance industrial DC motor, Cat. No. CDP3445, Spec. 34-5990-3675, rated at 1 HP, 1750 RPM, 90V armature, Frame 56C, TEFC enclosure, Type 3435P, Serial No. 1W0902102420. The drive includes a handwheel and graduated dial for manual fine positioning. A degree ring with minute graduations is visible on the input shaft assembly. The unit is capable of both horizontal and vertical mounting configurations. Lot No. 3898-10 is recorded on the nameplate for traceability. Patents 3100638, 3000469, and 2879787 are referenced on the Troyke nameplate.
Stock # 0426-00308
