Sandvik Coromant Clamping Unit C5-TRI-BT65A | BMT65 | Capto C5 Workpiece Connection | Orientation: Radial | Coolant Through 01206
Sandvik Coromant Clamping Unit C5-TRI-BT65A | BMT65 | Capto C5 Workpiece Connection | Orientation: Radial | Coolant Through 01206
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: C5-TRI-BT65A
Stock #: 0426-01206

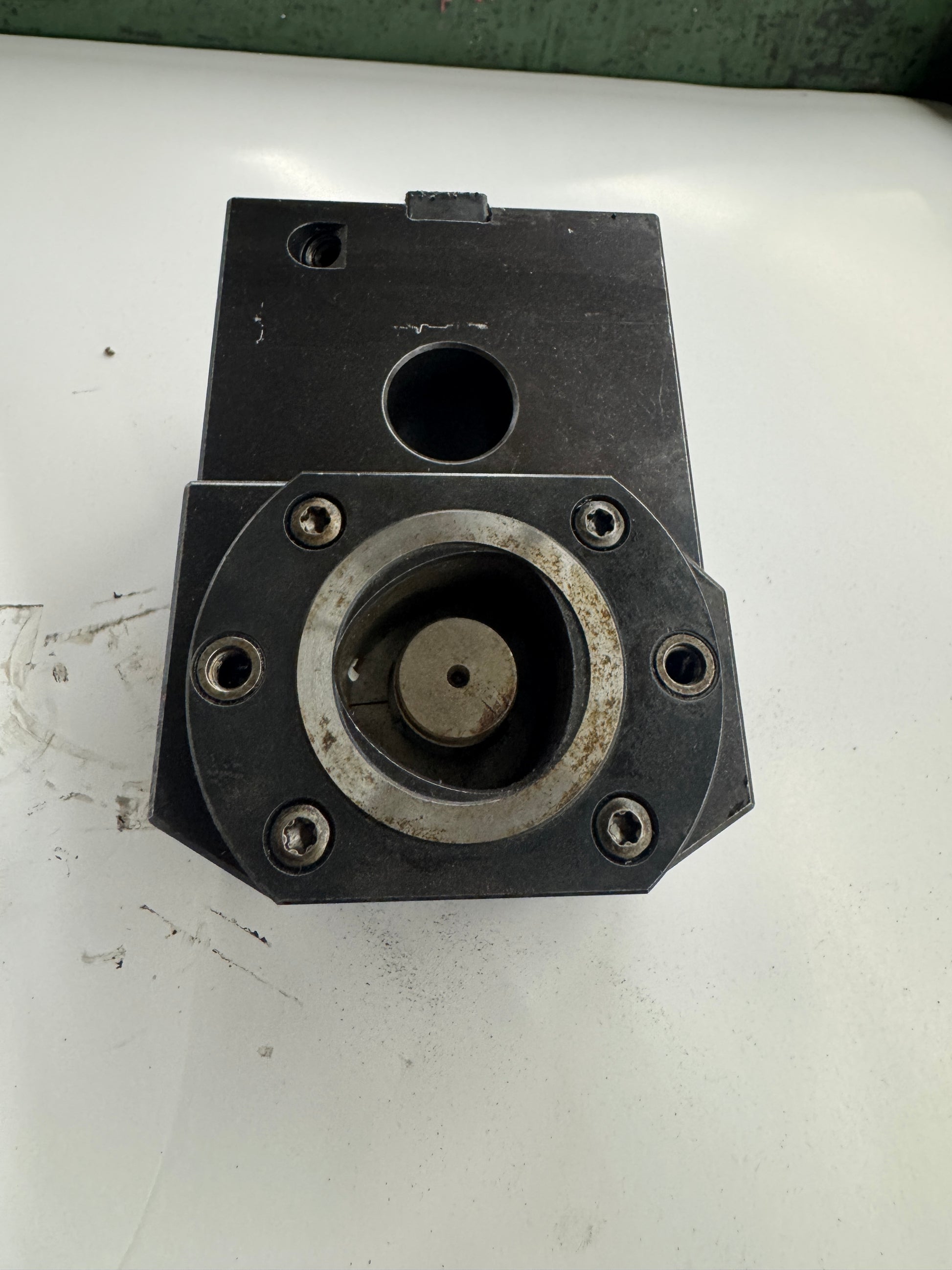

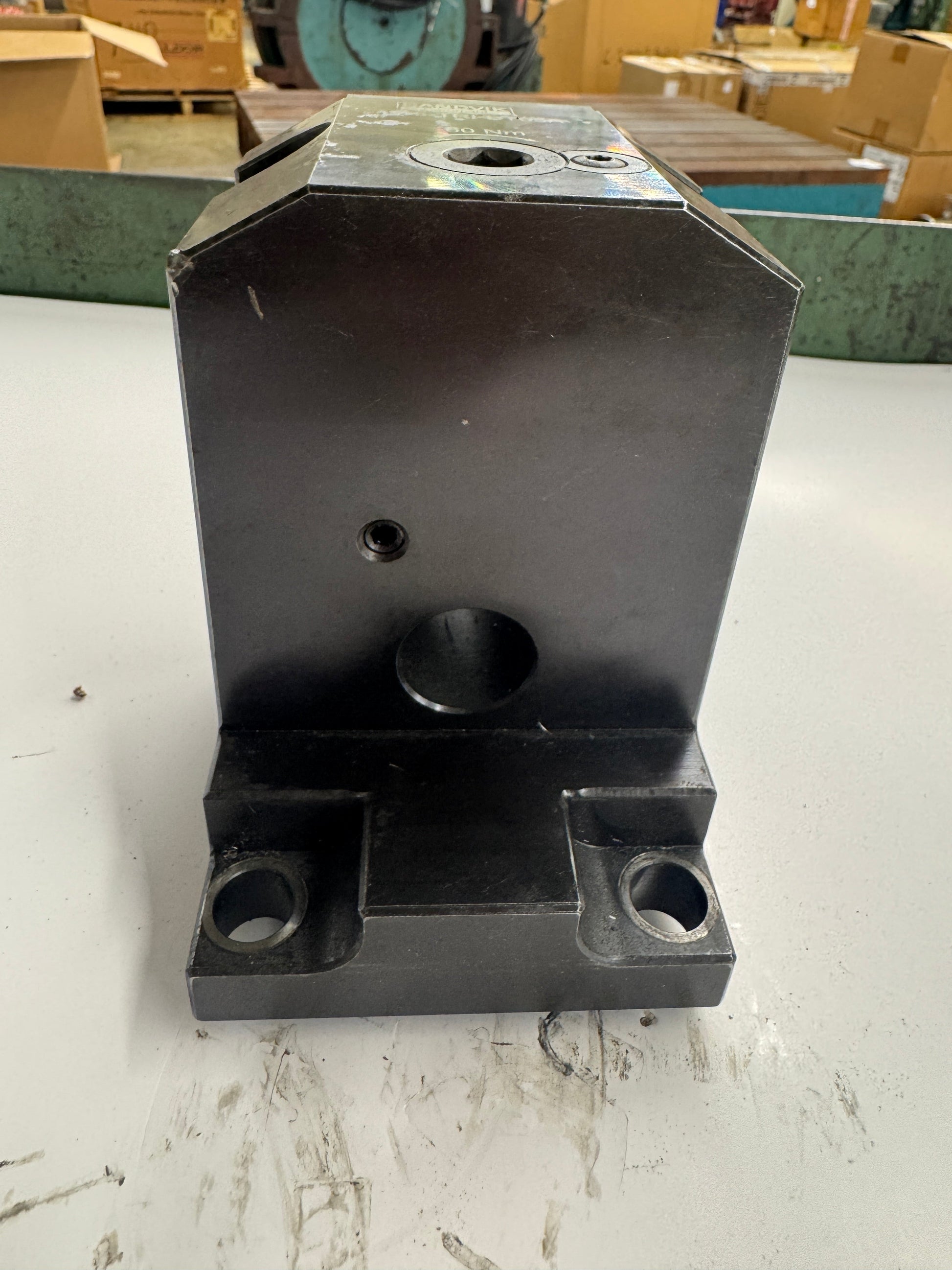

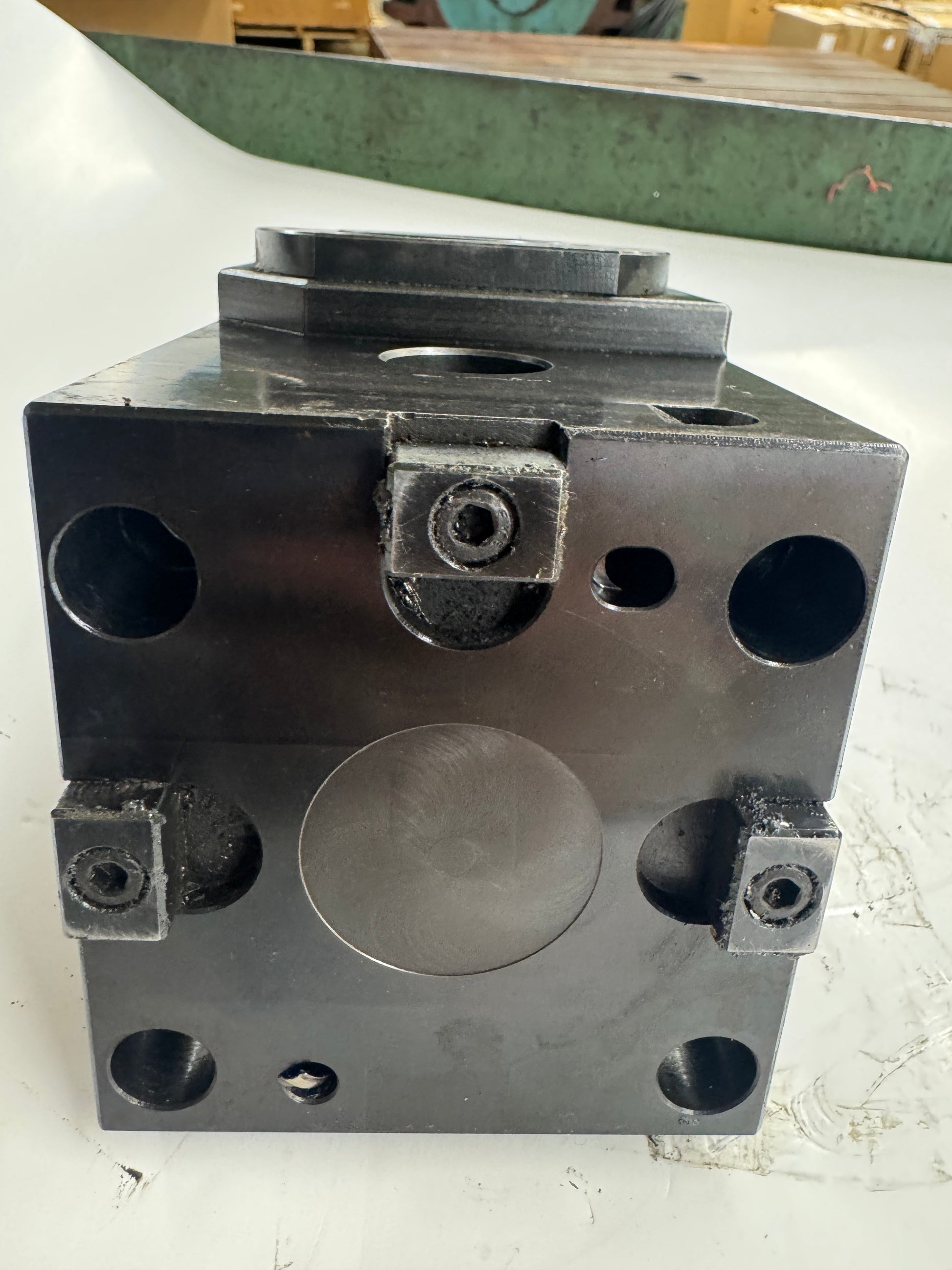

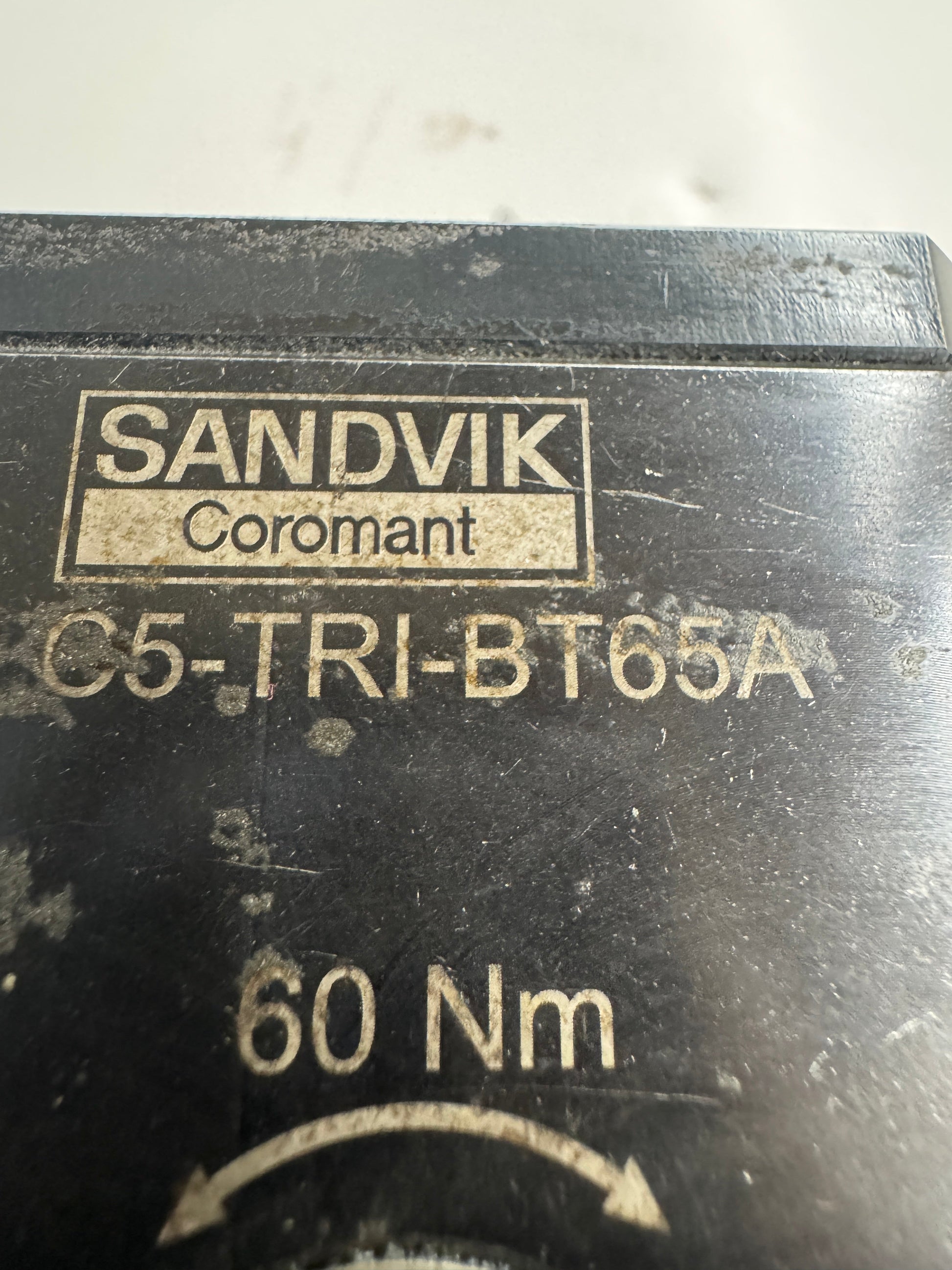

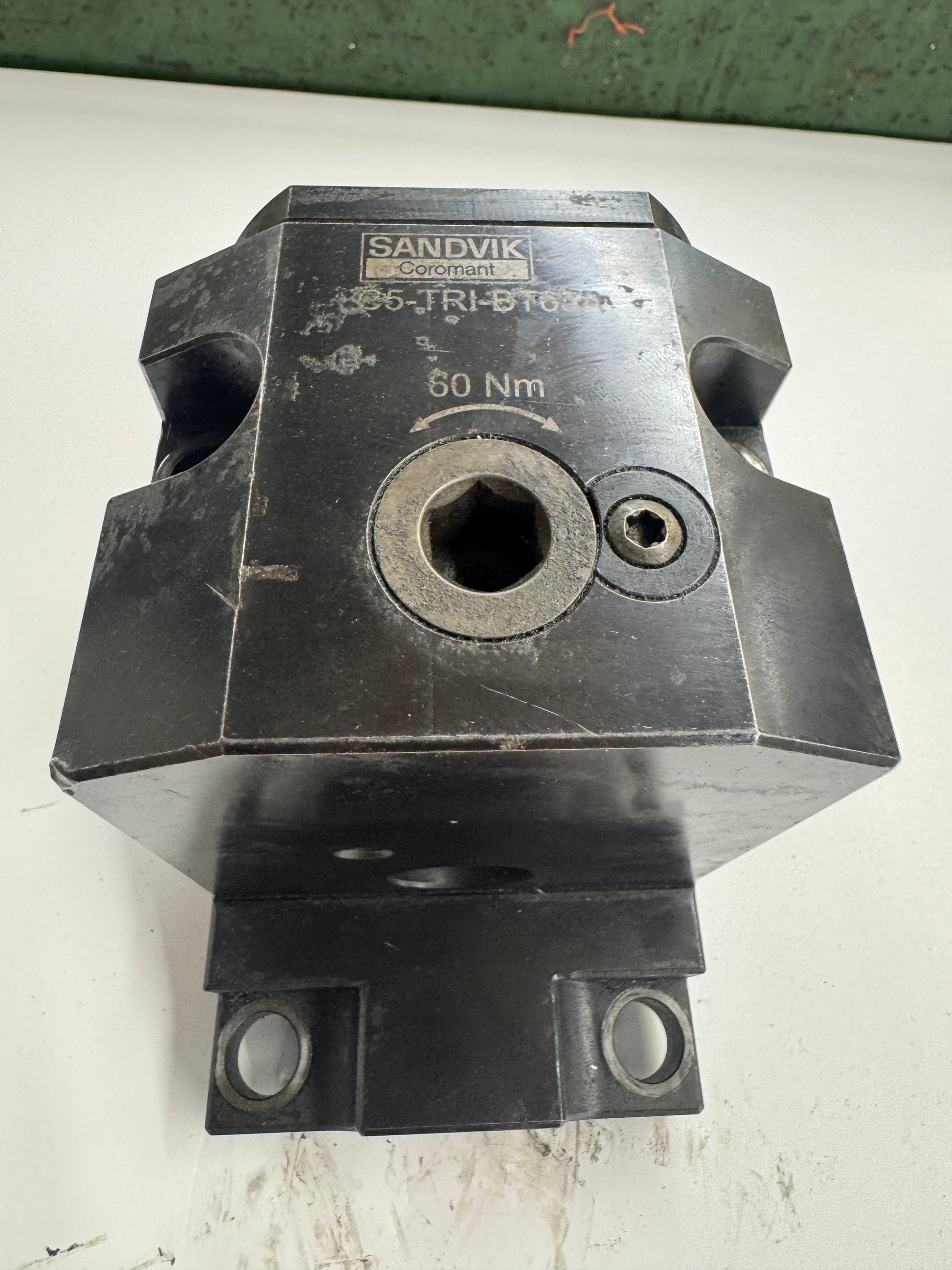

Used in CNC turning centers equipped with BMT65 non-driven turret interfaces, the Sandvik Coromant C5-TRI-BT65A is a manual clamping unit that adapts Coromant Capto C5 tooling to the BMT65 turret bolt pattern. The right-hand orientation is indicated by the TRI designation in the part number. The clamping mechanism uses a hex-drive actuation torqued to 60 Nm as marked on the face of the unit, with two workpiece-side Capto C5 connections in a linear arrangement. The body is a hardened steel construction with a bolt-down base featuring two precision-bored locating pin bores for repeatable turret registration. Coolant delivery is supported through the unit. The BMT65 machine-side interface is compatible with a range of CNC lathe platforms that utilize the BMT65 bolt pattern, including Doosan, Leadwell, and other BMT65-configured turning centers. The Sandvik Coromant Coromant Capto system allows for quick-change tool setup and is widely adopted in high-production turning environments for its rigidity and repeatability. No serial number or date code is visible in the available photos. Condition details are as photographed.
Stock # 0426-01206
