Siemens Contactor 3TF5222-0AK6
Siemens Contactor 3TF5222-0AK6
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 3TF5222-0AK6
Stock #: 0226-00707

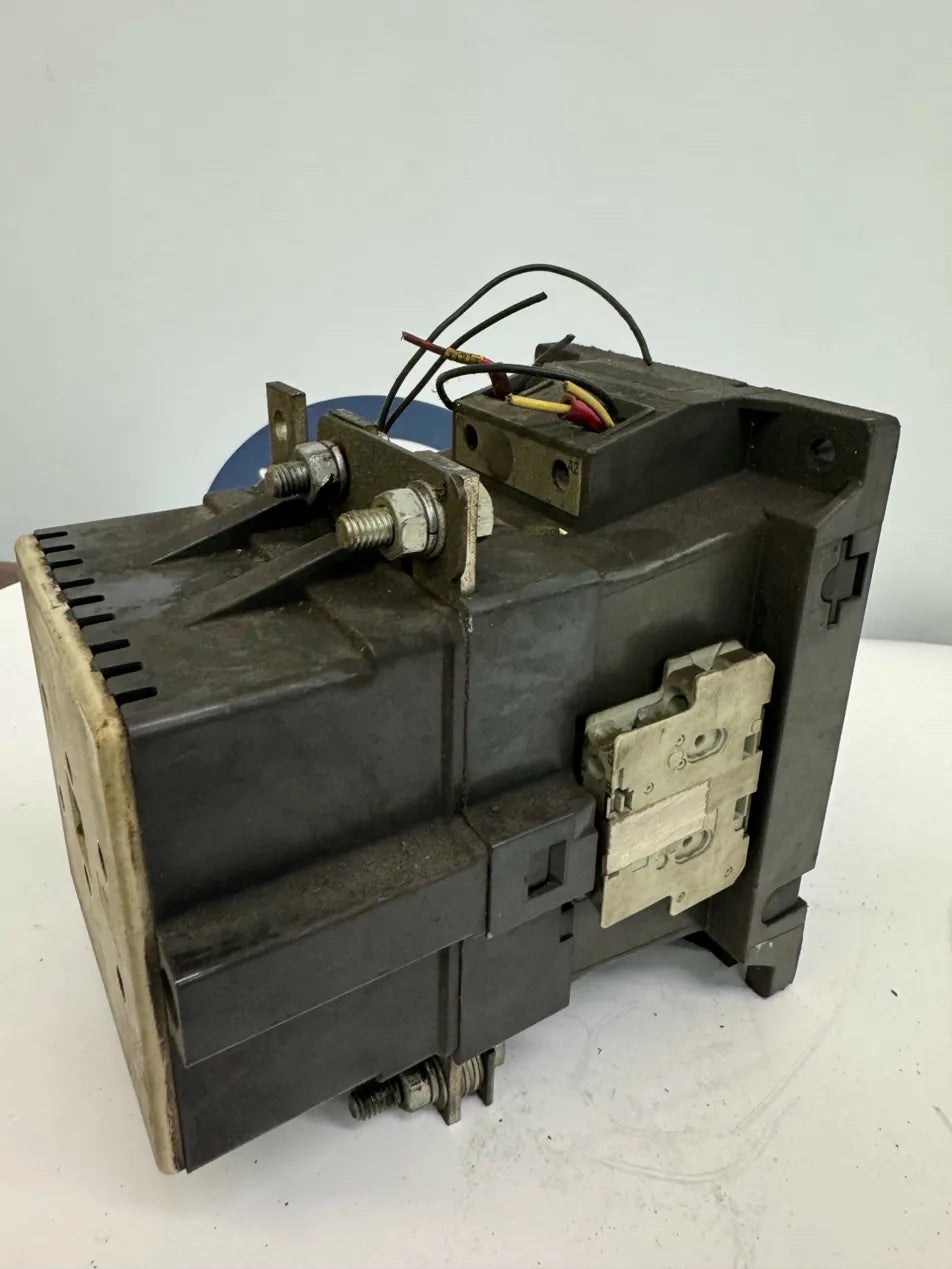

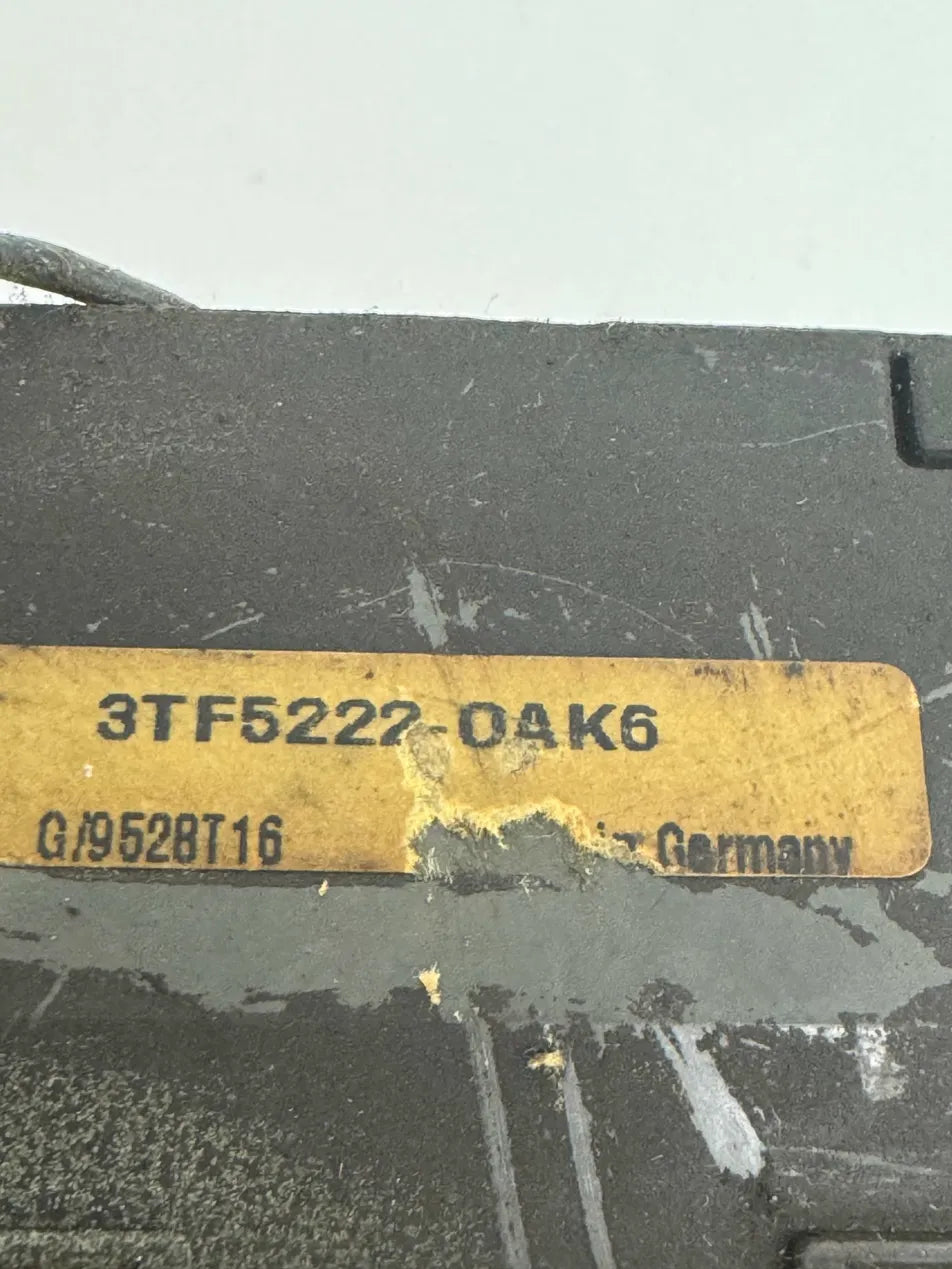

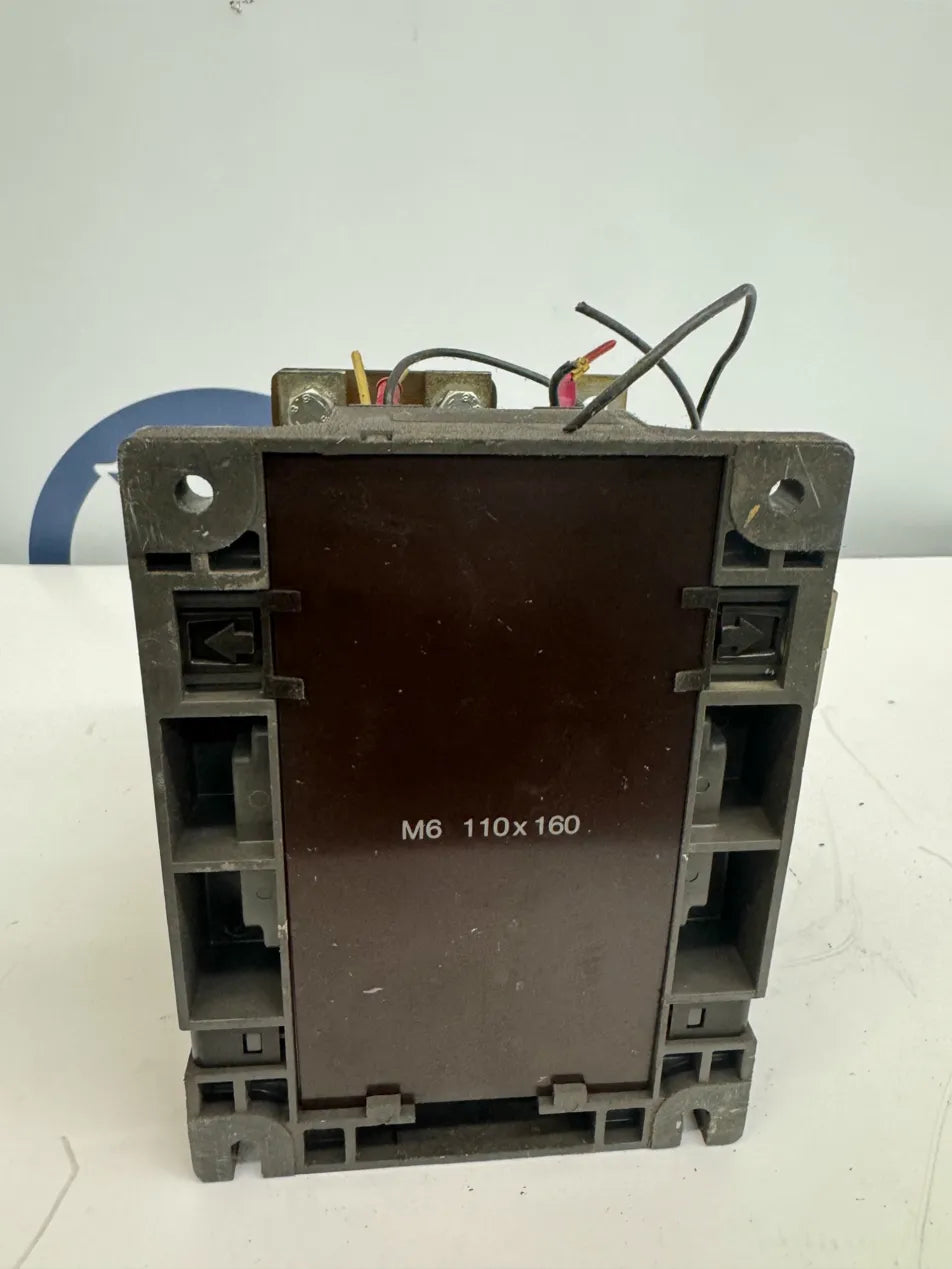

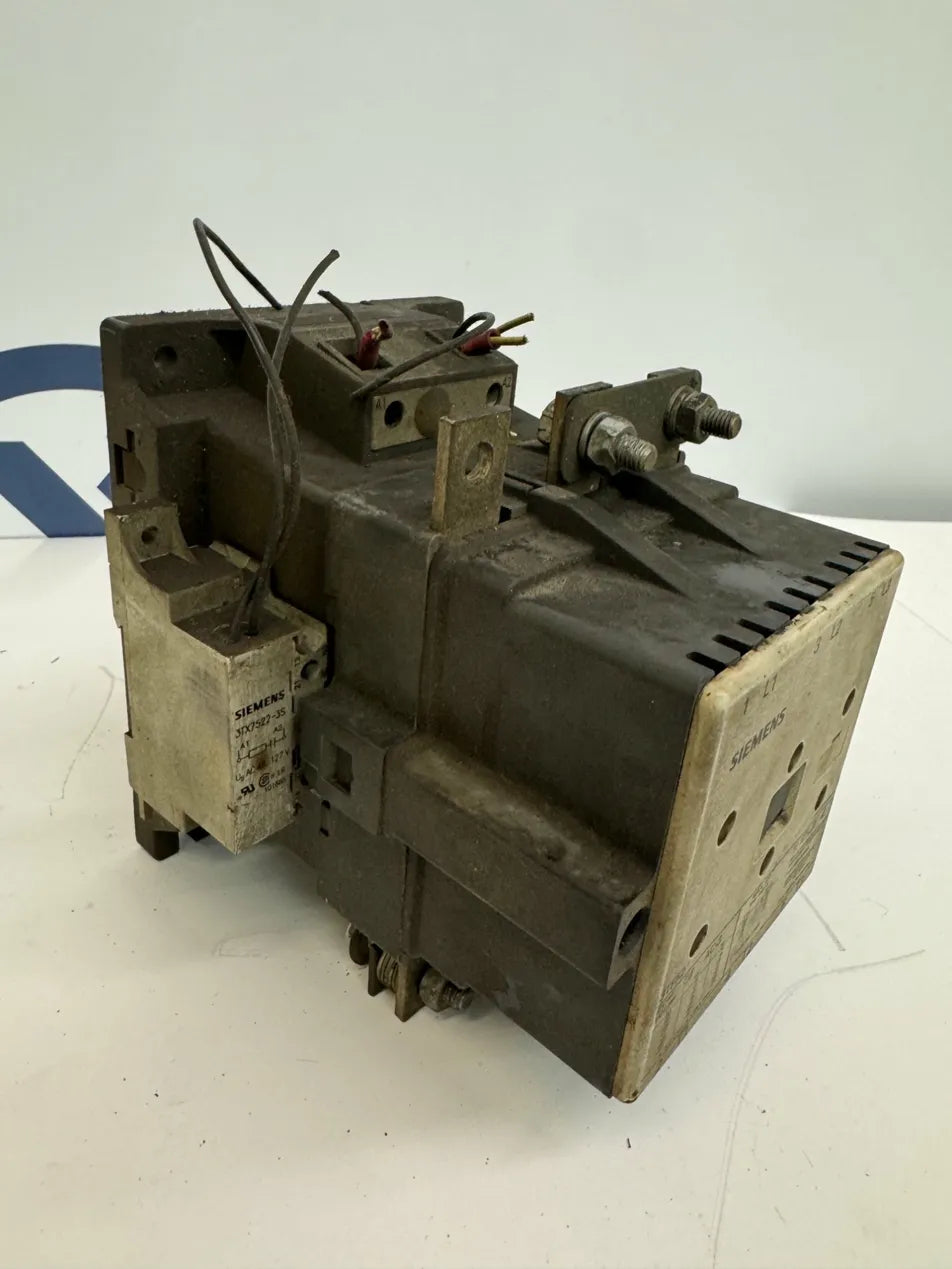

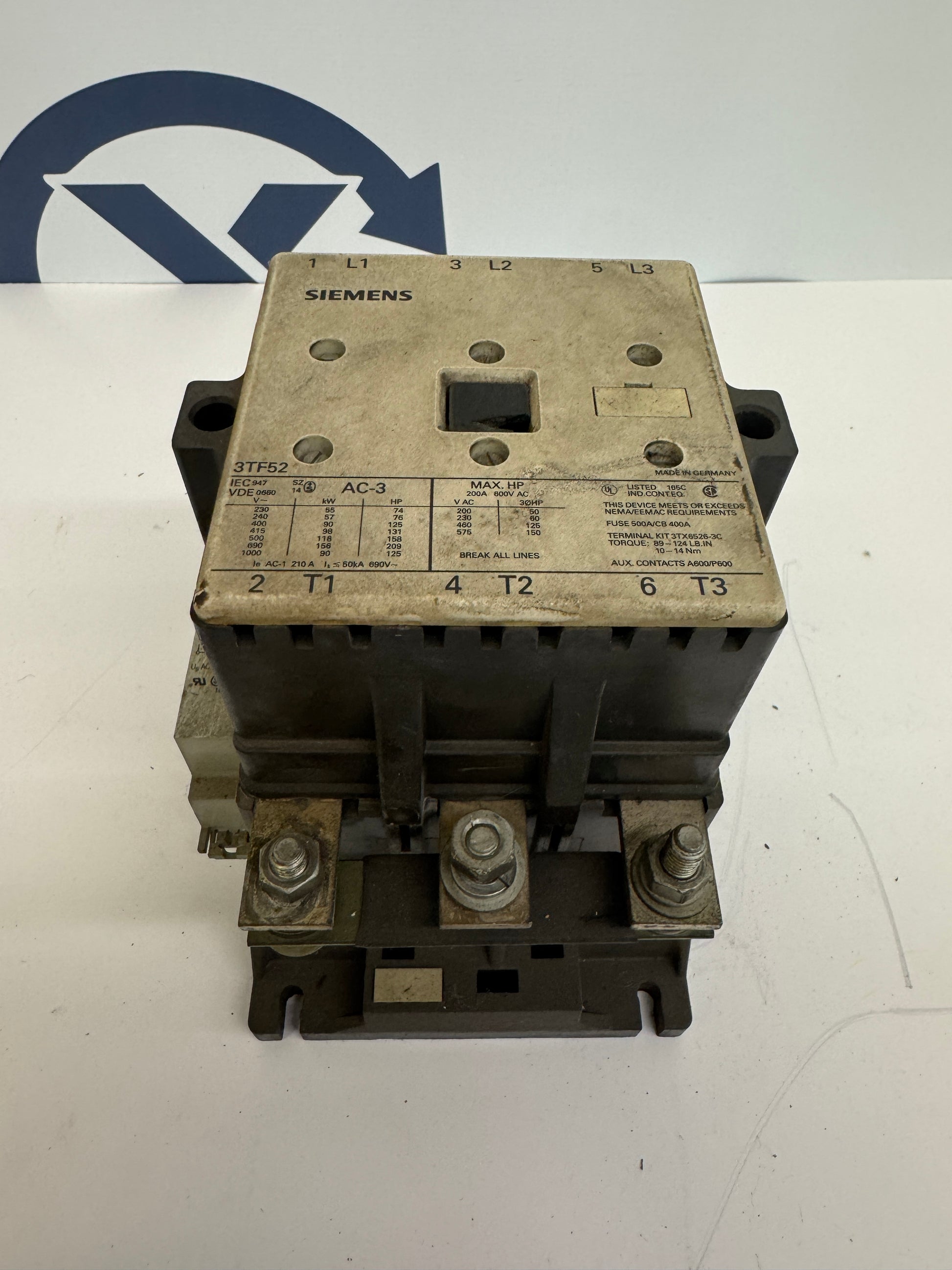

Used in industrial motor control applications, the Siemens 3TF5222-0AK6 is a 3-pole IEC-rated AC magnetic contactor from the Siemens 3TF52 World Series. It carries a main contact rating of 170 amps at 600V AC and is suitable for AC-3 duty cycle applications. The operating coil is rated at 120V AC at 60Hz and 110V AC at 50Hz. The unit includes 2 normally open and 2 normally closed auxiliary contacts, as confirmed by the visible 3TF5222-0AK6 label on the nameplate. Per published Siemens specifications, the contactor is rated for 65 HP at 230V, 125 HP at 460V, and 150 HP at 575V in three-phase service. Main power terminals are labeled L1, L2, L3 (input) and T1, T2, T3 (output). The unit features DIN rail compatible mounting feet and heavy cast housing construction consistent with the 3TF52 frame size. An auxiliary contact block is visibly attached to the side of the assembly. The coil sub-module shown in the photos carries the label 3TX7522-3S, consistent with the 110/120V AC coil configuration for this frame. Manufactured in Germany, serial code G/9528T16 is visible on the product label. This item is a discontinued part number per Siemens and is no longer available through standard OEM distribution channels.
Stock # 0226-707
